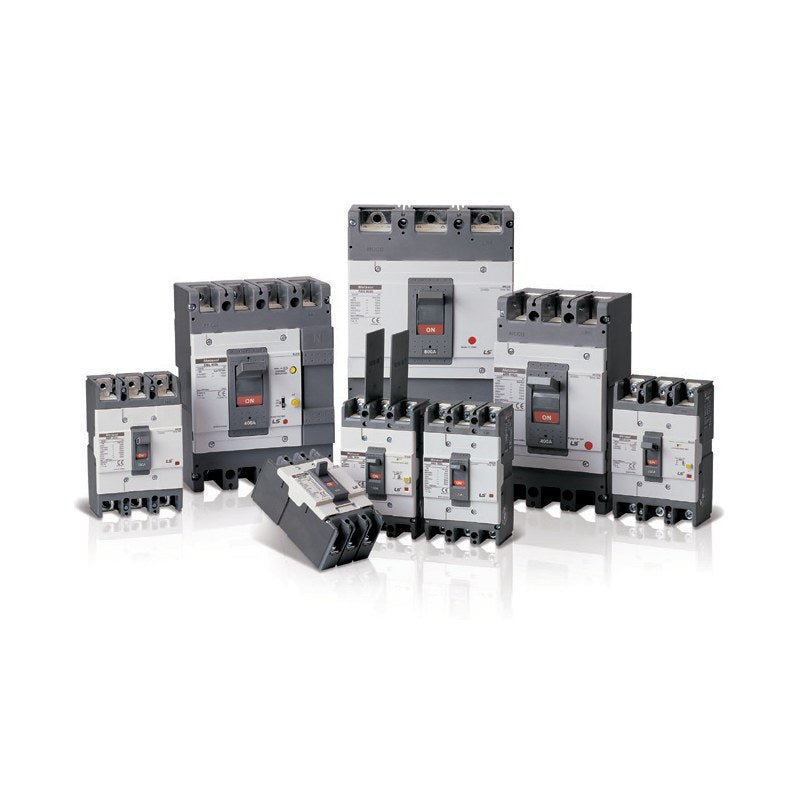

LS Electric Metasol ABN MCCB 50-250AF (N-type, 15-250 A)

LS Electric Metasol ABN MCCB 50-250AF (N-type, 15-250 A)

LS Electric Metasol ABN N-type (standard) molded case circuit breakers, 50-250AF frames, 15-250 A in 2, 3 and 4 poles for line and equipment protection.

Key features

  • Frames 50AF (ABN50c), 60AF (ABN60c), 100AF (ABN100c/d/e) and 250AF (ABN250c)
  • Icu at 460 V: 50AF/60AF 14 kA, 100AF 18 kA (c), 26 kA (d) or 31 kA (e), 250AF 26 kA
  • Thermal-magnetic overcurrent trip; same outline and mounting as Metasol ELCBs
  • Shared Metasol internal accessories (AX, AL, SHT, UVT) and external accessories
  • Plug-in, rear connection, rotary handle and motor operator options available

Specifications

Breaking class N-type (standard)
Rated operational voltage (Ue) AC 690 V, DC 500 V (reference), 50/60 Hz
Rated insulation / impulse voltage Ui 1000 V, Uimp 8 kV
Overcurrent trip Thermal-magnetic
Connection Front connection (rear and plug-in optional)
Neutral (4-pole) 4P3E, N-pole current max. 50% of In
Ics 100% Icu
Standards KS C 8321, IEC 60947-2
Source LS Electric Metasol MCCB/ELCB catalog C01031-34 (2025-01), p. 2-1 to 2-2, 5-5 to 5-16
ABN52c/15 Frame: 50AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/15 Frame: 50AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/15 Frame: 50AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/16 Frame: 50AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/16 Frame: 50AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/16 Frame: 50AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/20 Frame: 50AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/20 Frame: 50AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/20 Frame: 50AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/25 Frame: 50AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/25 Frame: 50AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/25 Frame: 50AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/30 Frame: 50AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/30 Frame: 50AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/30 Frame: 50AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/32 Frame: 50AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/32 Frame: 50AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/32 Frame: 50AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/40 Frame: 50AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/40 Frame: 50AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/40 Frame: 50AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/50 Frame: 50AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/50 Frame: 50AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/50 Frame: 50AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/15 Frame: 60AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/15 Frame: 60AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/15 Frame: 60AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/16 Frame: 60AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/16 Frame: 60AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/16 Frame: 60AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/20 Frame: 60AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/20 Frame: 60AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/20 Frame: 60AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/25 Frame: 60AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/25 Frame: 60AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/25 Frame: 60AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/30 Frame: 60AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/30 Frame: 60AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/30 Frame: 60AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/32 Frame: 60AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/32 Frame: 60AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/32 Frame: 60AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/40 Frame: 60AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/40 Frame: 60AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/40 Frame: 60AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/50 Frame: 60AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/50 Frame: 60AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/50 Frame: 60AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/60 Frame: 60AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/60 Frame: 60AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/60 Frame: 60AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABN102c/15 Frame: 100AF (c version) | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/15 Frame: 100AF (c version) | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/15 Frame: 100AF (c version) | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/16 Frame: 100AF (c version) | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/16 Frame: 100AF (c version) | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/16 Frame: 100AF (c version) | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/20 Frame: 100AF (c version) | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/20 Frame: 100AF (c version) | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/20 Frame: 100AF (c version) | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/25 Frame: 100AF (c version) | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/25 Frame: 100AF (c version) | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/25 Frame: 100AF (c version) | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/30 Frame: 100AF (c version) | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/30 Frame: 100AF (c version) | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/30 Frame: 100AF (c version) | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/32 Frame: 100AF (c version) | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/32 Frame: 100AF (c version) | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/32 Frame: 100AF (c version) | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/40 Frame: 100AF (c version) | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/40 Frame: 100AF (c version) | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/40 Frame: 100AF (c version) | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/50 Frame: 100AF (c version) | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/50 Frame: 100AF (c version) | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/50 Frame: 100AF (c version) | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/60 Frame: 100AF (c version) | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/60 Frame: 100AF (c version) | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/60 Frame: 100AF (c version) | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/63 Frame: 100AF (c version) | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/63 Frame: 100AF (c version) | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/63 Frame: 100AF (c version) | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/75 Frame: 100AF (c version) | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/75 Frame: 100AF (c version) | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/75 Frame: 100AF (c version) | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/80 Frame: 100AF (c version) | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/80 Frame: 100AF (c version) | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/80 Frame: 100AF (c version) | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/100 Frame: 100AF (c version) | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/100 Frame: 100AF (c version) | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/100 Frame: 100AF (c version) | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102d/15 Frame: 100AF (d version) | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/15 Frame: 100AF (d version) | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/15 Frame: 100AF (d version) | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/16 Frame: 100AF (d version) | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/16 Frame: 100AF (d version) | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/16 Frame: 100AF (d version) | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/20 Frame: 100AF (d version) | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/20 Frame: 100AF (d version) | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/20 Frame: 100AF (d version) | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/25 Frame: 100AF (d version) | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/25 Frame: 100AF (d version) | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/25 Frame: 100AF (d version) | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/30 Frame: 100AF (d version) | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/30 Frame: 100AF (d version) | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/30 Frame: 100AF (d version) | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/32 Frame: 100AF (d version) | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/32 Frame: 100AF (d version) | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/32 Frame: 100AF (d version) | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/40 Frame: 100AF (d version) | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/40 Frame: 100AF (d version) | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/40 Frame: 100AF (d version) | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/50 Frame: 100AF (d version) | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/50 Frame: 100AF (d version) | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/50 Frame: 100AF (d version) | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/60 Frame: 100AF (d version) | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/60 Frame: 100AF (d version) | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/60 Frame: 100AF (d version) | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/63 Frame: 100AF (d version) | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/63 Frame: 100AF (d version) | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/63 Frame: 100AF (d version) | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/75 Frame: 100AF (d version) | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/75 Frame: 100AF (d version) | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/75 Frame: 100AF (d version) | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/80 Frame: 100AF (d version) | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/80 Frame: 100AF (d version) | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/80 Frame: 100AF (d version) | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/100 Frame: 100AF (d version) | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/100 Frame: 100AF (d version) | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/100 Frame: 100AF (d version) | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102e/15 Frame: 100AF (e version) | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/15 Frame: 100AF (e version) | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/15 Frame: 100AF (e version) | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/20 Frame: 100AF (e version) | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/20 Frame: 100AF (e version) | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/20 Frame: 100AF (e version) | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/30 Frame: 100AF (e version) | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/30 Frame: 100AF (e version) | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/30 Frame: 100AF (e version) | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/40 Frame: 100AF (e version) | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/40 Frame: 100AF (e version) | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/40 Frame: 100AF (e version) | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/50 Frame: 100AF (e version) | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/50 Frame: 100AF (e version) | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/50 Frame: 100AF (e version) | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/60 Frame: 100AF (e version) | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/60 Frame: 100AF (e version) | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/60 Frame: 100AF (e version) | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/75 Frame: 100AF (e version) | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/75 Frame: 100AF (e version) | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/75 Frame: 100AF (e version) | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/100 Frame: 100AF (e version) | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/100 Frame: 100AF (e version) | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/100 Frame: 100AF (e version) | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 31 kA / 65 kA
ABN202c/100 Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/100 Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/100 Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/125 Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/125 Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/125 Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/150 Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/150 Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/150 Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/160 Frame: 250AF | Poles: 2P | Rated current: 160 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/160 Frame: 250AF | Poles: 3P | Rated current: 160 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/160 Frame: 250AF | Poles: 4P | Rated current: 160 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/175 Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/175 Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/175 Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/200 Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/200 Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/200 Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/225 Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/225 Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/225 Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/250 Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/250 Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/250 Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 26 kA / 65 kA
Molded Case Circuit BreakersLS Electric
177 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol ABN MCCB 50-250AF (N-type, 15-250 A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (177)

ABN52c/15, ABN53c/15, ABN54c/15, ABN52c/16, ABN53c/16, ABN54c/16, ABN52c/20, ABN53c/20, ABN54c/20, ABN52c/25 + 167 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABN52c/15Frame: 50AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/15Frame: 50AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/15Frame: 50AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/16Frame: 50AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/16Frame: 50AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/16Frame: 50AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/20Frame: 50AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/20Frame: 50AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/20Frame: 50AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/25Frame: 50AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/25Frame: 50AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/25Frame: 50AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/30Frame: 50AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/30Frame: 50AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/30Frame: 50AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/32Frame: 50AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/32Frame: 50AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/32Frame: 50AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/40Frame: 50AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/40Frame: 50AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/40Frame: 50AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN52c/50Frame: 50AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53c/50Frame: 50AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN54c/50Frame: 50AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/15Frame: 60AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/15Frame: 60AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/15Frame: 60AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/16Frame: 60AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/16Frame: 60AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/16Frame: 60AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/20Frame: 60AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/20Frame: 60AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/20Frame: 60AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/25Frame: 60AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/25Frame: 60AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/25Frame: 60AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/30Frame: 60AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/30Frame: 60AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/30Frame: 60AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/32Frame: 60AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/32Frame: 60AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/32Frame: 60AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/40Frame: 60AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/40Frame: 60AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/40Frame: 60AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/50Frame: 60AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/50Frame: 60AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/50Frame: 60AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 14 kA / 30 kA
ABN62c/60Frame: 60AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABN63c/60Frame: 60AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABN64c/60Frame: 60AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABN102c/15Frame: 100AF (c version) | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/15Frame: 100AF (c version) | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/15Frame: 100AF (c version) | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/16Frame: 100AF (c version) | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/16Frame: 100AF (c version) | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/16Frame: 100AF (c version) | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/20Frame: 100AF (c version) | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/20Frame: 100AF (c version) | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/20Frame: 100AF (c version) | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/25Frame: 100AF (c version) | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/25Frame: 100AF (c version) | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/25Frame: 100AF (c version) | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/30Frame: 100AF (c version) | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/30Frame: 100AF (c version) | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/30Frame: 100AF (c version) | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/32Frame: 100AF (c version) | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/32Frame: 100AF (c version) | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/32Frame: 100AF (c version) | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/40Frame: 100AF (c version) | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/40Frame: 100AF (c version) | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/40Frame: 100AF (c version) | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/50Frame: 100AF (c version) | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/50Frame: 100AF (c version) | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/50Frame: 100AF (c version) | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/60Frame: 100AF (c version) | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/60Frame: 100AF (c version) | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/60Frame: 100AF (c version) | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/63Frame: 100AF (c version) | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/63Frame: 100AF (c version) | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/63Frame: 100AF (c version) | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/75Frame: 100AF (c version) | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/75Frame: 100AF (c version) | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/75Frame: 100AF (c version) | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/80Frame: 100AF (c version) | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/80Frame: 100AF (c version) | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/80Frame: 100AF (c version) | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102c/100Frame: 100AF (c version) | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103c/100Frame: 100AF (c version) | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 18 kA / 35 kA
ABN104c/100Frame: 100AF (c version) | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 18 kA / 35 kA
ABN102d/15Frame: 100AF (d version) | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/15Frame: 100AF (d version) | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/15Frame: 100AF (d version) | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/16Frame: 100AF (d version) | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/16Frame: 100AF (d version) | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/16Frame: 100AF (d version) | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/20Frame: 100AF (d version) | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/20Frame: 100AF (d version) | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/20Frame: 100AF (d version) | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/25Frame: 100AF (d version) | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/25Frame: 100AF (d version) | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/25Frame: 100AF (d version) | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/30Frame: 100AF (d version) | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/30Frame: 100AF (d version) | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/30Frame: 100AF (d version) | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/32Frame: 100AF (d version) | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/32Frame: 100AF (d version) | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/32Frame: 100AF (d version) | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/40Frame: 100AF (d version) | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/40Frame: 100AF (d version) | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/40Frame: 100AF (d version) | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/50Frame: 100AF (d version) | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/50Frame: 100AF (d version) | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/50Frame: 100AF (d version) | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/60Frame: 100AF (d version) | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/60Frame: 100AF (d version) | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/60Frame: 100AF (d version) | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/63Frame: 100AF (d version) | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/63Frame: 100AF (d version) | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/63Frame: 100AF (d version) | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/75Frame: 100AF (d version) | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/75Frame: 100AF (d version) | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/75Frame: 100AF (d version) | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/80Frame: 100AF (d version) | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/80Frame: 100AF (d version) | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/80Frame: 100AF (d version) | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102d/100Frame: 100AF (d version) | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 50 kA
ABN103d/100Frame: 100AF (d version) | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 50 kA
ABN104d/100Frame: 100AF (d version) | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 50 kA
ABN102e/15Frame: 100AF (e version) | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/15Frame: 100AF (e version) | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/15Frame: 100AF (e version) | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/20Frame: 100AF (e version) | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/20Frame: 100AF (e version) | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/20Frame: 100AF (e version) | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/30Frame: 100AF (e version) | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/30Frame: 100AF (e version) | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/30Frame: 100AF (e version) | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/40Frame: 100AF (e version) | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/40Frame: 100AF (e version) | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/40Frame: 100AF (e version) | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/50Frame: 100AF (e version) | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/50Frame: 100AF (e version) | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/50Frame: 100AF (e version) | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/60Frame: 100AF (e version) | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/60Frame: 100AF (e version) | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/60Frame: 100AF (e version) | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/75Frame: 100AF (e version) | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/75Frame: 100AF (e version) | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/75Frame: 100AF (e version) | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 31 kA / 65 kA
ABN102e/100Frame: 100AF (e version) | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 31 kA / 65 kA
ABN103e/100Frame: 100AF (e version) | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 31 kA / 65 kA
ABN104e/100Frame: 100AF (e version) | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 31 kA / 65 kA
ABN202c/100Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/100Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/100Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/125Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/125Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/125Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/150Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/150Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/150Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/160Frame: 250AF | Poles: 2P | Rated current: 160 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/160Frame: 250AF | Poles: 3P | Rated current: 160 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/160Frame: 250AF | Poles: 4P | Rated current: 160 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/175Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/175Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/175Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/200Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/200Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/200Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/225Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/225Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/225Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 26 kA / 65 kA
ABN202c/250Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 26 kA / 65 kA
ABN203c/250Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 26 kA / 65 kA
ABN204c/250Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 26 kA / 65 kA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
