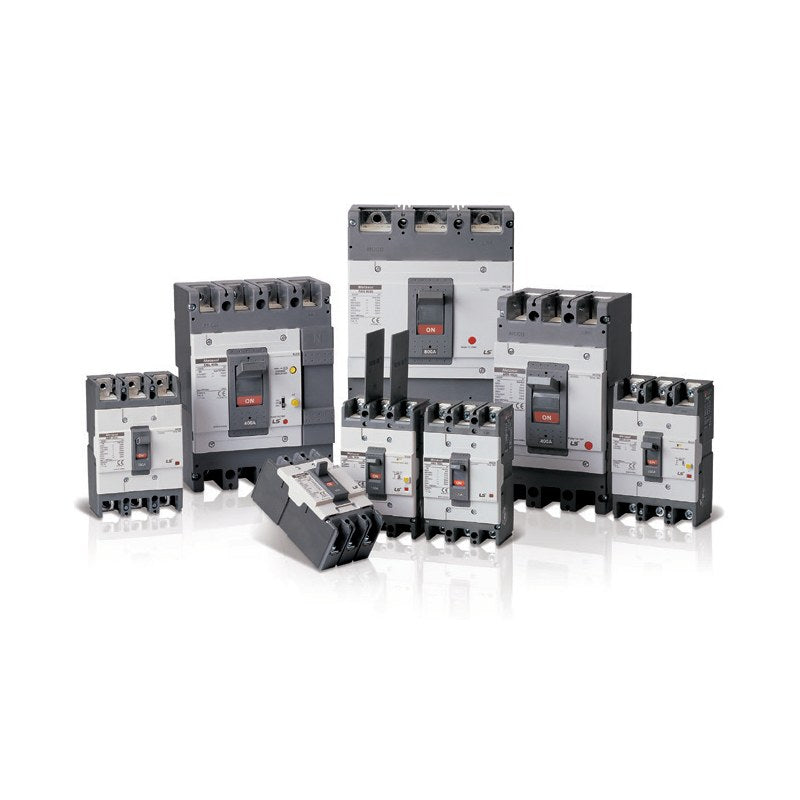

LS Electric Metasol ABS MCCB 30-250AF (S-type, 3-250 A)

LS Electric Metasol ABS MCCB 30-250AF (S-type, 3-250 A)

LS Electric Metasol ABS S-type (standard breaking) molded case circuit breakers, 30-250AF frames, 3-250 A in 2, 3 and 4 poles.

Key features

  • Frames 30AF (ABS30c), 50AF, 60AF, 125AF and 250AF
  • Icu at 460 V: 30AF 14 kA (10 kA for 3-10 A), 50/60AF 18 kA, 125/250AF 37 kA
  • Thermal-magnetic overcurrent trip, Ics 100% Icu
  • Same outline as Metasol EBS ELCB; shared internal and external accessories
  • Rear connection, plug-in, rotary handles and motor operators available

Specifications

Breaking class S-type (standard breaking)
Rated operational voltage (Ue) AC 690 V, DC 500 V (reference), 50/60 Hz
Rated insulation / impulse voltage Ui 1000 V, Uimp 8 kV
Overcurrent trip Thermal-magnetic
Connection Front connection (rear and plug-in optional)
Neutral (4-pole) 4P3E, N-pole current max. 50% of In
Ics 100% Icu
Standards KS C 8321, IEC 60947-2
Source LS Electric Metasol MCCB/ELCB catalog C01031-34 (2025-01), p. 2-1 to 2-2, 5-3 to 5-14
ABS32c/3 Frame: 30AF | Poles: 2P | Rated current: 3 A | Icu 460V / 220V: 10 kA / 25 kA
ABS33c/3 Frame: 30AF | Poles: 3P | Rated current: 3 A | Icu 460V / 220V: 10 kA / 25 kA
ABS34c/3 Frame: 30AF | Poles: 4P | Rated current: 3 A | Icu 460V / 220V: 10 kA / 25 kA
ABS32c/5 Frame: 30AF | Poles: 2P | Rated current: 5 A | Icu 460V / 220V: 10 kA / 25 kA
ABS33c/5 Frame: 30AF | Poles: 3P | Rated current: 5 A | Icu 460V / 220V: 10 kA / 25 kA
ABS34c/5 Frame: 30AF | Poles: 4P | Rated current: 5 A | Icu 460V / 220V: 10 kA / 25 kA
ABS32c/10 Frame: 30AF | Poles: 2P | Rated current: 10 A | Icu 460V / 220V: 10 kA / 25 kA
ABS33c/10 Frame: 30AF | Poles: 3P | Rated current: 10 A | Icu 460V / 220V: 10 kA / 25 kA
ABS34c/10 Frame: 30AF | Poles: 4P | Rated current: 10 A | Icu 460V / 220V: 10 kA / 25 kA
ABS32c/15 Frame: 30AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/15 Frame: 30AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/15 Frame: 30AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/16 Frame: 30AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/16 Frame: 30AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/16 Frame: 30AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/20 Frame: 30AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/20 Frame: 30AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/20 Frame: 30AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/25 Frame: 30AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/25 Frame: 30AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/25 Frame: 30AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/30 Frame: 30AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/30 Frame: 30AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/30 Frame: 30AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABS52c/15 Frame: 50AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/15 Frame: 50AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/15 Frame: 50AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/16 Frame: 50AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/16 Frame: 50AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/16 Frame: 50AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/20 Frame: 50AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/20 Frame: 50AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/20 Frame: 50AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/25 Frame: 50AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/25 Frame: 50AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/25 Frame: 50AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/30 Frame: 50AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/30 Frame: 50AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/30 Frame: 50AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/32 Frame: 50AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/32 Frame: 50AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/32 Frame: 50AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/40 Frame: 50AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/40 Frame: 50AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/40 Frame: 50AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/50 Frame: 50AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/50 Frame: 50AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/50 Frame: 50AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/15 Frame: 60AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/15 Frame: 60AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/15 Frame: 60AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/16 Frame: 60AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/16 Frame: 60AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/16 Frame: 60AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/20 Frame: 60AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/20 Frame: 60AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/20 Frame: 60AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/25 Frame: 60AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/25 Frame: 60AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/25 Frame: 60AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/30 Frame: 60AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/30 Frame: 60AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/30 Frame: 60AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/32 Frame: 60AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/32 Frame: 60AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/32 Frame: 60AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/40 Frame: 60AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/40 Frame: 60AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/40 Frame: 60AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/50 Frame: 60AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/50 Frame: 60AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/50 Frame: 60AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/60 Frame: 60AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/60 Frame: 60AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/60 Frame: 60AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABS102c/15 Frame: 125AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/15 Frame: 125AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/15 Frame: 125AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/16 Frame: 125AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/16 Frame: 125AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/16 Frame: 125AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/20 Frame: 125AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/20 Frame: 125AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/20 Frame: 125AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/30 Frame: 125AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/30 Frame: 125AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/30 Frame: 125AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/32 Frame: 125AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/32 Frame: 125AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/32 Frame: 125AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/40 Frame: 125AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/40 Frame: 125AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/40 Frame: 125AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/50 Frame: 125AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/50 Frame: 125AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/50 Frame: 125AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/60 Frame: 125AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/60 Frame: 125AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/60 Frame: 125AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/63 Frame: 125AF | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/63 Frame: 125AF | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/63 Frame: 125AF | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/75 Frame: 125AF | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/75 Frame: 125AF | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/75 Frame: 125AF | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/80 Frame: 125AF | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/80 Frame: 125AF | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/80 Frame: 125AF | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/100 Frame: 125AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/100 Frame: 125AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/100 Frame: 125AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/125 Frame: 125AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/125 Frame: 125AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/125 Frame: 125AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/100 Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/100 Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/100 Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/125 Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/125 Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/125 Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/150 Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/150 Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/150 Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/160 Frame: 250AF | Poles: 2P | Rated current: 160 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/160 Frame: 250AF | Poles: 3P | Rated current: 160 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/160 Frame: 250AF | Poles: 4P | Rated current: 160 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/175 Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/175 Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/175 Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/200 Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/200 Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/200 Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/225 Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/225 Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/225 Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/250 Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/250 Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/250 Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 37 kA / 85 kA
Molded Case Circuit BreakersLS Electric
138 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol ABS MCCB 30-250AF (S-type, 3-250 A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (138)

ABS32c/3, ABS33c/3, ABS34c/3, ABS32c/5, ABS33c/5, ABS34c/5, ABS32c/10, ABS33c/10, ABS34c/10, ABS32c/15 + 128 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABS32c/3Frame: 30AF | Poles: 2P | Rated current: 3 A | Icu 460V / 220V: 10 kA / 25 kA
ABS33c/3Frame: 30AF | Poles: 3P | Rated current: 3 A | Icu 460V / 220V: 10 kA / 25 kA
ABS34c/3Frame: 30AF | Poles: 4P | Rated current: 3 A | Icu 460V / 220V: 10 kA / 25 kA
ABS32c/5Frame: 30AF | Poles: 2P | Rated current: 5 A | Icu 460V / 220V: 10 kA / 25 kA
ABS33c/5Frame: 30AF | Poles: 3P | Rated current: 5 A | Icu 460V / 220V: 10 kA / 25 kA
ABS34c/5Frame: 30AF | Poles: 4P | Rated current: 5 A | Icu 460V / 220V: 10 kA / 25 kA
ABS32c/10Frame: 30AF | Poles: 2P | Rated current: 10 A | Icu 460V / 220V: 10 kA / 25 kA
ABS33c/10Frame: 30AF | Poles: 3P | Rated current: 10 A | Icu 460V / 220V: 10 kA / 25 kA
ABS34c/10Frame: 30AF | Poles: 4P | Rated current: 10 A | Icu 460V / 220V: 10 kA / 25 kA
ABS32c/15Frame: 30AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/15Frame: 30AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/15Frame: 30AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/16Frame: 30AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/16Frame: 30AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/16Frame: 30AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/20Frame: 30AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/20Frame: 30AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/20Frame: 30AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/25Frame: 30AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/25Frame: 30AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/25Frame: 30AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 14 kA / 30 kA
ABS32c/30Frame: 30AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33c/30Frame: 30AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABS34c/30Frame: 30AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 14 kA / 30 kA
ABS52c/15Frame: 50AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/15Frame: 50AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/15Frame: 50AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/16Frame: 50AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/16Frame: 50AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/16Frame: 50AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/20Frame: 50AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/20Frame: 50AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/20Frame: 50AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/25Frame: 50AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/25Frame: 50AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/25Frame: 50AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/30Frame: 50AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/30Frame: 50AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/30Frame: 50AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/32Frame: 50AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/32Frame: 50AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/32Frame: 50AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/40Frame: 50AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/40Frame: 50AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/40Frame: 50AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS52c/50Frame: 50AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53c/50Frame: 50AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS54c/50Frame: 50AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/15Frame: 60AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/15Frame: 60AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/15Frame: 60AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/16Frame: 60AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/16Frame: 60AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/16Frame: 60AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/20Frame: 60AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/20Frame: 60AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/20Frame: 60AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/25Frame: 60AF | Poles: 2P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/25Frame: 60AF | Poles: 3P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/25Frame: 60AF | Poles: 4P | Rated current: 25 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/30Frame: 60AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/30Frame: 60AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/30Frame: 60AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/32Frame: 60AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/32Frame: 60AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/32Frame: 60AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/40Frame: 60AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/40Frame: 60AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/40Frame: 60AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/50Frame: 60AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/50Frame: 60AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/50Frame: 60AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 18 kA / 35 kA
ABS62c/60Frame: 60AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABS63c/60Frame: 60AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABS64c/60Frame: 60AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABS102c/15Frame: 125AF | Poles: 2P | Rated current: 15 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/15Frame: 125AF | Poles: 3P | Rated current: 15 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/15Frame: 125AF | Poles: 4P | Rated current: 15 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/16Frame: 125AF | Poles: 2P | Rated current: 16 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/16Frame: 125AF | Poles: 3P | Rated current: 16 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/16Frame: 125AF | Poles: 4P | Rated current: 16 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/20Frame: 125AF | Poles: 2P | Rated current: 20 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/20Frame: 125AF | Poles: 3P | Rated current: 20 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/20Frame: 125AF | Poles: 4P | Rated current: 20 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/30Frame: 125AF | Poles: 2P | Rated current: 30 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/30Frame: 125AF | Poles: 3P | Rated current: 30 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/30Frame: 125AF | Poles: 4P | Rated current: 30 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/32Frame: 125AF | Poles: 2P | Rated current: 32 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/32Frame: 125AF | Poles: 3P | Rated current: 32 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/32Frame: 125AF | Poles: 4P | Rated current: 32 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/40Frame: 125AF | Poles: 2P | Rated current: 40 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/40Frame: 125AF | Poles: 3P | Rated current: 40 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/40Frame: 125AF | Poles: 4P | Rated current: 40 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/50Frame: 125AF | Poles: 2P | Rated current: 50 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/50Frame: 125AF | Poles: 3P | Rated current: 50 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/50Frame: 125AF | Poles: 4P | Rated current: 50 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/60Frame: 125AF | Poles: 2P | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/60Frame: 125AF | Poles: 3P | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/60Frame: 125AF | Poles: 4P | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/63Frame: 125AF | Poles: 2P | Rated current: 63 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/63Frame: 125AF | Poles: 3P | Rated current: 63 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/63Frame: 125AF | Poles: 4P | Rated current: 63 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/75Frame: 125AF | Poles: 2P | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/75Frame: 125AF | Poles: 3P | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/75Frame: 125AF | Poles: 4P | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/80Frame: 125AF | Poles: 2P | Rated current: 80 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/80Frame: 125AF | Poles: 3P | Rated current: 80 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/80Frame: 125AF | Poles: 4P | Rated current: 80 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/100Frame: 125AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/100Frame: 125AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/100Frame: 125AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS102c/125Frame: 125AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103c/125Frame: 125AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS104c/125Frame: 125AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/100Frame: 250AF | Poles: 2P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/100Frame: 250AF | Poles: 3P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/100Frame: 250AF | Poles: 4P | Rated current: 100 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/125Frame: 250AF | Poles: 2P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/125Frame: 250AF | Poles: 3P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/125Frame: 250AF | Poles: 4P | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/150Frame: 250AF | Poles: 2P | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/150Frame: 250AF | Poles: 3P | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/150Frame: 250AF | Poles: 4P | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/160Frame: 250AF | Poles: 2P | Rated current: 160 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/160Frame: 250AF | Poles: 3P | Rated current: 160 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/160Frame: 250AF | Poles: 4P | Rated current: 160 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/175Frame: 250AF | Poles: 2P | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/175Frame: 250AF | Poles: 3P | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/175Frame: 250AF | Poles: 4P | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/200Frame: 250AF | Poles: 2P | Rated current: 200 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/200Frame: 250AF | Poles: 3P | Rated current: 200 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/200Frame: 250AF | Poles: 4P | Rated current: 200 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/225Frame: 250AF | Poles: 2P | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/225Frame: 250AF | Poles: 3P | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/225Frame: 250AF | Poles: 4P | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABS202c/250Frame: 250AF | Poles: 2P | Rated current: 250 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203c/250Frame: 250AF | Poles: 3P | Rated current: 250 A | Icu 460V / 220V: 37 kA / 85 kA
ABS204c/250Frame: 250AF | Poles: 4P | Rated current: 250 A | Icu 460V / 220V: 37 kA / 85 kA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
