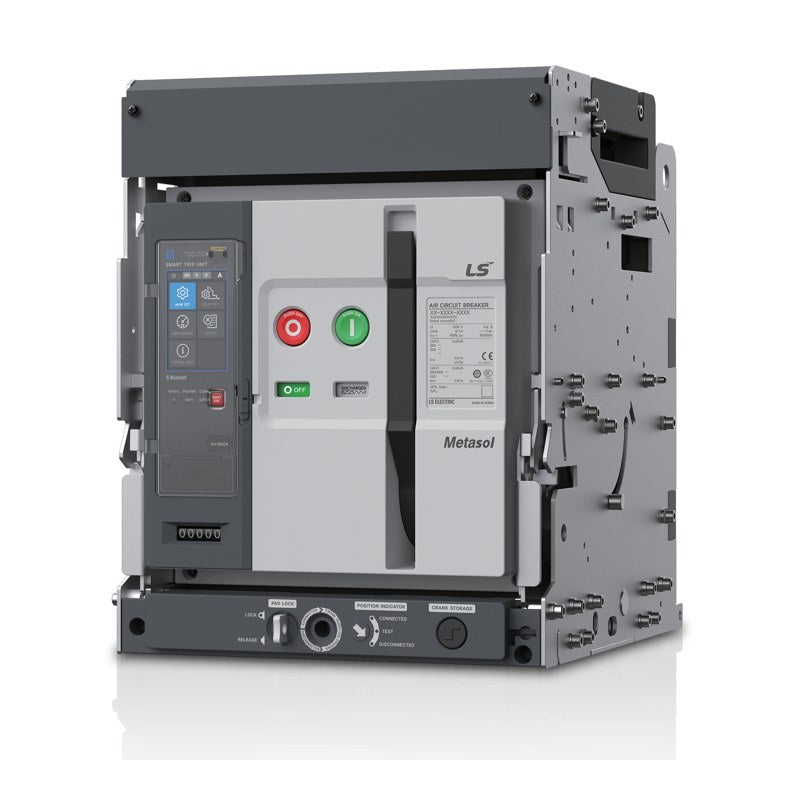

LS Electric Metasol ACB AN-E Air Circuit Breaker (2000-3200AF)

LS Electric Metasol AN air circuit breakers, E frame (2000-3200AF), for main and feeder protection in low-voltage switchboards, with digital trip relays, in draw-out and fixed versions.

Key features

Standard-breaking AN type: Icu 70 kA at 415 V, 65 kA at 690 V; Icw 65 kA 1 s
Ordering code: type-frame-poles - rated current + mounting, then trip relay (e.g. AN-25E3-13J NH0); motor, closing/shunt coil, aux contact, UVT and option tokens (e.g. M1D1D1AX ... U1 AL) are added per order
Trip relays N (Normal), A (Ammeter), P (Power meter) and S (Supreme meter) with L/S/I/G protection; P/S types add voltage, frequency and power protection, 3.5 in touch LCD
Draw-out (manual or auto connection, cradle ordered separately) or fixed type; 3-pole or 4-pole with 100% rated N pole
Shared Metasol ACB accessories: motor charge, closing coil, shunt trip, UVT, aux contacts, key lock, mechanical interlock, counter

Specifications

Rated operational voltage (Ue)	AC 690 V, 50/60 Hz
Rated insulation voltage (Ui)	AC 1000 V
Rated impulse withstand voltage (Uimp)	12 kV
Icu at 415 V	70 kA
Ics	100% Icu
Icw (1 s)	65 kA
Icm at 415 V (peak)	154 kA
Mechanical / electrical life	15,000 / 5,000 operations
Current setting	Ir = 0.4-1.0 x In (trip relay)
Standards	IEC 60947-2, KS C 4620
Source	LS Electric Metasol ACB catalog C06091-28 (2026.07), p. 18

AN-20E3-02JNH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-02JAH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-02JAH1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-02JAD1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02JAY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02JAO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02JPS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-02JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-02JPY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-02JPO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-02JSS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02JSY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02JSO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02HNH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-02HAH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-02HAH1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-02HAD1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02HAY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02HAO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-02HPS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-02HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-02HPY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-02HPO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-02HSS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02HSY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-02HSO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04JNH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-04JAH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-04JAH1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-04JAD1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04JAY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04JAO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04JPS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-04JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-04JPY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-04JPO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-04JSS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04JSY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04JSO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04HNH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-04HAH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-04HAH1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-04HAD1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04HAY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04HAO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-04HPS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-04HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-04HPY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-04HPO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-04HSS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04HSY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-04HSO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06JNH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-06JAH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-06JAH1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-06JAD1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06JAY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06JAO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06JPS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-06JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-06JPY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-06JPO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-06JSS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06JSY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06JSO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06HNH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-06HAH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-06HAH1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-06HAD1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06HAY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06HAO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-06HPS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-06HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-06HPY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-06HPO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-06HSS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06HSY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-06HSO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08JNH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-08JAH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-08JAH1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-08JAD1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08JAY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08JAO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08JPS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-08JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-08JPY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-08JPO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-08JSS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08JSY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08JSO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08HNH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-08HAH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-08HAH1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-08HAD1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08HAY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08HAO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-08HPS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-08HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-08HPY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-08HPO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-08HSS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08HSY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-08HSO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10JNH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-10JAH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-10JAH1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-10JAD1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10JAY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10JAO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10JPS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-10JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-10JPY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-10JPO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-10JSS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10JSY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10JSO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10HNH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-10HAH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-10HAH1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-10HAD1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10HAY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10HAO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-10HPS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-10HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-10HPY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-10HPO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-10HSS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10HSY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-10HSO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13JNH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-13JAH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-13JAH1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-13JAD1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13JAY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13JAO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13JPS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-13JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-13JPY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-13JPO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-13JSS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13JSY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13JSO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13HNH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-13HAH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-13HAH1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-13HAD1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13HAY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13HAO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-13HPS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-13HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-13HPY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-13HPO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-13HSS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13HSY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-13HSO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16JNH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-16JAH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-16JAH1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-16JAD1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16JAY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16JAO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16JPS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-16JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-16JPY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-16JPO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-16JSS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16JSY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16JSO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16HNH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-16HAH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-16HAH1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-16HAD1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16HAY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16HAO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-16HPS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-16HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-16HPY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-16HPO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-16HSS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16HSY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-16HSO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20JNH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-20JAH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-20JAH1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-20JAD1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20JAY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20JAO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20JPS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-20JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-20JPY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-20JPO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-20JSS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20JSY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20JSO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20HNH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E3-20HAH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E3-20HAH1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E3-20HAD1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20HAY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20HAO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E3-20HPS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E3-20HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E3-20HPY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E3-20HPO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E3-20HSS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20HSY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E3-20HSO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02JNH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-02JAH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-02JAH1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-02JAD1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02JAY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02JAO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02JPS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-02JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-02JPY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-02JPO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-02JSS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02JSY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02JSO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02HNH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-02HAH0		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-02HAH1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-02HAD1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02HAY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02HAO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-02HPS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-02HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-02HPY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-02HPO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-02HSS1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02HSY1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-02HSO1		Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04JNH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-04JAH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-04JAH1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-04JAD1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04JAY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04JAO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04JPS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-04JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-04JPY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-04JPO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-04JSS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04JSY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04JSO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04HNH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-04HAH0		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-04HAH1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-04HAD1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04HAY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04HAO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-04HPS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-04HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-04HPY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-04HPO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-04HSS1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04HSY1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-04HSO1		Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06JNH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-06JAH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-06JAH1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-06JAD1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06JAY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06JAO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06JPS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-06JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-06JPY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-06JPO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-06JSS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06JSY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06JSO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06HNH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-06HAH0		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-06HAH1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-06HAD1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06HAY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06HAO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-06HPS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-06HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-06HPY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-06HPO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-06HSS1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06HSY1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-06HSO1		Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08JNH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-08JAH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-08JAH1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-08JAD1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08JAY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08JAO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08JPS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-08JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-08JPY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-08JPO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-08JSS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08JSY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08JSO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08HNH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-08HAH0		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-08HAH1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-08HAD1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08HAY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08HAO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-08HPS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-08HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-08HPY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-08HPO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-08HSS1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08HSY1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-08HSO1		Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10JNH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-10JAH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-10JAH1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-10JAD1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10JAY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10JAO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10JPS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-10JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-10JPY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-10JPO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-10JSS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10JSY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10JSO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10HNH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-10HAH0		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-10HAH1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-10HAD1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10HAY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10HAO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-10HPS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-10HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-10HPY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-10HPO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-10HSS1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10HSY1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-10HSO1		Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13JNH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-13JAH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-13JAH1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-13JAD1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13JAY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13JAO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13JPS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-13JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-13JPY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-13JPO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-13JSS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13JSY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13JSO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13HNH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-13HAH0		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-13HAH1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-13HAD1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13HAY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13HAO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-13HPS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-13HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-13HPY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-13HPO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-13HSS1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13HSY1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-13HSO1		Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16JNH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-16JAH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-16JAH1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-16JAD1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16JAY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16JAO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16JPS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-16JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-16JPY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-16JPO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-16JSS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16JSY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16JSO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16HNH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-16HAH0		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-16HAH1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-16HAD1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16HAY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16HAO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-16HPS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-16HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-16HPY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-16HPO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-16HSS1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16HSY1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-16HSO1		Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20JNH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-20JAH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-20JAH1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-20JAD1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20JAJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20JAY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20JAO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20JPS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-20JPJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-20JPY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-20JPO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-20JSS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20JSJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20JSY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20JSO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20HNH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-20E4-20HAH0		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-20E4-20HAH1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-20E4-20HAD1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20HAJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20HAY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20HAO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-20E4-20HPS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-20E4-20HPJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-20E4-20HPY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-20E4-20HPO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-20E4-20HSS1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20HSJ1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20HSY1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-20E4-20HSO1		Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13JNH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-13JAH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-13JAH1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-13JAD1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13JAY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13JAO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13JPS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-13JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-13JPY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-13JPO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-13JSS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13JSY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13JSO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13HNH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-13HAH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-13HAH1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-13HAD1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13HAY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13HAO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-13HPS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-13HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-13HPY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-13HPO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-13HSS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13HSY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-13HSO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16JNH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-16JAH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-16JAH1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-16JAD1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16JAY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16JAO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16JPS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-16JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-16JPY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-16JPO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-16JSS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16JSY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16JSO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16HNH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-16HAH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-16HAH1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-16HAD1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16HAY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16HAO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-16HPS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-16HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-16HPY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-16HPO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-16HSS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16HSY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-16HSO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20JNH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-20JAH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-20JAH1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-20JAD1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20JAY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20JAO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20JPS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-20JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-20JPY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-20JPO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-20JSS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20JSY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20JSO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20HNH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-20HAH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-20HAH1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-20HAD1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20HAY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20HAO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-20HPS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-20HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-20HPY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-20HPO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-20HSS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20HSY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-20HSO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25JNH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-25JAH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-25JAH1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-25JAD1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25JAY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25JAO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25JPS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-25JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-25JPY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-25JPO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-25JSS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25JSY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25JSO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25HNH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E3-25HAH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E3-25HAH1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E3-25HAD1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25HAY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25HAO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E3-25HPS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E3-25HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E3-25HPY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E3-25HPO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E3-25HSS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25HSY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E3-25HSO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13JNH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-13JAH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-13JAH1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-13JAD1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13JAY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13JAO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13JPS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-13JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-13JPY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-13JPO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-13JSS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13JSY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13JSO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13HNH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-13HAH0		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-13HAH1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-13HAD1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13HAY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13HAO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-13HPS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-13HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-13HPY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-13HPO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-13HSS1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13HSY1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-13HSO1		Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16JNH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-16JAH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-16JAH1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-16JAD1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16JAY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16JAO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16JPS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-16JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-16JPY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-16JPO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-16JSS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16JSY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16JSO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16HNH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-16HAH0		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-16HAH1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-16HAD1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16HAY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16HAO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-16HPS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-16HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-16HPY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-16HPO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-16HSS1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16HSY1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-16HSO1		Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20JNH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-20JAH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-20JAH1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-20JAD1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20JAY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20JAO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20JPS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-20JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-20JPY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-20JPO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-20JSS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20JSY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20JSO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20HNH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-20HAH0		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-20HAH1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-20HAD1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20HAY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20HAO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-20HPS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-20HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-20HPY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-20HPO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-20HSS1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20HSY1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-20HSO1		Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25JNH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-25JAH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-25JAH1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-25JAD1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25JAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25JAY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25JAO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25JPS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-25JPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-25JPY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-25JPO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-25JSS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25JSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25JSY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25JSO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25HNH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-25E4-25HAH0		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-25E4-25HAH1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-25E4-25HAD1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25HAJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25HAY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25HAO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-25E4-25HPS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-25E4-25HPJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-25E4-25HPY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-25E4-25HPO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-25E4-25HSS1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25HSJ1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25HSY1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-25E4-25HSO1		Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16JNH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-16JAH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-16JAH1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-16JAD1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16JAY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16JAO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16JPS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-16JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-16JPY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-16JPO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-16JSS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16JSY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16JSO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16HNH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-16HAH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-16HAH1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-16HAD1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16HAY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16HAO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-16HPS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-16HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-16HPY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-16HPO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-16HSS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16HSY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-16HSO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20JNH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-20JAH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-20JAH1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-20JAD1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20JAY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20JAO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20JPS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-20JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-20JPY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-20JPO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-20JSS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20JSY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20JSO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20HNH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-20HAH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-20HAH1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-20HAD1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20HAY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20HAO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-20HPS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-20HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-20HPY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-20HPO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-20HSS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20HSY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-20HSO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25JNH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-25JAH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-25JAH1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-25JAD1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25JAY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25JAO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25JPS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-25JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-25JPY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-25JPO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-25JSS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25JSY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25JSO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25HNH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-25HAH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-25HAH1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-25HAD1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25HAY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25HAO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-25HPS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-25HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-25HPY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-25HPO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-25HSS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25HSY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-25HSO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32JNH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-32JAH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-32JAH1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-32JAD1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32JAY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32JAO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32JPS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-32JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-32JPY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-32JPO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-32JSS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32JSY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32JSO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32HNH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E3-32HAH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E3-32HAH1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E3-32HAD1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32HAY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32HAO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E3-32HPS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E3-32HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E3-32HPY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E3-32HPO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E3-32HSS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32HSY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E3-32HSO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16JNH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-16JAH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-16JAH1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-16JAD1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16JAY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16JAO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16JPS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-16JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-16JPY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-16JPO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-16JSS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16JSY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16JSO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16HNH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-16HAH0		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-16HAH1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-16HAD1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16HAY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16HAO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-16HPS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-16HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-16HPY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-16HPO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-16HSS1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16HSY1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-16HSO1		Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20JNH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-20JAH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-20JAH1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-20JAD1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20JAY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20JAO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20JPS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-20JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-20JPY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-20JPO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-20JSS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20JSY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20JSO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20HNH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-20HAH0		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-20HAH1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-20HAD1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20HAY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20HAO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-20HPS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-20HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-20HPY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-20HPO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-20HSS1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20HSY1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-20HSO1		Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25JNH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-25JAH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-25JAH1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-25JAD1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25JAY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25JAO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25JPS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-25JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-25JPY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-25JPO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-25JSS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25JSY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25JSO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25HNH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-25HAH0		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-25HAH1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-25HAD1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25HAY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25HAO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-25HPS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-25HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-25HPY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-25HPO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-25HSS1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25HSY1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-25HSO1		Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32JNH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-32JAH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-32JAH1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-32JAD1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32JAJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32JAY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32JAO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32JPS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-32JPJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-32JPY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-32JPO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-32JSS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32JSJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32JSY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32JSO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32HNH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
AN-32E4-32HAH0		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
AN-32E4-32HAH1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
AN-32E4-32HAD1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32HAJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32HAY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32HAO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
AN-32E4-32HPS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
AN-32E4-32HPJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
AN-32E4-32HPY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
AN-32E4-32HPO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
AN-32E4-32HSS1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32HSJ1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32HSY1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
AN-32E4-32HSO1		Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC

Air Circuit BreakersLS Electric

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol ACB AN-E Air Circuit Breaker (2000-3200AF)

Brand LS Electric·Air Circuit Breakers

Available part numbers (960)

AN-20E3-02JNH0, AN-20E3-02JAH0, AN-20E3-02JAH1, AN-20E3-02JAD1, AN-20E3-02JAJ1, AN-20E3-02JAY1, AN-20E3-02JAO1, AN-20E3-02JPS1, AN-20E3-02JPJ1, AN-20E3-02JPY1 + 950 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AN-20E3-02JNH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-02JAH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-02JAH1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-02JAD1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02JAY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02JAO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02JPS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-02JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-02JPY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-02JPO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-02JSS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02JSY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02JSO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02HNH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-02HAH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-02HAH1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-02HAD1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02HAY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02HAO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-02HPS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-02HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-02HPY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-02HPO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-02HSS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02HSY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-02HSO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04JNH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-04JAH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-04JAH1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-04JAD1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04JAY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04JAO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04JPS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-04JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-04JPY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-04JPO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-04JSS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04JSY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04JSO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04HNH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-04HAH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-04HAH1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-04HAD1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04HAY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04HAO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-04HPS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-04HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-04HPY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-04HPO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-04HSS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04HSY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-04HSO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06JNH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-06JAH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-06JAH1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-06JAD1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06JAY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06JAO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06JPS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-06JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-06JPY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-06JPO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-06JSS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06JSY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06JSO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06HNH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-06HAH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-06HAH1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-06HAD1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06HAY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06HAO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-06HPS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-06HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-06HPY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-06HPO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-06HSS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06HSY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-06HSO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08JNH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-08JAH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-08JAH1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-08JAD1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08JAY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08JAO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08JPS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-08JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-08JPY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-08JPO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-08JSS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08JSY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08JSO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08HNH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-08HAH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-08HAH1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-08HAD1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08HAY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08HAO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-08HPS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-08HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-08HPY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-08HPO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-08HSS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08HSY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-08HSO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10JNH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-10JAH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-10JAH1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-10JAD1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10JAY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10JAO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10JPS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-10JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-10JPY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-10JPO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-10JSS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10JSY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10JSO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10HNH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-10HAH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-10HAH1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-10HAD1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10HAY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10HAO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-10HPS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-10HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-10HPY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-10HPO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-10HSS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10HSY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-10HSO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13JNH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-13JAH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-13JAH1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-13JAD1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13JAY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13JAO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13JPS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-13JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-13JPY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-13JPO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-13JSS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13JSY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13JSO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13HNH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-13HAH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-13HAH1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-13HAD1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13HAY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13HAO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-13HPS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-13HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-13HPY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-13HPO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-13HSS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13HSY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-13HSO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16JNH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-16JAH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-16JAH1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-16JAD1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16JAY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16JAO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16JPS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-16JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-16JPY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-16JPO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-16JSS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16JSY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16JSO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16HNH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-16HAH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-16HAH1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-16HAD1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16HAY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16HAO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-16HPS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-16HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-16HPY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-16HPO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-16HSS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16HSY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-16HSO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20JNH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-20JAH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-20JAH1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-20JAD1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20JAY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20JAO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20JPS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-20JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-20JPY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-20JPO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-20JSS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20JSY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20JSO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20HNH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E3-20HAH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E3-20HAH1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E3-20HAD1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20HAY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20HAO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E3-20HPS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E3-20HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E3-20HPY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E3-20HPO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E3-20HSS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20HSY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E3-20HSO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02JNH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-02JAH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-02JAH1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-02JAD1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02JAY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02JAO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02JPS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-02JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-02JPY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-02JPO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-02JSS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02JSY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02JSO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02HNH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-02HAH0	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-02HAH1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-02HAD1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02HAY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02HAO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-02HPS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-02HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-02HPY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-02HPO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-02HSS1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02HSY1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-02HSO1	Frame: AN-20E, 2000AF \| Rated current In: 200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04JNH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-04JAH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-04JAH1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-04JAD1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04JAY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04JAO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04JPS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-04JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-04JPY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-04JPO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-04JSS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04JSY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04JSO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04HNH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-04HAH0	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-04HAH1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-04HAD1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04HAY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04HAO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-04HPS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-04HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-04HPY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-04HPO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-04HSS1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04HSY1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-04HSO1	Frame: AN-20E, 2000AF \| Rated current In: 400 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06JNH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-06JAH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-06JAH1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-06JAD1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06JAY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06JAO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06JPS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-06JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-06JPY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-06JPO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-06JSS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06JSY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06JSO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06HNH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-06HAH0	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-06HAH1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-06HAD1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06HAY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06HAO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-06HPS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-06HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-06HPY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-06HPO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-06HSS1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06HSY1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-06HSO1	Frame: AN-20E, 2000AF \| Rated current In: 630 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08JNH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-08JAH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-08JAH1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-08JAD1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08JAY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08JAO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08JPS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-08JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-08JPY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-08JPO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-08JSS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08JSY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08JSO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08HNH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-08HAH0	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-08HAH1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-08HAD1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08HAY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08HAO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-08HPS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-08HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-08HPY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-08HPO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-08HSS1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08HSY1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-08HSO1	Frame: AN-20E, 2000AF \| Rated current In: 800 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10JNH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-10JAH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-10JAH1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-10JAD1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10JAY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10JAO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10JPS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-10JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-10JPY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-10JPO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-10JSS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10JSY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10JSO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10HNH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-10HAH0	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-10HAH1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-10HAD1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10HAY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10HAO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-10HPS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-10HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-10HPY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-10HPO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-10HSS1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10HSY1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-10HSO1	Frame: AN-20E, 2000AF \| Rated current In: 1000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13JNH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-13JAH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-13JAH1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-13JAD1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13JAY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13JAO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13JPS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-13JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-13JPY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-13JPO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-13JSS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13JSY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13JSO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13HNH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-13HAH0	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-13HAH1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-13HAD1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13HAY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13HAO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-13HPS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-13HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-13HPY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-13HPO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-13HSS1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13HSY1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-13HSO1	Frame: AN-20E, 2000AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16JNH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-16JAH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-16JAH1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-16JAD1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16JAY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16JAO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16JPS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-16JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-16JPY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-16JPO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-16JSS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16JSY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16JSO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16HNH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-16HAH0	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-16HAH1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-16HAD1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16HAY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16HAO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-16HPS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-16HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-16HPY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-16HPO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-16HSS1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16HSY1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-16HSO1	Frame: AN-20E, 2000AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20JNH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-20JAH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-20JAH1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-20JAD1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20JAJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20JAY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20JAO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20JPS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-20JPJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-20JPY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-20JPO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-20JSS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20JSJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20JSY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20JSO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20HNH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-20E4-20HAH0	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-20E4-20HAH1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-20E4-20HAD1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20HAJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20HAY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20HAO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-20E4-20HPS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-20E4-20HPJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-20E4-20HPY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-20E4-20HPO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-20E4-20HSS1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20HSJ1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20HSY1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-20E4-20HSO1	Frame: AN-20E, 2000AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13JNH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-13JAH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-13JAH1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-13JAD1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13JAY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13JAO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13JPS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-13JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-13JPY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-13JPO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-13JSS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13JSY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13JSO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13HNH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-13HAH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-13HAH1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-13HAD1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13HAY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13HAO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-13HPS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-13HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-13HPY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-13HPO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-13HSS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13HSY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-13HSO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16JNH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-16JAH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-16JAH1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-16JAD1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16JAY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16JAO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16JPS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-16JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-16JPY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-16JPO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-16JSS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16JSY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16JSO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16HNH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-16HAH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-16HAH1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-16HAD1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16HAY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16HAO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-16HPS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-16HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-16HPY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-16HPO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-16HSS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16HSY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-16HSO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20JNH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-20JAH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-20JAH1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-20JAD1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20JAY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20JAO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20JPS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-20JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-20JPY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-20JPO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-20JSS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20JSY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20JSO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20HNH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-20HAH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-20HAH1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-20HAD1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20HAY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20HAO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-20HPS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-20HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-20HPY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-20HPO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-20HSS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20HSY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-20HSO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25JNH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-25JAH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-25JAH1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-25JAD1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25JAY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25JAO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25JPS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-25JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-25JPY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-25JPO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-25JSS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25JSY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25JSO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25HNH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E3-25HAH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E3-25HAH1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E3-25HAD1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25HAY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25HAO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E3-25HPS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E3-25HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E3-25HPY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E3-25HPO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E3-25HSS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25HSY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E3-25HSO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13JNH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-13JAH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-13JAH1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-13JAD1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13JAY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13JAO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13JPS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-13JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-13JPY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-13JPO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-13JSS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13JSY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13JSO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13HNH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-13HAH0	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-13HAH1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-13HAD1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13HAY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13HAO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-13HPS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-13HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-13HPY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-13HPO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-13HSS1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13HSY1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-13HSO1	Frame: AN-25E, 2500AF \| Rated current In: 1250 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16JNH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-16JAH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-16JAH1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-16JAD1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16JAY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16JAO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16JPS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-16JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-16JPY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-16JPO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-16JSS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16JSY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16JSO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16HNH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-16HAH0	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-16HAH1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-16HAD1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16HAY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16HAO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-16HPS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-16HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-16HPY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-16HPO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-16HSS1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16HSY1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-16HSO1	Frame: AN-25E, 2500AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20JNH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-20JAH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-20JAH1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-20JAD1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20JAY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20JAO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20JPS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-20JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-20JPY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-20JPO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-20JSS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20JSY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20JSO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20HNH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-20HAH0	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-20HAH1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-20HAD1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20HAY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20HAO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-20HPS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-20HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-20HPY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-20HPO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-20HSS1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20HSY1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-20HSO1	Frame: AN-25E, 2500AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25JNH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-25JAH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-25JAH1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-25JAD1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25JAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25JAY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25JAO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25JPS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-25JPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-25JPY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-25JPO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-25JSS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25JSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25JSY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25JSO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25HNH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-25E4-25HAH0	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-25E4-25HAH1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-25E4-25HAD1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25HAJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25HAY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25HAO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-25E4-25HPS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-25E4-25HPJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-25E4-25HPY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-25E4-25HPO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-25E4-25HSS1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25HSJ1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25HSY1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-25E4-25HSO1	Frame: AN-25E, 2500AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16JNH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-16JAH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-16JAH1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-16JAD1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16JAY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16JAO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16JPS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-16JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-16JPY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-16JPO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-16JSS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16JSY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16JSO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16HNH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-16HAH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-16HAH1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-16HAD1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16HAY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16HAO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-16HPS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-16HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-16HPY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-16HPO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-16HSS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16HSY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-16HSO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20JNH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-20JAH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-20JAH1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-20JAD1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20JAY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20JAO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20JPS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-20JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-20JPY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-20JPO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-20JSS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20JSY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20JSO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20HNH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-20HAH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-20HAH1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-20HAD1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20HAY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20HAO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-20HPS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-20HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-20HPY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-20HPO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-20HSS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20HSY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-20HSO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25JNH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-25JAH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-25JAH1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-25JAD1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25JAY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25JAO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25JPS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-25JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-25JPY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-25JPO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-25JSS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25JSY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25JSO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25HNH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-25HAH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-25HAH1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-25HAD1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25HAY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25HAO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-25HPS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-25HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-25HPY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-25HPO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-25HSS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25HSY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-25HSO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32JNH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-32JAH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-32JAH1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-32JAD1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32JAY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32JAO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32JPS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-32JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-32JPY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-32JPO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-32JSS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32JSY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32JSO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32HNH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E3-32HAH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E3-32HAH1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E3-32HAD1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32HAY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32HAO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E3-32HPS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E3-32HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E3-32HPY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E3-32HPO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E3-32HSS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32HSY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E3-32HSO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 3P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16JNH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-16JAH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-16JAH1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-16JAD1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16JAY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16JAO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16JPS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-16JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-16JPY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-16JPO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-16JSS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16JSY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16JSO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16HNH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-16HAH0	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-16HAH1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-16HAD1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16HAY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16HAO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-16HPS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-16HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-16HPY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-16HPO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-16HSS1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16HSY1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-16HSO1	Frame: AN-32E, 3200AF \| Rated current In: 1600 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20JNH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-20JAH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-20JAH1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-20JAD1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20JAY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20JAO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20JPS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-20JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-20JPY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-20JPO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-20JSS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20JSY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20JSO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20HNH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-20HAH0	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-20HAH1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-20HAD1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20HAY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20HAO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-20HPS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-20HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-20HPY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-20HPO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-20HSS1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20HSY1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-20HSO1	Frame: AN-32E, 3200AF \| Rated current In: 2000 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25JNH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-25JAH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-25JAH1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-25JAD1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25JAY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25JAO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25JPS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-25JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-25JPY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-25JPO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-25JSS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25JSY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25JSO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25HNH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-25HAH0	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-25HAH1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-25HAD1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25HAY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25HAO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-25HPS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-25HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-25HPY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-25HPO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-25HSS1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25HSY1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-25HSO1	Frame: AN-32E, 3200AF \| Rated current In: 2500 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32JNH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-32JAH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-32JAH1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-32JAD1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32JAJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32JAY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32JAO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32JPS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-32JPJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-32JPY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-32JPO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-32JSS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32JSJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32JSY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32JSO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Draw-out, manual connection (J) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32HNH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: N (Normal), L/S/I/G \| Control power: Self-power, NFC
	AN-32E4-32HAH0	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: Self-power
	AN-32E4-32HAH1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G \| Control power: AC/DC 100-250 V
	AN-32E4-32HAD1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32HAJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32HAY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32HAO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus \| Control power: AC/DC 100-250 V
	AN-32E4-32HPS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V
	AN-32E4-32HPJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V
	AN-32E4-32HPY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V
	AN-32E4-32HPO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: P (Power meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V
	AN-32E4-32HSS1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + PTA \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32HSJ1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext ZCT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32HSY1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/Gext CT \| Control power: AC/DC 100-250 V, BT/NFC
	AN-32E4-32HSO1	Frame: AN-32E, 3200AF \| Rated current In: 3200 A \| Poles: 4P \| Mounting: Fixed, horizontal busbar (H) \| Trip relay: S (Supreme meter), L/S/I/G + NCT \| Control power: AC/DC 100-250 V, BT/NFC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Metasol ACB AN-E Air Circuit Breaker (2000-3200AF)
