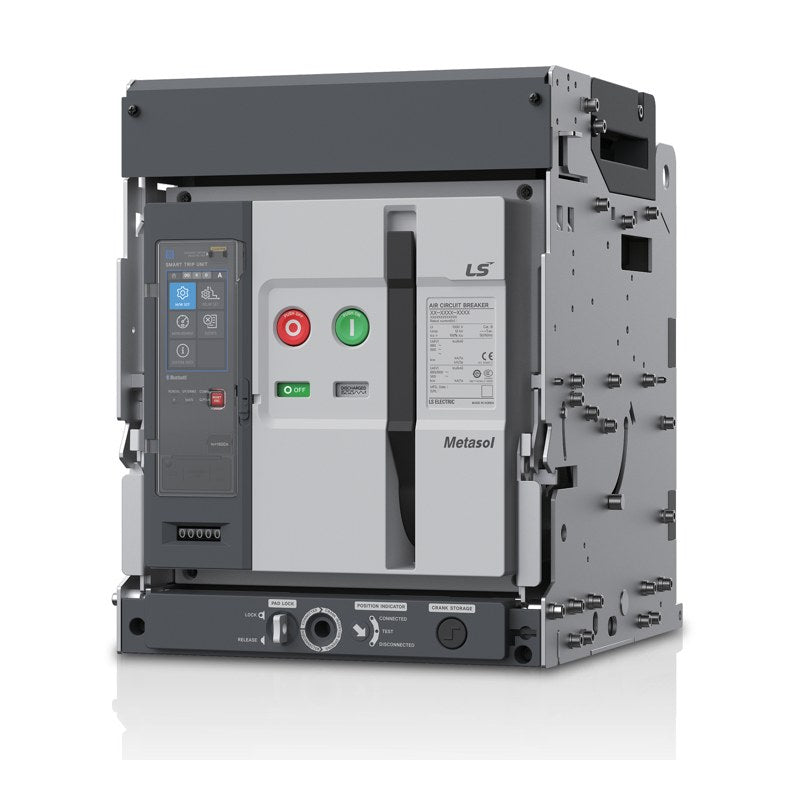

LS Electric Metasol ACB AS-F/G Air Circuit Breaker (4000-6300AF)

LS Electric Metasol ACB AS-F/G Air Circuit Breaker (4000-6300AF)

LS Electric Metasol AS air circuit breakers, F frame (4000/5000AF) and G frame (4000-6300AF), for large-capacity main incomers with digital trip relays, in draw-out and fixed versions.

Key features

  • Highest Metasol breaking capacity: AS-F Icu 100 kA, AS-G Icu 120 kA at 415 V (G frame 100 kA at 690 V)
  • Ordering code: type-frame-poles - rated current + mounting, then trip relay (e.g. AS-40F3-40J NH0); motor, closing/shunt coil, aux contact, UVT and option tokens (e.g. M1D1D1AX ... U1 AL) are added per order
  • Trip relays N (Normal), A (Ammeter), P (Power meter) and S (Supreme meter) with L/S/I/G protection; P/S types add voltage, frequency and power protection, 3.5 in touch LCD
  • Draw-out (manual or auto connection, cradle ordered separately) or fixed type; 3-pole or 4-pole with 100% rated N pole
  • Shared Metasol ACB accessories: motor charge, closing coil, shunt trip, UVT, aux contacts, key lock, mechanical interlock, counter

Specifications

Rated operational voltage (Ue) AC 690 V, 50/60 Hz
Rated insulation voltage (Ui) AC 1000 V
Rated impulse withstand voltage (Uimp) 12 kV
Icu at 415 V AS-F 100 kA, AS-G 120 kA
Icw (1 s) AS-F 85 kA, AS-G 100 kA
Icm at 415 V (peak) AS-F 220 kA, AS-G 264 kA
Mechanical / electrical life 10,000 / 2,000 operations
Current setting Ir = 0.4-1.0 x In (trip relay)
Standards IEC 60947-2, KS C 4620
Source LS Electric Metasol ACB catalog C06091-28 (2026.07), p. 14-15, 17, 19
AS-40F3-40JNH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F3-40JAH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F3-40JAH1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F3-40JAD1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JAJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JAY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JAO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JPS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F3-40JPJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F3-40JPY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F3-40JPO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F3-40JSS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40JSJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40JSY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40JSO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VNH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F3-40VAH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F3-40VAH1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F3-40VAD1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VAJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VAY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VAO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VPS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F3-40VPJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F3-40VPY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F3-40VPO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F3-40VSS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VSJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VSY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VSO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JNH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F4-40JAH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F4-40JAH1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F4-40JAD1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JAJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JAY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JAO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JPS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F4-40JPJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F4-40JPY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F4-40JPO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F4-40JSS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JSJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JSY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JSO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VNH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F4-40VAH0 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F4-40VAH1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F4-40VAD1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VAJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VAY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VAO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VPS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F4-40VPJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F4-40VPY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F4-40VPO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F4-40VSS1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VSJ1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VSY1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VSO1 Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-40JAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-40JAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-40JAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-40JPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-40JPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-40JPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-40JSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-40VAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-40VAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-40VAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-40VPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-40VPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-40VPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-40VSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-50JAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-50JAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-50JAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-50JPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-50JPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-50JPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-50JSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-50VAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-50VAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-50VAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-50VPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-50VPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-50VPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-50VSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-40JAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-40JAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-40JAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-40JPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-40JPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-40JPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-40JSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-40VAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-40VAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-40VAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-40VPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-40VPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-40VPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-40VSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-50JAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-50JAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-50JAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-50JPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-50JPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-50JPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-50JSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VNH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-50VAH0 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-50VAH1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-50VAD1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VAJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VAY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VAO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VPS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-50VPJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-50VPY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-50VPO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-50VSS1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VSJ1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VSY1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VSO1 Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JNH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G3-40JAH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G3-40JAH1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G3-40JAD1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JAJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JAY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JAO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JPS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G3-40JPJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G3-40JPY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G3-40JPO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G3-40JSS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JSJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JSY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JSO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VNH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G3-40VAH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G3-40VAH1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G3-40VAD1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VAJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VAY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VAO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VPS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G3-40VPJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G3-40VPY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G3-40VPO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G3-40VSS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VSJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VSY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VSO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JNH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G4-40JAH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G4-40JAH1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G4-40JAD1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JAJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JAY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JAO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JPS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G4-40JPJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G4-40JPY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G4-40JPO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G4-40JSS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JSJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JSY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JSO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VNH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G4-40VAH0 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G4-40VAH1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G4-40VAD1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VAJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VAY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VAO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VPS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G4-40VPJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G4-40VPY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G4-40VPO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G4-40VSS1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VSJ1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VSY1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VSO1 Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-40JAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-40JAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-40JAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-40JPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-40JPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-40JPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-40JSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-40VAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-40VAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-40VAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-40VPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-40VPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-40VPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-40VSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-50JAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-50JAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-50JAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-50JPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-50JPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-50JPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-50JSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-50VAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-50VAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-50VAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-50VPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-50VPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-50VPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-50VSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-40JAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-40JAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-40JAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-40JPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-40JPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-40JPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-40JSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-40VAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-40VAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-40VAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-40VPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-40VPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-40VPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-40VSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-50JAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-50JAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-50JAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-50JPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-50JPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-50JPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-50JSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VNH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-50VAH0 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-50VAH1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-50VAD1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VAJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VAY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VAO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VPS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-50VPJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-50VPY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-50VPO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-50VSS1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VSJ1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VSY1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VSO1 Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-40JAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-40JAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-40JAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-40JPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-40JPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-40JPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-40JSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-40VAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-40VAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-40VAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-40VPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-40VPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-40VPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-40VSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-50JAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-50JAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-50JAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-50JPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-50JPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-50JPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-50JSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-50VAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-50VAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-50VAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-50VPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-50VPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-50VPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-50VSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-63JAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-63JAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-63JAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-63JPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-63JPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-63JPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-63JSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-63VAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-63VAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-63VAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-63VPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-63VPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-63VPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-63VSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-40JAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-40JAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-40JAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-40JPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-40JPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-40JPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-40JSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-40VAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-40VAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-40VAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-40VPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-40VPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-40VPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-40VSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-50JAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-50JAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-50JAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-50JPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-50JPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-50JPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-50JSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-50VAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-50VAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-50VAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-50VPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-50VPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-50VPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-50VSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-63JAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-63JAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-63JAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-63JPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-63JPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-63JPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-63JSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VNH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-63VAH0 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-63VAH1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-63VAD1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VAJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VAY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VAO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VPS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-63VPJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-63VPY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-63VPO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-63VSS1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VSJ1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VSY1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VSO1 Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
Air Circuit BreakersLS Electric
540 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol ACB AS-F/G Air Circuit Breaker (4000-6300AF)

Brand LS Electric·Air Circuit Breakers

Available part numbers (540)

AS-40F3-40JNH0, AS-40F3-40JAH0, AS-40F3-40JAH1, AS-40F3-40JAD1, AS-40F3-40JAJ1, AS-40F3-40JAY1, AS-40F3-40JAO1, AS-40F3-40JPS1, AS-40F3-40JPJ1, AS-40F3-40JPY1 + 530 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS-40F3-40JNH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F3-40JAH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F3-40JAH1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F3-40JAD1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JAJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JAY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JAO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40JPS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F3-40JPJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F3-40JPY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F3-40JPO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F3-40JSS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40JSJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40JSY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40JSO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VNH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F3-40VAH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F3-40VAH1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F3-40VAD1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VAJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VAY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VAO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F3-40VPS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F3-40VPJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F3-40VPY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F3-40VPO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F3-40VSS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VSJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VSY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F3-40VSO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JNH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F4-40JAH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F4-40JAH1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F4-40JAD1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JAJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JAY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JAO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40JPS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F4-40JPJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F4-40JPY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F4-40JPO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F4-40JSS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JSJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JSY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40JSO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VNH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40F4-40VAH0Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40F4-40VAH1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40F4-40VAD1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VAJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VAY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VAO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40F4-40VPS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40F4-40VPJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40F4-40VPY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40F4-40VPO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40F4-40VSS1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VSJ1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VSY1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40F4-40VSO1Frame: AS-40F, 4000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-40JAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-40JAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-40JAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40JPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-40JPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-40JPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-40JPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-40JSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40JSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-40VAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-40VAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-40VAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-40VPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-40VPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-40VPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-40VPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-40VSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-40VSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-50JAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-50JAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-50JAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50JPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-50JPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-50JPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-50JPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-50JSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50JSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F3-50VAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F3-50VAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F3-50VAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F3-50VPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F3-50VPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F3-50VPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F3-50VPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F3-50VSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F3-50VSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-40JAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-40JAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-40JAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40JPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-40JPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-40JPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-40JPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-40JSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40JSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-40VAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-40VAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-40VAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-40VPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-40VPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-40VPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-40VPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-40VSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-40VSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-50JAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-50JAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-50JAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50JPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-50JPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-50JPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-50JPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-50JSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50JSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VNH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50F4-50VAH0Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50F4-50VAH1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50F4-50VAD1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VAJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VAY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VAO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50F4-50VPS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50F4-50VPJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50F4-50VPY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50F4-50VPO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50F4-50VSS1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VSJ1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VSY1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50F4-50VSO1Frame: AS-50F, 5000AF, Icu 100 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JNH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G3-40JAH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G3-40JAH1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G3-40JAD1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JAJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JAY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JAO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40JPS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G3-40JPJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G3-40JPY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G3-40JPO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G3-40JSS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JSJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JSY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40JSO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VNH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G3-40VAH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G3-40VAH1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G3-40VAD1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VAJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VAY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VAO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G3-40VPS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G3-40VPJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G3-40VPY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G3-40VPO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G3-40VSS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VSJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VSY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G3-40VSO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JNH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G4-40JAH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G4-40JAH1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G4-40JAD1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JAJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JAY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JAO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40JPS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G4-40JPJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G4-40JPY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G4-40JPO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G4-40JSS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JSJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JSY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40JSO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VNH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-40G4-40VAH0Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-40G4-40VAH1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-40G4-40VAD1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VAJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VAY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VAO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-40G4-40VPS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-40G4-40VPJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-40G4-40VPY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-40G4-40VPO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-40G4-40VSS1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VSJ1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VSY1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-40G4-40VSO1Frame: AS-40G, 4000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-40JAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-40JAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-40JAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40JPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-40JPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-40JPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-40JPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-40JSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40JSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-40VAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-40VAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-40VAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-40VPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-40VPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-40VPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-40VPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-40VSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-40VSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-50JAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-50JAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-50JAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50JPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-50JPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-50JPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-50JPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-50JSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50JSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G3-50VAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G3-50VAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G3-50VAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G3-50VPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G3-50VPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G3-50VPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G3-50VPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G3-50VSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G3-50VSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-40JAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-40JAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-40JAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40JPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-40JPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-40JPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-40JPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-40JSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40JSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-40VAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-40VAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-40VAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-40VPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-40VPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-40VPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-40VPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-40VSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-40VSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-50JAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-50JAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-50JAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50JPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-50JPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-50JPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-50JPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-50JSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50JSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VNH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-50G4-50VAH0Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-50G4-50VAH1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-50G4-50VAD1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VAJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VAY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VAO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-50G4-50VPS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-50G4-50VPJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-50G4-50VPY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-50G4-50VPO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-50G4-50VSS1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VSJ1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VSY1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-50G4-50VSO1Frame: AS-50G, 5000AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-40JAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-40JAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-40JAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40JPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-40JPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-40JPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-40JPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-40JSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40JSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-40VAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-40VAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-40VAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-40VPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-40VPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-40VPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-40VPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-40VSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-40VSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-50JAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-50JAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-50JAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50JPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-50JPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-50JPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-50JPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-50JSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50JSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-50VAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-50VAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-50VAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-50VPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-50VPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-50VPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-50VPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-50VSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-50VSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-63JAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-63JAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-63JAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63JPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-63JPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-63JPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-63JPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-63JSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63JSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G3-63VAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G3-63VAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G3-63VAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G3-63VPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G3-63VPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G3-63VPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G3-63VPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G3-63VSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G3-63VSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 3P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-40JAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-40JAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-40JAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40JPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-40JPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-40JPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-40JPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-40JSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40JSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-40VAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-40VAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-40VAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-40VPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-40VPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-40VPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-40VPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-40VSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-40VSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 4000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-50JAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-50JAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-50JAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50JPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-50JPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-50JPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-50JPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-50JSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50JSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-50VAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-50VAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-50VAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-50VPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-50VPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-50VPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-50VPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-50VSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-50VSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 5000 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-63JAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-63JAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-63JAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63JPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-63JPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-63JPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-63JPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-63JSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63JSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Draw-out, manual connection (J) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VNH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: N (Normal), L/S/I/G | Control power: Self-power, NFC
AS-63G4-63VAH0Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: Self-power
AS-63G4-63VAH1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G | Control power: AC/DC 100-250 V
AS-63G4-63VAD1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VAJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext ZCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VAY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/Gext CT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VAO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: A (Ammeter), L/S/I/G + NCT + Modbus | Control power: AC/DC 100-250 V
AS-63G4-63VPS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V
AS-63G4-63VPJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V
AS-63G4-63VPY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V
AS-63G4-63VPO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: P (Power meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V
AS-63G4-63VSS1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + PTA | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VSJ1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext ZCT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VSY1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/Gext CT | Control power: AC/DC 100-250 V, BT/NFC
AS-63G4-63VSO1Frame: AS-63G, 6300AF, Icu 120 kA | Rated current In: 6300 A | Poles: 4P | Mounting: Fixed, vertical busbar (V) | Trip relay: S (Supreme meter), L/S/I/G + NCT | Control power: AC/DC 100-250 V, BT/NFC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
