LS Electric Metasol GIMAC-B Multi-Branch Meter (Main & Modules)

LS Electric Metasol GIMAC-B Multi-Branch Meter (Main & Modules)

LS Electric Metasol GIMAC-B multi-branch measuring system for low-voltage switchboards and distribution boards: a main meter with touch LCD plus branch metering and temperature modules for each MCCB feeder.

Key features

  • Main meter with 8 inch graphic touch LCD; Ethernet (2 ports) and Modbus RS485 upstream
  • Up to 50 branch modules per main meter with automatic ID assignment
  • Branch modules mount directly on Metasol MCCBs (TeM) or as through-hole type, 1-phase and 3-phase
  • Optional leakage current (MZ, ZCT input) and breaker AX/AL status (MD) monitoring
  • Voltage/current 0.2 % accuracy; THD, TDD, K-factor, demand, sag/swell/interruption with waveform storage

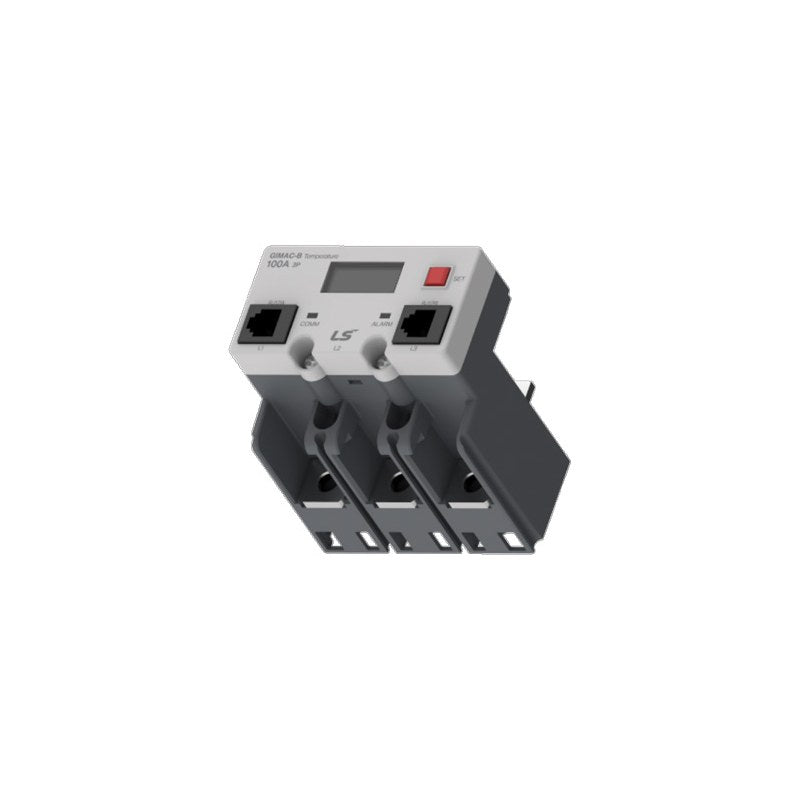

  • Panel (non-contact) and busbar terminal (contact) temperature modules, +/-2 C

Specifications

Main meter CT input 0.05-6 A
Voltage input 9-452 V phase (9-782 V line)
Main control power 88-264 V AC/DC
Branch module supply 5.5 VDC from main meter
Branch current ranges 30A: 0.3-36 A; 100A: 0.6-120 A; 250A: 2.5-300 A
Leakage current input 0-3 A (ZCT, MZ/MZD types)
Main I/O DI 2 ch dry; DO 1 ch 250 VAC 5 A
Operating temperature -20 to +60 C
Source LS Electric Metasol GIMAC-B catalog C16001-08 (2023-06), p. 5, 8, 22-25, 27, 41
GIMAC-BTEM5A50Hz Unit: Main meter | Model: Standard (branch metering) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 50 Hz
GIMAC-BTEM5A50HzTEMP Unit: Main meter | Model: TEMP (branch + busbar temp.) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 50 Hz
GIMAC-BTEM5A60Hz Unit: Main meter | Model: Standard (branch metering) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 60 Hz
GIMAC-BTEM5A60HzTEMP Unit: Main meter | Model: TEMP (branch + busbar temp.) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 60 Hz
GIMAC-BM250AF3P250ATeM50Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM250AF3P250A50Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM250AF2P250ATeM50Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM250AF2P250A50Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM125AF3P125ATeM50Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM125AF3P125A50Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM125AF2P125ATeM50Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM125AF2P125A50Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF3P100ATeM50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF3P100A50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF2P100ATeM50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF2P100A50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF3P30ATeM50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF3P30A50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF2P30ATeM50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF2P30A50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ250AF3P250ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ250AF3P250A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ250AF2P250ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ250AF2P250A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ125AF3P125ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ125AF3P125A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ125AF2P125ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ125AF2P125A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF3P100ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF3P100A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF2P100ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF2P100A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF3P30ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF3P30A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF2P30ATeM50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF2P30A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD250AF3P250ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD250AF3P250A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD250AF2P250ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD250AF2P250A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD125AF3P125ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD125AF3P125A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD125AF2P125ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD125AF2P125A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF3P100ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF3P100A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF2P100ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF2P100A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF3P30ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF3P30A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF2P30ATeM50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF2P30A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF3P100ATeM50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF3P100A50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF2P100ATeM50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF2P100A50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF3P30ATeM50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF3P30A50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF2P30ATeM50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF2P30A50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF3P5A50Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF3P5A50Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF3P5A50Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF3P5A50Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM250AF3P250ATeM60Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM250AF3P250A60Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM250AF2P250ATeM60Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM250AF2P250A60Hz Unit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM125AF3P125ATeM60Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM125AF3P125A60Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM125AF2P125ATeM60Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM125AF2P125A60Hz Unit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF3P100ATeM60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF3P100A60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF2P100ATeM60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF2P100A60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF3P30ATeM60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF3P30A60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF2P30ATeM60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF2P30A60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ250AF3P250ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ250AF3P250A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ250AF2P250ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ250AF2P250A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ125AF3P125ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ125AF3P125A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ125AF2P125ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ125AF2P125A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF3P100ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF3P100A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF2P100ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF2P100A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF3P30ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF3P30A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF2P30ATeM60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF2P30A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD250AF3P250ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD250AF3P250A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD250AF2P250ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD250AF2P250A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD125AF3P125ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD125AF3P125A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD125AF2P125ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD125AF2P125A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF3P100ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF3P100A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF2P100ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF2P100A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF3P30ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF3P30A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF2P30ATeM60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF2P30A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF3P100ATeM60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF3P100A60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF2P100ATeM60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF2P100A60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF3P30ATeM60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF3P30A60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF2P30ATeM60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF2P30A60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF3P5A60Hz Unit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF3P5A60Hz Unit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF3P5A60Hz Unit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF3P5A60Hz Unit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BTemperature Unit: Panel temperature module | Model: Temperature | Poles: - | Rating: -20 to 65 C, non-contact | Mounting: Panel interior | Frequency: -
GIMAC-BTEMP2P32EGR Unit: Busbar temperature module | Model: TEMP | Poles: 2 | Rating: 32EGR | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP2P100A Unit: Busbar temperature module | Model: TEMP | Poles: 2 | Rating: 100A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P100A Unit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 100A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P125A Unit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 125A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P250A Unit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 250A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P400A Unit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 400A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P630A Unit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 630A | Mounting: Direct on breaker terminals | Frequency: -
Power MetersLS Electric
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol GIMAC-B Multi-Branch Meter (Main & Modules)

Brand LS Electric·Power Meters

Available part numbers (132)

GIMAC-BTEM5A50Hz, GIMAC-BTEM5A50HzTEMP, GIMAC-BTEM5A60Hz, GIMAC-BTEM5A60HzTEMP, GIMAC-BM250AF3P250ATeM50Hz, GIMAC-BM250AF3P250A50Hz, GIMAC-BM250AF2P250ATeM50Hz, GIMAC-BM250AF2P250A50Hz, GIMAC-BM125AF3P125ATeM50Hz, GIMAC-BM125AF3P125A50Hz + 122 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIMAC-BTEM5A50HzUnit: Main meter | Model: Standard (branch metering) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 50 Hz
GIMAC-BTEM5A50HzTEMPUnit: Main meter | Model: TEMP (branch + busbar temp.) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 50 Hz
GIMAC-BTEM5A60HzUnit: Main meter | Model: Standard (branch metering) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 60 Hz
GIMAC-BTEM5A60HzTEMPUnit: Main meter | Model: TEMP (branch + busbar temp.) | Poles: - | Rating: 5A CT input | Mounting: Panel, 8 in touch LCD | Frequency: 60 Hz
GIMAC-BM250AF3P250ATeM50HzUnit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM250AF3P250A50HzUnit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM250AF2P250ATeM50HzUnit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM250AF2P250A50HzUnit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM125AF3P125ATeM50HzUnit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM125AF3P125A50HzUnit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM125AF2P125ATeM50HzUnit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM125AF2P125A50HzUnit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF3P100ATeM50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF3P100A50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF2P100ATeM50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF2P100A50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF3P30ATeM50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF3P30A50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF2P30ATeM50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BM100AF2P30A50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ250AF3P250ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ250AF3P250A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ250AF2P250ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ250AF2P250A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ125AF3P125ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ125AF3P125A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ125AF2P125ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ125AF2P125A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF3P100ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF3P100A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF2P100ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF2P100A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF3P30ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF3P30A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF2P30ATeM50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZ100AF2P30A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD250AF3P250ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD250AF3P250A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD250AF2P250ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD250AF2P250A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD125AF3P125ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD125AF3P125A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD125AF2P125ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD125AF2P125A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF3P100ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF3P100A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF2P100ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF2P100A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF3P30ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF3P30A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF2P30ATeM50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMZD100AF2P30A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF3P100ATeM50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF3P100A50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF2P100ATeM50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF2P100A50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF3P30ATeM50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF3P30A50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF2P30ATeM50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 50 Hz
GIMAC-BMD100AF2P30A50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM100AF3P5A50HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZ100AF3P5A50HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMD100AF3P5A50HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BMZD100AF3P5A50HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 50 Hz
GIMAC-BM250AF3P250ATeM60HzUnit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM250AF3P250A60HzUnit: Branch module M (meter) | Model: M250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM250AF2P250ATeM60HzUnit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM250AF2P250A60HzUnit: Branch module M (meter) | Model: M250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM125AF3P125ATeM60HzUnit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM125AF3P125A60HzUnit: Branch module M (meter) | Model: M125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM125AF2P125ATeM60HzUnit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM125AF2P125A60HzUnit: Branch module M (meter) | Model: M125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF3P100ATeM60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF3P100A60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF2P100ATeM60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF2P100A60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF3P30ATeM60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF3P30A60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF2P30ATeM60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BM100AF2P30A60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ250AF3P250ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ250AF3P250A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ250AF2P250ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ250AF2P250A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ125AF3P125ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ125AF3P125A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ125AF2P125ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ125AF2P125A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF3P100ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF3P100A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF2P100ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF2P100A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF3P30ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF3P30A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF2P30ATeM60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZ100AF2P30A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD250AF3P250ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD250AF3P250A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 3 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD250AF2P250ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD250AF2P250A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD250AF | Poles: 2 | Rating: 250A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD125AF3P125ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD125AF3P125A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 3 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD125AF2P125ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD125AF2P125A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD125AF | Poles: 2 | Rating: 125A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF3P100ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF3P100A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF2P100ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF2P100A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF3P30ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF3P30A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF2P30ATeM60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMZD100AF2P30A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF3P100ATeM60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF3P100A60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF2P100ATeM60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF2P100A60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 100A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF3P30ATeM60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF3P30A60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF2P30ATeM60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Direct on Metasol MCCB (TeM) | Frequency: 60 Hz
GIMAC-BMD100AF2P30A60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 2 | Rating: 30A | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BM100AF3P5A60HzUnit: Branch module M (meter) | Model: M100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZ100AF3P5A60HzUnit: Branch module MZ (meter + ZCT) | Model: MZ100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMD100AF3P5A60HzUnit: Branch module MD (meter + DI) | Model: MD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BMZD100AF3P5A60HzUnit: Branch module MZD (meter + ZCT + DI) | Model: MZD100AF | Poles: 3 | Rating: 5A CT input (51 steps) | Mounting: Through-hole (feed-through) | Frequency: 60 Hz
GIMAC-BTemperatureUnit: Panel temperature module | Model: Temperature | Poles: - | Rating: -20 to 65 C, non-contact | Mounting: Panel interior | Frequency: -
GIMAC-BTEMP2P32EGRUnit: Busbar temperature module | Model: TEMP | Poles: 2 | Rating: 32EGR | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP2P100AUnit: Busbar temperature module | Model: TEMP | Poles: 2 | Rating: 100A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P100AUnit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 100A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P125AUnit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 125A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P250AUnit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 250A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P400AUnit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 400A | Mounting: Direct on breaker terminals | Frequency: -
GIMAC-BTEMP3P630AUnit: Busbar temperature module | Model: TEMP | Poles: 3 | Rating: 630A | Mounting: Direct on breaker terminals | Frequency: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Controllers & Meters →
