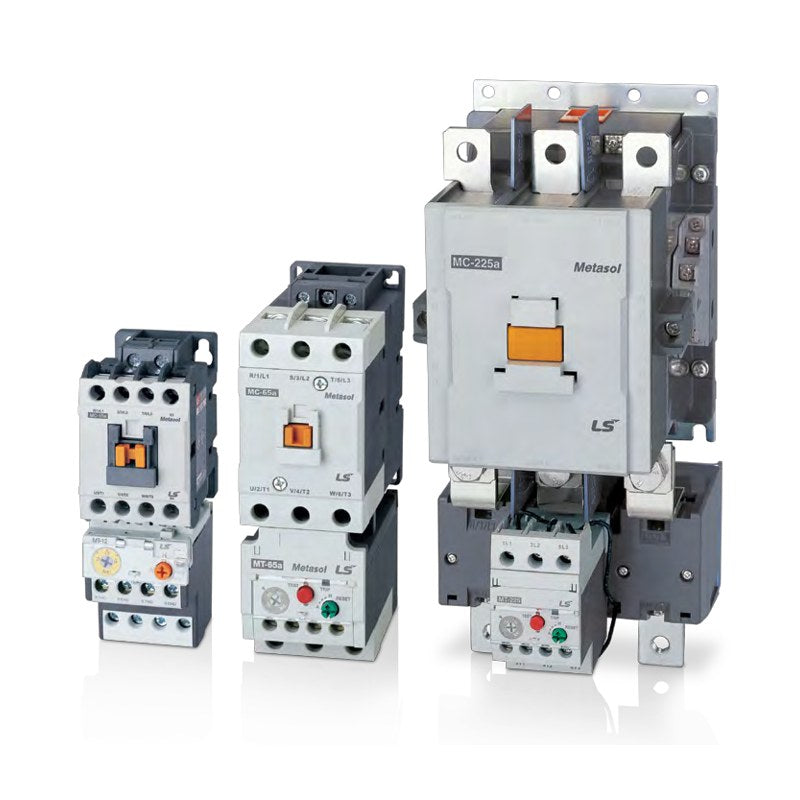

LS Electric Metasol MC/MT Covers, Barriers and Mounting Accessories

LS Electric Metasol MC/MT Covers, Barriers and Mounting Accessories

LS Electric Metasol contactor and overload-relay accessories: AP terminal and safety covers, AI insulation barriers, AC capacitor units, UZ separate mounting units and UM remote reset units.

Key features

  • AP standard and AP/T transparent terminal covers for 18AF to 800AF contactors
  • AP-9 / AP-185 safety covers prevent accidental manual operation and arc exposure
  • AI insulation barriers between phases for 150AF to 2650AF and MCi contactors
  • AC-9/50/75 capacitor units convert MC contactors for capacitor-bank switching
  • UZ units mount MT overload relays separately; UM units reset them from the panel door

Specifications

Brand LS Electric Metasol
Covers per contactor 2 terminal covers; 4 insulation barriers
Capacitor unit standard IEC 60947-5-1, AC-15 6 A at 120 V
Remote reset Common to all MT frames; 8 mm panel cut-out
Source LS Electric Metasol MS catalog C04001-37 (2026-09), p. 91, 95, 97, 109-110
AP-18 Type: Terminal cover, standard | For: MC-6a to 18a (18AF) | Note: 2 pcs per contactor
AP/T-6 Type: Terminal cover, transparent | For: MC-6a to 18a (18AF) | Note: 2 pcs per contactor
AP-22 Type: Terminal cover, standard | For: MC-9b to 22b (22AF) | Note: 2 pcs per contactor
AP/T-9 Type: Terminal cover, transparent | For: MC-9b to 22b (22AF) | Note: 2 pcs per contactor
AP-40 Type: Terminal cover, standard | For: MC-32a, 40a (40AF) | Note: 2 pcs per contactor
AP/T-32 Type: Terminal cover, transparent | For: MC-32a, 40a (40AF) | Note: 2 pcs per contactor
AP-65 Type: Terminal cover, standard | For: MC-50a, 65a (65AF) | Note: 2 pcs per contactor
AP/T-50 Type: Terminal cover, transparent | For: MC-50a, 65a (65AF) | Note: 2 pcs per contactor
AP-100 Type: Terminal cover, standard | For: MC-75a to 100a (100AF) | Note: 2 pcs per contactor
AP/T-75 Type: Terminal cover, transparent | For: MC-75a to 100a (100AF) | Note: 2 pcs per contactor
AP-150 Type: Terminal cover, standard | For: MC-130a, 150a (150AF) | Note: 2 pcs per contactor
AP/T-130 Type: Terminal cover, transparent | For: MC-130a, 150a (150AF) | Note: 2 pcs per contactor
AP-220 Type: Terminal cover, standard | For: MC-185a, 225a (225AF) | Note: 2 pcs per contactor
AP/T-185 Type: Terminal cover, transparent | For: MC-185a, 225a (225AF) | Note: 2 pcs per contactor
AP-400 Type: Terminal cover, standard | For: MC-265a to 400a (400AF) | Note: 2 pcs per contactor
AP/T-265 Type: Terminal cover, transparent | For: MC-265a to 400a (400AF) | Note: 2 pcs per contactor
AP-800 Type: Terminal cover, standard | For: MC-500a to 800a (800AF) | Note: 2 pcs per contactor
AP/T-500 Type: Terminal cover, transparent | For: MC-500a to 800a (800AF) | Note: 2 pcs per contactor
AP-185 Type: Safety cover | For: MC-185a to 1260a | Note: Prevents accidental operation
AI-180 Type: Insulation barrier | For: MC-130a to 400a | Note: 4 pcs per contactor
AI-800 Type: Insulation barrier | For: MC-500a to 1260a | Note: 4 pcs per contactor
AI-2100 Type: Insulation barrier | For: MC-1400a to 2100a | Note: 4 pcs per contactor
AI-2650 Type: Insulation barrier | For: MC-2650a, MCi-1700 to 2650 | Note: 4 pcs per contactor
AI-1260 Type: Insulation barrier | For: MCi-900 to 1260 | Note: 4 pcs per contactor
AC-75 Type: Capacitor unit (pre-loading resistor) | For: MC-75a to 100a | Note: Built-in 1NC, Ith 16 A
UZ-12 Type: Overload relay separate mounting unit | For: MT-12 | Note: Weight 35 g, DIN rail or screw
UZ-63S Type: Overload relay separate mounting unit | For: MT-63 (screw) | Note: Weight 134 g, DIN rail or screw
UZ-63L Type: Overload relay separate mounting unit | For: MT-63 (lug) | Note: Weight 134 g, DIN rail or screw
UZ-95S Type: Overload relay separate mounting unit | For: MT-95 (screw) | Note: Weight 230 g, DIN rail or screw
UZ-95L Type: Overload relay separate mounting unit | For: MT-95 (lug) | Note: Weight 230 g, DIN rail or screw
UZ-150S Type: Overload relay separate mounting unit | For: MT-150 (screw) | Note: Weight 284 g, DIN rail or screw
UZ-150L Type: Overload relay separate mounting unit | For: MT-150 (lug) | Note: Weight 284 g, DIN rail or screw
UM-7R Type: Overload relay remote reset unit | For: MT series, all frames | Note: Cable length 700 mm
UM-9R Type: Overload relay remote reset unit | For: MT series, all frames | Note: Cable length 900 mm
