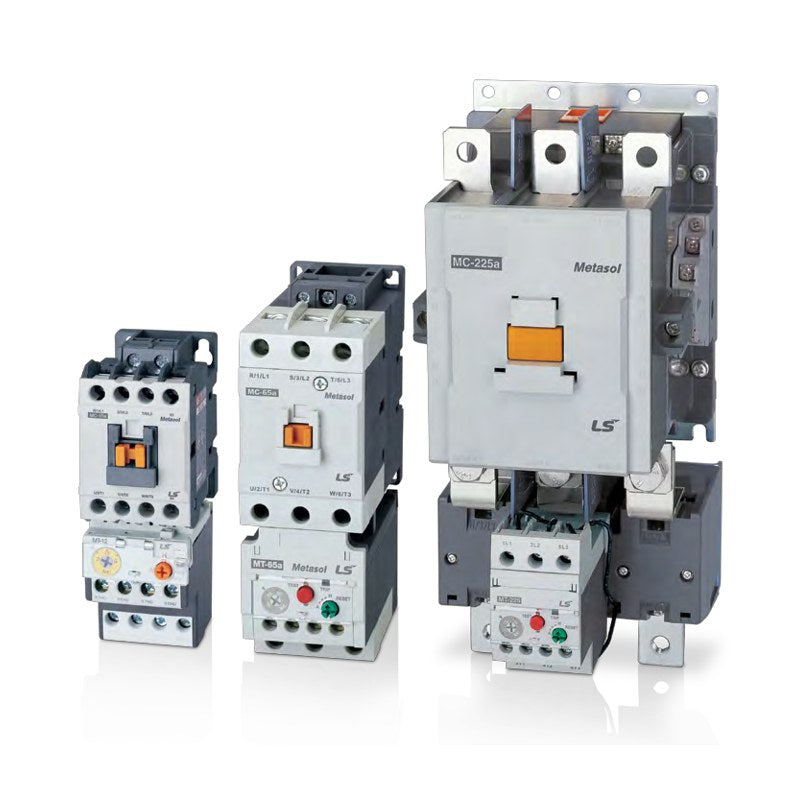

LS Electric Metasol MC Replacement Operating Coils (22AF-2650AF)

LS Electric Metasol MC Replacement Operating Coils (22AF-2650AF)

Genuine LS Electric replacement operating coils for Metasol MC contactors 22AF to 2650AF (3-pole and 4-pole), ordered by 11-digit LS order code for coil burnout or coil-voltage change.

Key features

  • Factory replacement coils for Metasol MC-9b to MC-2650a and MCi contactors
  • AC 50 Hz, 60 Hz, 50/60 Hz, dual-rated and DC coils on 22-100AF frames
  • Wide-range AC/DC common coils for 150AF and larger frames
  • Separate 3-pole and 4-pole coil codes where the frame differs
  • Ordered by LS 11-digit order code as printed in the catalog

Specifications

Product Replacement operating coil
Brand LS Electric Metasol
Coil voltage limit 85 to 110% Uc
Special coils Codes for special versions on request
Not covered 18AF (MC-6a to 18a) coils have no order code in this table
Source LS Electric Metasol MS catalog C04001-37 (2026-09), p. 96-101
77121635600 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635601 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635602 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635603 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635604 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635605 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635606 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635607 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635608 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635609 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635610 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635611 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635612 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635613 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635614 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635615 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 460V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635616 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 65V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635617 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 42V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635618 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635619 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 24V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635620 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 48V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635621 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 110V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635622 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 120V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635623 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 220V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635624 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 240V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635625 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 380V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635626 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 440V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635627 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 480V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635628 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 600V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635629 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635630 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635631 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 208V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635632 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 277V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635636 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 460V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635637 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 60V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635638 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 70V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635639 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 127V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635640 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 65V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635641 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 230V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635642 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 200V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635643 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 24V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635644 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 48V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635645 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 110V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635646 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 220V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635647 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 240V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635648 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 380V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635649 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 400V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635650 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 415V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635651 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 440V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635652 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 550V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635653 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 36V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635654 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 42V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635655 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 80V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635656 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635657 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 230V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635658 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 500V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635659 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 32V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635660 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 460V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635661 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 120V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635662 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 58V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635663 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 65V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635664 Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 60V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121631731 Frame: 40AF | Poles: 3P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-32a, 40a
77121631732 Frame: 40AF | Poles: 3P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-32a, 40a
77121631733 Frame: 40AF | Poles: 3P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-32a, 40a
77121631734 Frame: 40AF | Poles: 3P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-32a, 40a
77121631735 Frame: 40AF | Poles: 3P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-32a, 40a
77121631736 Frame: 40AF | Poles: 3P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-32a, 40a
77121631737 Frame: 40AF | Poles: 3P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-32a, 40a
77121631738 Frame: 40AF | Poles: 3P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-32a, 40a
77121631739 Frame: 40AF | Poles: 3P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-32a, 40a
77121631740 Frame: 40AF | Poles: 3P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-32a, 40a
77121631741 Frame: 40AF | Poles: 3P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-32a, 40a
77121631742 Frame: 40AF | Poles: 3P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-32a, 40a
77121631743 Frame: 40AF | Poles: 3P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-32a, 40a
77121631744 Frame: 40AF | Poles: 3P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-32a, 40a
77121631745 Frame: 40AF | Poles: 3P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-32a, 40a
77121631746 Frame: 40AF | Poles: 3P | Coil rating: AC 24V 60 Hz | For contactors: MC-32a, 40a
77121631747 Frame: 40AF | Poles: 3P | Coil rating: AC 48V 60 Hz | For contactors: MC-32a, 40a
77121631748 Frame: 40AF | Poles: 3P | Coil rating: AC 110V 60 Hz | For contactors: MC-32a, 40a
77121631749 Frame: 40AF | Poles: 3P | Coil rating: AC 120V 60 Hz | For contactors: MC-32a, 40a
77121631750 Frame: 40AF | Poles: 3P | Coil rating: AC 220V 60 Hz | For contactors: MC-32a, 40a
77121631751 Frame: 40AF | Poles: 3P | Coil rating: AC 240V 60 Hz | For contactors: MC-32a, 40a
77121631752 Frame: 40AF | Poles: 3P | Coil rating: AC 380V 60 Hz | For contactors: MC-32a, 40a
77121631753 Frame: 40AF | Poles: 3P | Coil rating: AC 440V 60 Hz | For contactors: MC-32a, 40a
77121631754 Frame: 40AF | Poles: 3P | Coil rating: AC 480V 60 Hz | For contactors: MC-32a, 40a
77121631755 Frame: 40AF | Poles: 3P | Coil rating: AC 600V 60 Hz | For contactors: MC-32a, 40a
77121631756 Frame: 40AF | Poles: 3P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-32a, 40a
77121631757 Frame: 40AF | Poles: 3P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-32a, 40a
77121631758 Frame: 40AF | Poles: 3P | Coil rating: AC 208V 60 Hz | For contactors: MC-32a, 40a
77121631759 Frame: 40AF | Poles: 3P | Coil rating: AC 277V 60 Hz | For contactors: MC-32a, 40a
77121631760 Frame: 40AF | Poles: 3P | Coil rating: AC 230V 60 Hz | For contactors: MC-32a, 40a
77121631761 Frame: 40AF | Poles: 3P | Coil rating: AC 200V 60 Hz | For contactors: MC-32a, 40a
77121631762 Frame: 40AF | Poles: 3P | Coil rating: AC 100V 60 Hz | For contactors: MC-32a, 40a
77121631763 Frame: 40AF | Poles: 3P | Coil rating: AC 24V 50 Hz | For contactors: MC-32a, 40a
77121631764 Frame: 40AF | Poles: 3P | Coil rating: AC 48V 50 Hz | For contactors: MC-32a, 40a
77121631765 Frame: 40AF | Poles: 3P | Coil rating: AC 110V 50 Hz | For contactors: MC-32a, 40a
77121631766 Frame: 40AF | Poles: 3P | Coil rating: AC 220V 50 Hz | For contactors: MC-32a, 40a
77121631767 Frame: 40AF | Poles: 3P | Coil rating: AC 240V 50 Hz | For contactors: MC-32a, 40a
77121631768 Frame: 40AF | Poles: 3P | Coil rating: AC 380V 50 Hz | For contactors: MC-32a, 40a
77121631769 Frame: 40AF | Poles: 3P | Coil rating: AC 400V 50 Hz | For contactors: MC-32a, 40a
77121631770 Frame: 40AF | Poles: 3P | Coil rating: AC 415V 50 Hz | For contactors: MC-32a, 40a
77121631771 Frame: 40AF | Poles: 3P | Coil rating: AC 440V 50 Hz | For contactors: MC-32a, 40a
77121631772 Frame: 40AF | Poles: 3P | Coil rating: AC 550V 50 Hz | For contactors: MC-32a, 40a
77121631773 Frame: 40AF | Poles: 3P | Coil rating: AC 36V 50 Hz | For contactors: MC-32a, 40a
77121631774 Frame: 40AF | Poles: 3P | Coil rating: AC 42V 50 Hz | For contactors: MC-32a, 40a
77121631775 Frame: 40AF | Poles: 3P | Coil rating: AC 80V 50 Hz | For contactors: MC-32a, 40a
77121631776 Frame: 40AF | Poles: 3P | Coil rating: AC 100V 50 Hz | For contactors: MC-32a, 40a
77121631777 Frame: 40AF | Poles: 3P | Coil rating: AC 230V 50 Hz | For contactors: MC-32a, 40a
77121631778 Frame: 40AF | Poles: 3P | Coil rating: AC 500V 50 Hz | For contactors: MC-32a, 40a
77121631779 Frame: 40AF | Poles: 3P | Coil rating: AC 32V 50 Hz | For contactors: MC-32a, 40a
77121631780 Frame: 40AF | Poles: 3P | Coil rating: AC 120V 50 Hz | For contactors: MC-32a, 40a
77121631661 Frame: 40AF | Poles: 3P | Coil rating: DC 12V | For contactors: MC-32a, 40a
77121631662 Frame: 40AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-32a, 40a
77121631663 Frame: 40AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-32a, 40a
77121631664 Frame: 40AF | Poles: 3P | Coil rating: DC 100V | For contactors: MC-32a, 40a
77121631665 Frame: 40AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-32a, 40a
77121631666 Frame: 40AF | Poles: 3P | Coil rating: DC 125V | For contactors: MC-32a, 40a
77121631667 Frame: 40AF | Poles: 3P | Coil rating: DC 200V | For contactors: MC-32a, 40a
77121631668 Frame: 40AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-32a, 40a
77121631669 Frame: 40AF | Poles: 3P | Coil rating: DC 250V | For contactors: MC-32a, 40a
77121631670 Frame: 40AF | Poles: 3P | Coil rating: DC 20V | For contactors: MC-32a, 40a
77121631671 Frame: 40AF | Poles: 3P | Coil rating: DC 60V | For contactors: MC-32a, 40a
77121631672 Frame: 40AF | Poles: 3P | Coil rating: DC 80V | For contactors: MC-32a, 40a
77121631031 Frame: 40AF | Poles: 4P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631032 Frame: 40AF | Poles: 4P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631033 Frame: 40AF | Poles: 4P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631034 Frame: 40AF | Poles: 4P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631035 Frame: 40AF | Poles: 4P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631036 Frame: 40AF | Poles: 4P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631037 Frame: 40AF | Poles: 4P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631038 Frame: 40AF | Poles: 4P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631039 Frame: 40AF | Poles: 4P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631040 Frame: 40AF | Poles: 4P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631041 Frame: 40AF | Poles: 4P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631042 Frame: 40AF | Poles: 4P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631043 Frame: 40AF | Poles: 4P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631044 Frame: 40AF | Poles: 4P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631045 Frame: 40AF | Poles: 4P | Coil rating: AC 24V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631046 Frame: 40AF | Poles: 4P | Coil rating: AC 36V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631047 Frame: 40AF | Poles: 4P | Coil rating: AC 42V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631048 Frame: 40AF | Poles: 4P | Coil rating: AC 48V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631049 Frame: 40AF | Poles: 4P | Coil rating: AC 65V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631050 Frame: 40AF | Poles: 4P | Coil rating: AC 80V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631051 Frame: 40AF | Poles: 4P | Coil rating: AC 100V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631052 Frame: 40AF | Poles: 4P | Coil rating: AC 110V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631053 Frame: 40AF | Poles: 4P | Coil rating: AC 220V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631054 Frame: 40AF | Poles: 4P | Coil rating: AC 230V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631055 Frame: 40AF | Poles: 4P | Coil rating: AC 240V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631056 Frame: 40AF | Poles: 4P | Coil rating: AC 380V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631057 Frame: 40AF | Poles: 4P | Coil rating: AC 400V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631058 Frame: 40AF | Poles: 4P | Coil rating: AC 415V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631059 Frame: 40AF | Poles: 4P | Coil rating: AC 440V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631060 Frame: 40AF | Poles: 4P | Coil rating: AC 500V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631061 Frame: 40AF | Poles: 4P | Coil rating: AC 550V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631064 Frame: 40AF | Poles: 4P | Coil rating: AC 24V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631065 Frame: 40AF | Poles: 4P | Coil rating: AC 48V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631066 Frame: 40AF | Poles: 4P | Coil rating: AC 110V 60 Hz, AC 100V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631067 Frame: 40AF | Poles: 4P | Coil rating: AC 120V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631068 Frame: 40AF | Poles: 4P | Coil rating: AC 208V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631069 Frame: 40AF | Poles: 4P | Coil rating: AC 220V 60 Hz, AC 200V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631070 Frame: 40AF | Poles: 4P | Coil rating: AC 240V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631071 Frame: 40AF | Poles: 4P | Coil rating: AC 277V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631072 Frame: 40AF | Poles: 4P | Coil rating: AC 380V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631073 Frame: 40AF | Poles: 4P | Coil rating: AC 440V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631074 Frame: 40AF | Poles: 4P | Coil rating: AC 480V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631075 Frame: 40AF | Poles: 4P | Coil rating: AC 600V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631076 Frame: 40AF | Poles: 4P | Coil rating: AC 110V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631077 Frame: 40AF | Poles: 4P | Coil rating: AC 220V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631121 Frame: 40AF | Poles: 4P | Coil rating: DC 12V | For contactors: MC-32a/4, 40a/4
77121631122 Frame: 40AF | Poles: 4P | Coil rating: DC 20V | For contactors: MC-32a/4, 40a/4
77121631123 Frame: 40AF | Poles: 4P | Coil rating: DC 24V | For contactors: MC-32a/4, 40a/4
77121631124 Frame: 40AF | Poles: 4P | Coil rating: DC 48V | For contactors: MC-32a/4, 40a/4
77121631125 Frame: 40AF | Poles: 4P | Coil rating: DC 60V | For contactors: MC-32a/4, 40a/4
77121631126 Frame: 40AF | Poles: 4P | Coil rating: DC 80V | For contactors: MC-32a/4, 40a/4
77121631127 Frame: 40AF | Poles: 4P | Coil rating: DC 100V | For contactors: MC-32a/4, 40a/4
77121631128 Frame: 40AF | Poles: 4P | Coil rating: DC 110V | For contactors: MC-32a/4, 40a/4
77121631129 Frame: 40AF | Poles: 4P | Coil rating: DC 125V | For contactors: MC-32a/4, 40a/4
77121631130 Frame: 40AF | Poles: 4P | Coil rating: DC 200V | For contactors: MC-32a/4, 40a/4
77121631131 Frame: 40AF | Poles: 4P | Coil rating: DC 220V | For contactors: MC-32a/4, 40a/4
77121631132 Frame: 40AF | Poles: 4P | Coil rating: DC 250V | For contactors: MC-32a/4, 40a/4
77121632601 Frame: 65AF | Poles: 3P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-50a, 65a
77121632602 Frame: 65AF | Poles: 3P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-50a, 65a
77121632603 Frame: 65AF | Poles: 3P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-50a, 65a
77121632604 Frame: 65AF | Poles: 3P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-50a, 65a
77121632605 Frame: 65AF | Poles: 3P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-50a, 65a
77121632606 Frame: 65AF | Poles: 3P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-50a, 65a
77121632607 Frame: 65AF | Poles: 3P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-50a, 65a
77121632608 Frame: 65AF | Poles: 3P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-50a, 65a
77121632609 Frame: 65AF | Poles: 3P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-50a, 65a
77121632610 Frame: 65AF | Poles: 3P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-50a, 65a
77121632611 Frame: 65AF | Poles: 3P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-50a, 65a
77121632612 Frame: 65AF | Poles: 3P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-50a, 65a
77121632613 Frame: 65AF | Poles: 3P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-50a, 65a
77121632614 Frame: 65AF | Poles: 3P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-50a, 65a
77121632615 Frame: 65AF | Poles: 3P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-50a, 65a
77121632616 Frame: 65AF | Poles: 3P | Coil rating: AC 100V 60 Hz | For contactors: MC-50a, 65a
77121632617 Frame: 65AF | Poles: 3P | Coil rating: AC 175V 60 Hz | For contactors: MC-50a, 65a
77121632618 Frame: 65AF | Poles: 3P | Coil rating: AC 24V 60 Hz | For contactors: MC-50a, 65a
77121632619 Frame: 65AF | Poles: 3P | Coil rating: AC 48V 60 Hz | For contactors: MC-50a, 65a
77121632620 Frame: 65AF | Poles: 3P | Coil rating: AC 110V 60 Hz | For contactors: MC-50a, 65a
77121632621 Frame: 65AF | Poles: 3P | Coil rating: AC 120V 60 Hz | For contactors: MC-50a, 65a
77121632622 Frame: 65AF | Poles: 3P | Coil rating: AC 220V 60 Hz | For contactors: MC-50a, 65a
77121632623 Frame: 65AF | Poles: 3P | Coil rating: AC 240V 60 Hz | For contactors: MC-50a, 65a
77121632624 Frame: 65AF | Poles: 3P | Coil rating: AC 380V 60 Hz | For contactors: MC-50a, 65a
77121632625 Frame: 65AF | Poles: 3P | Coil rating: AC 440V 60 Hz | For contactors: MC-50a, 65a
77121632626 Frame: 65AF | Poles: 3P | Coil rating: AC 480V 60 Hz | For contactors: MC-50a, 65a
77121632627 Frame: 65AF | Poles: 3P | Coil rating: AC 600V 60 Hz | For contactors: MC-50a, 65a
77121632628 Frame: 65AF | Poles: 3P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-50a, 65a
77121632629 Frame: 65AF | Poles: 3P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-50a, 65a
77121632630 Frame: 65AF | Poles: 3P | Coil rating: AC 208V 60 Hz | For contactors: MC-50a, 65a
77121632631 Frame: 65AF | Poles: 3P | Coil rating: AC 277V 60 Hz | For contactors: MC-50a, 65a
77121632633 Frame: 65AF | Poles: 3P | Coil rating: AC 230V 60 Hz | For contactors: MC-50a, 65a
77121632634 Frame: 65AF | Poles: 3P | Coil rating: AC 200V 60 Hz | For contactors: MC-50a, 65a
77121632635 Frame: 65AF | Poles: 3P | Coil rating: AC 24V 50 Hz | For contactors: MC-50a, 65a
77121632636 Frame: 65AF | Poles: 3P | Coil rating: AC 48V 50 Hz | For contactors: MC-50a, 65a
77121632637 Frame: 65AF | Poles: 3P | Coil rating: AC 110V 50 Hz | For contactors: MC-50a, 65a
77121632638 Frame: 65AF | Poles: 3P | Coil rating: AC 220V 50 Hz | For contactors: MC-50a, 65a
77121632639 Frame: 65AF | Poles: 3P | Coil rating: AC 240V 50 Hz | For contactors: MC-50a, 65a
77121632640 Frame: 65AF | Poles: 3P | Coil rating: AC 380V 50 Hz | For contactors: MC-50a, 65a
77121632641 Frame: 65AF | Poles: 3P | Coil rating: AC 400V 50 Hz | For contactors: MC-50a, 65a
77121632642 Frame: 65AF | Poles: 3P | Coil rating: AC 415V 50 Hz | For contactors: MC-50a, 65a
77121632643 Frame: 65AF | Poles: 3P | Coil rating: AC 440V 50 Hz | For contactors: MC-50a, 65a
77121632644 Frame: 65AF | Poles: 3P | Coil rating: AC 550V 50 Hz | For contactors: MC-50a, 65a
77121632645 Frame: 65AF | Poles: 3P | Coil rating: AC 36V 50 Hz | For contactors: MC-50a, 65a
77121632646 Frame: 65AF | Poles: 3P | Coil rating: AC 42V 50 Hz | For contactors: MC-50a, 65a
77121632647 Frame: 65AF | Poles: 3P | Coil rating: AC 80V 50 Hz | For contactors: MC-50a, 65a
77121632648 Frame: 65AF | Poles: 3P | Coil rating: AC 100V 50 Hz | For contactors: MC-50a, 65a
77121632649 Frame: 65AF | Poles: 3P | Coil rating: AC 230V 50 Hz | For contactors: MC-50a, 65a
77121632650 Frame: 65AF | Poles: 3P | Coil rating: AC 500V 50 Hz | For contactors: MC-50a, 65a
77121632651 Frame: 65AF | Poles: 3P | Coil rating: AC 32V 50 Hz | For contactors: MC-50a, 65a
77121632701 Frame: 65AF | Poles: 3P | Coil rating: DC 12V | For contactors: MC-50a, 65a
77121632702 Frame: 65AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-50a, 65a
77121632703 Frame: 65AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-50a, 65a
77121632704 Frame: 65AF | Poles: 3P | Coil rating: DC 100V | For contactors: MC-50a, 65a
77121632705 Frame: 65AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-50a, 65a
77121632706 Frame: 65AF | Poles: 3P | Coil rating: DC 125V | For contactors: MC-50a, 65a
77121632707 Frame: 65AF | Poles: 3P | Coil rating: DC 200V | For contactors: MC-50a, 65a
77121632708 Frame: 65AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-50a, 65a
77121632709 Frame: 65AF | Poles: 3P | Coil rating: DC 250V | For contactors: MC-50a, 65a
77121632710 Frame: 65AF | Poles: 3P | Coil rating: DC 20V | For contactors: MC-50a, 65a
77121632711 Frame: 65AF | Poles: 3P | Coil rating: DC 60V | For contactors: MC-50a, 65a
77121632712 Frame: 65AF | Poles: 3P | Coil rating: DC 80V | For contactors: MC-50a, 65a
77121633021 Frame: 85AF | Poles: 4P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633022 Frame: 85AF | Poles: 4P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633023 Frame: 85AF | Poles: 4P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633024 Frame: 85AF | Poles: 4P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633025 Frame: 85AF | Poles: 4P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633026 Frame: 85AF | Poles: 4P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633027 Frame: 85AF | Poles: 4P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633028 Frame: 85AF | Poles: 4P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633029 Frame: 85AF | Poles: 4P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633030 Frame: 85AF | Poles: 4P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633031 Frame: 85AF | Poles: 4P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633032 Frame: 85AF | Poles: 4P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633033 Frame: 85AF | Poles: 4P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633034 Frame: 85AF | Poles: 4P | Coil rating: AC 24V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633036 Frame: 85AF | Poles: 4P | Coil rating: AC 110V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633037 Frame: 85AF | Poles: 4P | Coil rating: AC 220V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633038 Frame: 85AF | Poles: 4P | Coil rating: AC 230V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633039 Frame: 85AF | Poles: 4P | Coil rating: AC 240V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633040 Frame: 85AF | Poles: 4P | Coil rating: AC 380V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633042 Frame: 85AF | Poles: 4P | Coil rating: AC 415V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633044 Frame: 85AF | Poles: 4P | Coil rating: AC 500V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633047 Frame: 85AF | Poles: 4P | Coil rating: AC 24V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633049 Frame: 85AF | Poles: 4P | Coil rating: AC 110V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633051 Frame: 85AF | Poles: 4P | Coil rating: AC 208V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633052 Frame: 85AF | Poles: 4P | Coil rating: AC 220V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633053 Frame: 85AF | Poles: 4P | Coil rating: AC 240V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633054 Frame: 85AF | Poles: 4P | Coil rating: AC 277V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633055 Frame: 85AF | Poles: 4P | Coil rating: AC 380V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633057 Frame: 85AF | Poles: 4P | Coil rating: AC 480V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633059 Frame: 85AF | Poles: 4P | Coil rating: AC 110V 60 Hz, AC 100V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633060 Frame: 85AF | Poles: 4P | Coil rating: AC 220V 60 Hz, AC 200V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633061 Frame: 85AF | Poles: 4P | Coil rating: DC 12V | For contactors: MC-50a/4 to 85a/4
77121633063 Frame: 85AF | Poles: 4P | Coil rating: DC 20V | For contactors: MC-50a/4 to 85a/4
77121633065 Frame: 85AF | Poles: 4P | Coil rating: DC 24V | For contactors: MC-50a/4 to 85a/4
77121633067 Frame: 85AF | Poles: 4P | Coil rating: DC 48V | For contactors: MC-50a/4 to 85a/4
77121633069 Frame: 85AF | Poles: 4P | Coil rating: DC 60V | For contactors: MC-50a/4 to 85a/4
77121633071 Frame: 85AF | Poles: 4P | Coil rating: DC 80V | For contactors: MC-50a/4 to 85a/4
77121633073 Frame: 85AF | Poles: 4P | Coil rating: DC 100V | For contactors: MC-50a/4 to 85a/4
77121633075 Frame: 85AF | Poles: 4P | Coil rating: DC 110V | For contactors: MC-50a/4 to 85a/4
77121633077 Frame: 85AF | Poles: 4P | Coil rating: DC 125V | For contactors: MC-50a/4 to 85a/4
77121633079 Frame: 85AF | Poles: 4P | Coil rating: DC 200V | For contactors: MC-50a/4 to 85a/4
77121633081 Frame: 85AF | Poles: 4P | Coil rating: DC 220V | For contactors: MC-50a/4 to 85a/4
77121633083 Frame: 85AF | Poles: 4P | Coil rating: DC 250V | For contactors: MC-50a/4 to 85a/4
77121633731 Frame: 100AF | Poles: 3P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-75a to 100a
77121633732 Frame: 100AF | Poles: 3P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-75a to 100a
77121633733 Frame: 100AF | Poles: 3P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-75a to 100a
77121633734 Frame: 100AF | Poles: 3P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-75a to 100a
77121633735 Frame: 100AF | Poles: 3P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-75a to 100a
77121633736 Frame: 100AF | Poles: 3P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-75a to 100a
77121633737 Frame: 100AF | Poles: 3P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-75a to 100a
77121633738 Frame: 100AF | Poles: 3P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-75a to 100a
77121633739 Frame: 100AF | Poles: 3P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-75a to 100a
77121633740 Frame: 100AF | Poles: 3P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-75a to 100a
77121633741 Frame: 100AF | Poles: 3P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-75a to 100a
77121633742 Frame: 100AF | Poles: 3P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-75a to 100a
77121633743 Frame: 100AF | Poles: 3P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-75a to 100a
77121633744 Frame: 100AF | Poles: 3P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-75a to 100a
77121633745 Frame: 100AF | Poles: 3P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-75a to 100a
77121633746 Frame: 100AF | Poles: 3P | Coil rating: AC 24V 60 Hz | For contactors: MC-75a to 100a
77121633747 Frame: 100AF | Poles: 3P | Coil rating: AC 48V 60 Hz | For contactors: MC-75a to 100a
77121633748 Frame: 100AF | Poles: 3P | Coil rating: AC 110V 60 Hz | For contactors: MC-75a to 100a
77121633749 Frame: 100AF | Poles: 3P | Coil rating: AC 120V 60 Hz | For contactors: MC-75a to 100a
77121633750 Frame: 100AF | Poles: 3P | Coil rating: AC 220V 60 Hz | For contactors: MC-75a to 100a
77121633751 Frame: 100AF | Poles: 3P | Coil rating: AC 240V 60 Hz | For contactors: MC-75a to 100a
77121633752 Frame: 100AF | Poles: 3P | Coil rating: AC 380V 60 Hz | For contactors: MC-75a to 100a
77121633753 Frame: 100AF | Poles: 3P | Coil rating: AC 440V 60 Hz | For contactors: MC-75a to 100a
77121633754 Frame: 100AF | Poles: 3P | Coil rating: AC 480V 60 Hz | For contactors: MC-75a to 100a
77121633755 Frame: 100AF | Poles: 3P | Coil rating: AC 600V 60 Hz | For contactors: MC-75a to 100a
77121633756 Frame: 100AF | Poles: 3P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-75a to 100a
77121633757 Frame: 100AF | Poles: 3P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-75a to 100a
77121633758 Frame: 100AF | Poles: 3P | Coil rating: AC 208V 60 Hz | For contactors: MC-75a to 100a
77121633759 Frame: 100AF | Poles: 3P | Coil rating: AC 277V 60 Hz | For contactors: MC-75a to 100a
77121633760 Frame: 100AF | Poles: 3P | Coil rating: AC 230V 60 Hz | For contactors: MC-75a to 100a
77121633761 Frame: 100AF | Poles: 3P | Coil rating: AC 200V 60 Hz | For contactors: MC-75a to 100a
77121633762 Frame: 100AF | Poles: 3P | Coil rating: AC 24V 50 Hz | For contactors: MC-75a to 100a
77121633763 Frame: 100AF | Poles: 3P | Coil rating: AC 48V 50 Hz | For contactors: MC-75a to 100a
77121633764 Frame: 100AF | Poles: 3P | Coil rating: AC 110V 50 Hz | For contactors: MC-75a to 100a
77121633765 Frame: 100AF | Poles: 3P | Coil rating: AC 220V 50 Hz | For contactors: MC-75a to 100a
77121633766 Frame: 100AF | Poles: 3P | Coil rating: AC 240V 50 Hz | For contactors: MC-75a to 100a
77121633767 Frame: 100AF | Poles: 3P | Coil rating: AC 380V 50 Hz | For contactors: MC-75a to 100a
77121633768 Frame: 100AF | Poles: 3P | Coil rating: AC 400V 50 Hz | For contactors: MC-75a to 100a
77121633769 Frame: 100AF | Poles: 3P | Coil rating: AC 415V 50 Hz | For contactors: MC-75a to 100a
77121633770 Frame: 100AF | Poles: 3P | Coil rating: AC 440V 50 Hz | For contactors: MC-75a to 100a
77121633771 Frame: 100AF | Poles: 3P | Coil rating: AC 550V 50 Hz | For contactors: MC-75a to 100a
77121633772 Frame: 100AF | Poles: 3P | Coil rating: AC 36V 50 Hz | For contactors: MC-75a to 100a
77121633773 Frame: 100AF | Poles: 3P | Coil rating: AC 42V 50 Hz | For contactors: MC-75a to 100a
77121633774 Frame: 100AF | Poles: 3P | Coil rating: AC 80V 50 Hz | For contactors: MC-75a to 100a
77121633775 Frame: 100AF | Poles: 3P | Coil rating: AC 100V 50 Hz | For contactors: MC-75a to 100a
77121633776 Frame: 100AF | Poles: 3P | Coil rating: AC 230V 50 Hz | For contactors: MC-75a to 100a
77121633778 Frame: 100AF | Poles: 3P | Coil rating: AC 500V 50 Hz | For contactors: MC-75a to 100a
77121633779 Frame: 100AF | Poles: 3P | Coil rating: AC 32V 50 Hz | For contactors: MC-75a to 100a
77121633780 Frame: 100AF | Poles: 3P | Coil rating: AC 120V 50 Hz | For contactors: MC-75a to 100a
77121633811 Frame: 100AF | Poles: 3P | Coil rating: DC 12V | For contactors: MC-75a to 100a
77121633812 Frame: 100AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-75a to 100a
77121633813 Frame: 100AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-75a to 100a
77121633814 Frame: 100AF | Poles: 3P | Coil rating: DC 100V | For contactors: MC-75a to 100a
77121633815 Frame: 100AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-75a to 100a
77121633816 Frame: 100AF | Poles: 3P | Coil rating: DC 125V | For contactors: MC-75a to 100a
77121633817 Frame: 100AF | Poles: 3P | Coil rating: DC 200V | For contactors: MC-75a to 100a
77121633818 Frame: 100AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-75a to 100a
77121633819 Frame: 100AF | Poles: 3P | Coil rating: DC 250V | For contactors: MC-75a to 100a
77121633820 Frame: 100AF | Poles: 3P | Coil rating: DC 20V | For contactors: MC-75a to 100a
77121633821 Frame: 100AF | Poles: 3P | Coil rating: DC 60V | For contactors: MC-75a to 100a
77121633822 Frame: 100AF | Poles: 3P | Coil rating: DC 80V | For contactors: MC-75a to 100a
77121641111 Frame: 150AF | Poles: 3P | Coil rating: AC 220-240V | For contactors: MC-130a, 150a
77121641112 Frame: 150AF | Poles: 3P | Coil rating: AC 24V | For contactors: MC-130a, 150a
77121641113 Frame: 150AF | Poles: 3P | Coil rating: AC 48V | For contactors: MC-130a, 150a
77121641114 Frame: 150AF | Poles: 3P | Coil rating: AC 110-120V | For contactors: MC-130a, 150a
77121641115 Frame: 150AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-130a, 150a
77121641116 Frame: 150AF | Poles: 3P | Coil rating: AC 380-440V | For contactors: MC-130a, 150a
77121641117 Frame: 150AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-130a, 150a
77121641118 Frame: 150AF | Poles: 3P | Coil rating: AC 24-48V 50/60Hz, DC 24-48V | For contactors: MC-130a, 150a
77121641119 Frame: 150AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-130a, 150a
77121641120 Frame: 150AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-130a, 150a
77121641121 Frame: 150AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-130a, 150a
77121641122 Frame: 150AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-130a, 150a
77121641123 Frame: 150AF | Poles: 3P | Coil rating: AC 100-240V, DC 100-220V | For contactors: MC-130a, 150a
77121642111 Frame: 225AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-185a, 225a
77121642112 Frame: 225AF | Poles: 3P | Coil rating: AC 400V | For contactors: MC-185a, 225a
77121642113 Frame: 225AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-185a, 225a
77121642114 Frame: 225AF | Poles: 3P | Coil rating: AC/DC 24V | For contactors: MC-185a, 225a
77121642115 Frame: 225AF | Poles: 3P | Coil rating: AC/DC 48V | For contactors: MC-185a, 225a
77121642116 Frame: 225AF | Poles: 3P | Coil rating: AC/DC 100-240V | For contactors: MC-185a, 225a
77121642041 Frame: 225AF | Poles: 4P | Coil rating: AC/DC 100-240V | For contactors: MC-100a/4 to 225a/4
77121642042 Frame: 225AF | Poles: 4P | Coil rating: AC/DC 24V | For contactors: MC-100a/4 to 225a/4
77121642043 Frame: 225AF | Poles: 4P | Coil rating: AC/DC 48V | For contactors: MC-100a/4 to 225a/4
77121642044 Frame: 225AF | Poles: 4P | Coil rating: AC 300V | For contactors: MC-100a/4 to 225a/4
77121642045 Frame: 225AF | Poles: 4P | Coil rating: AC 400V | For contactors: MC-100a/4 to 225a/4
77121642046 Frame: 225AF | Poles: 4P | Coil rating: AC 500V | For contactors: MC-100a/4 to 225a/4
77121643111 Frame: 400AF | Poles: 3P | Coil rating: AC/DC 100-240V | For contactors: MC-265a to 400a
77121643112 Frame: 400AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-265a to 400a
77121643113 Frame: 400AF | Poles: 3P | Coil rating: AC 400V | For contactors: MC-265a to 400a
77121643114 Frame: 400AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-265a to 400a
77121643115 Frame: 400AF | Poles: 3P | Coil rating: DC 70-110V | For contactors: MC-265a to 400a
77121643117 Frame: 400AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-265a to 400a
77121643030 Frame: 400AF | Poles: 4P | Coil rating: AC/DC 100-240V | For contactors: MC-265a/4 to 400a/4
77121643031 Frame: 400AF | Poles: 4P | Coil rating: AC 300V | For contactors: MC-265a/4 to 400a/4
77121643032 Frame: 400AF | Poles: 4P | Coil rating: AC 400V | For contactors: MC-265a/4 to 400a/4
77121643034 Frame: 400AF | Poles: 4P | Coil rating: AC 500V | For contactors: MC-265a/4 to 400a/4
77121644111 Frame: 800AF | Poles: 3P | Coil rating: AC/DC 200V | For contactors: MC-500a to 800a
77121644112 Frame: 800AF | Poles: 3P | Coil rating: AC/DC 100V | For contactors: MC-500a to 800a
77121644113 Frame: 800AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-500a to 800a
77121644114 Frame: 800AF | Poles: 3P | Coil rating: AC 400V | For contactors: MC-500a to 800a
77121644115 Frame: 800AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-500a to 800a
77121644116 Frame: 800AF | Poles: 3P | Coil rating: DC 70-110V | For contactors: MC-500a to 800a
77121644041 Frame: 800AF | Poles: 4P | Coil rating: AC/DC 100V | For contactors: MC-500a/4 to 800a/4
77121644042 Frame: 800AF | Poles: 4P | Coil rating: AC/DC 200V | For contactors: MC-500a/4 to 800a/4
77121644043 Frame: 800AF | Poles: 4P | Coil rating: AC 300V | For contactors: MC-500a/4 to 800a/4
77121644044 Frame: 800AF | Poles: 4P | Coil rating: AC 400V | For contactors: MC-500a/4 to 800a/4
77121644045 Frame: 800AF | Poles: 4P | Coil rating: AC 500V | For contactors: MC-500a/4 to 800a/4
77121644160 Frame: 1260AF | Poles: 3P | Coil rating: AC 100-240V 50/60Hz, DC 100-220V | For contactors: MC-1260a, MCi-1260
77121646004 Frame: 2650AF | Poles: 3P | Coil rating: AC 100-240V, DC 100-220V | For contactors: MC-1400a to 2650a, MCi-1700 to 2650
AccessoriesLS Electric
395 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MC Replacement Operating Coils (22AF-2650AF)

Brand LS Electric·Accessories

Available part numbers (395)

77121635600, 77121635601, 77121635602, 77121635603, 77121635604, 77121635605, 77121635606, 77121635607, 77121635608, 77121635609 + 385 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
77121635600Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635601Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635602Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635603Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635604Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635605Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635606Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635607Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635608Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635609Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635610Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635611Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635612Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635613Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635614Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635615Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 460V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635616Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 65V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635617Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 42V 50/60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635618Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635619Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 24V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635620Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 48V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635621Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 110V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635622Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 120V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635623Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 220V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635624Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 240V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635625Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 380V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635626Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 440V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635627Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 480V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635628Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 600V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635629Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635630Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635631Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 208V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635632Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 277V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635636Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 460V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635637Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 60V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635638Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 70V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635639Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 127V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635640Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 65V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635641Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 230V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635642Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 200V 60 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635643Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 24V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635644Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 48V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635645Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 110V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635646Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 220V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635647Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 240V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635648Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 380V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635649Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 400V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635650Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 415V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635651Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 440V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635652Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 550V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635653Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 36V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635654Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 42V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635655Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 80V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635656Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 100V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635657Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 230V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635658Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 500V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635659Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 32V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635660Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 460V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635661Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 120V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635662Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 58V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635663Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 65V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121635664Frame: 22AF | Poles: 3P, 4P | Coil rating: AC 60V 50 Hz | For contactors: MC-9b to 22b, MC-22a/4
77121631731Frame: 40AF | Poles: 3P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-32a, 40a
77121631732Frame: 40AF | Poles: 3P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-32a, 40a
77121631733Frame: 40AF | Poles: 3P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-32a, 40a
77121631734Frame: 40AF | Poles: 3P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-32a, 40a
77121631735Frame: 40AF | Poles: 3P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-32a, 40a
77121631736Frame: 40AF | Poles: 3P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-32a, 40a
77121631737Frame: 40AF | Poles: 3P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-32a, 40a
77121631738Frame: 40AF | Poles: 3P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-32a, 40a
77121631739Frame: 40AF | Poles: 3P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-32a, 40a
77121631740Frame: 40AF | Poles: 3P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-32a, 40a
77121631741Frame: 40AF | Poles: 3P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-32a, 40a
77121631742Frame: 40AF | Poles: 3P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-32a, 40a
77121631743Frame: 40AF | Poles: 3P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-32a, 40a
77121631744Frame: 40AF | Poles: 3P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-32a, 40a
77121631745Frame: 40AF | Poles: 3P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-32a, 40a
77121631746Frame: 40AF | Poles: 3P | Coil rating: AC 24V 60 Hz | For contactors: MC-32a, 40a
77121631747Frame: 40AF | Poles: 3P | Coil rating: AC 48V 60 Hz | For contactors: MC-32a, 40a
77121631748Frame: 40AF | Poles: 3P | Coil rating: AC 110V 60 Hz | For contactors: MC-32a, 40a
77121631749Frame: 40AF | Poles: 3P | Coil rating: AC 120V 60 Hz | For contactors: MC-32a, 40a
77121631750Frame: 40AF | Poles: 3P | Coil rating: AC 220V 60 Hz | For contactors: MC-32a, 40a
77121631751Frame: 40AF | Poles: 3P | Coil rating: AC 240V 60 Hz | For contactors: MC-32a, 40a
77121631752Frame: 40AF | Poles: 3P | Coil rating: AC 380V 60 Hz | For contactors: MC-32a, 40a
77121631753Frame: 40AF | Poles: 3P | Coil rating: AC 440V 60 Hz | For contactors: MC-32a, 40a
77121631754Frame: 40AF | Poles: 3P | Coil rating: AC 480V 60 Hz | For contactors: MC-32a, 40a
77121631755Frame: 40AF | Poles: 3P | Coil rating: AC 600V 60 Hz | For contactors: MC-32a, 40a
77121631756Frame: 40AF | Poles: 3P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-32a, 40a
77121631757Frame: 40AF | Poles: 3P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-32a, 40a
77121631758Frame: 40AF | Poles: 3P | Coil rating: AC 208V 60 Hz | For contactors: MC-32a, 40a
77121631759Frame: 40AF | Poles: 3P | Coil rating: AC 277V 60 Hz | For contactors: MC-32a, 40a
77121631760Frame: 40AF | Poles: 3P | Coil rating: AC 230V 60 Hz | For contactors: MC-32a, 40a
77121631761Frame: 40AF | Poles: 3P | Coil rating: AC 200V 60 Hz | For contactors: MC-32a, 40a
77121631762Frame: 40AF | Poles: 3P | Coil rating: AC 100V 60 Hz | For contactors: MC-32a, 40a
77121631763Frame: 40AF | Poles: 3P | Coil rating: AC 24V 50 Hz | For contactors: MC-32a, 40a
77121631764Frame: 40AF | Poles: 3P | Coil rating: AC 48V 50 Hz | For contactors: MC-32a, 40a
77121631765Frame: 40AF | Poles: 3P | Coil rating: AC 110V 50 Hz | For contactors: MC-32a, 40a
77121631766Frame: 40AF | Poles: 3P | Coil rating: AC 220V 50 Hz | For contactors: MC-32a, 40a
77121631767Frame: 40AF | Poles: 3P | Coil rating: AC 240V 50 Hz | For contactors: MC-32a, 40a
77121631768Frame: 40AF | Poles: 3P | Coil rating: AC 380V 50 Hz | For contactors: MC-32a, 40a
77121631769Frame: 40AF | Poles: 3P | Coil rating: AC 400V 50 Hz | For contactors: MC-32a, 40a
77121631770Frame: 40AF | Poles: 3P | Coil rating: AC 415V 50 Hz | For contactors: MC-32a, 40a
77121631771Frame: 40AF | Poles: 3P | Coil rating: AC 440V 50 Hz | For contactors: MC-32a, 40a
77121631772Frame: 40AF | Poles: 3P | Coil rating: AC 550V 50 Hz | For contactors: MC-32a, 40a
77121631773Frame: 40AF | Poles: 3P | Coil rating: AC 36V 50 Hz | For contactors: MC-32a, 40a
77121631774Frame: 40AF | Poles: 3P | Coil rating: AC 42V 50 Hz | For contactors: MC-32a, 40a
77121631775Frame: 40AF | Poles: 3P | Coil rating: AC 80V 50 Hz | For contactors: MC-32a, 40a
77121631776Frame: 40AF | Poles: 3P | Coil rating: AC 100V 50 Hz | For contactors: MC-32a, 40a
77121631777Frame: 40AF | Poles: 3P | Coil rating: AC 230V 50 Hz | For contactors: MC-32a, 40a
77121631778Frame: 40AF | Poles: 3P | Coil rating: AC 500V 50 Hz | For contactors: MC-32a, 40a
77121631779Frame: 40AF | Poles: 3P | Coil rating: AC 32V 50 Hz | For contactors: MC-32a, 40a
77121631780Frame: 40AF | Poles: 3P | Coil rating: AC 120V 50 Hz | For contactors: MC-32a, 40a
77121631661Frame: 40AF | Poles: 3P | Coil rating: DC 12V | For contactors: MC-32a, 40a
77121631662Frame: 40AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-32a, 40a
77121631663Frame: 40AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-32a, 40a
77121631664Frame: 40AF | Poles: 3P | Coil rating: DC 100V | For contactors: MC-32a, 40a
77121631665Frame: 40AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-32a, 40a
77121631666Frame: 40AF | Poles: 3P | Coil rating: DC 125V | For contactors: MC-32a, 40a
77121631667Frame: 40AF | Poles: 3P | Coil rating: DC 200V | For contactors: MC-32a, 40a
77121631668Frame: 40AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-32a, 40a
77121631669Frame: 40AF | Poles: 3P | Coil rating: DC 250V | For contactors: MC-32a, 40a
77121631670Frame: 40AF | Poles: 3P | Coil rating: DC 20V | For contactors: MC-32a, 40a
77121631671Frame: 40AF | Poles: 3P | Coil rating: DC 60V | For contactors: MC-32a, 40a
77121631672Frame: 40AF | Poles: 3P | Coil rating: DC 80V | For contactors: MC-32a, 40a
77121631031Frame: 40AF | Poles: 4P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631032Frame: 40AF | Poles: 4P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631033Frame: 40AF | Poles: 4P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631034Frame: 40AF | Poles: 4P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631035Frame: 40AF | Poles: 4P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631036Frame: 40AF | Poles: 4P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631037Frame: 40AF | Poles: 4P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631038Frame: 40AF | Poles: 4P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631039Frame: 40AF | Poles: 4P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631040Frame: 40AF | Poles: 4P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631041Frame: 40AF | Poles: 4P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631042Frame: 40AF | Poles: 4P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631043Frame: 40AF | Poles: 4P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631044Frame: 40AF | Poles: 4P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-32a/4, 40a/4
77121631045Frame: 40AF | Poles: 4P | Coil rating: AC 24V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631046Frame: 40AF | Poles: 4P | Coil rating: AC 36V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631047Frame: 40AF | Poles: 4P | Coil rating: AC 42V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631048Frame: 40AF | Poles: 4P | Coil rating: AC 48V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631049Frame: 40AF | Poles: 4P | Coil rating: AC 65V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631050Frame: 40AF | Poles: 4P | Coil rating: AC 80V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631051Frame: 40AF | Poles: 4P | Coil rating: AC 100V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631052Frame: 40AF | Poles: 4P | Coil rating: AC 110V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631053Frame: 40AF | Poles: 4P | Coil rating: AC 220V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631054Frame: 40AF | Poles: 4P | Coil rating: AC 230V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631055Frame: 40AF | Poles: 4P | Coil rating: AC 240V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631056Frame: 40AF | Poles: 4P | Coil rating: AC 380V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631057Frame: 40AF | Poles: 4P | Coil rating: AC 400V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631058Frame: 40AF | Poles: 4P | Coil rating: AC 415V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631059Frame: 40AF | Poles: 4P | Coil rating: AC 440V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631060Frame: 40AF | Poles: 4P | Coil rating: AC 500V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631061Frame: 40AF | Poles: 4P | Coil rating: AC 550V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631064Frame: 40AF | Poles: 4P | Coil rating: AC 24V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631065Frame: 40AF | Poles: 4P | Coil rating: AC 48V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631066Frame: 40AF | Poles: 4P | Coil rating: AC 110V 60 Hz, AC 100V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631067Frame: 40AF | Poles: 4P | Coil rating: AC 120V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631068Frame: 40AF | Poles: 4P | Coil rating: AC 208V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631069Frame: 40AF | Poles: 4P | Coil rating: AC 220V 60 Hz, AC 200V 50 Hz | For contactors: MC-32a/4, 40a/4
77121631070Frame: 40AF | Poles: 4P | Coil rating: AC 240V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631071Frame: 40AF | Poles: 4P | Coil rating: AC 277V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631072Frame: 40AF | Poles: 4P | Coil rating: AC 380V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631073Frame: 40AF | Poles: 4P | Coil rating: AC 440V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631074Frame: 40AF | Poles: 4P | Coil rating: AC 480V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631075Frame: 40AF | Poles: 4P | Coil rating: AC 600V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631076Frame: 40AF | Poles: 4P | Coil rating: AC 110V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631077Frame: 40AF | Poles: 4P | Coil rating: AC 220V 60 Hz | For contactors: MC-32a/4, 40a/4
77121631121Frame: 40AF | Poles: 4P | Coil rating: DC 12V | For contactors: MC-32a/4, 40a/4
77121631122Frame: 40AF | Poles: 4P | Coil rating: DC 20V | For contactors: MC-32a/4, 40a/4
77121631123Frame: 40AF | Poles: 4P | Coil rating: DC 24V | For contactors: MC-32a/4, 40a/4
77121631124Frame: 40AF | Poles: 4P | Coil rating: DC 48V | For contactors: MC-32a/4, 40a/4
77121631125Frame: 40AF | Poles: 4P | Coil rating: DC 60V | For contactors: MC-32a/4, 40a/4
77121631126Frame: 40AF | Poles: 4P | Coil rating: DC 80V | For contactors: MC-32a/4, 40a/4
77121631127Frame: 40AF | Poles: 4P | Coil rating: DC 100V | For contactors: MC-32a/4, 40a/4
77121631128Frame: 40AF | Poles: 4P | Coil rating: DC 110V | For contactors: MC-32a/4, 40a/4
77121631129Frame: 40AF | Poles: 4P | Coil rating: DC 125V | For contactors: MC-32a/4, 40a/4
77121631130Frame: 40AF | Poles: 4P | Coil rating: DC 200V | For contactors: MC-32a/4, 40a/4
77121631131Frame: 40AF | Poles: 4P | Coil rating: DC 220V | For contactors: MC-32a/4, 40a/4
77121631132Frame: 40AF | Poles: 4P | Coil rating: DC 250V | For contactors: MC-32a/4, 40a/4
77121632601Frame: 65AF | Poles: 3P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-50a, 65a
77121632602Frame: 65AF | Poles: 3P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-50a, 65a
77121632603Frame: 65AF | Poles: 3P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-50a, 65a
77121632604Frame: 65AF | Poles: 3P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-50a, 65a
77121632605Frame: 65AF | Poles: 3P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-50a, 65a
77121632606Frame: 65AF | Poles: 3P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-50a, 65a
77121632607Frame: 65AF | Poles: 3P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-50a, 65a
77121632608Frame: 65AF | Poles: 3P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-50a, 65a
77121632609Frame: 65AF | Poles: 3P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-50a, 65a
77121632610Frame: 65AF | Poles: 3P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-50a, 65a
77121632611Frame: 65AF | Poles: 3P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-50a, 65a
77121632612Frame: 65AF | Poles: 3P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-50a, 65a
77121632613Frame: 65AF | Poles: 3P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-50a, 65a
77121632614Frame: 65AF | Poles: 3P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-50a, 65a
77121632615Frame: 65AF | Poles: 3P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-50a, 65a
77121632616Frame: 65AF | Poles: 3P | Coil rating: AC 100V 60 Hz | For contactors: MC-50a, 65a
77121632617Frame: 65AF | Poles: 3P | Coil rating: AC 175V 60 Hz | For contactors: MC-50a, 65a
77121632618Frame: 65AF | Poles: 3P | Coil rating: AC 24V 60 Hz | For contactors: MC-50a, 65a
77121632619Frame: 65AF | Poles: 3P | Coil rating: AC 48V 60 Hz | For contactors: MC-50a, 65a
77121632620Frame: 65AF | Poles: 3P | Coil rating: AC 110V 60 Hz | For contactors: MC-50a, 65a
77121632621Frame: 65AF | Poles: 3P | Coil rating: AC 120V 60 Hz | For contactors: MC-50a, 65a
77121632622Frame: 65AF | Poles: 3P | Coil rating: AC 220V 60 Hz | For contactors: MC-50a, 65a
77121632623Frame: 65AF | Poles: 3P | Coil rating: AC 240V 60 Hz | For contactors: MC-50a, 65a
77121632624Frame: 65AF | Poles: 3P | Coil rating: AC 380V 60 Hz | For contactors: MC-50a, 65a
77121632625Frame: 65AF | Poles: 3P | Coil rating: AC 440V 60 Hz | For contactors: MC-50a, 65a
77121632626Frame: 65AF | Poles: 3P | Coil rating: AC 480V 60 Hz | For contactors: MC-50a, 65a
77121632627Frame: 65AF | Poles: 3P | Coil rating: AC 600V 60 Hz | For contactors: MC-50a, 65a
77121632628Frame: 65AF | Poles: 3P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-50a, 65a
77121632629Frame: 65AF | Poles: 3P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-50a, 65a
77121632630Frame: 65AF | Poles: 3P | Coil rating: AC 208V 60 Hz | For contactors: MC-50a, 65a
77121632631Frame: 65AF | Poles: 3P | Coil rating: AC 277V 60 Hz | For contactors: MC-50a, 65a
77121632633Frame: 65AF | Poles: 3P | Coil rating: AC 230V 60 Hz | For contactors: MC-50a, 65a
77121632634Frame: 65AF | Poles: 3P | Coil rating: AC 200V 60 Hz | For contactors: MC-50a, 65a
77121632635Frame: 65AF | Poles: 3P | Coil rating: AC 24V 50 Hz | For contactors: MC-50a, 65a
77121632636Frame: 65AF | Poles: 3P | Coil rating: AC 48V 50 Hz | For contactors: MC-50a, 65a
77121632637Frame: 65AF | Poles: 3P | Coil rating: AC 110V 50 Hz | For contactors: MC-50a, 65a
77121632638Frame: 65AF | Poles: 3P | Coil rating: AC 220V 50 Hz | For contactors: MC-50a, 65a
77121632639Frame: 65AF | Poles: 3P | Coil rating: AC 240V 50 Hz | For contactors: MC-50a, 65a
77121632640Frame: 65AF | Poles: 3P | Coil rating: AC 380V 50 Hz | For contactors: MC-50a, 65a
77121632641Frame: 65AF | Poles: 3P | Coil rating: AC 400V 50 Hz | For contactors: MC-50a, 65a
77121632642Frame: 65AF | Poles: 3P | Coil rating: AC 415V 50 Hz | For contactors: MC-50a, 65a
77121632643Frame: 65AF | Poles: 3P | Coil rating: AC 440V 50 Hz | For contactors: MC-50a, 65a
77121632644Frame: 65AF | Poles: 3P | Coil rating: AC 550V 50 Hz | For contactors: MC-50a, 65a
77121632645Frame: 65AF | Poles: 3P | Coil rating: AC 36V 50 Hz | For contactors: MC-50a, 65a
77121632646Frame: 65AF | Poles: 3P | Coil rating: AC 42V 50 Hz | For contactors: MC-50a, 65a
77121632647Frame: 65AF | Poles: 3P | Coil rating: AC 80V 50 Hz | For contactors: MC-50a, 65a
77121632648Frame: 65AF | Poles: 3P | Coil rating: AC 100V 50 Hz | For contactors: MC-50a, 65a
77121632649Frame: 65AF | Poles: 3P | Coil rating: AC 230V 50 Hz | For contactors: MC-50a, 65a
77121632650Frame: 65AF | Poles: 3P | Coil rating: AC 500V 50 Hz | For contactors: MC-50a, 65a
77121632651Frame: 65AF | Poles: 3P | Coil rating: AC 32V 50 Hz | For contactors: MC-50a, 65a
77121632701Frame: 65AF | Poles: 3P | Coil rating: DC 12V | For contactors: MC-50a, 65a
77121632702Frame: 65AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-50a, 65a
77121632703Frame: 65AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-50a, 65a
77121632704Frame: 65AF | Poles: 3P | Coil rating: DC 100V | For contactors: MC-50a, 65a
77121632705Frame: 65AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-50a, 65a
77121632706Frame: 65AF | Poles: 3P | Coil rating: DC 125V | For contactors: MC-50a, 65a
77121632707Frame: 65AF | Poles: 3P | Coil rating: DC 200V | For contactors: MC-50a, 65a
77121632708Frame: 65AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-50a, 65a
77121632709Frame: 65AF | Poles: 3P | Coil rating: DC 250V | For contactors: MC-50a, 65a
77121632710Frame: 65AF | Poles: 3P | Coil rating: DC 20V | For contactors: MC-50a, 65a
77121632711Frame: 65AF | Poles: 3P | Coil rating: DC 60V | For contactors: MC-50a, 65a
77121632712Frame: 65AF | Poles: 3P | Coil rating: DC 80V | For contactors: MC-50a, 65a
77121633021Frame: 85AF | Poles: 4P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633022Frame: 85AF | Poles: 4P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633023Frame: 85AF | Poles: 4P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633024Frame: 85AF | Poles: 4P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633025Frame: 85AF | Poles: 4P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633026Frame: 85AF | Poles: 4P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633027Frame: 85AF | Poles: 4P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633028Frame: 85AF | Poles: 4P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633029Frame: 85AF | Poles: 4P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633030Frame: 85AF | Poles: 4P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633031Frame: 85AF | Poles: 4P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633032Frame: 85AF | Poles: 4P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633033Frame: 85AF | Poles: 4P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-50a/4 to 85a/4
77121633034Frame: 85AF | Poles: 4P | Coil rating: AC 24V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633036Frame: 85AF | Poles: 4P | Coil rating: AC 110V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633037Frame: 85AF | Poles: 4P | Coil rating: AC 220V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633038Frame: 85AF | Poles: 4P | Coil rating: AC 230V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633039Frame: 85AF | Poles: 4P | Coil rating: AC 240V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633040Frame: 85AF | Poles: 4P | Coil rating: AC 380V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633042Frame: 85AF | Poles: 4P | Coil rating: AC 415V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633044Frame: 85AF | Poles: 4P | Coil rating: AC 500V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633047Frame: 85AF | Poles: 4P | Coil rating: AC 24V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633049Frame: 85AF | Poles: 4P | Coil rating: AC 110V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633051Frame: 85AF | Poles: 4P | Coil rating: AC 208V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633052Frame: 85AF | Poles: 4P | Coil rating: AC 220V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633053Frame: 85AF | Poles: 4P | Coil rating: AC 240V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633054Frame: 85AF | Poles: 4P | Coil rating: AC 277V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633055Frame: 85AF | Poles: 4P | Coil rating: AC 380V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633057Frame: 85AF | Poles: 4P | Coil rating: AC 480V 60 Hz | For contactors: MC-50a/4 to 85a/4
77121633059Frame: 85AF | Poles: 4P | Coil rating: AC 110V 60 Hz, AC 100V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633060Frame: 85AF | Poles: 4P | Coil rating: AC 220V 60 Hz, AC 200V 50 Hz | For contactors: MC-50a/4 to 85a/4
77121633061Frame: 85AF | Poles: 4P | Coil rating: DC 12V | For contactors: MC-50a/4 to 85a/4
77121633063Frame: 85AF | Poles: 4P | Coil rating: DC 20V | For contactors: MC-50a/4 to 85a/4
77121633065Frame: 85AF | Poles: 4P | Coil rating: DC 24V | For contactors: MC-50a/4 to 85a/4
77121633067Frame: 85AF | Poles: 4P | Coil rating: DC 48V | For contactors: MC-50a/4 to 85a/4
77121633069Frame: 85AF | Poles: 4P | Coil rating: DC 60V | For contactors: MC-50a/4 to 85a/4
77121633071Frame: 85AF | Poles: 4P | Coil rating: DC 80V | For contactors: MC-50a/4 to 85a/4
77121633073Frame: 85AF | Poles: 4P | Coil rating: DC 100V | For contactors: MC-50a/4 to 85a/4
77121633075Frame: 85AF | Poles: 4P | Coil rating: DC 110V | For contactors: MC-50a/4 to 85a/4
77121633077Frame: 85AF | Poles: 4P | Coil rating: DC 125V | For contactors: MC-50a/4 to 85a/4
77121633079Frame: 85AF | Poles: 4P | Coil rating: DC 200V | For contactors: MC-50a/4 to 85a/4
77121633081Frame: 85AF | Poles: 4P | Coil rating: DC 220V | For contactors: MC-50a/4 to 85a/4
77121633083Frame: 85AF | Poles: 4P | Coil rating: DC 250V | For contactors: MC-50a/4 to 85a/4
77121633731Frame: 100AF | Poles: 3P | Coil rating: AC 24V 50/60 Hz | For contactors: MC-75a to 100a
77121633732Frame: 100AF | Poles: 3P | Coil rating: AC 48V 50/60 Hz | For contactors: MC-75a to 100a
77121633733Frame: 100AF | Poles: 3P | Coil rating: AC 110V 50/60 Hz | For contactors: MC-75a to 100a
77121633734Frame: 100AF | Poles: 3P | Coil rating: AC 220V 50/60 Hz | For contactors: MC-75a to 100a
77121633735Frame: 100AF | Poles: 3P | Coil rating: AC 240V 50/60 Hz | For contactors: MC-75a to 100a
77121633736Frame: 100AF | Poles: 3P | Coil rating: AC 380V 50/60 Hz | For contactors: MC-75a to 100a
77121633737Frame: 100AF | Poles: 3P | Coil rating: AC 400V 50/60 Hz | For contactors: MC-75a to 100a
77121633738Frame: 100AF | Poles: 3P | Coil rating: AC 440V 50/60 Hz | For contactors: MC-75a to 100a
77121633739Frame: 100AF | Poles: 3P | Coil rating: AC 500V 50/60 Hz | For contactors: MC-75a to 100a
77121633740Frame: 100AF | Poles: 3P | Coil rating: AC 550V 50/60 Hz | For contactors: MC-75a to 100a
77121633741Frame: 100AF | Poles: 3P | Coil rating: AC 230V 50/60 Hz | For contactors: MC-75a to 100a
77121633742Frame: 100AF | Poles: 3P | Coil rating: AC 200V 50/60 Hz | For contactors: MC-75a to 100a
77121633743Frame: 100AF | Poles: 3P | Coil rating: AC 120V 50/60 Hz | For contactors: MC-75a to 100a
77121633744Frame: 100AF | Poles: 3P | Coil rating: AC 100V 50/60 Hz | For contactors: MC-75a to 100a
77121633745Frame: 100AF | Poles: 3P | Coil rating: AC 415V 50/60 Hz | For contactors: MC-75a to 100a
77121633746Frame: 100AF | Poles: 3P | Coil rating: AC 24V 60 Hz | For contactors: MC-75a to 100a
77121633747Frame: 100AF | Poles: 3P | Coil rating: AC 48V 60 Hz | For contactors: MC-75a to 100a
77121633748Frame: 100AF | Poles: 3P | Coil rating: AC 110V 60 Hz | For contactors: MC-75a to 100a
77121633749Frame: 100AF | Poles: 3P | Coil rating: AC 120V 60 Hz | For contactors: MC-75a to 100a
77121633750Frame: 100AF | Poles: 3P | Coil rating: AC 220V 60 Hz | For contactors: MC-75a to 100a
77121633751Frame: 100AF | Poles: 3P | Coil rating: AC 240V 60 Hz | For contactors: MC-75a to 100a
77121633752Frame: 100AF | Poles: 3P | Coil rating: AC 380V 60 Hz | For contactors: MC-75a to 100a
77121633753Frame: 100AF | Poles: 3P | Coil rating: AC 440V 60 Hz | For contactors: MC-75a to 100a
77121633754Frame: 100AF | Poles: 3P | Coil rating: AC 480V 60 Hz | For contactors: MC-75a to 100a
77121633755Frame: 100AF | Poles: 3P | Coil rating: AC 600V 60 Hz | For contactors: MC-75a to 100a
77121633756Frame: 100AF | Poles: 3P | Coil rating: AC 100V 50 Hz, AC 110V 60 Hz | For contactors: MC-75a to 100a
77121633757Frame: 100AF | Poles: 3P | Coil rating: AC 200V 50 Hz, AC 220V 60 Hz | For contactors: MC-75a to 100a
77121633758Frame: 100AF | Poles: 3P | Coil rating: AC 208V 60 Hz | For contactors: MC-75a to 100a
77121633759Frame: 100AF | Poles: 3P | Coil rating: AC 277V 60 Hz | For contactors: MC-75a to 100a
77121633760Frame: 100AF | Poles: 3P | Coil rating: AC 230V 60 Hz | For contactors: MC-75a to 100a
77121633761Frame: 100AF | Poles: 3P | Coil rating: AC 200V 60 Hz | For contactors: MC-75a to 100a
77121633762Frame: 100AF | Poles: 3P | Coil rating: AC 24V 50 Hz | For contactors: MC-75a to 100a
77121633763Frame: 100AF | Poles: 3P | Coil rating: AC 48V 50 Hz | For contactors: MC-75a to 100a
77121633764Frame: 100AF | Poles: 3P | Coil rating: AC 110V 50 Hz | For contactors: MC-75a to 100a
77121633765Frame: 100AF | Poles: 3P | Coil rating: AC 220V 50 Hz | For contactors: MC-75a to 100a
77121633766Frame: 100AF | Poles: 3P | Coil rating: AC 240V 50 Hz | For contactors: MC-75a to 100a
77121633767Frame: 100AF | Poles: 3P | Coil rating: AC 380V 50 Hz | For contactors: MC-75a to 100a
77121633768Frame: 100AF | Poles: 3P | Coil rating: AC 400V 50 Hz | For contactors: MC-75a to 100a
77121633769Frame: 100AF | Poles: 3P | Coil rating: AC 415V 50 Hz | For contactors: MC-75a to 100a
77121633770Frame: 100AF | Poles: 3P | Coil rating: AC 440V 50 Hz | For contactors: MC-75a to 100a
77121633771Frame: 100AF | Poles: 3P | Coil rating: AC 550V 50 Hz | For contactors: MC-75a to 100a
77121633772Frame: 100AF | Poles: 3P | Coil rating: AC 36V 50 Hz | For contactors: MC-75a to 100a
77121633773Frame: 100AF | Poles: 3P | Coil rating: AC 42V 50 Hz | For contactors: MC-75a to 100a
77121633774Frame: 100AF | Poles: 3P | Coil rating: AC 80V 50 Hz | For contactors: MC-75a to 100a
77121633775Frame: 100AF | Poles: 3P | Coil rating: AC 100V 50 Hz | For contactors: MC-75a to 100a
77121633776Frame: 100AF | Poles: 3P | Coil rating: AC 230V 50 Hz | For contactors: MC-75a to 100a
77121633778Frame: 100AF | Poles: 3P | Coil rating: AC 500V 50 Hz | For contactors: MC-75a to 100a
77121633779Frame: 100AF | Poles: 3P | Coil rating: AC 32V 50 Hz | For contactors: MC-75a to 100a
77121633780Frame: 100AF | Poles: 3P | Coil rating: AC 120V 50 Hz | For contactors: MC-75a to 100a
77121633811Frame: 100AF | Poles: 3P | Coil rating: DC 12V | For contactors: MC-75a to 100a
77121633812Frame: 100AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-75a to 100a
77121633813Frame: 100AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-75a to 100a
77121633814Frame: 100AF | Poles: 3P | Coil rating: DC 100V | For contactors: MC-75a to 100a
77121633815Frame: 100AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-75a to 100a
77121633816Frame: 100AF | Poles: 3P | Coil rating: DC 125V | For contactors: MC-75a to 100a
77121633817Frame: 100AF | Poles: 3P | Coil rating: DC 200V | For contactors: MC-75a to 100a
77121633818Frame: 100AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-75a to 100a
77121633819Frame: 100AF | Poles: 3P | Coil rating: DC 250V | For contactors: MC-75a to 100a
77121633820Frame: 100AF | Poles: 3P | Coil rating: DC 20V | For contactors: MC-75a to 100a
77121633821Frame: 100AF | Poles: 3P | Coil rating: DC 60V | For contactors: MC-75a to 100a
77121633822Frame: 100AF | Poles: 3P | Coil rating: DC 80V | For contactors: MC-75a to 100a
77121641111Frame: 150AF | Poles: 3P | Coil rating: AC 220-240V | For contactors: MC-130a, 150a
77121641112Frame: 150AF | Poles: 3P | Coil rating: AC 24V | For contactors: MC-130a, 150a
77121641113Frame: 150AF | Poles: 3P | Coil rating: AC 48V | For contactors: MC-130a, 150a
77121641114Frame: 150AF | Poles: 3P | Coil rating: AC 110-120V | For contactors: MC-130a, 150a
77121641115Frame: 150AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-130a, 150a
77121641116Frame: 150AF | Poles: 3P | Coil rating: AC 380-440V | For contactors: MC-130a, 150a
77121641117Frame: 150AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-130a, 150a
77121641118Frame: 150AF | Poles: 3P | Coil rating: AC 24-48V 50/60Hz, DC 24-48V | For contactors: MC-130a, 150a
77121641119Frame: 150AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-130a, 150a
77121641120Frame: 150AF | Poles: 3P | Coil rating: DC 48V | For contactors: MC-130a, 150a
77121641121Frame: 150AF | Poles: 3P | Coil rating: DC 110V | For contactors: MC-130a, 150a
77121641122Frame: 150AF | Poles: 3P | Coil rating: DC 220V | For contactors: MC-130a, 150a
77121641123Frame: 150AF | Poles: 3P | Coil rating: AC 100-240V, DC 100-220V | For contactors: MC-130a, 150a
77121642111Frame: 225AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-185a, 225a
77121642112Frame: 225AF | Poles: 3P | Coil rating: AC 400V | For contactors: MC-185a, 225a
77121642113Frame: 225AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-185a, 225a
77121642114Frame: 225AF | Poles: 3P | Coil rating: AC/DC 24V | For contactors: MC-185a, 225a
77121642115Frame: 225AF | Poles: 3P | Coil rating: AC/DC 48V | For contactors: MC-185a, 225a
77121642116Frame: 225AF | Poles: 3P | Coil rating: AC/DC 100-240V | For contactors: MC-185a, 225a
77121642041Frame: 225AF | Poles: 4P | Coil rating: AC/DC 100-240V | For contactors: MC-100a/4 to 225a/4
77121642042Frame: 225AF | Poles: 4P | Coil rating: AC/DC 24V | For contactors: MC-100a/4 to 225a/4
77121642043Frame: 225AF | Poles: 4P | Coil rating: AC/DC 48V | For contactors: MC-100a/4 to 225a/4
77121642044Frame: 225AF | Poles: 4P | Coil rating: AC 300V | For contactors: MC-100a/4 to 225a/4
77121642045Frame: 225AF | Poles: 4P | Coil rating: AC 400V | For contactors: MC-100a/4 to 225a/4
77121642046Frame: 225AF | Poles: 4P | Coil rating: AC 500V | For contactors: MC-100a/4 to 225a/4
77121643111Frame: 400AF | Poles: 3P | Coil rating: AC/DC 100-240V | For contactors: MC-265a to 400a
77121643112Frame: 400AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-265a to 400a
77121643113Frame: 400AF | Poles: 3P | Coil rating: AC 400V | For contactors: MC-265a to 400a
77121643114Frame: 400AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-265a to 400a
77121643115Frame: 400AF | Poles: 3P | Coil rating: DC 70-110V | For contactors: MC-265a to 400a
77121643117Frame: 400AF | Poles: 3P | Coil rating: DC 24V | For contactors: MC-265a to 400a
77121643030Frame: 400AF | Poles: 4P | Coil rating: AC/DC 100-240V | For contactors: MC-265a/4 to 400a/4
77121643031Frame: 400AF | Poles: 4P | Coil rating: AC 300V | For contactors: MC-265a/4 to 400a/4
77121643032Frame: 400AF | Poles: 4P | Coil rating: AC 400V | For contactors: MC-265a/4 to 400a/4
77121643034Frame: 400AF | Poles: 4P | Coil rating: AC 500V | For contactors: MC-265a/4 to 400a/4
77121644111Frame: 800AF | Poles: 3P | Coil rating: AC/DC 200V | For contactors: MC-500a to 800a
77121644112Frame: 800AF | Poles: 3P | Coil rating: AC/DC 100V | For contactors: MC-500a to 800a
77121644113Frame: 800AF | Poles: 3P | Coil rating: AC 300V | For contactors: MC-500a to 800a
77121644114Frame: 800AF | Poles: 3P | Coil rating: AC 400V | For contactors: MC-500a to 800a
77121644115Frame: 800AF | Poles: 3P | Coil rating: AC 500V | For contactors: MC-500a to 800a
77121644116Frame: 800AF | Poles: 3P | Coil rating: DC 70-110V | For contactors: MC-500a to 800a
77121644041Frame: 800AF | Poles: 4P | Coil rating: AC/DC 100V | For contactors: MC-500a/4 to 800a/4
77121644042Frame: 800AF | Poles: 4P | Coil rating: AC/DC 200V | For contactors: MC-500a/4 to 800a/4
77121644043Frame: 800AF | Poles: 4P | Coil rating: AC 300V | For contactors: MC-500a/4 to 800a/4
77121644044Frame: 800AF | Poles: 4P | Coil rating: AC 400V | For contactors: MC-500a/4 to 800a/4
77121644045Frame: 800AF | Poles: 4P | Coil rating: AC 500V | For contactors: MC-500a/4 to 800a/4
77121644160Frame: 1260AF | Poles: 3P | Coil rating: AC 100-240V 50/60Hz, DC 100-220V | For contactors: MC-1260a, MCi-1260
77121646004Frame: 2650AF | Poles: 3P | Coil rating: AC 100-240V, DC 100-220V | For contactors: MC-1400a to 2650a, MCi-1700 to 2650

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
