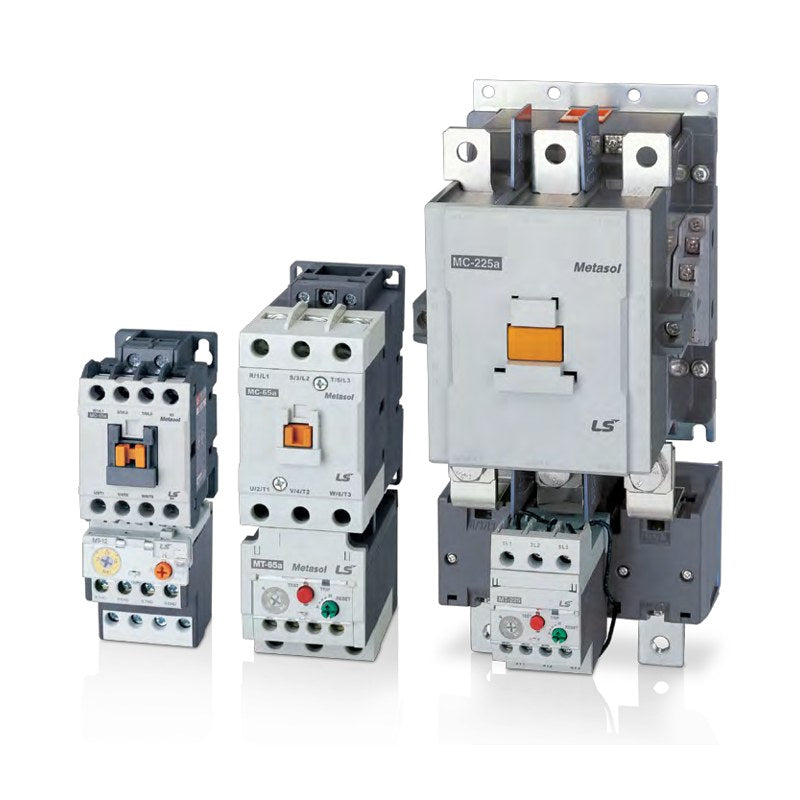

• LS Electric Metasol MC Reversing Contactor (MC-130a/R to MC-800a/R)
1 1

LS Electric Metasol MC Reversing Contactor (MC-130a/R to MC-800a/R)

LS Electric Metasol MC Reversing Contactor (MC-130a/R to MC-800a/R)

LS Electric Metasol MC reversing contactors MC-130a/R to MC-800a/R with mechanical interlock for forward/reverse control of motors from 60 kW to 440 kW at 380-440 V.

Key features

  • Two 3-pole contactors joined by a mechanical interlock (AR-180 / AR-600)
  • 4NO+4NC auxiliary contacts as standard
  • AC-3 ratings 60 kW to 440 kW at 380-440 V; changeover interval 50 ms or more
  • AC 50/60 Hz or DC coils on 150AF; wide-range AC/DC common coils from 225AF up
  • Screw mounting

Specifications

Main contacts 3 poles (3NO) per contactor
Interlock Mechanical (AR-180 / AR-600)
Auxiliary contacts 4NO+4NC
Changeover interval 50 ms or more
Mounting Screw mounting
Weight (AC coil) 4.3 kg to 60 kg
Coil voltage limit 85 to 110% Uc
Source LS Electric Metasol MS catalog C04001-37 (2026-09), p. 20, 59, 93
MC-130a/R/AC24V Model: MC-130a/R | Coil voltage: AC 24 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC48V Model: MC-130a/R | Coil voltage: AC 48 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC100-240V Model: MC-130a/R | Coil voltage: AC 100-240 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC110-120V Model: MC-130a/R | Coil voltage: AC 110-120 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC220-240V Model: MC-130a/R | Coil voltage: AC 220-240 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC300V Model: MC-130a/R | Coil voltage: AC 300 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC380-440V Model: MC-130a/R | Coil voltage: AC 380-440 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/AC500V Model: MC-130a/R | Coil voltage: AC 500 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/DC24V Model: MC-130a/R | Coil voltage: DC 24 V | Coil type: DC | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/DC48V Model: MC-130a/R | Coil voltage: DC 48 V | Coil type: DC | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/DC70-110V Model: MC-130a/R | Coil voltage: DC 70-110 V | Coil type: DC | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/DC100-220V Model: MC-130a/R | Coil voltage: DC 100-220 V | Coil type: DC | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/DC110V Model: MC-130a/R | Coil voltage: DC 110 V | Coil type: DC | AC-3 at 380-440V: 60 kW / 130 A
MC-130a/R/DC220V Model: MC-130a/R | Coil voltage: DC 220 V | Coil type: DC | AC-3 at 380-440V: 60 kW / 130 A
MC-150a/R/AC24V Model: MC-150a/R | Coil voltage: AC 24 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC48V Model: MC-150a/R | Coil voltage: AC 48 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC100-240V Model: MC-150a/R | Coil voltage: AC 100-240 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC110-120V Model: MC-150a/R | Coil voltage: AC 110-120 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC220-240V Model: MC-150a/R | Coil voltage: AC 220-240 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC300V Model: MC-150a/R | Coil voltage: AC 300 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC380-440V Model: MC-150a/R | Coil voltage: AC 380-440 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/AC500V Model: MC-150a/R | Coil voltage: AC 500 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/DC24V Model: MC-150a/R | Coil voltage: DC 24 V | Coil type: DC | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/DC48V Model: MC-150a/R | Coil voltage: DC 48 V | Coil type: DC | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/DC70-110V Model: MC-150a/R | Coil voltage: DC 70-110 V | Coil type: DC | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/DC100-220V Model: MC-150a/R | Coil voltage: DC 100-220 V | Coil type: DC | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/DC110V Model: MC-150a/R | Coil voltage: DC 110 V | Coil type: DC | AC-3 at 380-440V: 75 kW / 150 A
MC-150a/R/DC220V Model: MC-150a/R | Coil voltage: DC 220 V | Coil type: DC | AC-3 at 380-440V: 75 kW / 150 A
MC-185a/R/AC/DC24V Model: MC-185a/R | Coil voltage: AC 24-25 V / DC 24 V | Coil type: AC/DC common | AC-3 at 380-440V: 90 kW / 185 A
MC-185a/R/AC/DC48V Model: MC-185a/R | Coil voltage: AC 48-50 V / DC 48 V | Coil type: AC/DC common | AC-3 at 380-440V: 90 kW / 185 A
MC-185a/R/AC/DC100-240V Model: MC-185a/R | Coil voltage: AC 100-240 V / DC 100-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 90 kW / 185 A
MC-185a/R/AC300V Model: MC-185a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 90 kW / 185 A
MC-185a/R/AC400V Model: MC-185a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 90 kW / 185 A
MC-185a/R/AC500V Model: MC-185a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 90 kW / 185 A
MC-225a/R/AC/DC24V Model: MC-225a/R | Coil voltage: AC 24-25 V / DC 24 V | Coil type: AC/DC common | AC-3 at 380-440V: 132 kW / 225 A
MC-225a/R/AC/DC48V Model: MC-225a/R | Coil voltage: AC 48-50 V / DC 48 V | Coil type: AC/DC common | AC-3 at 380-440V: 132 kW / 225 A
MC-225a/R/AC/DC100-240V Model: MC-225a/R | Coil voltage: AC 100-240 V / DC 100-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 132 kW / 225 A
MC-225a/R/AC300V Model: MC-225a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 132 kW / 225 A
MC-225a/R/AC400V Model: MC-225a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 132 kW / 225 A
MC-225a/R/AC500V Model: MC-225a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 132 kW / 225 A
MC-265a/R/AC/DC100-240V Model: MC-265a/R | Coil voltage: AC 100-240 V / DC 100-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 147 kW / 265 A
MC-265a/R/AC300V Model: MC-265a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 147 kW / 265 A
MC-265a/R/AC400V Model: MC-265a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 147 kW / 265 A
MC-265a/R/AC500V Model: MC-265a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 147 kW / 265 A
MC-330a/R/AC/DC100-240V Model: MC-330a/R | Coil voltage: AC 100-240 V / DC 100-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 160 kW / 330 A
MC-330a/R/AC300V Model: MC-330a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 160 kW / 330 A
MC-330a/R/AC400V Model: MC-330a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 160 kW / 330 A
MC-330a/R/AC500V Model: MC-330a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 160 kW / 330 A
MC-400a/R/AC/DC100-240V Model: MC-400a/R | Coil voltage: AC 100-240 V / DC 100-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 200 kW / 400 A
MC-400a/R/AC300V Model: MC-400a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 200 kW / 400 A
MC-400a/R/AC400V Model: MC-400a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 200 kW / 400 A
MC-400a/R/AC500V Model: MC-400a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 200 kW / 400 A
MC-500a/R/AC/DC100V Model: MC-500a/R | Coil voltage: AC 100-127 V / DC 100-110 V | Coil type: AC/DC common | AC-3 at 380-440V: 265 kW / 500 A
MC-500a/R/AC/DC200V Model: MC-500a/R | Coil voltage: AC 200-240 V / DC 200-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 265 kW / 500 A
MC-500a/R/AC300V Model: MC-500a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 265 kW / 500 A
MC-500a/R/AC400V Model: MC-500a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 265 kW / 500 A
MC-500a/R/AC500V Model: MC-500a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 265 kW / 500 A
MC-630a/R/AC/DC100V Model: MC-630a/R | Coil voltage: AC 100-127 V / DC 100-110 V | Coil type: AC/DC common | AC-3 at 380-440V: 330 kW / 630 A
MC-630a/R/AC/DC200V Model: MC-630a/R | Coil voltage: AC 200-240 V / DC 200-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 330 kW / 630 A
MC-630a/R/AC300V Model: MC-630a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 330 kW / 630 A
MC-630a/R/AC400V Model: MC-630a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 330 kW / 630 A
MC-630a/R/AC500V Model: MC-630a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 330 kW / 630 A
MC-800a/R/AC/DC100V Model: MC-800a/R | Coil voltage: AC 100-127 V / DC 100-110 V | Coil type: AC/DC common | AC-3 at 380-440V: 440 kW / 800 A
MC-800a/R/AC/DC200V Model: MC-800a/R | Coil voltage: AC 200-240 V / DC 200-220 V | Coil type: AC/DC common | AC-3 at 380-440V: 440 kW / 800 A
MC-800a/R/AC300V Model: MC-800a/R | Coil voltage: AC 265-347 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 440 kW / 800 A
MC-800a/R/AC400V Model: MC-800a/R | Coil voltage: AC 380-450 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 440 kW / 800 A
MC-800a/R/AC500V Model: MC-800a/R | Coil voltage: AC 440-575 V | Coil type: AC 50/60 Hz | AC-3 at 380-440V: 440 kW / 800 A
Magnetic ContactorsLS Electric
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MC Reversing Contactor (MC-130a/R to MC-800a/R)

Brand LS Electric·Magnetic Contactors

Available part numbers (67)

MC-130a/R/AC24V, MC-130a/R/AC48V, MC-130a/R/AC100-240V, MC-130a/R/AC110-120V, MC-130a/R/AC220-240V, MC-130a/R/AC300V, MC-130a/R/AC380-440V, MC-130a/R/AC500V, MC-130a/R/DC24V, MC-130a/R/DC48V + 57 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
