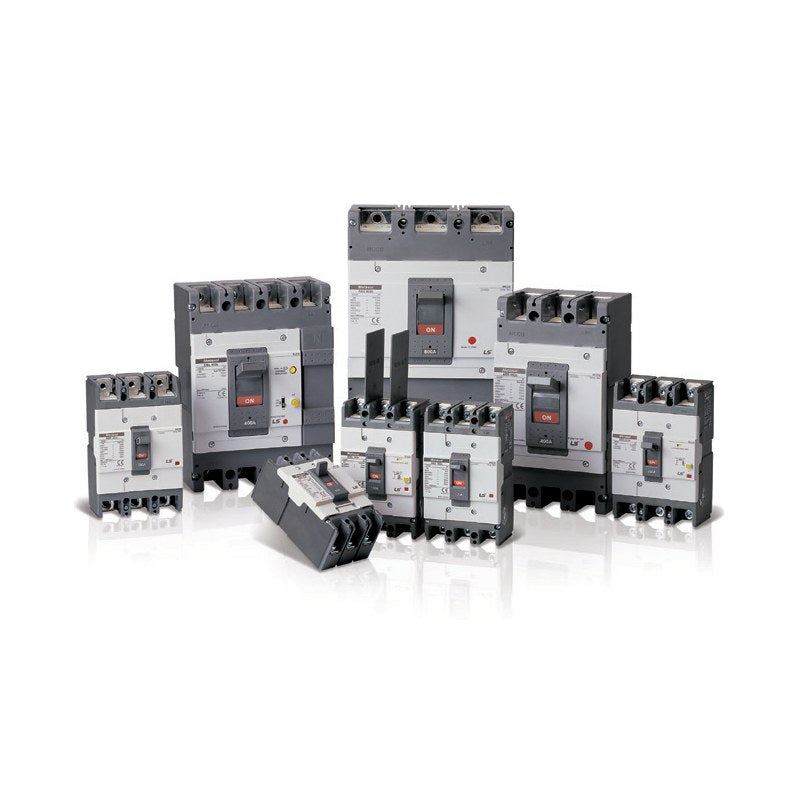

LS Electric Metasol Motor Protection MCCB (cM type, 16-225 A)

LS Electric Metasol Motor Protection MCCB (cM type, 16-225 A)

LS Electric Metasol cM-type motor protection molded case circuit breakers (ABN/ABS/ABH ...cM), 30-250AF, 3-pole, 16-225 A, with trip characteristics for motor circuits.

Key features

  • Motor-protection versions of Metasol ABN, ABS and ABH MCCBs, 3-pole
  • Rated currents matched to motor ratings: 16, 24, 32, 45, 60, 75, 90, 125-225 A
  • Same outline and accessories as the standard Metasol MCCB of the same frame
  • Icu at 460 V from 14 kA (N-type) up to 50 kA (H-type)
  • Ue AC 690 V / DC 500 V (reference), 50/60 Hz

Specifications

Application Motor protection
Poles 3P
Rated operational voltage (Ue) AC 690 V, DC 500 V (reference), 50/60 Hz
Rated insulation / impulse voltage Ui 1000 V, Uimp 8 kV
Ics 100% Icu
Accessories Same as standard Metasol MCCB
Standards KS C 8321, IEC 60947-2
Source LS Electric Metasol MCCB/ELCB catalog C01031-34 (2025-01), p. 2-5 to 2-6, 8-7 to 8-8
ABS33cM/16 Frame: 30AF | Type: S-type | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33cM/24 Frame: 30AF | Type: S-type | Rated current: 24 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/16 Frame: 50AF | Type: N-type | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/24 Frame: 50AF | Type: N-type | Rated current: 24 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/32 Frame: 50AF | Type: N-type | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/45 Frame: 50AF | Type: N-type | Rated current: 45 A | Icu 460V / 220V: 14 kA / 30 kA
ABS53cM/16 Frame: 50AF | Type: S-type | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53cM/24 Frame: 50AF | Type: S-type | Rated current: 24 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53cM/32 Frame: 50AF | Type: S-type | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53cM/45 Frame: 50AF | Type: S-type | Rated current: 45 A | Icu 460V / 220V: 18 kA / 35 kA
ABH53cM/16 Frame: 50AF | Type: H-type | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53cM/24 Frame: 50AF | Type: H-type | Rated current: 24 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53cM/32 Frame: 50AF | Type: H-type | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53cM/45 Frame: 50AF | Type: H-type | Rated current: 45 A | Icu 460V / 220V: 50 kA / 100 kA
ABN63cM/60 Frame: 60AF | Type: N-type | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABS63cM/60 Frame: 60AF | Type: S-type | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103cM/60 Frame: 100AF | Type: N-type | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103cM/75 Frame: 100AF | Type: N-type | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103cM/90 Frame: 100AF | Type: N-type | Rated current: 90 A | Icu 460V / 220V: 18 kA / 35 kA
ABS103cM/60 Frame: 125AF | Type: S-type | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103cM/75 Frame: 125AF | Type: S-type | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103cM/90 Frame: 125AF | Type: S-type | Rated current: 90 A | Icu 460V / 220V: 37 kA / 85 kA
ABH103cM/60 Frame: 125AF | Type: H-type | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103cM/75 Frame: 125AF | Type: H-type | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103cM/90 Frame: 125AF | Type: H-type | Rated current: 90 A | Icu 460V / 220V: 50 kA / 100 kA
ABS203cM/125 Frame: 250AF | Type: S-type | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203cM/150 Frame: 250AF | Type: S-type | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203cM/175 Frame: 250AF | Type: S-type | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203cM/225 Frame: 250AF | Type: S-type | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABH203cM/125 Frame: 250AF | Type: H-type | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203cM/150 Frame: 250AF | Type: H-type | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203cM/175 Frame: 250AF | Type: H-type | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203cM/225 Frame: 250AF | Type: H-type | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
Molded Case Circuit BreakersLS Electric
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol Motor Protection MCCB (cM type, 16-225 A)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (33)

ABS33cM/16, ABS33cM/24, ABN53cM/16, ABN53cM/24, ABN53cM/32, ABN53cM/45, ABS53cM/16, ABS53cM/24, ABS53cM/32, ABS53cM/45 + 23 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABS33cM/16Frame: 30AF | Type: S-type | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABS33cM/24Frame: 30AF | Type: S-type | Rated current: 24 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/16Frame: 50AF | Type: N-type | Rated current: 16 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/24Frame: 50AF | Type: N-type | Rated current: 24 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/32Frame: 50AF | Type: N-type | Rated current: 32 A | Icu 460V / 220V: 14 kA / 30 kA
ABN53cM/45Frame: 50AF | Type: N-type | Rated current: 45 A | Icu 460V / 220V: 14 kA / 30 kA
ABS53cM/16Frame: 50AF | Type: S-type | Rated current: 16 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53cM/24Frame: 50AF | Type: S-type | Rated current: 24 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53cM/32Frame: 50AF | Type: S-type | Rated current: 32 A | Icu 460V / 220V: 18 kA / 35 kA
ABS53cM/45Frame: 50AF | Type: S-type | Rated current: 45 A | Icu 460V / 220V: 18 kA / 35 kA
ABH53cM/16Frame: 50AF | Type: H-type | Rated current: 16 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53cM/24Frame: 50AF | Type: H-type | Rated current: 24 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53cM/32Frame: 50AF | Type: H-type | Rated current: 32 A | Icu 460V / 220V: 50 kA / 100 kA
ABH53cM/45Frame: 50AF | Type: H-type | Rated current: 45 A | Icu 460V / 220V: 50 kA / 100 kA
ABN63cM/60Frame: 60AF | Type: N-type | Rated current: 60 A | Icu 460V / 220V: 14 kA / 30 kA
ABS63cM/60Frame: 60AF | Type: S-type | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103cM/60Frame: 100AF | Type: N-type | Rated current: 60 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103cM/75Frame: 100AF | Type: N-type | Rated current: 75 A | Icu 460V / 220V: 18 kA / 35 kA
ABN103cM/90Frame: 100AF | Type: N-type | Rated current: 90 A | Icu 460V / 220V: 18 kA / 35 kA
ABS103cM/60Frame: 125AF | Type: S-type | Rated current: 60 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103cM/75Frame: 125AF | Type: S-type | Rated current: 75 A | Icu 460V / 220V: 37 kA / 85 kA
ABS103cM/90Frame: 125AF | Type: S-type | Rated current: 90 A | Icu 460V / 220V: 37 kA / 85 kA
ABH103cM/60Frame: 125AF | Type: H-type | Rated current: 60 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103cM/75Frame: 125AF | Type: H-type | Rated current: 75 A | Icu 460V / 220V: 50 kA / 100 kA
ABH103cM/90Frame: 125AF | Type: H-type | Rated current: 90 A | Icu 460V / 220V: 50 kA / 100 kA
ABS203cM/125Frame: 250AF | Type: S-type | Rated current: 125 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203cM/150Frame: 250AF | Type: S-type | Rated current: 150 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203cM/175Frame: 250AF | Type: S-type | Rated current: 175 A | Icu 460V / 220V: 37 kA / 85 kA
ABS203cM/225Frame: 250AF | Type: S-type | Rated current: 225 A | Icu 460V / 220V: 37 kA / 85 kA
ABH203cM/125Frame: 250AF | Type: H-type | Rated current: 125 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203cM/150Frame: 250AF | Type: H-type | Rated current: 150 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203cM/175Frame: 250AF | Type: H-type | Rated current: 175 A | Icu 460V / 220V: 50 kA / 100 kA
ABH203cM/225Frame: 250AF | Type: H-type | Rated current: 225 A | Icu 460V / 220V: 50 kA / 100 kA
