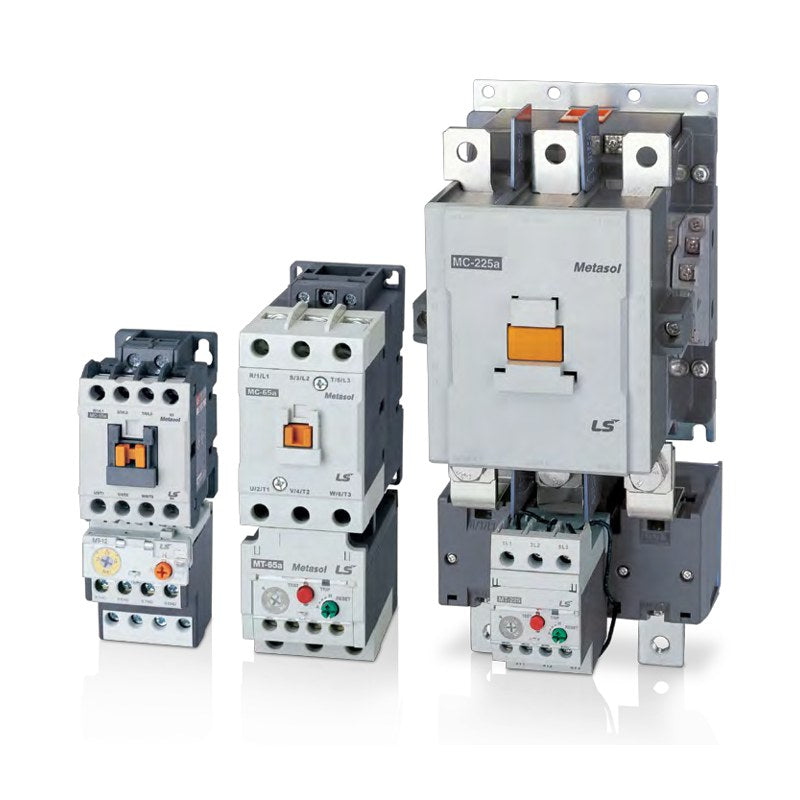

LS Electric Metasol MW Enclosed Magnetic Starter (MW-6a to MW-100a)

LS Electric Metasol MW Enclosed Magnetic Starter (MW-6a to MW-100a)

LS Electric Metasol MW enclosed direct-on-line magnetic starters MW-6a to MW-100a, combining a Metasol MC contactor and MT thermal overload relay in a steel or plastic IP40 enclosure, with or without ON/OFF pushbuttons.

Key features

  • Pre-assembled MC contactor + MT thermal overload relay in an IP40 wall-mount enclosure
  • Steel enclosure (MW-6a to 100a) or plastic enclosure (MW-9bM to 22bM)
  • B versions with ON/OFF pushbuttons on the cover
  • Overload relay version 2H, 3H, 3K (differential) or 3D (class 20)
  • AC-3 ratings 3 kW to 55 kW at 380-440 V; AC 50 Hz or 60 Hz control coil

Specifications

Main contacts 3NO
Control supply AC 50 Hz or 60 Hz
Coil voltages (50 Hz) AC 24-550 V (14 values, see catalog)
Coil voltages (60 Hz) AC 24-600 V (14 values, see catalog)
Auxiliary contacts Steel: 1NO, 1NC, 1NO+1NC or 2NO+2NC; plastic: 1NO+1NC
Mounting Screw (wall) mounting
Degree of protection IP40
Certifications KC safety, CE (IEC), UL508
Source LS Electric Metasol MS catalog C04001-37 (2026-09), p. 80-81, 173-174
MW-6a/2H Model: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/3H Model: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/3K Model: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/3D Model: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/2H Model: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/3H Model: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/3K Model: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/3D Model: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-9a/2H Model: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/3H Model: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/3K Model: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/3D Model: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/2H Model: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/3H Model: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/3K Model: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/3D Model: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-12a/2H Model: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/3H Model: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/3K Model: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/3D Model: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/2H Model: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/3H Model: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/3K Model: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/3D Model: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-18a/2H Model: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/3H Model: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/3K Model: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/3D Model: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/2H Model: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/3H Model: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/3K Model: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/3D Model: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-9b/2H Model: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/3H Model: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/3K Model: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/3D Model: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/2H Model: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/3H Model: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/3K Model: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/3D Model: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/2H Model: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/3H Model: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/3K Model: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/3D Model: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/2H Model: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/3H Model: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/3K Model: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/3D Model: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-12b/2H Model: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/3H Model: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/3K Model: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/3D Model: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/2H Model: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/3H Model: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/3K Model: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/3D Model: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/2H Model: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/3H Model: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/3K Model: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/3D Model: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/2H Model: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/3H Model: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/3K Model: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/3D Model: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-18b/2H Model: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/3H Model: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/3K Model: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/3D Model: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/2H Model: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/3H Model: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/3K Model: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/3D Model: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/2H Model: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/3H Model: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/3K Model: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/3D Model: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/2H Model: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/3H Model: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/3K Model: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/3D Model: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-22b/2H Model: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/3H Model: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/3K Model: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/3D Model: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/2H Model: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/3H Model: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/3K Model: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/3D Model: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/2H Model: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/3H Model: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/3K Model: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/3D Model: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/2H Model: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/3H Model: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/3K Model: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/3D Model: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-32a/2H Model: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/3H Model: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/3K Model: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/3D Model: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/2H Model: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/3H Model: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/3K Model: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/3D Model: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-40a/2H Model: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/3H Model: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/3K Model: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/3D Model: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/2H Model: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/3H Model: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/3K Model: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/3D Model: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-50a/2H Model: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/3H Model: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/3K Model: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/3D Model: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/2H Model: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/3H Model: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/3K Model: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/3D Model: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-65a/2H Model: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/3H Model: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/3K Model: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/3D Model: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/2H Model: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/3H Model: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/3K Model: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/3D Model: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-75a/2H Model: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/3H Model: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/3K Model: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/3D Model: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/2H Model: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/3H Model: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/3K Model: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/3D Model: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-85a/2H Model: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/3H Model: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/3K Model: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/3D Model: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/2H Model: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/3H Model: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/3K Model: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/3D Model: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-100a/2H Model: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/3H Model: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/3K Model: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/3D Model: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/2H Model: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/3H Model: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/3K Model: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/3D Model: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
Motor StartersLS Electric
152 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Metasol MW Enclosed Magnetic Starter (MW-6a to MW-100a)

Brand LS Electric·Motor Starters

Available part numbers (152)

MW-6a/2H, MW-6a/3H, MW-6a/3K, MW-6a/3D, MW-6a/B/2H, MW-6a/B/3H, MW-6a/B/3K, MW-6a/B/3D, MW-9a/2H, MW-9a/3H + 142 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MW-6a/2HModel: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/3HModel: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/3KModel: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/3DModel: MW-6a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/2HModel: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/3HModel: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/3KModel: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-6a/B/3DModel: MW-6a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-6a | AC-3 at 380-440V: 3 kW / 7 A
MW-9a/2HModel: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/3HModel: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/3KModel: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/3DModel: MW-9a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/2HModel: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/3HModel: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/3KModel: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-9a/B/3DModel: MW-9a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-9a | AC-3 at 380-440V: 4 kW / 9 A
MW-12a/2HModel: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/3HModel: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/3KModel: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/3DModel: MW-12a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/2HModel: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/3HModel: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/3KModel: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12a/B/3DModel: MW-12a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-12a | AC-3 at 380-440V: 5.5 kW / 12 A
MW-18a/2HModel: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/3HModel: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/3KModel: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/3DModel: MW-18a | Enclosure: Steel, no pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/2HModel: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/2H Standard, 2 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/3HModel: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3H Standard, 3 heaters | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/3KModel: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3K Differential (phase loss) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18a/B/3DModel: MW-18a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-12/3D Class 20 (delay) | Contactor: MC-18a | AC-3 at 380-440V: 7.5 kW / 18 A
MW-9b/2HModel: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/3HModel: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/3KModel: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/3DModel: MW-9b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/2HModel: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/3HModel: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/3KModel: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/B/3DModel: MW-9b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/2HModel: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/3HModel: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/3KModel: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/M/3DModel: MW-9b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/2HModel: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/3HModel: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/3KModel: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-9b/MB/3DModel: MW-9b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-9b | AC-3 at 380-440V: 4 kW / 9 A
MW-12b/2HModel: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/3HModel: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/3KModel: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/3DModel: MW-12b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/2HModel: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/3HModel: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/3KModel: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/B/3DModel: MW-12b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/2HModel: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/3HModel: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/3KModel: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/M/3DModel: MW-12b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/2HModel: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/3HModel: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/3KModel: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-12b/MB/3DModel: MW-12b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-12b | AC-3 at 380-440V: 5.5 kW / 12 A
MW-18b/2HModel: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/3HModel: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/3KModel: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/3DModel: MW-18b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/2HModel: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/3HModel: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/3KModel: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/B/3DModel: MW-18b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/2HModel: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/3HModel: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/3KModel: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/M/3DModel: MW-18b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/2HModel: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/3HModel: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/3KModel: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-18b/MB/3DModel: MW-18b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-18b | AC-3 at 380-440V: 7.5 kW / 18 A
MW-22b/2HModel: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/3HModel: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/3KModel: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/3DModel: MW-22b | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/2HModel: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/3HModel: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/3KModel: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/B/3DModel: MW-22b | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/2HModel: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/3HModel: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/3KModel: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/M/3DModel: MW-22b | Enclosure: Plastic, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/2HModel: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/3HModel: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/3KModel: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-22b/MB/3DModel: MW-22b | Enclosure: Plastic, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-22b | AC-3 at 380-440V: 11 kW / 22 A
MW-32a/2HModel: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/3HModel: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/3KModel: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/3DModel: MW-32a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/2HModel: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/3HModel: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/3KModel: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-32a/B/3DModel: MW-32a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-32a | AC-3 at 380-440V: 15 kW / 32 A
MW-40a/2HModel: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/3HModel: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/3KModel: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/3DModel: MW-40a | Enclosure: Steel, no pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/2HModel: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/2H Standard, 2 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/3HModel: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3H Standard, 3 heaters | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/3KModel: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3K Differential (phase loss) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-40a/B/3DModel: MW-40a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-32/3D Class 20 (delay) | Contactor: MC-40a | AC-3 at 380-440V: 18.5 kW / 40 A
MW-50a/2HModel: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/3HModel: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/3KModel: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/3DModel: MW-50a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/2HModel: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/3HModel: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/3KModel: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-50a/B/3DModel: MW-50a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-50a | AC-3 at 380-440V: 22 kW / 50 A
MW-65a/2HModel: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/3HModel: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/3KModel: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/3DModel: MW-65a | Enclosure: Steel, no pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/2HModel: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/2H Standard, 2 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/3HModel: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3H Standard, 3 heaters | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/3KModel: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3K Differential (phase loss) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-65a/B/3DModel: MW-65a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-63/3D Class 20 (delay) | Contactor: MC-65a | AC-3 at 380-440V: 30 kW / 65 A
MW-75a/2HModel: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/3HModel: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/3KModel: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/3DModel: MW-75a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/2HModel: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/3HModel: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/3KModel: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-75a/B/3DModel: MW-75a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-75a | AC-3 at 380-440V: 37 kW / 75 A
MW-85a/2HModel: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/3HModel: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/3KModel: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/3DModel: MW-85a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/2HModel: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/3HModel: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/3KModel: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-85a/B/3DModel: MW-85a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-85a | AC-3 at 380-440V: 45 kW / 85 A
MW-100a/2HModel: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/3HModel: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/3KModel: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/3DModel: MW-100a | Enclosure: Steel, no pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/2HModel: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/2H Standard, 2 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/3HModel: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3H Standard, 3 heaters | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/3KModel: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3K Differential (phase loss) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A
MW-100a/B/3DModel: MW-100a | Enclosure: Steel, ON/OFF pushbuttons | Overload relay: MT-95/3D Class 20 (delay) | Contactor: MC-100a | AC-3 at 380-440V: 55 kW / 105 A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
