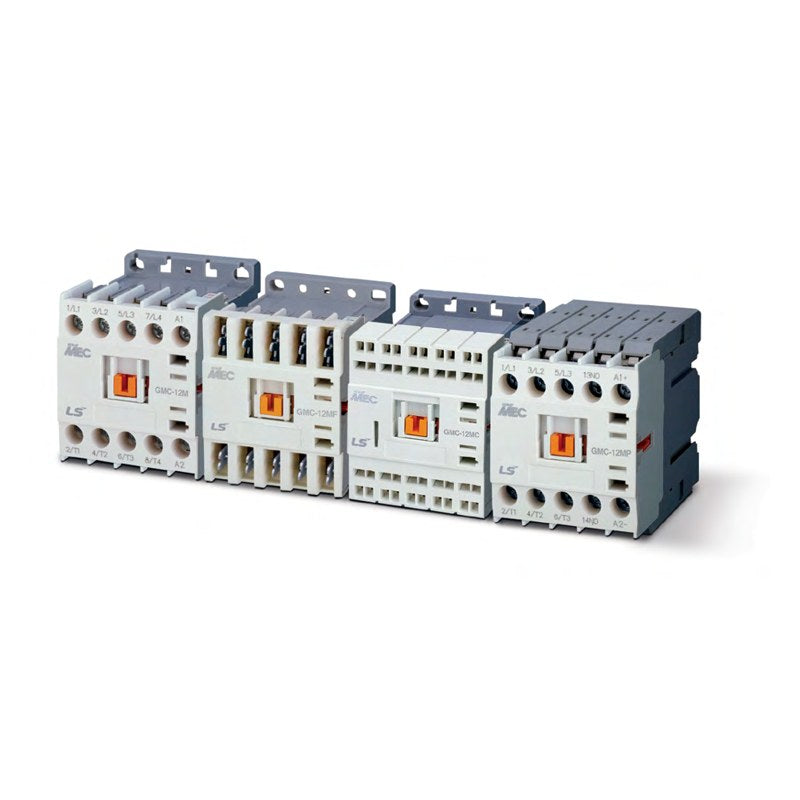

LS Electric Mini MC Accessories (AU, AT, AS, AP, AZ, AR)

LS Electric Mini MC Accessories (AU, AT, AS, AP, AZ, AR)

Add-on auxiliary contact blocks, timer, surge, solder-pin, overload-relay standalone and interlock units for LS Electric Mini contactors and relays GMC/GMD/GMR-6M to 16M.

Key features

  • AU-1/2/4: side 1-pole and top 2/4-pole auxiliary contact units in screw, fast-on, cage clamp and solder pin versions
  • AT-12M: top-mounted electronic ON- or OFF-delay timer unit, 1-30 s
  • AS-12M: varistor surge suppressor for AC or DC coils
  • AP: solder pin kits to convert screw-type contactors and aux. units for PCB mounting
  • AZ-12MH: standalone DIN rail/screw base for GTH/GTK-12M overload relays
  • AR-12M: compact mechanical interlock for reversing pairs, with or without wire kit

Specifications

Applicable series Mini MC GMC/GMD-6M to 16M, Mini GMR
Aux. contact rating AC-1 10 A
Max. side aux. units 2 per contactor
Rated insulation voltage 690 V
Standards IEC 60947-5-1, UL 508
Source LS Electric Mini MS catalog C04061-03 (2026-09), p. 15, 32-38
AU-2M-20 Accessory: Aux. contact unit, top 2-pole | Terminal: Screw | Function: 2a | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-2M-02 Accessory: Aux. contact unit, top 2-pole | Terminal: Screw | Function: 2b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-2M-11 Accessory: Aux. contact unit, top 2-pole | Terminal: Screw | Function: 1a1b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-40 Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 4a | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-31 Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 3a1b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-22 Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 2a2b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-13 Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 1a3b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-04 Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 4b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-1M-10 Accessory: Aux. contact unit, side 1-pole | Terminal: Screw | Function: 1a | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-1M-01 Accessory: Aux. contact unit, side 1-pole | Terminal: Screw | Function: 1b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-2MF-20 Accessory: Aux. contact unit, top 2-pole | Terminal: Fast-on | Function: 2a | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-2MF-02 Accessory: Aux. contact unit, top 2-pole | Terminal: Fast-on | Function: 2b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-2MF-11 Accessory: Aux. contact unit, top 2-pole | Terminal: Fast-on | Function: 1a1b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-40 Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 4a | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-31 Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 3a1b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-22 Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 2a2b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-13 Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 1a3b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-04 Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 4b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-1MF-10 Accessory: Aux. contact unit, side 1-pole | Terminal: Fast-on | Function: 1a | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-1MF-01 Accessory: Aux. contact unit, side 1-pole | Terminal: Fast-on | Function: 1b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-2MC-20 Accessory: Aux. contact unit, top 2-pole | Terminal: Cage clamp | Function: 2a | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-2MC-02 Accessory: Aux. contact unit, top 2-pole | Terminal: Cage clamp | Function: 2b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-2MC-11 Accessory: Aux. contact unit, top 2-pole | Terminal: Cage clamp | Function: 1a1b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-40 Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 4a | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-31 Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 3a1b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-22 Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 2a2b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-13 Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 1a3b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-04 Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 4b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-1MC-10 Accessory: Aux. contact unit, side 1-pole | Terminal: Cage clamp | Function: 1a | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-1MC-01 Accessory: Aux. contact unit, side 1-pole | Terminal: Cage clamp | Function: 1b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-1MP-10 Accessory: Aux. contact unit, side 1-pole | Terminal: Solder pin | Function: 1a | Rating: - | For: GMC/GMD-6MP to 16MP(R)
AU-1MP-01 Accessory: Aux. contact unit, side 1-pole | Terminal: Solder pin | Function: 1b | Rating: - | For: GMC/GMD-6MP to 16MP(R)
AT-12M/1N Accessory: Electronic timer unit, top mount | Terminal: All types | Function: ON delay, 1-30 s | Rating: AC/DC 24-48 V | For: GMC/GMD-6M to 16M
AT-12M/1F Accessory: Electronic timer unit, top mount | Terminal: All types | Function: OFF delay, 1-30 s | Rating: AC/DC 24-48 V | For: GMC/GMD-6M to 16M
AT-12M/2N Accessory: Electronic timer unit, top mount | Terminal: All types | Function: ON delay, 1-30 s | Rating: AC 100-220 V | For: GMC/GMD-6M to 16M
AT-12M/2F Accessory: Electronic timer unit, top mount | Terminal: All types | Function: OFF delay, 1-30 s | Rating: AC 100-220 V | For: GMC/GMD-6M to 16M
AS-12M/1 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: AC 24-48 V | For: GMC-6M to 16M
AS-12M/2 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: AC 60-127 V | For: GMC-6M to 16M
AS-12M/3 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: AC 200-240 V | For: GMC-6M to 16M
AS-12M/4 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 12-24 V | For: GMD-6M to 16M
AS-12M/5 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 30-72 V | For: GMD-6M to 16M
AS-12M/6 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 100-127 V | For: GMD-6M to 16M
AS-12M/7 Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 200-250 V | For: GMD-6M to 16M
AP-1M Accessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for aux. unit | Rating: AC coil | For: Screw-type GMC/GMD-6M to 16M
AP-1MD Accessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for aux. unit | Rating: DC coil | For: Screw-type GMC/GMD-6M to 16M
AP-12M Accessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for contactor | Rating: AC coil | For: Screw-type GMC/GMD-6M to 16M
AP-12MD Accessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for contactor | Rating: DC coil | For: Screw-type GMC/GMD-6M to 16M
AZ-12MH Accessory: TOR standalone mounting unit | Terminal: Screw | Function: Separate mounting of TOR | Rating: - | For: GTH-12M, GTH-12M/3, GTK-12M
AR-12M Accessory: Mechanical interlock unit | Terminal: All types | Function: Interlock, without wire kit | Rating: - | For: GMC/GMD-6M to 16M (pair)
AR-12MW Accessory: Mechanical interlock unit | Terminal: All types | Function: Interlock, with wire kit | Rating: - | For: GMC/GMD-6M to 16M (pair)
AccessoriesLS Electric
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Mini MC Accessories (AU, AT, AS, AP, AZ, AR)

Brand LS Electric·Accessories

Available part numbers (50)

AU-2M-20, AU-2M-02, AU-2M-11, AU-4M-40, AU-4M-31, AU-4M-22, AU-4M-13, AU-4M-04, AU-1M-10, AU-1M-01 + 40 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AU-2M-20Accessory: Aux. contact unit, top 2-pole | Terminal: Screw | Function: 2a | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-2M-02Accessory: Aux. contact unit, top 2-pole | Terminal: Screw | Function: 2b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-2M-11Accessory: Aux. contact unit, top 2-pole | Terminal: Screw | Function: 1a1b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-40Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 4a | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-31Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 3a1b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-22Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 2a2b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-13Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 1a3b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-4M-04Accessory: Aux. contact unit, top 4-pole | Terminal: Screw | Function: 4b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-1M-10Accessory: Aux. contact unit, side 1-pole | Terminal: Screw | Function: 1a | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-1M-01Accessory: Aux. contact unit, side 1-pole | Terminal: Screw | Function: 1b | Rating: - | For: GMC/GMD-6M to 16M(R)
AU-2MF-20Accessory: Aux. contact unit, top 2-pole | Terminal: Fast-on | Function: 2a | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-2MF-02Accessory: Aux. contact unit, top 2-pole | Terminal: Fast-on | Function: 2b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-2MF-11Accessory: Aux. contact unit, top 2-pole | Terminal: Fast-on | Function: 1a1b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-40Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 4a | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-31Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 3a1b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-22Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 2a2b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-13Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 1a3b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-4MF-04Accessory: Aux. contact unit, top 4-pole | Terminal: Fast-on | Function: 4b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-1MF-10Accessory: Aux. contact unit, side 1-pole | Terminal: Fast-on | Function: 1a | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-1MF-01Accessory: Aux. contact unit, side 1-pole | Terminal: Fast-on | Function: 1b | Rating: - | For: GMC/GMD-6MF to 16MF(R)
AU-2MC-20Accessory: Aux. contact unit, top 2-pole | Terminal: Cage clamp | Function: 2a | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-2MC-02Accessory: Aux. contact unit, top 2-pole | Terminal: Cage clamp | Function: 2b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-2MC-11Accessory: Aux. contact unit, top 2-pole | Terminal: Cage clamp | Function: 1a1b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-40Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 4a | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-31Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 3a1b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-22Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 2a2b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-13Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 1a3b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-4MC-04Accessory: Aux. contact unit, top 4-pole | Terminal: Cage clamp | Function: 4b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-1MC-10Accessory: Aux. contact unit, side 1-pole | Terminal: Cage clamp | Function: 1a | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-1MC-01Accessory: Aux. contact unit, side 1-pole | Terminal: Cage clamp | Function: 1b | Rating: - | For: GMC/GMD-6MC to 16MC(R)
AU-1MP-10Accessory: Aux. contact unit, side 1-pole | Terminal: Solder pin | Function: 1a | Rating: - | For: GMC/GMD-6MP to 16MP(R)
AU-1MP-01Accessory: Aux. contact unit, side 1-pole | Terminal: Solder pin | Function: 1b | Rating: - | For: GMC/GMD-6MP to 16MP(R)
AT-12M/1NAccessory: Electronic timer unit, top mount | Terminal: All types | Function: ON delay, 1-30 s | Rating: AC/DC 24-48 V | For: GMC/GMD-6M to 16M
AT-12M/1FAccessory: Electronic timer unit, top mount | Terminal: All types | Function: OFF delay, 1-30 s | Rating: AC/DC 24-48 V | For: GMC/GMD-6M to 16M
AT-12M/2NAccessory: Electronic timer unit, top mount | Terminal: All types | Function: ON delay, 1-30 s | Rating: AC 100-220 V | For: GMC/GMD-6M to 16M
AT-12M/2FAccessory: Electronic timer unit, top mount | Terminal: All types | Function: OFF delay, 1-30 s | Rating: AC 100-220 V | For: GMC/GMD-6M to 16M
AS-12M/1Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: AC 24-48 V | For: GMC-6M to 16M
AS-12M/2Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: AC 60-127 V | For: GMC-6M to 16M
AS-12M/3Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: AC 200-240 V | For: GMC-6M to 16M
AS-12M/4Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 12-24 V | For: GMD-6M to 16M
AS-12M/5Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 30-72 V | For: GMD-6M to 16M
AS-12M/6Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 100-127 V | For: GMD-6M to 16M
AS-12M/7Accessory: Surge unit (coil) | Terminal: All types | Function: Varistor | Rating: DC 200-250 V | For: GMD-6M to 16M
AP-1MAccessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for aux. unit | Rating: AC coil | For: Screw-type GMC/GMD-6M to 16M
AP-1MDAccessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for aux. unit | Rating: DC coil | For: Screw-type GMC/GMD-6M to 16M
AP-12MAccessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for contactor | Rating: AC coil | For: Screw-type GMC/GMD-6M to 16M
AP-12MDAccessory: Solder pin unit (PCB) | Terminal: Solder pin | Function: Solder pins for contactor | Rating: DC coil | For: Screw-type GMC/GMD-6M to 16M
AZ-12MHAccessory: TOR standalone mounting unit | Terminal: Screw | Function: Separate mounting of TOR | Rating: - | For: GTH-12M, GTH-12M/3, GTK-12M
AR-12MAccessory: Mechanical interlock unit | Terminal: All types | Function: Interlock, without wire kit | Rating: - | For: GMC/GMD-6M to 16M (pair)
AR-12MWAccessory: Mechanical interlock unit | Terminal: All types | Function: Interlock, with wire kit | Rating: - | For: GMC/GMD-6M to 16M (pair)

Need a different model, or a part not listed here? Send us your parts list →
