LS Electric mPC Mobile PC Wireless HMI, Base and Charging Stations

LS Electric mPC Mobile PC Wireless HMI, Base and Charging Stations

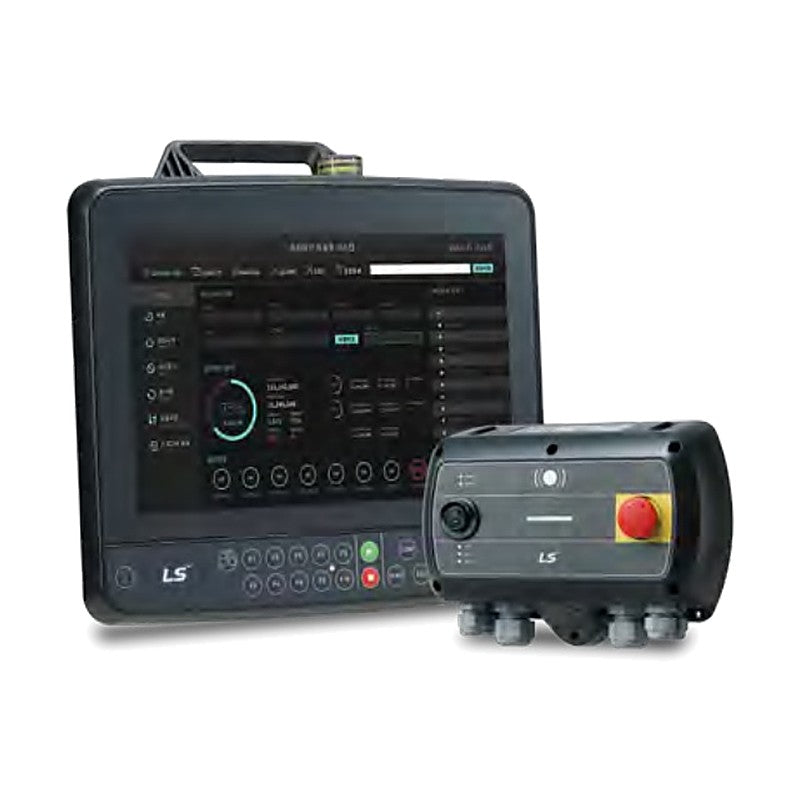

LS Electric Beyond X mPC wireless safety mobile PC: a 10.1-inch Windows 10 IoT handheld running wLXP XGT Panel software, with base station and wall-mount charging station, all DC 24 V.

Key features

  • Wireless emergency stop and enabling switch with safety signals to EN 61508 and ISO 13849
  • One handheld can monitor several PLC systems through paired base stations (RFID pairing)
  • 10.1 in WXGA capacitive touch, 21-key membrane keypad, IP65
  • Dual core 1.58 GHz, 4 GB RAM, 8 GB eMMC plus 64 GB mSATA SSD
  • Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 BLE; 25.2 Wh Li-ion battery
  • Runs wLXP, compatible with XGT Panel functions and project files

Specifications

Series Beyond X Mobile PC
Power supply DC 24 V
OS Windows 10 IoT Enterprise 2016 LTSB
Wireless Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2 BLE
Handheld protection IP65
Operating temperature Handheld 0-40 C; base 0-50 C
Source LS Electric Mobile PC Catalog (2024.04), p. 6-9
mPC-H100HD Unit: Mobile PC (handheld) | Function: 10.1 in 1280x800, Windows 10 IoT | Dimensions: 215 x 284 x 76 mm | Weight: approx. 1,450 g
mPC-BSDC Unit: Base station | Function: Wi-Fi/BT link, 2x Ethernet, E-stop | Dimensions: 210 x 160 x 70 mm | Weight: approx. 500 g
mPC-CSDC Unit: Charging station | Function: Wall-mount holder, charge contacts | Dimensions: - | Weight: -
Industrial PCsLS Electric
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric mPC Mobile PC Wireless HMI, Base and Charging Stations

Brand LS Electric·Industrial PCs

Available part numbers (3)

mPC-H100HD, mPC-BSDC, mPC-CSDC

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
mPC-H100HDUnit: Mobile PC (handheld) | Function: 10.1 in 1280x800, Windows 10 IoT | Dimensions: 215 x 284 x 76 mm | Weight: approx. 1,450 g
mPC-BSDCUnit: Base station | Function: Wi-Fi/BT link, 2x Ethernet, E-stop | Dimensions: 210 x 160 x 70 mm | Weight: approx. 500 g
mPC-CSDCUnit: Charging station | Function: Wall-mount holder, charge contacts | Dimensions: - | Weight: -
