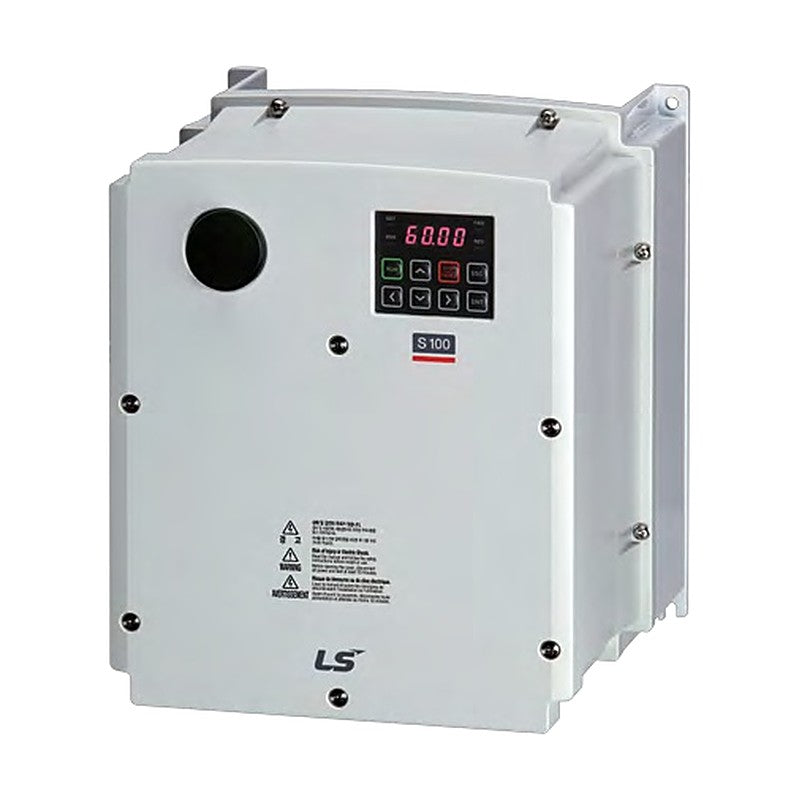

LS Electric S100 IP66/NEMA 4X AC Drive (0.4-22 kW, 200V/400V)

LS Electric S100 IP66/NEMA 4X AC Drive (0.4-22 kW, 200V/400V)

The LS Electric S100 IP66/NEMA 4X is the sealed, dust- and water-tight version of the S100 standard drive for washdown and harsh environments, with optional built-in EMC filter.

Key features

  • IP66 / NEMA 4X enclosure for direct installation outside the control panel
  • Same sensorless vector control and STO input as the S100 IP20 drive
  • Built-in EMC filter versions available (F code)
  • 1-phase 200V 0.4-2.2 kW, 3-phase 200V 0.4-15 kW, 3-phase 400V 0.4-22 kW
  • Extension I/O option available when additional contacts are needed

Specifications

Series S100 IP66/NEMA 4X
Enclosure IP66 / NEMA 4X
Duty rating Heavy duty only (no normal-duty rating)
Keypad LED keypad (E)
DC reactor None (N)
I/O Standard I/O (S)
Control V/F, slip compensation, sensorless vector
Output frequency 0-400 Hz (IM sensorless 0-120 Hz)
Source LS Electric S100 catalog (KR 2023.06), p. 10-15
LSLV0004S100-1EXNNS Voltage: 1-ph 200-240V | Motor (HD): 0.4 kW | EMC filter: None
LSLV0004S100-1EXFNS Voltage: 1-ph 200-240V | Motor (HD): 0.4 kW | EMC filter: Built-in
LSLV0008S100-1EXNNS Voltage: 1-ph 200-240V | Motor (HD): 0.75 kW | EMC filter: None
LSLV0008S100-1EXFNS Voltage: 1-ph 200-240V | Motor (HD): 0.75 kW | EMC filter: Built-in
LSLV0015S100-1EXNNS Voltage: 1-ph 200-240V | Motor (HD): 1.5 kW | EMC filter: None
LSLV0015S100-1EXFNS Voltage: 1-ph 200-240V | Motor (HD): 1.5 kW | EMC filter: Built-in
LSLV0022S100-1EXNNS Voltage: 1-ph 200-240V | Motor (HD): 2.2 kW | EMC filter: None
LSLV0022S100-1EXFNS Voltage: 1-ph 200-240V | Motor (HD): 2.2 kW | EMC filter: Built-in
LSLV0004S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 0.4 kW | EMC filter: None
LSLV0008S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 0.75 kW | EMC filter: None
LSLV0015S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 1.5 kW | EMC filter: None
LSLV0022S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 2.2 kW | EMC filter: None
LSLV0037S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 3.7 kW | EMC filter: None
LSLV0040S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 4 kW | EMC filter: None
LSLV0055S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 5.5 kW | EMC filter: None
LSLV0075S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 7.5 kW | EMC filter: None
LSLV0110S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 11 kW | EMC filter: None
LSLV0150S100-2EXNNS Voltage: 3-ph 200-240V | Motor (HD): 15 kW | EMC filter: None
LSLV0004S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 0.4 kW | EMC filter: Built-in
LSLV0008S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 0.75 kW | EMC filter: Built-in
LSLV0015S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 1.5 kW | EMC filter: Built-in
LSLV0022S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 2.2 kW | EMC filter: Built-in
LSLV0037S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 3.7 kW | EMC filter: Built-in
LSLV0040S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 4 kW | EMC filter: Built-in
LSLV0055S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 5.5 kW | EMC filter: Built-in
LSLV0075S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 7.5 kW | EMC filter: Built-in
LSLV0110S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 11 kW | EMC filter: Built-in
LSLV0150S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 15 kW | EMC filter: Built-in
LSLV0185S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 18.5 kW | EMC filter: Built-in
LSLV0220S100-4EXFNS Voltage: 3-ph 380-480V | Motor (HD): 22 kW | EMC filter: Built-in
LSLV0004S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 0.4 kW | EMC filter: None (legacy code)
LSLV0008S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 0.75 kW | EMC filter: None (legacy code)
LSLV0015S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 1.5 kW | EMC filter: None (legacy code)
LSLV0022S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 2.2 kW | EMC filter: None (legacy code)
LSLV0037S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 3.7 kW | EMC filter: None (legacy code)
LSLV0055S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 5.5 kW | EMC filter: None (legacy code)
LSLV0075S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 7.5 kW | EMC filter: None (legacy code)
LSLV0110S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 11 kW | EMC filter: None (legacy code)
LSLV0150S100-4EXNNS Voltage: 3-ph 380-480V | Motor (HD): 15 kW | EMC filter: None (legacy code)
AC DrivesLS Electric
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric S100 IP66/NEMA 4X AC Drive (0.4-22 kW, 200V/400V)

Brand LS Electric·AC Drives

Available part numbers (39)

LSLV0004S100-1EXNNS, LSLV0004S100-1EXFNS, LSLV0008S100-1EXNNS, LSLV0008S100-1EXFNS, LSLV0015S100-1EXNNS, LSLV0015S100-1EXFNS, LSLV0022S100-1EXNNS, LSLV0022S100-1EXFNS, LSLV0004S100-2EXNNS, LSLV0008S100-2EXNNS + 29 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSLV0004S100-1EXNNSVoltage: 1-ph 200-240V | Motor (HD): 0.4 kW | EMC filter: None
LSLV0004S100-1EXFNSVoltage: 1-ph 200-240V | Motor (HD): 0.4 kW | EMC filter: Built-in
LSLV0008S100-1EXNNSVoltage: 1-ph 200-240V | Motor (HD): 0.75 kW | EMC filter: None
LSLV0008S100-1EXFNSVoltage: 1-ph 200-240V | Motor (HD): 0.75 kW | EMC filter: Built-in
LSLV0015S100-1EXNNSVoltage: 1-ph 200-240V | Motor (HD): 1.5 kW | EMC filter: None
LSLV0015S100-1EXFNSVoltage: 1-ph 200-240V | Motor (HD): 1.5 kW | EMC filter: Built-in
LSLV0022S100-1EXNNSVoltage: 1-ph 200-240V | Motor (HD): 2.2 kW | EMC filter: None
LSLV0022S100-1EXFNSVoltage: 1-ph 200-240V | Motor (HD): 2.2 kW | EMC filter: Built-in
LSLV0004S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 0.4 kW | EMC filter: None
LSLV0008S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 0.75 kW | EMC filter: None
LSLV0015S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 1.5 kW | EMC filter: None
LSLV0022S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 2.2 kW | EMC filter: None
LSLV0037S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 3.7 kW | EMC filter: None
LSLV0040S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 4 kW | EMC filter: None
LSLV0055S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 5.5 kW | EMC filter: None
LSLV0075S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 7.5 kW | EMC filter: None
LSLV0110S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 11 kW | EMC filter: None
LSLV0150S100-2EXNNSVoltage: 3-ph 200-240V | Motor (HD): 15 kW | EMC filter: None
LSLV0004S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 0.4 kW | EMC filter: Built-in
LSLV0008S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 0.75 kW | EMC filter: Built-in
LSLV0015S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 1.5 kW | EMC filter: Built-in
LSLV0022S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 2.2 kW | EMC filter: Built-in
LSLV0037S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 3.7 kW | EMC filter: Built-in
LSLV0040S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 4 kW | EMC filter: Built-in
LSLV0055S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 5.5 kW | EMC filter: Built-in
LSLV0075S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 7.5 kW | EMC filter: Built-in
LSLV0110S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 11 kW | EMC filter: Built-in
LSLV0150S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 15 kW | EMC filter: Built-in
LSLV0185S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 18.5 kW | EMC filter: Built-in
LSLV0220S100-4EXFNSVoltage: 3-ph 380-480V | Motor (HD): 22 kW | EMC filter: Built-in
LSLV0004S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 0.4 kW | EMC filter: None (legacy code)
LSLV0008S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 0.75 kW | EMC filter: None (legacy code)
LSLV0015S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 1.5 kW | EMC filter: None (legacy code)
LSLV0022S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 2.2 kW | EMC filter: None (legacy code)
LSLV0037S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 3.7 kW | EMC filter: None (legacy code)
LSLV0055S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 5.5 kW | EMC filter: None (legacy code)
LSLV0075S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 7.5 kW | EMC filter: None (legacy code)
LSLV0110S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 11 kW | EMC filter: None (legacy code)
LSLV0150S100-4EXNNSVoltage: 3-ph 380-480V | Motor (HD): 15 kW | EMC filter: None (legacy code)
