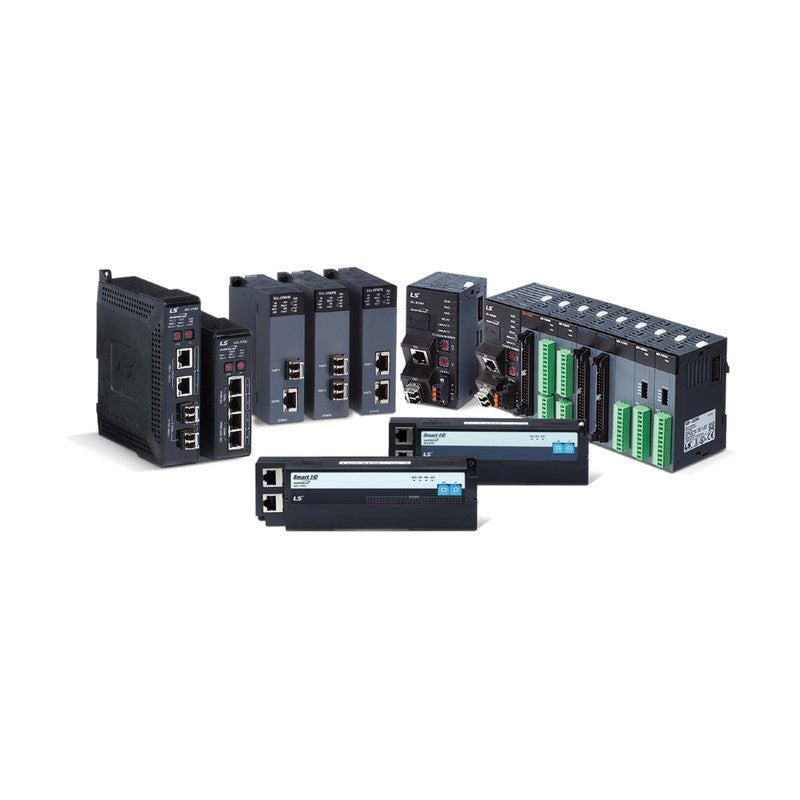

LS Electric GPL Smart I/O Block Modules (Profibus-DP)

LS Electric GPL Smart I/O Block Modules (Profibus-DP)

LS Electric GPL Smart I/O block-type remote I/O modules for Profibus-DP networks, providing digital and analog I/O in a compact all-in-one housing.

Key features

  • Profibus-DP slave block I/O (Profibus-DP slave) for distributed wiring close to the machine
  • 16 and 32 point DC input, transistor output, relay output and 16/16 mixed modules plus 8-channel analog input and 4-channel analog output
  • Transistor outputs in source (C) and sink (C1) versions
  • Works with XGL-PMEB Profibus-DP master (or third-party DP master)
  • Station number set by rotary switch; LED status and I/O indicators

Specifications

Network Profibus-DP slave
Communication connector 9-pin D-sub
Form factor Block-type Smart I/O (all-in-one)
Signal voltage DC 24 V
Common Inputs/TR 16 points/COM; relay 8 points/COM
Terminals Removable terminal block
Operating temperature 0 to 55 C
Master XGL-PMEB Profibus-DP master (or third-party DP master)
Source LS Electric Smart I/O catalog (2020-08), p. 21-54
GPL-D22C I/O type: DC input | Points: 16 | Rating: DC 24 V | Output wiring: n/a (sink/source input) | Status: Current
GPL-D24C I/O type: DC input | Points: 32 | Rating: DC 24 V | Output wiring: n/a (sink/source input) | Status: Current
GPL-TR2C I/O type: Transistor output | Points: 16 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GPL-TR2C1 I/O type: Transistor output | Points: 16 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GPL-TR4C I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GPL-TR4C1 I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GPL-RY2C I/O type: Relay output | Points: 16 | Rating: DC 24 V / AC 110/220 V, 2 A/pt | Output wiring: Relay contact | Status: Current
GPL-DT4C I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GPL-DT4C1 I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GPL-AV8C I/O type: Analog voltage input | Points: 8 ch | Rating: 1-5 / 0-5 / 0-10 / -10-10 V | Output wiring: n/a | Status: Current
GPL-AC8C I/O type: Analog current input | Points: 8 ch | Rating: 4-20 / 0-20 mA | Output wiring: n/a | Status: Current
GPL-DV4C I/O type: Analog voltage output | Points: 4 ch | Rating: 1-5 / 0-5 / 0-10 / -10-10 V | Output wiring: n/a | Status: Current
GPL-DC4C I/O type: Analog current output | Points: 4 ch | Rating: 4-20 / 0-20 mA | Output wiring: n/a | Status: Current
GPL-D22A I/O type: DC input | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GPL-D24A I/O type: DC input | Points: 32 | Rating: - | Output wiring: - | Status: Legacy code
GPL-TR2A I/O type: Transistor output | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GPL-TR4A I/O type: Transistor output | Points: 32 | Rating: - | Output wiring: - | Status: Legacy code
GPL-RY2A I/O type: Relay output | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GPL-DT4A I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: - | Output wiring: - | Status: Legacy code
