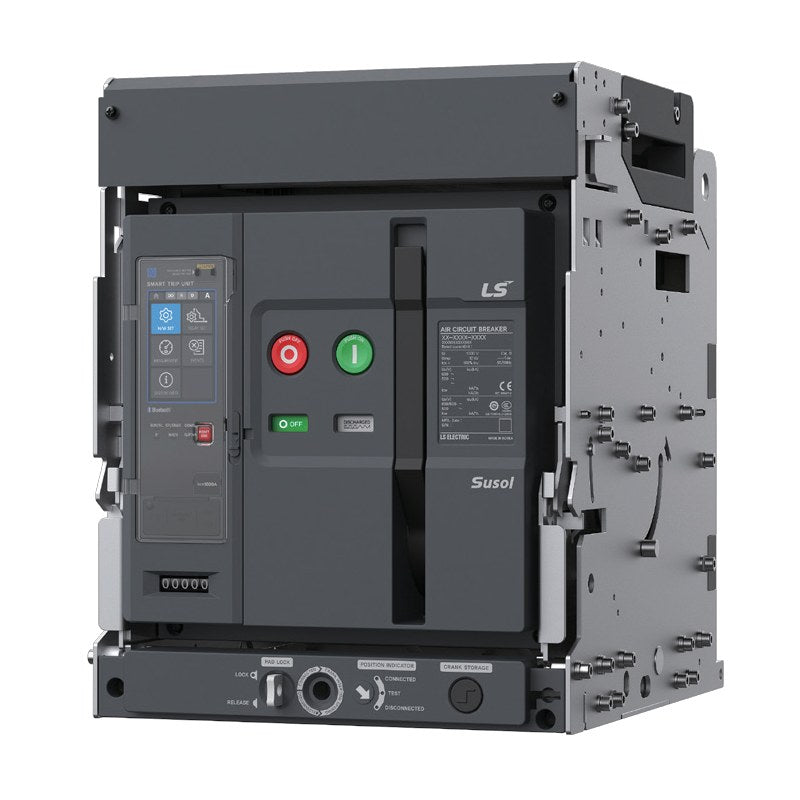

LS Electric Susol ACB AH E/G-Frame Air Circuit Breaker (630-6300AF)

LS Electric Susol AH E-frame (630-4000AF, 100 kA) and G-frame (4000-6300AF, 150 kA) high-breaking air circuit breakers in draw-out and fixed versions.

Key features

E-frame AH-06E to AH-40E and G-frame AH-40G to AH-63G, 3 and 4 poles
Draw-out (manual or automatic connection) or fixed type; fixed busbar horizontal, vertical, mixed or front
Digital Smart Trip Unit options: N (Normal), A (Ammeter), P (Power meter), S (Supreme meter)
Rated current selected by CT rating; code 00 = supplied without trip relay and CT
Arc cover supplied as standard; neutral pole 100% rated
Maximum breaking capacity 150 kA at 500 VAC (G-frame)

Specifications

Rated operational voltage (Ue)	690 VAC
Rated insulation voltage (Ui)	1000 V
Rated impulse withstand voltage (Uimp)	12 kV
Rated service breaking capacity (Ics)	100% Icu
Frequency	50/60 Hz
Durability (mech. / elec.)	E: 15,000 / 5,000; G: 10,000 / 2,000
Dimensions draw-out (W 3P/4P)	E: 412/527 mm; G: 785/1015 mm
Standards	IEC 60947-2, KS C 4620
Source	LS Electric Susol ACB catalog C06061-23 (2025-11), p. 14-19

AH-06E3-00J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-06E3-00A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-06E3-00H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-06E3-00V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-06E3-00M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-06E3-00N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-06E3-00P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-06E3-02J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
AH-06E3-02A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AH-06E3-02H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AH-06E3-02V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AH-06E3-02M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06E3-02N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06E3-02P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AH-06E3-04J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AH-06E3-04A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AH-06E3-04H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AH-06E3-04V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AH-06E3-04M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06E3-04N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06E3-04P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AH-06E3-06J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-06E3-06A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-06E3-06H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-06E3-06V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-06E3-06M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06E3-06N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06E3-06P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-06E4-00J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-06E4-00A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-06E4-00H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-06E4-00V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-06E4-00M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-06E4-00N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-06E4-00P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-06E4-02J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
AH-06E4-02A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AH-06E4-02H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AH-06E4-02V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AH-06E4-02M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06E4-02N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06E4-02P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AH-06E4-04J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AH-06E4-04A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AH-06E4-04H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AH-06E4-04V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AH-06E4-04M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06E4-04N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06E4-04P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AH-06E4-06J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-06E4-06A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-06E4-06H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-06E4-06V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-06E4-06M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06E4-06N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06E4-06P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-06X4-00J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-06X4-00A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-06X4-00H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-06X4-00V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-06X4-00M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-06X4-00N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-06X4-00P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-06X4-02J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, manual connection
AH-06X4-02A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AH-06X4-02H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AH-06X4-02V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AH-06X4-02M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06X4-02N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06X4-02P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AH-06X4-04J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
AH-06X4-04A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AH-06X4-04H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AH-06X4-04V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AH-06X4-04M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06X4-04N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06X4-04P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AH-06X4-06J		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-06X4-06A		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-06X4-06H		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-06X4-06V		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-06X4-06M		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-06X4-06N		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-06X4-06P		Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-08E3-00J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-08E3-00A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-08E3-00H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-08E3-00V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-08E3-00M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-08E3-00N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-08E3-00P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-08E3-04J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AH-08E3-04A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AH-08E3-04H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AH-08E3-04V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AH-08E3-04M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08E3-04N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08E3-04P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AH-08E3-06J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-08E3-06A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-08E3-06H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-08E3-06V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-08E3-06M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08E3-06N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08E3-06P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-08E3-08J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-08E3-08A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-08E3-08H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-08E3-08V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-08E3-08M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08E3-08N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08E3-08P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-08E4-00J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-08E4-00A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-08E4-00H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-08E4-00V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-08E4-00M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-08E4-00N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-08E4-00P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-08E4-04J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AH-08E4-04A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AH-08E4-04H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AH-08E4-04V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AH-08E4-04M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08E4-04N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08E4-04P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AH-08E4-06J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-08E4-06A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-08E4-06H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-08E4-06V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-08E4-06M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08E4-06N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08E4-06P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-08E4-08J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-08E4-08A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-08E4-08H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-08E4-08V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-08E4-08M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08E4-08N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08E4-08P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-08X4-00J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-08X4-00A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-08X4-00H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-08X4-00V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-08X4-00M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-08X4-00N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-08X4-00P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-08X4-04J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
AH-08X4-04A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AH-08X4-04H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AH-08X4-04V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AH-08X4-04M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08X4-04N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08X4-04P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AH-08X4-06J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-08X4-06A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-08X4-06H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-08X4-06V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-08X4-06M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08X4-06N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08X4-06P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-08X4-08J		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-08X4-08A		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-08X4-08H		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-08X4-08V		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-08X4-08M		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-08X4-08N		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-08X4-08P		Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-10E3-00J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-10E3-00A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-10E3-00H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-10E3-00V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-10E3-00M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-10E3-00N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-10E3-00P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-10E3-06J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-10E3-06A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-10E3-06H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-10E3-06V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-10E3-06M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10E3-06N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10E3-06P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-10E3-08J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-10E3-08A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-10E3-08H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-10E3-08V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-10E3-08M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10E3-08N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10E3-08P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-10E3-10J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-10E3-10A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-10E3-10H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-10E3-10V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-10E3-10M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10E3-10N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10E3-10P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-10E4-00J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-10E4-00A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-10E4-00H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-10E4-00V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-10E4-00M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-10E4-00N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-10E4-00P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-10E4-06J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-10E4-06A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-10E4-06H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-10E4-06V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-10E4-06M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10E4-06N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10E4-06P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-10E4-08J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-10E4-08A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-10E4-08H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-10E4-08V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-10E4-08M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10E4-08N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10E4-08P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-10E4-10J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-10E4-10A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-10E4-10H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-10E4-10V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-10E4-10M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10E4-10N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10E4-10P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-10X4-00J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-10X4-00A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-10X4-00H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-10X4-00V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-10X4-00M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-10X4-00N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-10X4-00P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-10X4-06J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-10X4-06A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-10X4-06H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-10X4-06V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-10X4-06M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10X4-06N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10X4-06P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-10X4-08J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-10X4-08A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-10X4-08H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-10X4-08V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-10X4-08M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10X4-08N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10X4-08P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-10X4-10J		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-10X4-10A		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-10X4-10H		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-10X4-10V		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-10X4-10M		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-10X4-10N		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-10X4-10P		Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-13E3-00J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-13E3-00A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-13E3-00H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-13E3-00V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-13E3-00M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-13E3-00N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-13E3-00P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-13E3-06J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-13E3-06A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-13E3-06H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-13E3-06V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-13E3-06M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E3-06N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E3-06P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-13E3-08J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-13E3-08A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-13E3-08H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-13E3-08V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-13E3-08M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E3-08N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E3-08P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-13E3-10J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-13E3-10A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-13E3-10H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-13E3-10V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-13E3-10M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E3-10N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E3-10P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-13E3-13J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-13E3-13A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-13E3-13H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-13E3-13V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-13E3-13M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E3-13N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E3-13P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-13E4-00J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-13E4-00A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-13E4-00H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-13E4-00V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-13E4-00M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-13E4-00N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-13E4-00P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-13E4-06J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-13E4-06A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-13E4-06H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-13E4-06V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-13E4-06M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E4-06N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E4-06P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-13E4-08J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-13E4-08A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-13E4-08H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-13E4-08V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-13E4-08M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E4-08N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E4-08P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-13E4-10J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-13E4-10A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-13E4-10H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-13E4-10V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-13E4-10M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E4-10N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E4-10P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-13E4-13J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-13E4-13A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-13E4-13H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-13E4-13V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-13E4-13M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13E4-13N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13E4-13P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-13X4-00J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-13X4-00A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-13X4-00H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-13X4-00V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-13X4-00M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-13X4-00N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-13X4-00P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-13X4-06J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AH-13X4-06A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AH-13X4-06H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AH-13X4-06V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AH-13X4-06M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13X4-06N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13X4-06P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AH-13X4-08J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-13X4-08A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-13X4-08H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-13X4-08V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-13X4-08M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13X4-08N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13X4-08P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-13X4-10J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-13X4-10A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-13X4-10H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-13X4-10V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-13X4-10M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13X4-10N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13X4-10P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-13X4-13J		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-13X4-13A		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-13X4-13H		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-13X4-13V		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-13X4-13M		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-13X4-13N		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-13X4-13P		Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-16E3-00J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-16E3-00A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-16E3-00H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-16E3-00V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-16E3-00M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-16E3-00N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-16E3-00P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-16E3-08J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-16E3-08A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-16E3-08H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-16E3-08V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-16E3-08M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E3-08N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E3-08P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-16E3-10J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-16E3-10A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-16E3-10H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-16E3-10V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-16E3-10M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E3-10N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E3-10P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-16E3-13J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-16E3-13A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-16E3-13H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-16E3-13V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-16E3-13M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E3-13N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E3-13P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-16E3-16J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-16E3-16A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-16E3-16H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-16E3-16V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-16E3-16M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E3-16N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E3-16P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-16E4-00J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-16E4-00A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-16E4-00H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-16E4-00V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-16E4-00M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-16E4-00N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-16E4-00P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-16E4-08J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-16E4-08A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-16E4-08H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-16E4-08V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-16E4-08M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E4-08N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E4-08P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-16E4-10J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-16E4-10A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-16E4-10H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-16E4-10V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-16E4-10M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E4-10N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E4-10P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-16E4-13J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-16E4-13A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-16E4-13H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-16E4-13V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-16E4-13M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E4-13N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E4-13P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-16E4-16J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-16E4-16A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-16E4-16H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-16E4-16V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-16E4-16M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16E4-16N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16E4-16P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-16X4-00J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-16X4-00A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-16X4-00H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-16X4-00V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-16X4-00M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-16X4-00N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-16X4-00P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-16X4-08J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AH-16X4-08A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AH-16X4-08H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AH-16X4-08V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AH-16X4-08M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16X4-08N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16X4-08P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AH-16X4-10J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-16X4-10A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-16X4-10H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-16X4-10V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-16X4-10M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16X4-10N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16X4-10P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-16X4-13J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-16X4-13A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-16X4-13H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-16X4-13V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-16X4-13M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16X4-13N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16X4-13P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-16X4-16J		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-16X4-16A		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-16X4-16H		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-16X4-16V		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-16X4-16M		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-16X4-16N		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-16X4-16P		Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-20E3-00J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-20E3-00A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-20E3-00H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-20E3-00V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-20E3-00M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-20E3-00N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-20E3-00P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-20E3-10J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-20E3-10A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-20E3-10H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-20E3-10V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-20E3-10M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E3-10N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E3-10P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-20E3-13J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-20E3-13A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-20E3-13H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-20E3-13V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-20E3-13M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E3-13N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E3-13P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-20E3-16J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-20E3-16A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-20E3-16H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-20E3-16V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-20E3-16M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E3-16N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E3-16P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-20E3-20J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-20E3-20A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-20E3-20H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-20E3-20V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-20E3-20M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E3-20N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E3-20P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-20E4-00J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-20E4-00A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-20E4-00H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-20E4-00V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-20E4-00M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-20E4-00N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-20E4-00P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-20E4-10J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-20E4-10A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-20E4-10H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-20E4-10V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-20E4-10M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E4-10N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E4-10P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-20E4-13J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-20E4-13A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-20E4-13H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-20E4-13V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-20E4-13M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E4-13N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E4-13P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-20E4-16J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-20E4-16A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-20E4-16H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-20E4-16V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-20E4-16M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E4-16N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E4-16P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-20E4-20J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-20E4-20A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-20E4-20H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-20E4-20V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-20E4-20M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20E4-20N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20E4-20P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-20X4-00J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-20X4-00A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-20X4-00H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-20X4-00V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-20X4-00M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-20X4-00N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-20X4-00P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-20X4-10J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AH-20X4-10A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AH-20X4-10H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AH-20X4-10V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AH-20X4-10M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20X4-10N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20X4-10P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AH-20X4-13J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-20X4-13A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-20X4-13H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-20X4-13V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-20X4-13M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20X4-13N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20X4-13P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-20X4-16J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-20X4-16A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-20X4-16H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-20X4-16V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-20X4-16M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20X4-16N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20X4-16P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-20X4-20J		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-20X4-20A		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-20X4-20H		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-20X4-20V		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-20X4-20M		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-20X4-20N		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-20X4-20P		Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-25E3-00J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-25E3-00A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-25E3-00H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-25E3-00V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-25E3-00M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-25E3-00N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-25E3-00P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-25E3-13J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-25E3-13A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-25E3-13H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-25E3-13V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-25E3-13M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E3-13N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E3-13P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-25E3-16J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-25E3-16A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-25E3-16H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-25E3-16V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-25E3-16M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E3-16N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E3-16P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-25E3-20J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-25E3-20A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-25E3-20H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-25E3-20V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-25E3-20M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E3-20N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E3-20P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-25E3-25J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-25E3-25A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-25E3-25H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-25E3-25V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-25E3-25M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E3-25N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E3-25P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
AH-25E4-00J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-25E4-00A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-25E4-00H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-25E4-00V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-25E4-00M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-25E4-00N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-25E4-00P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-25E4-13J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-25E4-13A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-25E4-13H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-25E4-13V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-25E4-13M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E4-13N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E4-13P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-25E4-16J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-25E4-16A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-25E4-16H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-25E4-16V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-25E4-16M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E4-16N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E4-16P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-25E4-20J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-25E4-20A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-25E4-20H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-25E4-20V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-25E4-20M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E4-20N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E4-20P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-25E4-25J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-25E4-25A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-25E4-25H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-25E4-25V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-25E4-25M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25E4-25N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25E4-25P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
AH-25X4-00J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-25X4-00A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-25X4-00H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-25X4-00V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-25X4-00M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-25X4-00N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-25X4-00P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-25X4-13J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AH-25X4-13A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AH-25X4-13H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AH-25X4-13V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AH-25X4-13M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25X4-13N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25X4-13P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AH-25X4-16J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-25X4-16A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-25X4-16H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-25X4-16V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-25X4-16M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25X4-16N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25X4-16P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-25X4-20J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-25X4-20A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-25X4-20H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-25X4-20V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-25X4-20M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25X4-20N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25X4-20P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-25X4-25J		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-25X4-25A		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-25X4-25H		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-25X4-25V		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-25X4-25M		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
AH-25X4-25N		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
AH-25X4-25P		Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
AH-32E3-00J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-32E3-00A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-32E3-00H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-32E3-00V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-32E3-00M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-32E3-00N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-32E3-00P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-32E3-16J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-32E3-16A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-32E3-16H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-32E3-16V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-32E3-16M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E3-16N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E3-16P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-32E3-20J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-32E3-20A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-32E3-20H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-32E3-20V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-32E3-20M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E3-20N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E3-20P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-32E3-25J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-32E3-25A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-32E3-25H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-32E3-25V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-32E3-25M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E3-25N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E3-25P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
AH-32E3-32J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-32E3-32A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-32E3-32H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-32E3-32V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-32E3-32M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E3-32N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E3-32P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, front (flat) top/bottom
AH-32E4-00J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-32E4-00A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-32E4-00H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-32E4-00V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-32E4-00M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-32E4-00N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-32E4-00P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-32E4-16J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-32E4-16A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-32E4-16H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-32E4-16V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-32E4-16M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E4-16N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E4-16P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-32E4-20J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-32E4-20A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-32E4-20H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-32E4-20V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-32E4-20M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E4-20N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E4-20P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-32E4-25J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-32E4-25A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-32E4-25H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-32E4-25V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-32E4-25M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E4-25N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E4-25P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
AH-32E4-32J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-32E4-32A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-32E4-32H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-32E4-32V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-32E4-32M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32E4-32N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32E4-32P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, front (flat) top/bottom
AH-32X4-00J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-32X4-00A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-32X4-00H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-32X4-00V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-32X4-00M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AH-32X4-00N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AH-32X4-00P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AH-32X4-16J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AH-32X4-16A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AH-32X4-16H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AH-32X4-16V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AH-32X4-16M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32X4-16N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32X4-16P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AH-32X4-20J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-32X4-20A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-32X4-20H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-32X4-20V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-32X4-20M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32X4-20N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32X4-20P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
AH-32X4-25J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-32X4-25A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-32X4-25H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-32X4-25V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-32X4-25M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32X4-25N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32X4-25P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
AH-32X4-32J		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-32X4-32A		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-32X4-32H		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-32X4-32V		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-32X4-32M		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, top horiz. / bottom vert.
AH-32X4-32N		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, top vert. / bottom horiz.
AH-32X4-32P		Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, front (flat) top/bottom
AH-40E3-00J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-40E3-00A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-40E3-00V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-40E3-20J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-40E3-20A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-40E3-20V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-40E3-25J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-40E3-25A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-40E3-25V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-40E3-32J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-40E3-32A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-40E3-32V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-40E3-40J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-40E3-40A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-40E3-40V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-40E4-00J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-40E4-00A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-40E4-00V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-40E4-20J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-40E4-20A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-40E4-20V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-40E4-25J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-40E4-25A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-40E4-25V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-40E4-32J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-40E4-32A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-40E4-32V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-40E4-40J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-40E4-40A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-40E4-40V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-40X4-00J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-40X4-00A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-40X4-00V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-40X4-20J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-40X4-20A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-40X4-20V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-40X4-25J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-40X4-25A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-40X4-25V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-40X4-32J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-40X4-32A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-40X4-32V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-40X4-40J		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-40X4-40A		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-40X4-40V		Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-40G3-00J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-40G3-00A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-40G3-00H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-40G3-00V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-40G3-20J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-40G3-20A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-40G3-20H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-40G3-20V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-40G3-25J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-40G3-25A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-40G3-25H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-40G3-25V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-40G3-32J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-40G3-32A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-40G3-32H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-40G3-32V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-40G3-40J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-40G3-40A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-40G3-40H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-40G3-40V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-40G4-00J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-40G4-00A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-40G4-00H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-40G4-00V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-40G4-20J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-40G4-20A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-40G4-20H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-40G4-20V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-40G4-25J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-40G4-25A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-40G4-25H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-40G4-25V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-40G4-32J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-40G4-32A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-40G4-32H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-40G4-32V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-40G4-40J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-40G4-40A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-40G4-40H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-40G4-40V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-40Z4-00J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-40Z4-00A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-40Z4-00H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-40Z4-00V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-40Z4-20J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AH-40Z4-20A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AH-40Z4-20H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
AH-40Z4-20V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AH-40Z4-25J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-40Z4-25A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-40Z4-25H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-40Z4-25V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-40Z4-32J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-40Z4-32A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-40Z4-32H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-40Z4-32V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-40Z4-40J		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-40Z4-40A		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-40Z4-40H		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-40Z4-40V		Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-50G3-00J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-50G3-00A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-50G3-00H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-50G3-00V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-50G3-25J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-50G3-25A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-50G3-25H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-50G3-25V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-50G3-32J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-50G3-32A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-50G3-32H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-50G3-32V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-50G3-40J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-50G3-40A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-50G3-40H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-50G3-40V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-50G3-50J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
AH-50G3-50A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
AH-50G3-50H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
AH-50G3-50V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
AH-50G4-00J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-50G4-00A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-50G4-00H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-50G4-00V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-50G4-25J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-50G4-25A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-50G4-25H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-50G4-25V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-50G4-32J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-50G4-32A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-50G4-32H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-50G4-32V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-50G4-40J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-50G4-40A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-50G4-40H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-50G4-40V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-50G4-50J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
AH-50G4-50A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
AH-50G4-50H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
AH-50G4-50V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
AH-50Z4-00J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-50Z4-00A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-50Z4-00H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-50Z4-00V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-50Z4-25J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
AH-50Z4-25A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
AH-50Z4-25H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
AH-50Z4-25V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
AH-50Z4-32J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-50Z4-32A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-50Z4-32H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-50Z4-32V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-50Z4-40J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-50Z4-40A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-50Z4-40H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-50Z4-40V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-50Z4-50J		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, manual connection
AH-50Z4-50A		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
AH-50Z4-50H		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
AH-50Z4-50V		Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
AH-63G3-00J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-63G3-00A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-63G3-00H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-63G3-00V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-63G3-32J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-63G3-32A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-63G3-32H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-63G3-32V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-63G3-40J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-63G3-40A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-63G3-40H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-63G3-40V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-63G3-50J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
AH-63G3-50A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
AH-63G3-50H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
AH-63G3-50V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
AH-63G3-63J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, manual connection
AH-63G3-63A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, automatic connection
AH-63G3-63H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, horizontal top/bottom
AH-63G3-63V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, vertical top/bottom
AH-63G4-00J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-63G4-00A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-63G4-00H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-63G4-00V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-63G4-32J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-63G4-32A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-63G4-32H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-63G4-32V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-63G4-40J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-63G4-40A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-63G4-40H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-63G4-40V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-63G4-50J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
AH-63G4-50A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
AH-63G4-50H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
AH-63G4-50V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
AH-63G4-63J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, manual connection
AH-63G4-63A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, automatic connection
AH-63G4-63H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, horizontal top/bottom
AH-63G4-63V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, vertical top/bottom
AH-63Z4-00J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AH-63Z4-00A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AH-63Z4-00H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AH-63Z4-00V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AH-63Z4-32J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
AH-63Z4-32A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
AH-63Z4-32H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
AH-63Z4-32V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
AH-63Z4-40J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
AH-63Z4-40A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
AH-63Z4-40H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
AH-63Z4-40V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
AH-63Z4-50J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, manual connection
AH-63Z4-50A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
AH-63Z4-50H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
AH-63Z4-50V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
AH-63Z4-63J		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Draw-out, manual connection
AH-63Z4-63A		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Draw-out, automatic connection
AH-63Z4-63H		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Fixed, horizontal top/bottom
AH-63Z4-63V		Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Fixed, vertical top/bottom

Air Circuit BreakersLS Electric

1002 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol ACB AH E/G-Frame Air Circuit Breaker (630-6300AF)

Brand LS Electric·Air Circuit Breakers

Available part numbers (1002)

AH-06E3-00J, AH-06E3-00A, AH-06E3-00H, AH-06E3-00V, AH-06E3-00M, AH-06E3-00N, AH-06E3-00P, AH-06E3-02J, AH-06E3-02A, AH-06E3-02H + 992 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AH-06E3-00J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-06E3-00A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-06E3-00H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-06E3-00V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-06E3-00M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E3-00N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E3-00P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-06E3-02J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AH-06E3-02A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AH-06E3-02H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AH-06E3-02V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AH-06E3-02M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E3-02N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E3-02P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AH-06E3-04J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AH-06E3-04A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AH-06E3-04H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AH-06E3-04V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AH-06E3-04M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E3-04N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E3-04P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AH-06E3-06J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-06E3-06A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-06E3-06H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-06E3-06V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-06E3-06M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E3-06N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E3-06P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-06E4-00J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-06E4-00A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-06E4-00H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-06E4-00V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-06E4-00M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E4-00N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E4-00P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-06E4-02J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AH-06E4-02A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AH-06E4-02H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AH-06E4-02V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AH-06E4-02M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E4-02N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E4-02P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AH-06E4-04J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AH-06E4-04A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AH-06E4-04H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AH-06E4-04V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AH-06E4-04M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E4-04N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E4-04P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AH-06E4-06J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-06E4-06A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-06E4-06H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-06E4-06V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-06E4-06M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06E4-06N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06E4-06P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-06X4-00J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-06X4-00A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-06X4-00H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-06X4-00V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-06X4-00M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-06X4-00N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-06X4-00P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-06X4-02J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AH-06X4-02A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AH-06X4-02H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AH-06X4-02V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AH-06X4-02M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06X4-02N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06X4-02P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AH-06X4-04J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AH-06X4-04A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AH-06X4-04H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AH-06X4-04V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AH-06X4-04M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06X4-04N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06X4-04P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AH-06X4-06J	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-06X4-06A	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-06X4-06H	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-06X4-06V	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-06X4-06M	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-06X4-06N	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-06X4-06P	Model: AH-06E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-08E3-00J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-08E3-00A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-08E3-00H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-08E3-00V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-08E3-00M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E3-00N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E3-00P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-08E3-04J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AH-08E3-04A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AH-08E3-04H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AH-08E3-04V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AH-08E3-04M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E3-04N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E3-04P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AH-08E3-06J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-08E3-06A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-08E3-06H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-08E3-06V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-08E3-06M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E3-06N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E3-06P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-08E3-08J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-08E3-08A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-08E3-08H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-08E3-08V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-08E3-08M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E3-08N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E3-08P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-08E4-00J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-08E4-00A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-08E4-00H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-08E4-00V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-08E4-00M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E4-00N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E4-00P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-08E4-04J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AH-08E4-04A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AH-08E4-04H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AH-08E4-04V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AH-08E4-04M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E4-04N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E4-04P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AH-08E4-06J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-08E4-06A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-08E4-06H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-08E4-06V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-08E4-06M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E4-06N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E4-06P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-08E4-08J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-08E4-08A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-08E4-08H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-08E4-08V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-08E4-08M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08E4-08N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08E4-08P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-08X4-00J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-08X4-00A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-08X4-00H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-08X4-00V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-08X4-00M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-08X4-00N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-08X4-00P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-08X4-04J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AH-08X4-04A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AH-08X4-04H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AH-08X4-04V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AH-08X4-04M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08X4-04N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08X4-04P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AH-08X4-06J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-08X4-06A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-08X4-06H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-08X4-06V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-08X4-06M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08X4-06N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08X4-06P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-08X4-08J	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-08X4-08A	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-08X4-08H	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-08X4-08V	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-08X4-08M	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-08X4-08N	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-08X4-08P	Model: AH-08E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-10E3-00J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-10E3-00A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-10E3-00H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-10E3-00V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-10E3-00M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E3-00N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E3-00P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-10E3-06J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-10E3-06A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-10E3-06H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-10E3-06V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-10E3-06M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E3-06N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E3-06P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-10E3-08J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-10E3-08A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-10E3-08H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-10E3-08V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-10E3-08M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E3-08N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E3-08P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-10E3-10J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-10E3-10A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-10E3-10H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-10E3-10V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-10E3-10M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E3-10N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E3-10P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-10E4-00J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-10E4-00A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-10E4-00H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-10E4-00V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-10E4-00M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E4-00N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E4-00P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-10E4-06J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-10E4-06A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-10E4-06H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-10E4-06V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-10E4-06M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E4-06N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E4-06P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-10E4-08J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-10E4-08A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-10E4-08H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-10E4-08V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-10E4-08M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E4-08N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E4-08P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-10E4-10J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-10E4-10A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-10E4-10H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-10E4-10V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-10E4-10M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10E4-10N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10E4-10P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-10X4-00J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-10X4-00A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-10X4-00H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-10X4-00V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-10X4-00M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-10X4-00N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-10X4-00P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-10X4-06J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-10X4-06A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-10X4-06H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-10X4-06V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-10X4-06M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10X4-06N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10X4-06P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-10X4-08J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-10X4-08A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-10X4-08H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-10X4-08V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-10X4-08M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10X4-08N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10X4-08P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-10X4-10J	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-10X4-10A	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-10X4-10H	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-10X4-10V	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-10X4-10M	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-10X4-10N	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-10X4-10P	Model: AH-10E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E3-00J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-13E3-00A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-13E3-00H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-13E3-00V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-13E3-00M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E3-00N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E3-00P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-13E3-06J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-13E3-06A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-13E3-06H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-13E3-06V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-13E3-06M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E3-06N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E3-06P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E3-08J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-13E3-08A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-13E3-08H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-13E3-08V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-13E3-08M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E3-08N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E3-08P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E3-10J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-13E3-10A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-13E3-10H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-13E3-10V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-13E3-10M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E3-10N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E3-10P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E3-13J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-13E3-13A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-13E3-13H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-13E3-13V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-13E3-13M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E3-13N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E3-13P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E4-00J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-13E4-00A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-13E4-00H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-13E4-00V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-13E4-00M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E4-00N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E4-00P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-13E4-06J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-13E4-06A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-13E4-06H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-13E4-06V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-13E4-06M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E4-06N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E4-06P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E4-08J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-13E4-08A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-13E4-08H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-13E4-08V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-13E4-08M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E4-08N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E4-08P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E4-10J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-13E4-10A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-13E4-10H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-13E4-10V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-13E4-10M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E4-10N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E4-10P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-13E4-13J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-13E4-13A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-13E4-13H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-13E4-13V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-13E4-13M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13E4-13N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13E4-13P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-13X4-00J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-13X4-00A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-13X4-00H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-13X4-00V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-13X4-00M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-13X4-00N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-13X4-00P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-13X4-06J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AH-13X4-06A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AH-13X4-06H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AH-13X4-06V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AH-13X4-06M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13X4-06N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13X4-06P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AH-13X4-08J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-13X4-08A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-13X4-08H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-13X4-08V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-13X4-08M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13X4-08N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13X4-08P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-13X4-10J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-13X4-10A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-13X4-10H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-13X4-10V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-13X4-10M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13X4-10N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13X4-10P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-13X4-13J	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-13X4-13A	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-13X4-13H	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-13X4-13V	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-13X4-13M	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-13X4-13N	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-13X4-13P	Model: AH-13E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E3-00J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-16E3-00A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-16E3-00H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-16E3-00V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-16E3-00M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E3-00N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E3-00P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-16E3-08J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-16E3-08A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-16E3-08H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-16E3-08V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-16E3-08M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E3-08N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E3-08P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E3-10J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-16E3-10A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-16E3-10H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-16E3-10V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-16E3-10M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E3-10N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E3-10P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E3-13J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-16E3-13A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-16E3-13H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-16E3-13V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-16E3-13M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E3-13N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E3-13P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E3-16J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-16E3-16A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-16E3-16H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-16E3-16V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-16E3-16M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E3-16N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E3-16P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E4-00J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-16E4-00A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-16E4-00H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-16E4-00V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-16E4-00M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E4-00N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E4-00P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-16E4-08J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-16E4-08A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-16E4-08H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-16E4-08V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-16E4-08M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E4-08N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E4-08P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E4-10J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-16E4-10A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-16E4-10H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-16E4-10V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-16E4-10M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E4-10N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E4-10P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E4-13J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-16E4-13A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-16E4-13H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-16E4-13V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-16E4-13M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E4-13N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E4-13P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-16E4-16J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-16E4-16A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-16E4-16H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-16E4-16V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-16E4-16M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16E4-16N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16E4-16P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-16X4-00J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-16X4-00A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-16X4-00H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-16X4-00V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-16X4-00M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-16X4-00N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-16X4-00P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-16X4-08J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AH-16X4-08A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AH-16X4-08H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AH-16X4-08V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AH-16X4-08M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16X4-08N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16X4-08P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AH-16X4-10J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-16X4-10A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-16X4-10H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-16X4-10V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-16X4-10M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16X4-10N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16X4-10P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-16X4-13J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-16X4-13A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-16X4-13H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-16X4-13V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-16X4-13M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16X4-13N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16X4-13P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-16X4-16J	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-16X4-16A	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-16X4-16H	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-16X4-16V	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-16X4-16M	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-16X4-16N	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-16X4-16P	Model: AH-16E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E3-00J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-20E3-00A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-20E3-00H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-20E3-00V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-20E3-00M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E3-00N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E3-00P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-20E3-10J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-20E3-10A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-20E3-10H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-20E3-10V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-20E3-10M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E3-10N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E3-10P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E3-13J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-20E3-13A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-20E3-13H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-20E3-13V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-20E3-13M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E3-13N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E3-13P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E3-16J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-20E3-16A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-20E3-16H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-20E3-16V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-20E3-16M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E3-16N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E3-16P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E3-20J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-20E3-20A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-20E3-20H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-20E3-20V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-20E3-20M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E3-20N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E3-20P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E4-00J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-20E4-00A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-20E4-00H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-20E4-00V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-20E4-00M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E4-00N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E4-00P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-20E4-10J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-20E4-10A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-20E4-10H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-20E4-10V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-20E4-10M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E4-10N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E4-10P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E4-13J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-20E4-13A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-20E4-13H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-20E4-13V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-20E4-13M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E4-13N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E4-13P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E4-16J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-20E4-16A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-20E4-16H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-20E4-16V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-20E4-16M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E4-16N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E4-16P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-20E4-20J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-20E4-20A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-20E4-20H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-20E4-20V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-20E4-20M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20E4-20N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20E4-20P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-20X4-00J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-20X4-00A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-20X4-00H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-20X4-00V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-20X4-00M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-20X4-00N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-20X4-00P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-20X4-10J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AH-20X4-10A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AH-20X4-10H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AH-20X4-10V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AH-20X4-10M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20X4-10N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20X4-10P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AH-20X4-13J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-20X4-13A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-20X4-13H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-20X4-13V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-20X4-13M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20X4-13N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20X4-13P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-20X4-16J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-20X4-16A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-20X4-16H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-20X4-16V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-20X4-16M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20X4-16N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20X4-16P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-20X4-20J	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-20X4-20A	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-20X4-20H	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-20X4-20V	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-20X4-20M	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-20X4-20N	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-20X4-20P	Model: AH-20E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E3-00J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-25E3-00A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-25E3-00H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-25E3-00V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-25E3-00M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E3-00N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E3-00P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-25E3-13J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-25E3-13A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-25E3-13H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-25E3-13V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-25E3-13M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E3-13N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E3-13P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E3-16J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-25E3-16A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-25E3-16H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-25E3-16V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-25E3-16M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E3-16N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E3-16P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E3-20J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-25E3-20A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-25E3-20H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-25E3-20V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-25E3-20M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E3-20N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E3-20P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E3-25J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-25E3-25A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-25E3-25H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-25E3-25V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-25E3-25M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E3-25N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E3-25P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E4-00J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-25E4-00A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-25E4-00H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-25E4-00V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-25E4-00M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E4-00N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E4-00P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-25E4-13J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-25E4-13A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-25E4-13H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-25E4-13V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-25E4-13M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E4-13N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E4-13P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E4-16J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-25E4-16A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-25E4-16H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-25E4-16V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-25E4-16M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E4-16N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E4-16P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E4-20J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-25E4-20A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-25E4-20H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-25E4-20V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-25E4-20M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E4-20N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E4-20P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-25E4-25J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-25E4-25A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-25E4-25H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-25E4-25V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-25E4-25M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25E4-25N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25E4-25P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
	AH-25X4-00J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-25X4-00A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-25X4-00H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-25X4-00V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-25X4-00M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-25X4-00N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-25X4-00P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-25X4-13J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AH-25X4-13A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AH-25X4-13H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AH-25X4-13V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AH-25X4-13M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25X4-13N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25X4-13P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AH-25X4-16J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-25X4-16A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-25X4-16H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-25X4-16V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-25X4-16M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25X4-16N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25X4-16P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-25X4-20J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-25X4-20A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-25X4-20H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-25X4-20V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-25X4-20M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25X4-20N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25X4-20P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-25X4-25J	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-25X4-25A	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-25X4-25H	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-25X4-25V	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-25X4-25M	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-25X4-25N	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-25X4-25P	Model: AH-25E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E3-00J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-32E3-00A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-32E3-00H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-32E3-00V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-32E3-00M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E3-00N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E3-00P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-32E3-16J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-32E3-16A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-32E3-16H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-32E3-16V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-32E3-16M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E3-16N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E3-16P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E3-20J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-32E3-20A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-32E3-20H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-32E3-20V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-32E3-20M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E3-20N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E3-20P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E3-25J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-32E3-25A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-32E3-25H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-32E3-25V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-32E3-25M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E3-25N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E3-25P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E3-32J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-32E3-32A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-32E3-32H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-32E3-32V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-32E3-32M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E3-32N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E3-32P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E4-00J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-32E4-00A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-32E4-00H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-32E4-00V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-32E4-00M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E4-00N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E4-00P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-32E4-16J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-32E4-16A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-32E4-16H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-32E4-16V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-32E4-16M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E4-16N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E4-16P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E4-20J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-32E4-20A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-32E4-20H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-32E4-20V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-32E4-20M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E4-20N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E4-20P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E4-25J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-32E4-25A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-32E4-25H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-32E4-25V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-32E4-25M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E4-25N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E4-25P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
	AH-32E4-32J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-32E4-32A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-32E4-32H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-32E4-32V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-32E4-32M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32E4-32N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32E4-32P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, front (flat) top/bottom
	AH-32X4-00J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-32X4-00A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-32X4-00H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-32X4-00V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-32X4-00M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AH-32X4-00N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AH-32X4-00P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AH-32X4-16J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AH-32X4-16A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AH-32X4-16H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AH-32X4-16V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AH-32X4-16M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32X4-16N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32X4-16P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AH-32X4-20J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-32X4-20A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-32X4-20H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-32X4-20V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-32X4-20M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32X4-20N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32X4-20P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, front (flat) top/bottom
	AH-32X4-25J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-32X4-25A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-32X4-25H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-32X4-25V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-32X4-25M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32X4-25N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32X4-25P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, front (flat) top/bottom
	AH-32X4-32J	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-32X4-32A	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-32X4-32H	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-32X4-32V	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-32X4-32M	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, top horiz. / bottom vert.
	AH-32X4-32N	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, top vert. / bottom horiz.
	AH-32X4-32P	Model: AH-32E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, front (flat) top/bottom
	AH-40E3-00J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-40E3-00A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-40E3-00V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-40E3-20J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-40E3-20A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-40E3-20V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-40E3-25J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-40E3-25A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-40E3-25V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-40E3-32J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-40E3-32A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-40E3-32V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-40E3-40J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-40E3-40A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-40E3-40V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-40E4-00J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-40E4-00A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-40E4-00V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-40E4-20J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-40E4-20A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-40E4-20V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-40E4-25J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-40E4-25A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-40E4-25V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-40E4-32J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-40E4-32A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-40E4-32V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-40E4-40J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-40E4-40A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-40E4-40V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-40X4-00J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-40X4-00A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-40X4-00V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-40X4-20J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-40X4-20A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-40X4-20V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-40X4-25J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-40X4-25A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-40X4-25V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-40X4-32J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-40X4-32A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-40X4-32V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-40X4-40J	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-40X4-40A	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-40X4-40V	Model: AH-40E \| Icu 500 V / 690 V: 100 / 85 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-40G3-00J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-40G3-00A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-40G3-00H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-40G3-00V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-40G3-20J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-40G3-20A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-40G3-20H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-40G3-20V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-40G3-25J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-40G3-25A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-40G3-25H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-40G3-25V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-40G3-32J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-40G3-32A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-40G3-32H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-40G3-32V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-40G3-40J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-40G3-40A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-40G3-40H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-40G3-40V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-40G4-00J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-40G4-00A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-40G4-00H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-40G4-00V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-40G4-20J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-40G4-20A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-40G4-20H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-40G4-20V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-40G4-25J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-40G4-25A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-40G4-25H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-40G4-25V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-40G4-32J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-40G4-32A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-40G4-32H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-40G4-32V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-40G4-40J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-40G4-40A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-40G4-40H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-40G4-40V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-40Z4-00J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-40Z4-00A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-40Z4-00H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-40Z4-00V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-40Z4-20J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AH-40Z4-20A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AH-40Z4-20H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, horizontal top/bottom
	AH-40Z4-20V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AH-40Z4-25J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-40Z4-25A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-40Z4-25H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-40Z4-25V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-40Z4-32J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-40Z4-32A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-40Z4-32H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-40Z4-32V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-40Z4-40J	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-40Z4-40A	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-40Z4-40H	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-40Z4-40V	Model: AH-40G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-50G3-00J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-50G3-00A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-50G3-00H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-50G3-00V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-50G3-25J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-50G3-25A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-50G3-25H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-50G3-25V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-50G3-32J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-50G3-32A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-50G3-32H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-50G3-32V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-50G3-40J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-50G3-40A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-50G3-40H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-50G3-40V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-50G3-50J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
	AH-50G3-50A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
	AH-50G3-50H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
	AH-50G3-50V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
	AH-50G4-00J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-50G4-00A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-50G4-00H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-50G4-00V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-50G4-25J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-50G4-25A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-50G4-25H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-50G4-25V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-50G4-32J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-50G4-32A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-50G4-32H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-50G4-32V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-50G4-40J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-50G4-40A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-50G4-40H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-50G4-40V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-50G4-50J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
	AH-50G4-50A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
	AH-50G4-50H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
	AH-50G4-50V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
	AH-50Z4-00J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-50Z4-00A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-50Z4-00H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-50Z4-00V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-50Z4-25J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, manual connection
	AH-50Z4-25A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Draw-out, automatic connection
	AH-50Z4-25H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, horizontal top/bottom
	AH-50Z4-25V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 2500 A \| Installation: Fixed, vertical top/bottom
	AH-50Z4-32J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-50Z4-32A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-50Z4-32H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-50Z4-32V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-50Z4-40J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-50Z4-40A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-50Z4-40H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-50Z4-40V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-50Z4-50J	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, manual connection
	AH-50Z4-50A	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
	AH-50Z4-50H	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
	AH-50Z4-50V	Model: AH-50G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
	AH-63G3-00J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-63G3-00A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-63G3-00H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-63G3-00V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-63G3-32J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-63G3-32A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-63G3-32H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-63G3-32V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-63G3-40J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-63G3-40A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-63G3-40H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-63G3-40V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-63G3-50J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
	AH-63G3-50A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
	AH-63G3-50H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
	AH-63G3-50V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
	AH-63G3-63J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, manual connection
	AH-63G3-63A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, automatic connection
	AH-63G3-63H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, horizontal top/bottom
	AH-63G3-63V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 3P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, vertical top/bottom
	AH-63G4-00J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-63G4-00A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-63G4-00H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-63G4-00V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-63G4-32J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-63G4-32A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-63G4-32H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-63G4-32V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-63G4-40J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-63G4-40A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-63G4-40H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-63G4-40V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-63G4-50J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, manual connection
	AH-63G4-50A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
	AH-63G4-50H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
	AH-63G4-50V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
	AH-63G4-63J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, manual connection
	AH-63G4-63A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Draw-out, automatic connection
	AH-63G4-63H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, horizontal top/bottom
	AH-63G4-63V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, standard RST(N) \| Rated current: 6300 A \| Installation: Fixed, vertical top/bottom
	AH-63Z4-00J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AH-63Z4-00A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AH-63Z4-00H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AH-63Z4-00V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AH-63Z4-32J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, manual connection
	AH-63Z4-32A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Draw-out, automatic connection
	AH-63Z4-32H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, horizontal top/bottom
	AH-63Z4-32V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 3200 A \| Installation: Fixed, vertical top/bottom
	AH-63Z4-40J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, manual connection
	AH-63Z4-40A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Draw-out, automatic connection
	AH-63Z4-40H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, horizontal top/bottom
	AH-63Z4-40V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 4000 A \| Installation: Fixed, vertical top/bottom
	AH-63Z4-50J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, manual connection
	AH-63Z4-50A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Draw-out, automatic connection
	AH-63Z4-50H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, horizontal top/bottom
	AH-63Z4-50V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 5000 A \| Installation: Fixed, vertical top/bottom
	AH-63Z4-63J	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Draw-out, manual connection
	AH-63Z4-63A	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Draw-out, automatic connection
	AH-63Z4-63H	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Fixed, horizontal top/bottom
	AH-63Z4-63V	Model: AH-63G \| Icu 500 V / 690 V: 150 / 100 kA \| Poles: 4P, reversed (N)RST \| Rated current: 6300 A \| Installation: Fixed, vertical top/bottom

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol ACB AH E/G-Frame Air Circuit Breaker (630-6300AF)
