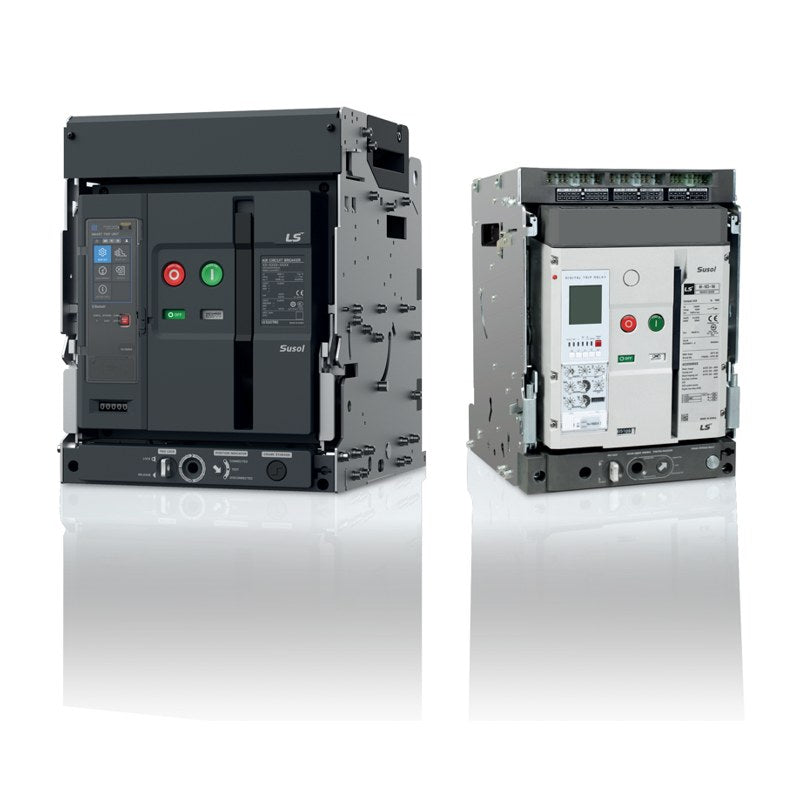

LS Electric Susol ACB AV D-Frame 1150V (630-2000AF)

LS Electric Susol AV D-frame air circuit breakers for up to 1150 VAC, 630 to 2000AF, 3 and 4 poles, in draw-out and fixed versions.

Key features

Medium-high voltage LV ACB for PV, ESS, wind and high-altitude installations
Draw-out (manual or automatic connection) or fixed type
Smart Trip Unit options N/A/P/S with 0.5% current/voltage metering accuracy
Rated current by CT rating; code 00 = without trip relay and CT
Uses the common Susol AH-type cradle
Suitable for IT systems up to 1000 VAC

Specifications

Rated operational voltage (Ue)	up to 1150 VAC
Rated insulation voltage (Ui)	1250 V
Rated impulse withstand voltage (Uimp)	12 kV
Rated service breaking capacity (Ics)	100% Icu
Utilization category	B (IEC 60947-2)
Pollution degree	3
Frame	D (630-2000AF)
Rated breaking capacity (Icu)	30 kA (1150 V), 42 kA (1000 V), 50 kA (900/800 V)
Dimensions draw-out (W 3P/4P x H x D)	334/419 x 430 x 375 mm
Durability (mech. / elec.)	20,000 / 1,000 operations
Source	LS Electric Susol ACB up to 1150Vac catalog C060C1-03 (2025-01), p. 3-5, 12

AV-06D3-00J		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-06D3-00A		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-06D3-00H		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-06D3-00V		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-06D3-00M		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-06D3-00N		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-06D3-00P		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-06D3-02J		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
AV-06D3-02A		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AV-06D3-02H		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AV-06D3-02V		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AV-06D3-02M		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06D3-02N		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06D3-02P		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AV-06D3-04J		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AV-06D3-04A		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AV-06D3-04H		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AV-06D3-04V		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AV-06D3-04M		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06D3-04N		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06D3-04P		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AV-06D3-06J		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-06D3-06A		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-06D3-06H		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-06D3-06V		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-06D3-06M		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06D3-06N		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06D3-06P		Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-06D4-00J		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-06D4-00A		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-06D4-00H		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-06D4-00V		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-06D4-00M		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-06D4-00N		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-06D4-00P		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-06D4-02J		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
AV-06D4-02A		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AV-06D4-02H		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AV-06D4-02V		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AV-06D4-02M		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06D4-02N		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06D4-02P		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AV-06D4-04J		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AV-06D4-04A		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AV-06D4-04H		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AV-06D4-04V		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AV-06D4-04M		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06D4-04N		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06D4-04P		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AV-06D4-06J		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-06D4-06A		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-06D4-06H		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-06D4-06V		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-06D4-06M		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06D4-06N		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06D4-06P		Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-06W4-00J		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-06W4-00A		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-06W4-00H		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-06W4-00V		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-06W4-00M		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-06W4-00N		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-06W4-00P		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-06W4-02J		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, manual connection
AV-06W4-02A		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AV-06W4-02H		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AV-06W4-02V		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AV-06W4-02M		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06W4-02N		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06W4-02P		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AV-06W4-04J		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
AV-06W4-04A		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AV-06W4-04H		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AV-06W4-04V		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AV-06W4-04M		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06W4-04N		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06W4-04P		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AV-06W4-06J		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-06W4-06A		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-06W4-06H		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-06W4-06V		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-06W4-06M		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-06W4-06N		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-06W4-06P		Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-08D3-00J		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-08D3-00A		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-08D3-00H		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-08D3-00V		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-08D3-00M		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-08D3-00N		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-08D3-00P		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-08D3-02J		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
AV-08D3-02A		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AV-08D3-02H		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AV-08D3-02V		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AV-08D3-02M		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D3-02N		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D3-02P		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AV-08D3-04J		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AV-08D3-04A		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AV-08D3-04H		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AV-08D3-04V		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AV-08D3-04M		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D3-04N		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D3-04P		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AV-08D3-06J		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-08D3-06A		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-08D3-06H		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-08D3-06V		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-08D3-06M		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D3-06N		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D3-06P		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-08D3-08J		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-08D3-08A		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-08D3-08H		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-08D3-08V		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-08D3-08M		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D3-08N		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D3-08P		Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-08D4-00J		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-08D4-00A		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-08D4-00H		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-08D4-00V		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-08D4-00M		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-08D4-00N		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-08D4-00P		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-08D4-02J		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
AV-08D4-02A		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AV-08D4-02H		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AV-08D4-02V		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AV-08D4-02M		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D4-02N		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D4-02P		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AV-08D4-04J		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
AV-08D4-04A		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AV-08D4-04H		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AV-08D4-04V		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AV-08D4-04M		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D4-04N		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D4-04P		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AV-08D4-06J		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-08D4-06A		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-08D4-06H		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-08D4-06V		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-08D4-06M		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D4-06N		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D4-06P		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-08D4-08J		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-08D4-08A		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-08D4-08H		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-08D4-08V		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-08D4-08M		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08D4-08N		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08D4-08P		Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-08W4-00J		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-08W4-00A		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-08W4-00H		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-08W4-00V		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-08W4-00M		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-08W4-00N		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-08W4-00P		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-08W4-02J		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, manual connection
AV-08W4-02A		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, automatic connection
AV-08W4-02H		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
AV-08W4-02V		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
AV-08W4-02M		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08W4-02N		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08W4-02P		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
AV-08W4-04J		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
AV-08W4-04A		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
AV-08W4-04H		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
AV-08W4-04V		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
AV-08W4-04M		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08W4-04N		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08W4-04P		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
AV-08W4-06J		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-08W4-06A		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-08W4-06H		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-08W4-06V		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-08W4-06M		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08W4-06N		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08W4-06P		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-08W4-08J		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-08W4-08A		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-08W4-08H		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-08W4-08V		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-08W4-08M		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-08W4-08N		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-08W4-08P		Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-10D3-00J		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-10D3-00A		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-10D3-00H		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-10D3-00V		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-10D3-00M		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-10D3-00N		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-10D3-00P		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-10D3-06J		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-10D3-06A		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-10D3-06H		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-10D3-06V		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-10D3-06M		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10D3-06N		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10D3-06P		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-10D3-08J		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-10D3-08A		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-10D3-08H		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-10D3-08V		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-10D3-08M		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10D3-08N		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10D3-08P		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-10D3-10J		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-10D3-10A		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-10D3-10H		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-10D3-10V		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-10D3-10M		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10D3-10N		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10D3-10P		Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-10D4-00J		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-10D4-00A		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-10D4-00H		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-10D4-00V		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-10D4-00M		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-10D4-00N		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-10D4-00P		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-10D4-06J		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-10D4-06A		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-10D4-06H		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-10D4-06V		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-10D4-06M		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10D4-06N		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10D4-06P		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-10D4-08J		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-10D4-08A		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-10D4-08H		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-10D4-08V		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-10D4-08M		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10D4-08N		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10D4-08P		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-10D4-10J		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-10D4-10A		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-10D4-10H		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-10D4-10V		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-10D4-10M		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10D4-10N		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10D4-10P		Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-10W4-00J		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-10W4-00A		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-10W4-00H		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-10W4-00V		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-10W4-00M		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-10W4-00N		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-10W4-00P		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-10W4-06J		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-10W4-06A		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-10W4-06H		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-10W4-06V		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-10W4-06M		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10W4-06N		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10W4-06P		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-10W4-08J		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-10W4-08A		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-10W4-08H		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-10W4-08V		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-10W4-08M		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10W4-08N		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10W4-08P		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-10W4-10J		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-10W4-10A		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-10W4-10H		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-10W4-10V		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-10W4-10M		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-10W4-10N		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-10W4-10P		Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-13D3-00J		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-13D3-00A		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-13D3-00H		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-13D3-00V		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-13D3-00M		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-13D3-00N		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-13D3-00P		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-13D3-06J		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-13D3-06A		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-13D3-06H		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-13D3-06V		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-13D3-06M		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D3-06N		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D3-06P		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-13D3-08J		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-13D3-08A		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-13D3-08H		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-13D3-08V		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-13D3-08M		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D3-08N		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D3-08P		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-13D3-10J		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-13D3-10A		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-13D3-10H		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-13D3-10V		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-13D3-10M		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D3-10N		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D3-10P		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-13D3-13J		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-13D3-13A		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-13D3-13H		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AV-13D3-13V		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-13D3-13M		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D3-13N		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D3-13P		Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AV-13D4-00J		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-13D4-00A		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-13D4-00H		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-13D4-00V		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-13D4-00M		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-13D4-00N		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-13D4-00P		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-13D4-06J		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-13D4-06A		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-13D4-06H		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-13D4-06V		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-13D4-06M		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D4-06N		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D4-06P		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-13D4-08J		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-13D4-08A		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-13D4-08H		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-13D4-08V		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-13D4-08M		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D4-08N		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D4-08P		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-13D4-10J		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-13D4-10A		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-13D4-10H		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-13D4-10V		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-13D4-10M		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D4-10N		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D4-10P		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-13D4-13J		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-13D4-13A		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-13D4-13H		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AV-13D4-13V		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-13D4-13M		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13D4-13N		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13D4-13P		Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AV-13W4-00J		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-13W4-00A		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-13W4-00H		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-13W4-00V		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-13W4-00M		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-13W4-00N		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-13W4-00P		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-13W4-06J		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
AV-13W4-06A		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
AV-13W4-06H		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
AV-13W4-06V		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
AV-13W4-06M		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13W4-06N		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13W4-06P		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
AV-13W4-08J		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-13W4-08A		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-13W4-08H		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-13W4-08V		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-13W4-08M		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13W4-08N		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13W4-08P		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-13W4-10J		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-13W4-10A		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-13W4-10H		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-13W4-10V		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-13W4-10M		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13W4-10N		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13W4-10P		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-13W4-13J		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-13W4-13A		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-13W4-13H		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AV-13W4-13V		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-13W4-13M		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AV-13W4-13N		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AV-13W4-13P		Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AV-16D3-00J		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-16D3-00A		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-16D3-00H		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-16D3-00V		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-16D3-00M		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-16D3-00N		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-16D3-00P		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-16D3-08J		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-16D3-08A		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-16D3-08H		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-16D3-08V		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-16D3-08M		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D3-08N		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D3-08P		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-16D3-10J		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-16D3-10A		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-16D3-10H		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-16D3-10V		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-16D3-10M		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D3-10N		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D3-10P		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-16D3-13J		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-16D3-13A		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-16D3-13H		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AV-16D3-13V		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-16D3-13M		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D3-13N		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D3-13P		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AV-16D3-16J		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AV-16D3-16A		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AV-16D3-16H		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AV-16D3-16V		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AV-16D3-16M		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D3-16N		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D3-16P		Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AV-16D4-00J		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-16D4-00A		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-16D4-00H		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-16D4-00V		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-16D4-00M		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-16D4-00N		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-16D4-00P		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-16D4-08J		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-16D4-08A		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-16D4-08H		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-16D4-08V		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-16D4-08M		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D4-08N		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D4-08P		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-16D4-10J		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-16D4-10A		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-16D4-10H		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-16D4-10V		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-16D4-10M		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D4-10N		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D4-10P		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-16D4-13J		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-16D4-13A		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-16D4-13H		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AV-16D4-13V		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-16D4-13M		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D4-13N		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D4-13P		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AV-16D4-16J		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AV-16D4-16A		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AV-16D4-16H		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AV-16D4-16V		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AV-16D4-16M		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16D4-16N		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16D4-16P		Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AV-16W4-00J		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-16W4-00A		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-16W4-00H		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
AV-16W4-00V		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-16W4-00M		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
AV-16W4-00N		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
AV-16W4-00P		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
AV-16W4-08J		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
AV-16W4-08A		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
AV-16W4-08H		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
AV-16W4-08V		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
AV-16W4-08M		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16W4-08N		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16W4-08P		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
AV-16W4-10J		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-16W4-10A		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-16W4-10H		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
AV-16W4-10V		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-16W4-10M		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16W4-10N		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16W4-10P		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
AV-16W4-13J		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-16W4-13A		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-16W4-13H		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
AV-16W4-13V		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-16W4-13M		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16W4-13N		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16W4-13P		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
AV-16W4-16J		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AV-16W4-16A		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AV-16W4-16H		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
AV-16W4-16V		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AV-16W4-16M		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
AV-16W4-16N		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
AV-16W4-16P		Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
AV-20D3-00J		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-20D3-00A		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-20D3-00V		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-20D3-10J		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-20D3-10A		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-20D3-10V		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-20D3-13J		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-20D3-13A		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-20D3-13V		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-20D3-16J		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AV-20D3-16A		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AV-20D3-16V		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AV-20D3-20J		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AV-20D3-20A		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AV-20D3-20V		Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AV-20D4-00J		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-20D4-00A		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-20D4-00V		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-20D4-10J		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-20D4-10A		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-20D4-10V		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-20D4-13J		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-20D4-13A		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-20D4-13V		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-20D4-16J		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AV-20D4-16A		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AV-20D4-16V		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AV-20D4-20J		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AV-20D4-20A		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AV-20D4-20V		Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
AV-20W4-00J		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
AV-20W4-00A		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
AV-20W4-00V		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
AV-20W4-10J		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
AV-20W4-10A		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
AV-20W4-10V		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
AV-20W4-13J		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
AV-20W4-13A		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
AV-20W4-13V		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
AV-20W4-16J		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
AV-20W4-16A		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
AV-20W4-16V		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
AV-20W4-20J		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
AV-20W4-20A		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
AV-20W4-20V		Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom

Air Circuit BreakersLS Electric

528 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol ACB AV D-Frame 1150V (630-2000AF)

Brand LS Electric·Air Circuit Breakers

Available part numbers (528)

AV-06D3-00J, AV-06D3-00A, AV-06D3-00H, AV-06D3-00V, AV-06D3-00M, AV-06D3-00N, AV-06D3-00P, AV-06D3-02J, AV-06D3-02A, AV-06D3-02H + 518 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AV-06D3-00J	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-06D3-00A	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-06D3-00H	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-06D3-00V	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-06D3-00M	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D3-00N	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D3-00P	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-06D3-02J	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AV-06D3-02A	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AV-06D3-02H	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AV-06D3-02V	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AV-06D3-02M	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D3-02N	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D3-02P	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AV-06D3-04J	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AV-06D3-04A	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AV-06D3-04H	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AV-06D3-04V	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AV-06D3-04M	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D3-04N	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D3-04P	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AV-06D3-06J	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-06D3-06A	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-06D3-06H	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-06D3-06V	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-06D3-06M	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D3-06N	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D3-06P	Model: AV-06D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-06D4-00J	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-06D4-00A	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-06D4-00H	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-06D4-00V	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-06D4-00M	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D4-00N	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D4-00P	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-06D4-02J	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AV-06D4-02A	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AV-06D4-02H	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AV-06D4-02V	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AV-06D4-02M	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D4-02N	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D4-02P	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AV-06D4-04J	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AV-06D4-04A	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AV-06D4-04H	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AV-06D4-04V	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AV-06D4-04M	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D4-04N	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D4-04P	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AV-06D4-06J	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-06D4-06A	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-06D4-06H	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-06D4-06V	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-06D4-06M	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06D4-06N	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06D4-06P	Model: AV-06D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-06W4-00J	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-06W4-00A	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-06W4-00H	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-06W4-00V	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-06W4-00M	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-06W4-00N	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-06W4-00P	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-06W4-02J	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AV-06W4-02A	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AV-06W4-02H	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AV-06W4-02V	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AV-06W4-02M	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06W4-02N	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06W4-02P	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AV-06W4-04J	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AV-06W4-04A	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AV-06W4-04H	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AV-06W4-04V	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AV-06W4-04M	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06W4-04N	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06W4-04P	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AV-06W4-06J	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-06W4-06A	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-06W4-06H	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-06W4-06V	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-06W4-06M	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-06W4-06N	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-06W4-06P	Model: AV-06D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D3-00J	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-08D3-00A	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-08D3-00H	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-08D3-00V	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-08D3-00M	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D3-00N	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D3-00P	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-08D3-02J	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AV-08D3-02A	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AV-08D3-02H	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AV-08D3-02V	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AV-08D3-02M	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D3-02N	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D3-02P	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D3-04J	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AV-08D3-04A	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AV-08D3-04H	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AV-08D3-04V	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AV-08D3-04M	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D3-04N	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D3-04P	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D3-06J	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-08D3-06A	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-08D3-06H	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-08D3-06V	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-08D3-06M	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D3-06N	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D3-06P	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D3-08J	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-08D3-08A	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-08D3-08H	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-08D3-08V	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-08D3-08M	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D3-08N	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D3-08P	Model: AV-08D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D4-00J	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-08D4-00A	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-08D4-00H	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-08D4-00V	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-08D4-00M	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D4-00N	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D4-00P	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-08D4-02J	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AV-08D4-02A	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AV-08D4-02H	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AV-08D4-02V	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AV-08D4-02M	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D4-02N	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D4-02P	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D4-04J	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AV-08D4-04A	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AV-08D4-04H	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AV-08D4-04V	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AV-08D4-04M	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D4-04N	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D4-04P	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D4-06J	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-08D4-06A	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-08D4-06H	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-08D4-06V	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-08D4-06M	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D4-06N	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D4-06P	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-08D4-08J	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-08D4-08A	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-08D4-08H	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-08D4-08V	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-08D4-08M	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08D4-08N	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08D4-08P	Model: AV-08D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-08W4-00J	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-08W4-00A	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-08W4-00H	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-08W4-00V	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-08W4-00M	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-08W4-00N	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-08W4-00P	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-08W4-02J	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, manual connection
	AV-08W4-02A	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Draw-out, automatic connection
	AV-08W4-02H	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, horizontal top/bottom
	AV-08W4-02V	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, vertical top/bottom
	AV-08W4-02M	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08W4-02N	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08W4-02P	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 200 A \| Installation: Fixed, front (flat) top/bottom
	AV-08W4-04J	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, manual connection
	AV-08W4-04A	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Draw-out, automatic connection
	AV-08W4-04H	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, horizontal top/bottom
	AV-08W4-04V	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, vertical top/bottom
	AV-08W4-04M	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08W4-04N	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08W4-04P	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 400 A \| Installation: Fixed, front (flat) top/bottom
	AV-08W4-06J	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-08W4-06A	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-08W4-06H	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-08W4-06V	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-08W4-06M	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08W4-06N	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08W4-06P	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-08W4-08J	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-08W4-08A	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-08W4-08H	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-08W4-08V	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-08W4-08M	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-08W4-08N	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-08W4-08P	Model: AV-08D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-10D3-00J	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-10D3-00A	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-10D3-00H	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-10D3-00V	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-10D3-00M	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D3-00N	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D3-00P	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-10D3-06J	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-10D3-06A	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-10D3-06H	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-10D3-06V	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-10D3-06M	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D3-06N	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D3-06P	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-10D3-08J	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-10D3-08A	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-10D3-08H	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-10D3-08V	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-10D3-08M	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D3-08N	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D3-08P	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-10D3-10J	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-10D3-10A	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-10D3-10H	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-10D3-10V	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-10D3-10M	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D3-10N	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D3-10P	Model: AV-10D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-10D4-00J	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-10D4-00A	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-10D4-00H	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-10D4-00V	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-10D4-00M	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D4-00N	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D4-00P	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-10D4-06J	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-10D4-06A	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-10D4-06H	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-10D4-06V	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-10D4-06M	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D4-06N	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D4-06P	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-10D4-08J	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-10D4-08A	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-10D4-08H	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-10D4-08V	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-10D4-08M	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D4-08N	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D4-08P	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-10D4-10J	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-10D4-10A	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-10D4-10H	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-10D4-10V	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-10D4-10M	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10D4-10N	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10D4-10P	Model: AV-10D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-10W4-00J	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-10W4-00A	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-10W4-00H	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-10W4-00V	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-10W4-00M	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-10W4-00N	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-10W4-00P	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-10W4-06J	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-10W4-06A	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-10W4-06H	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-10W4-06V	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-10W4-06M	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10W4-06N	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10W4-06P	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-10W4-08J	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-10W4-08A	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-10W4-08H	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-10W4-08V	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-10W4-08M	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10W4-08N	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10W4-08P	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-10W4-10J	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-10W4-10A	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-10W4-10H	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-10W4-10V	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-10W4-10M	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-10W4-10N	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-10W4-10P	Model: AV-10D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D3-00J	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-13D3-00A	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-13D3-00H	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-13D3-00V	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-13D3-00M	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D3-00N	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D3-00P	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-13D3-06J	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-13D3-06A	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-13D3-06H	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-13D3-06V	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-13D3-06M	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D3-06N	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D3-06P	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D3-08J	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-13D3-08A	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-13D3-08H	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-13D3-08V	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-13D3-08M	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D3-08N	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D3-08P	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D3-10J	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-13D3-10A	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-13D3-10H	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-13D3-10V	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-13D3-10M	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D3-10N	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D3-10P	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D3-13J	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-13D3-13A	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-13D3-13H	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AV-13D3-13V	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-13D3-13M	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D3-13N	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D3-13P	Model: AV-13D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D4-00J	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-13D4-00A	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-13D4-00H	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-13D4-00V	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-13D4-00M	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D4-00N	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D4-00P	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-13D4-06J	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-13D4-06A	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-13D4-06H	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-13D4-06V	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-13D4-06M	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D4-06N	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D4-06P	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D4-08J	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-13D4-08A	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-13D4-08H	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-13D4-08V	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-13D4-08M	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D4-08N	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D4-08P	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D4-10J	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-13D4-10A	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-13D4-10H	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-13D4-10V	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-13D4-10M	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D4-10N	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D4-10P	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-13D4-13J	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-13D4-13A	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-13D4-13H	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AV-13D4-13V	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-13D4-13M	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13D4-13N	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13D4-13P	Model: AV-13D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AV-13W4-00J	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-13W4-00A	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-13W4-00H	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-13W4-00V	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-13W4-00M	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-13W4-00N	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-13W4-00P	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-13W4-06J	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, manual connection
	AV-13W4-06A	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Draw-out, automatic connection
	AV-13W4-06H	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, horizontal top/bottom
	AV-13W4-06V	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, vertical top/bottom
	AV-13W4-06M	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13W4-06N	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13W4-06P	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 630 A \| Installation: Fixed, front (flat) top/bottom
	AV-13W4-08J	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-13W4-08A	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-13W4-08H	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-13W4-08V	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-13W4-08M	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13W4-08N	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13W4-08P	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-13W4-10J	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-13W4-10A	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-13W4-10H	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-13W4-10V	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-13W4-10M	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13W4-10N	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13W4-10P	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-13W4-13J	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-13W4-13A	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-13W4-13H	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AV-13W4-13V	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-13W4-13M	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-13W4-13N	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-13W4-13P	Model: AV-13D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D3-00J	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-16D3-00A	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-16D3-00H	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-16D3-00V	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-16D3-00M	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D3-00N	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D3-00P	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-16D3-08J	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-16D3-08A	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-16D3-08H	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-16D3-08V	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-16D3-08M	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D3-08N	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D3-08P	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D3-10J	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-16D3-10A	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-16D3-10H	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-16D3-10V	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-16D3-10M	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D3-10N	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D3-10P	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D3-13J	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-16D3-13A	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-16D3-13H	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AV-16D3-13V	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-16D3-13M	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D3-13N	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D3-13P	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D3-16J	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AV-16D3-16A	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AV-16D3-16H	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AV-16D3-16V	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AV-16D3-16M	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D3-16N	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D3-16P	Model: AV-16D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D4-00J	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-16D4-00A	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-16D4-00H	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-16D4-00V	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-16D4-00M	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D4-00N	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D4-00P	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-16D4-08J	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-16D4-08A	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-16D4-08H	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-16D4-08V	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-16D4-08M	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D4-08N	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D4-08P	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D4-10J	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-16D4-10A	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-16D4-10H	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-16D4-10V	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-16D4-10M	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D4-10N	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D4-10P	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D4-13J	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-16D4-13A	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-16D4-13H	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AV-16D4-13V	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-16D4-13M	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D4-13N	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D4-13P	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AV-16D4-16J	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AV-16D4-16A	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AV-16D4-16H	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AV-16D4-16V	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AV-16D4-16M	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16D4-16N	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16D4-16P	Model: AV-16D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AV-16W4-00J	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-16W4-00A	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-16W4-00H	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, horizontal top/bottom
	AV-16W4-00V	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-16W4-00M	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top horiz. / bottom vert.
	AV-16W4-00N	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, top vert. / bottom horiz.
	AV-16W4-00P	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, front (flat) top/bottom
	AV-16W4-08J	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, manual connection
	AV-16W4-08A	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Draw-out, automatic connection
	AV-16W4-08H	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, horizontal top/bottom
	AV-16W4-08V	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, vertical top/bottom
	AV-16W4-08M	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16W4-08N	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16W4-08P	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 800 A \| Installation: Fixed, front (flat) top/bottom
	AV-16W4-10J	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-16W4-10A	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-16W4-10H	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, horizontal top/bottom
	AV-16W4-10V	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-16W4-10M	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16W4-10N	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16W4-10P	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, front (flat) top/bottom
	AV-16W4-13J	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-16W4-13A	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-16W4-13H	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, horizontal top/bottom
	AV-16W4-13V	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-16W4-13M	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16W4-13N	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16W4-13P	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, front (flat) top/bottom
	AV-16W4-16J	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AV-16W4-16A	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AV-16W4-16H	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, horizontal top/bottom
	AV-16W4-16V	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AV-16W4-16M	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top horiz. / bottom vert.
	AV-16W4-16N	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, top vert. / bottom horiz.
	AV-16W4-16P	Model: AV-16D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, front (flat) top/bottom
	AV-20D3-00J	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-20D3-00A	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-20D3-00V	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-20D3-10J	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-20D3-10A	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-20D3-10V	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-20D3-13J	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-20D3-13A	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-20D3-13V	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-20D3-16J	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AV-20D3-16A	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AV-20D3-16V	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AV-20D3-20J	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AV-20D3-20A	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AV-20D3-20V	Model: AV-20D \| Poles: 3P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AV-20D4-00J	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-20D4-00A	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-20D4-00V	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-20D4-10J	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-20D4-10A	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-20D4-10V	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-20D4-13J	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-20D4-13A	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-20D4-13V	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-20D4-16J	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AV-20D4-16A	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AV-20D4-16V	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AV-20D4-20J	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AV-20D4-20A	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AV-20D4-20V	Model: AV-20D \| Poles: 4P, standard RST(N) \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom
	AV-20W4-00J	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, manual connection
	AV-20W4-00A	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Draw-out, automatic connection
	AV-20W4-00V	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: No trip relay & CT \| Installation: Fixed, vertical top/bottom
	AV-20W4-10J	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, manual connection
	AV-20W4-10A	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Draw-out, automatic connection
	AV-20W4-10V	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1000 A \| Installation: Fixed, vertical top/bottom
	AV-20W4-13J	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, manual connection
	AV-20W4-13A	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Draw-out, automatic connection
	AV-20W4-13V	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1250 A \| Installation: Fixed, vertical top/bottom
	AV-20W4-16J	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, manual connection
	AV-20W4-16A	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Draw-out, automatic connection
	AV-20W4-16V	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 1600 A \| Installation: Fixed, vertical top/bottom
	AV-20W4-20J	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, manual connection
	AV-20W4-20A	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Draw-out, automatic connection
	AV-20W4-20V	Model: AV-20D \| Poles: 4P, reversed (N)RST \| Rated current: 2000 A \| Installation: Fixed, vertical top/bottom

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol ACB AV D-Frame 1150V (630-2000AF)
