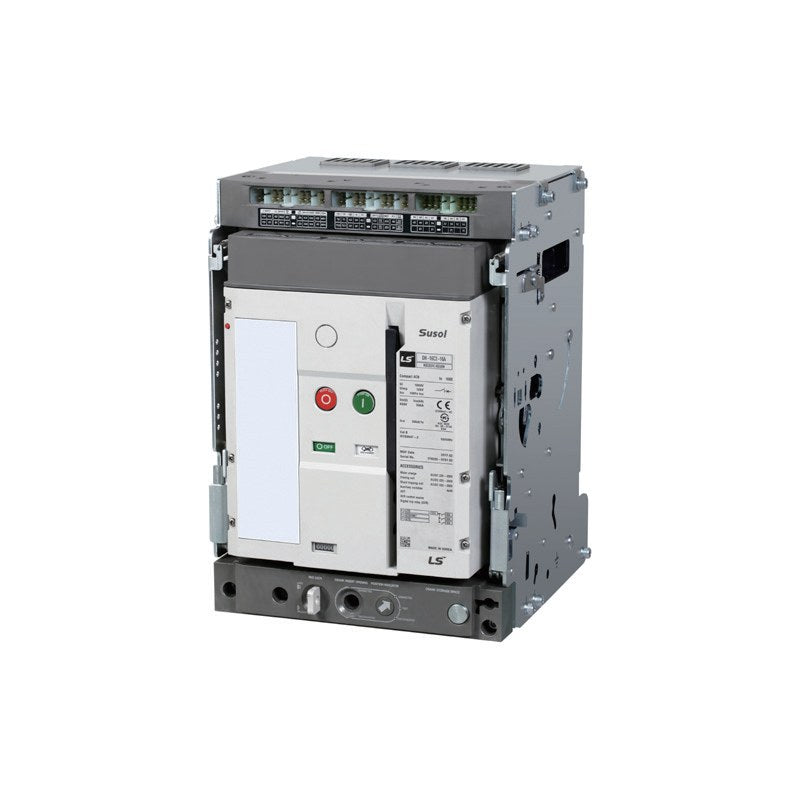

LS Electric Susol Compact ACB AN/AH/AR (800-1600AF, 400-1600 A)

LS Electric Susol Compact air circuit breakers AN, AH (Category B) and AR (Category A, current-limiting), 800-1600AF, 400-1600 A, fixed or draw-out, 3P/4P.

Key features

Approx. 55% smaller than conventional ACBs: 256 mm (3P) / 326 mm (4P) wide, 364 mm high
AN 42 kA and AH 50 kA at 690V (Ics = 100% Icu); AR Category A 150 kA at 415V
Rating plug changes rated current without replacing CTs (800AF: 400-800 A, 1600AF: 800-1600 A)
N, A, P and S type digital trip relays (L/S/I/G, metering, Modbus/Profibus communication)
Draw-out (auto/manual connect cradle) or fixed with H/V/M/N/P terminals; Z/R/T/X via adaptor kits
N-pole rated 100%; wide range of control voltages and internal accessories

Specifications

Rated operational voltage (Ue)	AC 690 V (AR: 500 V)
Rated insulation voltage (Ui)	1000 V
Rated impulse withstand voltage (Uimp)	12 kV
Frequency	50/60 Hz
Service breaking capacity (Ics)	100% Icu
Short-time withstand (Icw)	AN 42/25 kA, AH 50/30 kA (1 s/3 s); AR 10 kA
Mechanical endurance	Cat. B 12,500 / Cat. A 5,000 operations
Dimensions (draw-out, 3P/4P)	W 256/326 x D 274.5 x H 364.3 mm
Order suffix (specify separately)	Motor/closing/trip voltage, aux. contacts, OCR type, UVT, options
Standards	IEC 60947-2, GB 14048.2
Source	LS Electric Susol Compact ACB catalog C06001-04 (2022-01), p. 5, 8-9, 14-15, 22-23

AN-08C3-00A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C3-00J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C3-00H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C3-00V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C3-00M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C3-00N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C3-00P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V3-00A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V3-00J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V3-00H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V3-00V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V3-00M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V3-00N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V3-00P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C4-00A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C4-00J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C4-00H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C4-00V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C4-00M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C4-00N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C4-00P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V4-00A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V4-00J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V4-00H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V4-00V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V4-00M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V4-00N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V4-00P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C3-04A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C3-04J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C3-04H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C3-04V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C3-04M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C3-04N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C3-04P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V3-04A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V3-04J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V3-04H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V3-04V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V3-04M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V3-04N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V3-04P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C4-04A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C4-04J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C4-04H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C4-04V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C4-04M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C4-04N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C4-04P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V4-04A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V4-04J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V4-04H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V4-04V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V4-04M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V4-04N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V4-04P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C3-06A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C3-06J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C3-06H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C3-06V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C3-06M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C3-06N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C3-06P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V3-06A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V3-06J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V3-06H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V3-06V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V3-06M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V3-06N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V3-06P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C4-06A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C4-06J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C4-06H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C4-06V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C4-06M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C4-06N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C4-06P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V4-06A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V4-06J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V4-06H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V4-06V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V4-06M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V4-06N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V4-06P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C3-08A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C3-08J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C3-08H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C3-08V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C3-08M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C3-08N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C3-08P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V3-08A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V3-08J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V3-08H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V3-08V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V3-08M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V3-08N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V3-08P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-08C4-08A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-08C4-08J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-08C4-08H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-08C4-08V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-08C4-08M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-08C4-08N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-08C4-08P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-08V4-08A		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-08V4-08J		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-08V4-08H		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-08V4-08V		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-08V4-08M		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-08V4-08N		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-08V4-08P		Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C3-00A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C3-00J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C3-00H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C3-00V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C3-00M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C3-00N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C3-00P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V3-00A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V3-00J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V3-00H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V3-00V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V3-00M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V3-00N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V3-00P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C4-00A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C4-00J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C4-00H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C4-00V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C4-00M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C4-00N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C4-00P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V4-00A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V4-00J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V4-00H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V4-00V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V4-00M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V4-00N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V4-00P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C3-08A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C3-08J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C3-08H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C3-08V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C3-08M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C3-08N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C3-08P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V3-08A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V3-08J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V3-08H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V3-08V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V3-08M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V3-08N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V3-08P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C4-08A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C4-08J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C4-08H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C4-08V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C4-08M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C4-08N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C4-08P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V4-08A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V4-08J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V4-08H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V4-08V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V4-08M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V4-08N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V4-08P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C3-10A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C3-10J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C3-10H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C3-10V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C3-10M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C3-10N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C3-10P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V3-10A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V3-10J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V3-10H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V3-10V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V3-10M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V3-10N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V3-10P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C4-10A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C4-10J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C4-10H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C4-10V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C4-10M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C4-10N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C4-10P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V4-10A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V4-10J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V4-10H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V4-10V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V4-10M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V4-10N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V4-10P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C3-13A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C3-13J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C3-13H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C3-13V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C3-13M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C3-13N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C3-13P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V3-13A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V3-13J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V3-13H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V3-13V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V3-13M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V3-13N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V3-13P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C4-13A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C4-13J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C4-13H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C4-13V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C4-13M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C4-13N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C4-13P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V4-13A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V4-13J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V4-13H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V4-13V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V4-13M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V4-13N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V4-13P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C3-16A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C3-16J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C3-16H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C3-16V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C3-16M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C3-16N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C3-16P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V3-16A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V3-16J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V3-16H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V3-16V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V3-16M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V3-16N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V3-16P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AN-16C4-16A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AN-16C4-16J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AN-16C4-16H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AN-16C4-16V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AN-16C4-16M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AN-16C4-16N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AN-16C4-16P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AN-16V4-16A		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AN-16V4-16J		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AN-16V4-16H		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AN-16V4-16V		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AN-16V4-16M		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AN-16V4-16N		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AN-16V4-16P		Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C3-00A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C3-00J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C3-00H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C3-00V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C3-00M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C3-00N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C3-00P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V3-00A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V3-00J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V3-00H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V3-00V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V3-00M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V3-00N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V3-00P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C4-00A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C4-00J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C4-00H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C4-00V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C4-00M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C4-00N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C4-00P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V4-00A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V4-00J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V4-00H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V4-00V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V4-00M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V4-00N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V4-00P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C3-04A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C3-04J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C3-04H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C3-04V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C3-04M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C3-04N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C3-04P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V3-04A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V3-04J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V3-04H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V3-04V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V3-04M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V3-04N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V3-04P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C4-04A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C4-04J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C4-04H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C4-04V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C4-04M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C4-04N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C4-04P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V4-04A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V4-04J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V4-04H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V4-04V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V4-04M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V4-04N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V4-04P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C3-06A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C3-06J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C3-06H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C3-06V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C3-06M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C3-06N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C3-06P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V3-06A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V3-06J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V3-06H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V3-06V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V3-06M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V3-06N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V3-06P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C4-06A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C4-06J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C4-06H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C4-06V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C4-06M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C4-06N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C4-06P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V4-06A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V4-06J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V4-06H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V4-06V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V4-06M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V4-06N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V4-06P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C3-08A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C3-08J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C3-08H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C3-08V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C3-08M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C3-08N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C3-08P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V3-08A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V3-08J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V3-08H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V3-08V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V3-08M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V3-08N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V3-08P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-08C4-08A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-08C4-08J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-08C4-08H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-08C4-08V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-08C4-08M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-08C4-08N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-08C4-08P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-08V4-08A		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-08V4-08J		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-08V4-08H		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-08V4-08V		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-08V4-08M		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-08V4-08N		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-08V4-08P		Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C3-00A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C3-00J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C3-00H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C3-00V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C3-00M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C3-00N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C3-00P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V3-00A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V3-00J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V3-00H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V3-00V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V3-00M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V3-00N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V3-00P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C4-00A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C4-00J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C4-00H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C4-00V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C4-00M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C4-00N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C4-00P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V4-00A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V4-00J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V4-00H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V4-00V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V4-00M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V4-00N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V4-00P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C3-08A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C3-08J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C3-08H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C3-08V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C3-08M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C3-08N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C3-08P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V3-08A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V3-08J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V3-08H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V3-08V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V3-08M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V3-08N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V3-08P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C4-08A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C4-08J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C4-08H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C4-08V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C4-08M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C4-08N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C4-08P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V4-08A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V4-08J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V4-08H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V4-08V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V4-08M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V4-08N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V4-08P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C3-10A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C3-10J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C3-10H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C3-10V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C3-10M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C3-10N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C3-10P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V3-10A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V3-10J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V3-10H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V3-10V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V3-10M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V3-10N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V3-10P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C4-10A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C4-10J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C4-10H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C4-10V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C4-10M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C4-10N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C4-10P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V4-10A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V4-10J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V4-10H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V4-10V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V4-10M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V4-10N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V4-10P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C3-13A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C3-13J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C3-13H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C3-13V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C3-13M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C3-13N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C3-13P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V3-13A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V3-13J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V3-13H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V3-13V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V3-13M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V3-13N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V3-13P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C4-13A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C4-13J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C4-13H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C4-13V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C4-13M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C4-13N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C4-13P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V4-13A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V4-13J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V4-13H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V4-13V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V4-13M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V4-13N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V4-13P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C3-16A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C3-16J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C3-16H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C3-16V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C3-16M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C3-16N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C3-16P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V3-16A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V3-16J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V3-16H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V3-16V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V3-16M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V3-16N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V3-16P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AH-16C4-16A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AH-16C4-16J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AH-16C4-16H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AH-16C4-16V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AH-16C4-16M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AH-16C4-16N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AH-16C4-16P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AH-16V4-16A		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AH-16V4-16J		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AH-16V4-16H		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AH-16V4-16V		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AH-16V4-16M		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AH-16V4-16N		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AH-16V4-16P		Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C3-00A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C3-00J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C3-00H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C3-00V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C3-00M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C3-00N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C3-00P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V3-00A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V3-00J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V3-00H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V3-00V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V3-00M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V3-00N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V3-00P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C4-00A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C4-00J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C4-00H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C4-00V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C4-00M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C4-00N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C4-00P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V4-00A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V4-00J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V4-00H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V4-00V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V4-00M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V4-00N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V4-00P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C3-04A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C3-04J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C3-04H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C3-04V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C3-04M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C3-04N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C3-04P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V3-04A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V3-04J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V3-04H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V3-04V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V3-04M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V3-04N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V3-04P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C4-04A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C4-04J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C4-04H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C4-04V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C4-04M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C4-04N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C4-04P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V4-04A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V4-04J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V4-04H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V4-04V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V4-04M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V4-04N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V4-04P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C3-06A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C3-06J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C3-06H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C3-06V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C3-06M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C3-06N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C3-06P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V3-06A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V3-06J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V3-06H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V3-06V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V3-06M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V3-06N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V3-06P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C4-06A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C4-06J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C4-06H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C4-06V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C4-06M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C4-06N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C4-06P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V4-06A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V4-06J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V4-06H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V4-06V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V4-06M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V4-06N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V4-06P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C3-08A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C3-08J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C3-08H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C3-08V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C3-08M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C3-08N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C3-08P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V3-08A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V3-08J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V3-08H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V3-08V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V3-08M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V3-08N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V3-08P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-08C4-08A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-08C4-08J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-08C4-08H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-08C4-08V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-08C4-08M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-08C4-08N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-08C4-08P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-08V4-08A		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-08V4-08J		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-08V4-08H		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-08V4-08V		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-08V4-08M		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-08V4-08N		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-08V4-08P		Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-10C3-00A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-10C3-00J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-10C3-00H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-10C3-00V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-10C3-00M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-10C3-00N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-10C3-00P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-10V3-00A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-10V3-00J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-10V3-00H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-10V3-00V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-10V3-00M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-10V3-00N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-10V3-00P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-10C4-00A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-10C4-00J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-10C4-00H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-10C4-00V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-10C4-00M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-10C4-00N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-10C4-00P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-10V4-00A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-10V4-00J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-10V4-00H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-10V4-00V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-10V4-00M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-10V4-00N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-10V4-00P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-10C3-08A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-10C3-08J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-10C3-08H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-10C3-08V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-10C3-08M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-10C3-08N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-10C3-08P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-10V3-08A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-10V3-08J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-10V3-08H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-10V3-08V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-10V3-08M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-10V3-08N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-10V3-08P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-10C4-08A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-10C4-08J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-10C4-08H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-10C4-08V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-10C4-08M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-10C4-08N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-10C4-08P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-10V4-08A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-10V4-08J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-10V4-08H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-10V4-08V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-10V4-08M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-10V4-08N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-10V4-08P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-10C3-10A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-10C3-10J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-10C3-10H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-10C3-10V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-10C3-10M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-10C3-10N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-10C3-10P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-10V3-10A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-10V3-10J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-10V3-10H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-10V3-10V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-10V3-10M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-10V3-10N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-10V3-10P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
AR-10C4-10A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
AR-10C4-10J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
AR-10C4-10H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
AR-10C4-10V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
AR-10C4-10M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
AR-10C4-10N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
AR-10C4-10P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
AR-10V4-10A		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
AR-10V4-10J		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
AR-10V4-10H		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
AR-10V4-10V		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
AR-10V4-10M		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
AR-10V4-10N		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
AR-10V4-10P		Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals

Air Circuit BreakersLS Electric

700 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol Compact ACB AN/AH/AR (800-1600AF, 400-1600 A)

Brand LS Electric·Air Circuit Breakers

Available part numbers (700)

AN-08C3-00A, AN-08C3-00J, AN-08C3-00H, AN-08C3-00V, AN-08C3-00M, AN-08C3-00N, AN-08C3-00P, AN-08V3-00A, AN-08V3-00J, AN-08V3-00H + 690 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AN-08C3-00A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C3-00J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C3-00H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C3-00V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C3-00M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C3-00N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C3-00P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V3-00A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V3-00J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V3-00H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V3-00V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V3-00M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V3-00N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V3-00P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C4-00A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C4-00J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C4-00H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C4-00V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C4-00M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C4-00N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C4-00P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V4-00A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V4-00J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V4-00H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V4-00V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V4-00M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V4-00N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V4-00P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C3-04A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C3-04J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C3-04H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C3-04V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C3-04M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C3-04N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C3-04P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V3-04A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V3-04J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V3-04H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V3-04V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V3-04M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V3-04N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V3-04P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C4-04A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C4-04J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C4-04H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C4-04V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C4-04M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C4-04N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C4-04P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V4-04A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V4-04J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V4-04H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V4-04V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V4-04M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V4-04N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V4-04P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C3-06A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C3-06J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C3-06H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C3-06V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C3-06M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C3-06N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C3-06P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V3-06A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V3-06J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V3-06H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V3-06V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V3-06M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V3-06N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V3-06P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C4-06A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C4-06J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C4-06H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C4-06V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C4-06M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C4-06N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C4-06P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V4-06A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V4-06J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V4-06H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V4-06V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V4-06M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V4-06N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V4-06P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C3-08A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C3-08J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C3-08H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C3-08V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C3-08M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C3-08N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C3-08P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V3-08A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V3-08J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V3-08H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V3-08V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V3-08M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V3-08N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V3-08P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-08C4-08A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-08C4-08J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-08C4-08H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-08C4-08V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-08C4-08M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-08C4-08N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-08C4-08P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-08V4-08A	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-08V4-08J	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-08V4-08H	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-08V4-08V	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-08V4-08M	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-08V4-08N	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-08V4-08P	Model: AN-08C (800AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C3-00A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C3-00J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C3-00H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C3-00V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C3-00M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C3-00N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C3-00P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V3-00A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V3-00J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V3-00H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V3-00V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V3-00M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V3-00N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V3-00P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C4-00A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C4-00J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C4-00H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C4-00V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C4-00M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C4-00N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C4-00P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V4-00A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V4-00J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V4-00H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V4-00V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V4-00M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V4-00N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V4-00P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C3-08A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C3-08J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C3-08H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C3-08V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C3-08M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C3-08N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C3-08P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V3-08A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V3-08J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V3-08H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V3-08V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V3-08M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V3-08N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V3-08P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C4-08A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C4-08J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C4-08H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C4-08V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C4-08M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C4-08N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C4-08P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V4-08A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V4-08J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V4-08H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V4-08V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V4-08M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V4-08N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V4-08P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C3-10A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C3-10J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C3-10H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C3-10V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C3-10M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C3-10N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C3-10P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V3-10A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V3-10J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V3-10H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V3-10V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V3-10M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V3-10N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V3-10P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C4-10A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C4-10J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C4-10H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C4-10V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C4-10M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C4-10N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C4-10P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V4-10A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V4-10J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V4-10H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V4-10V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V4-10M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V4-10N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V4-10P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C3-13A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C3-13J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C3-13H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C3-13V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C3-13M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C3-13N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C3-13P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V3-13A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V3-13J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V3-13H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V3-13V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V3-13M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V3-13N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V3-13P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C4-13A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C4-13J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C4-13H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C4-13V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C4-13M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C4-13N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C4-13P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V4-13A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V4-13J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V4-13H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V4-13V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V4-13M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V4-13N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V4-13P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C3-16A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C3-16J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C3-16H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C3-16V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C3-16M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C3-16N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C3-16P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V3-16A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V3-16J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V3-16H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V3-16V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V3-16M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V3-16N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V3-16P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AN-16C4-16A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AN-16C4-16J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AN-16C4-16H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AN-16C4-16V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AN-16C4-16M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AN-16C4-16N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AN-16C4-16P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AN-16V4-16A	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AN-16V4-16J	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AN-16V4-16H	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AN-16V4-16V	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AN-16V4-16M	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AN-16V4-16N	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AN-16V4-16P	Model: AN-16C (1600AF) \| Breaking: Cat. B, Icu 42 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C3-00A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C3-00J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C3-00H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C3-00V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C3-00M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C3-00N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C3-00P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V3-00A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V3-00J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V3-00H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V3-00V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V3-00M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V3-00N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V3-00P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C4-00A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C4-00J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C4-00H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C4-00V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C4-00M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C4-00N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C4-00P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V4-00A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V4-00J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V4-00H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V4-00V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V4-00M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V4-00N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V4-00P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C3-04A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C3-04J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C3-04H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C3-04V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C3-04M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C3-04N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C3-04P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V3-04A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V3-04J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V3-04H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V3-04V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V3-04M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V3-04N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V3-04P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C4-04A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C4-04J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C4-04H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C4-04V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C4-04M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C4-04N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C4-04P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V4-04A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V4-04J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V4-04H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V4-04V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V4-04M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V4-04N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V4-04P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C3-06A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C3-06J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C3-06H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C3-06V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C3-06M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C3-06N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C3-06P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V3-06A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V3-06J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V3-06H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V3-06V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V3-06M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V3-06N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V3-06P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C4-06A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C4-06J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C4-06H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C4-06V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C4-06M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C4-06N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C4-06P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V4-06A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V4-06J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V4-06H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V4-06V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V4-06M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V4-06N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V4-06P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C3-08A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C3-08J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C3-08H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C3-08V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C3-08M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C3-08N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C3-08P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V3-08A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V3-08J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V3-08H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V3-08V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V3-08M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V3-08N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V3-08P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-08C4-08A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-08C4-08J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-08C4-08H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-08C4-08V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-08C4-08M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-08C4-08N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-08C4-08P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-08V4-08A	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-08V4-08J	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-08V4-08H	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-08V4-08V	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-08V4-08M	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-08V4-08N	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-08V4-08P	Model: AH-08C (800AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C3-00A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C3-00J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C3-00H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C3-00V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C3-00M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C3-00N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C3-00P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V3-00A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V3-00J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V3-00H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V3-00V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V3-00M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V3-00N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V3-00P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C4-00A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C4-00J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C4-00H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C4-00V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C4-00M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C4-00N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C4-00P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V4-00A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V4-00J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V4-00H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V4-00V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V4-00M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V4-00N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V4-00P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C3-08A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C3-08J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C3-08H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C3-08V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C3-08M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C3-08N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C3-08P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V3-08A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V3-08J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V3-08H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V3-08V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V3-08M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V3-08N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V3-08P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C4-08A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C4-08J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C4-08H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C4-08V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C4-08M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C4-08N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C4-08P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V4-08A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V4-08J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V4-08H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V4-08V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V4-08M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V4-08N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V4-08P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C3-10A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C3-10J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C3-10H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C3-10V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C3-10M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C3-10N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C3-10P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V3-10A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V3-10J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V3-10H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V3-10V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V3-10M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V3-10N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V3-10P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C4-10A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C4-10J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C4-10H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C4-10V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C4-10M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C4-10N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C4-10P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V4-10A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V4-10J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V4-10H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V4-10V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V4-10M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V4-10N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V4-10P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C3-13A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C3-13J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C3-13H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C3-13V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C3-13M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C3-13N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C3-13P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V3-13A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V3-13J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V3-13H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V3-13V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V3-13M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V3-13N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V3-13P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C4-13A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C4-13J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C4-13H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C4-13V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C4-13M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C4-13N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C4-13P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V4-13A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V4-13J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V4-13H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V4-13V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V4-13M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V4-13N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V4-13P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1250 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C3-16A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C3-16J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C3-16H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C3-16V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C3-16M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C3-16N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C3-16P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V3-16A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V3-16J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V3-16H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V3-16V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V3-16M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V3-16N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V3-16P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AH-16C4-16A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AH-16C4-16J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AH-16C4-16H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AH-16C4-16V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AH-16C4-16M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AH-16C4-16N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AH-16C4-16P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AH-16V4-16A	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AH-16V4-16J	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AH-16V4-16H	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AH-16V4-16V	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AH-16V4-16M	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AH-16V4-16N	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AH-16V4-16P	Model: AH-16C (1600AF) \| Breaking: Cat. B, Icu 50 kA/690V \| Rated current: 1600 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C3-00A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C3-00J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C3-00H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C3-00V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C3-00M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C3-00N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C3-00P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V3-00A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V3-00J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V3-00H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V3-00V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V3-00M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V3-00N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V3-00P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C4-00A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C4-00J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C4-00H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C4-00V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C4-00M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C4-00N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C4-00P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V4-00A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V4-00J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V4-00H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V4-00V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V4-00M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V4-00N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V4-00P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C3-04A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C3-04J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C3-04H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C3-04V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C3-04M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C3-04N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C3-04P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V3-04A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V3-04J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V3-04H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V3-04V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V3-04M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V3-04N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V3-04P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C4-04A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C4-04J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C4-04H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C4-04V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C4-04M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C4-04N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C4-04P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V4-04A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V4-04J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V4-04H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V4-04V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V4-04M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V4-04N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V4-04P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 400 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C3-06A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C3-06J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C3-06H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C3-06V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C3-06M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C3-06N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C3-06P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V3-06A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V3-06J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V3-06H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V3-06V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V3-06M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V3-06N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V3-06P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C4-06A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C4-06J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C4-06H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C4-06V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C4-06M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C4-06N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C4-06P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V4-06A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V4-06J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V4-06H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V4-06V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V4-06M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V4-06N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V4-06P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 630 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C3-08A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C3-08J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C3-08H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C3-08V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C3-08M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C3-08N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C3-08P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V3-08A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V3-08J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V3-08H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V3-08V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V3-08M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V3-08N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V3-08P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-08C4-08A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-08C4-08J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-08C4-08H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-08C4-08V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-08C4-08M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-08C4-08N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-08C4-08P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-08V4-08A	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-08V4-08J	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-08V4-08H	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-08V4-08V	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-08V4-08M	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-08V4-08N	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-08V4-08P	Model: AR-08C (800AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-10C3-00A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-10C3-00J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-10C3-00H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-10C3-00V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-10C3-00M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-10C3-00N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-10C3-00P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-10V3-00A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-10V3-00J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-10V3-00H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-10V3-00V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-10V3-00M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-10V3-00N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-10V3-00P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-10C4-00A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-10C4-00J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-10C4-00H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-10C4-00V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-10C4-00M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-10C4-00N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-10C4-00P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-10V4-00A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-10V4-00J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-10V4-00H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-10V4-00V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-10V4-00M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-10V4-00N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-10V4-00P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: No OCR & CT (00) \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-10C3-08A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-10C3-08J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-10C3-08H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-10C3-08V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-10C3-08M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-10C3-08N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-10C3-08P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-10V3-08A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-10V3-08J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-10V3-08H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-10V3-08V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-10V3-08M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-10V3-08N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-10V3-08P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-10C4-08A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-10C4-08J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-10C4-08H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-10C4-08V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-10C4-08M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-10C4-08N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-10C4-08P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-10V4-08A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-10V4-08J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-10V4-08H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-10V4-08V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-10V4-08M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-10V4-08N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-10V4-08P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 800 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-10C3-10A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-10C3-10J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-10C3-10H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-10C3-10V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-10C3-10M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-10C3-10N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-10C3-10P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-10V3-10A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-10V3-10J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-10V3-10H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-10V3-10V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-10V3-10M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-10V3-10N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-10V3-10P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 3P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals
	AR-10C4-10A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, auto-connect cradle
	AR-10C4-10J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Draw-out, manual-connect cradle
	AR-10C4-10H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, horizontal top/bottom
	AR-10C4-10V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, vertical top/bottom
	AR-10C4-10M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top horiz./bottom vert.
	AR-10C4-10N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, top vert./bottom horiz.
	AR-10C4-10P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Standard (N)RST \| Mounting: Fixed, front (flat) terminals
	AR-10V4-10A	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, auto-connect cradle
	AR-10V4-10J	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Draw-out, manual-connect cradle
	AR-10V4-10H	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, horizontal top/bottom
	AR-10V4-10V	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, vertical top/bottom
	AR-10V4-10M	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top horiz./bottom vert.
	AR-10V4-10N	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, top vert./bottom horiz.
	AR-10V4-10P	Model: AR-10C (1000AF) \| Breaking: Cat. A, Icu 150 kA/415V \| Rated current: 1000 A \| Poles: 4P \| Phase sequence: Reverse RST(N) \| Mounting: Fixed, front (flat) terminals

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol Compact ACB AN/AH/AR (800-1600AF, 400-1600 A)
