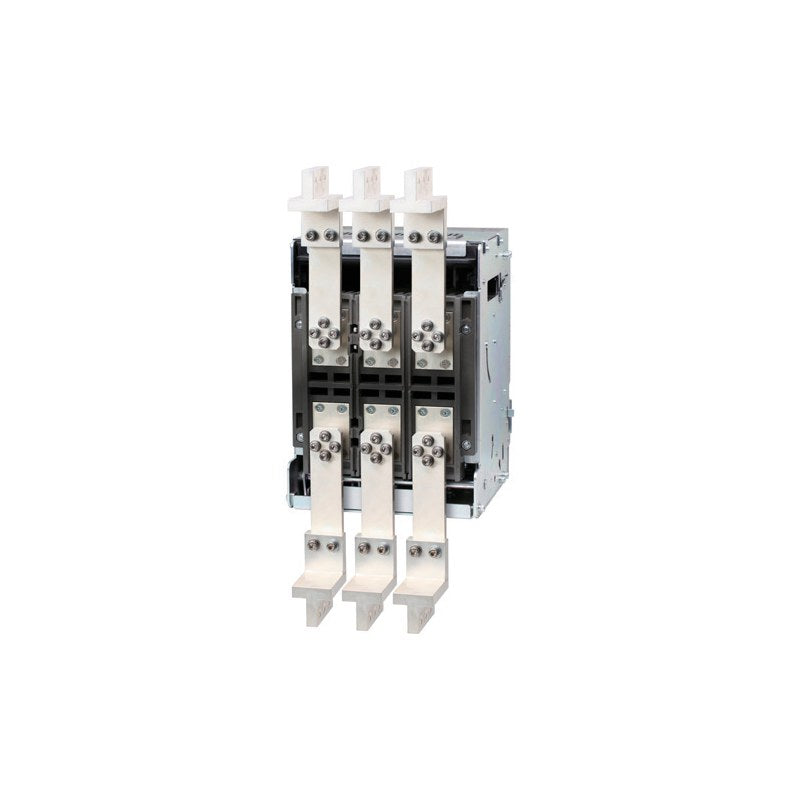

LS Electric Susol Compact ACB Cradles & Adaptor Kits

LS Electric Susol Compact ACB Cradles & Adaptor Kits

Draw-out cradles, terminal adaptor kits, arc screens and auxiliary switch parts for LS Electric Susol Compact ACB AN/AH/AW/AR and DH.

Key features

  • AL-H16C cradle is common to all AN/AH/AW/AR/DH bodies (400-1600 A)
  • Cradles with or without safety shutter, arc cover included (S)
  • Adaptor kits convert P (or H) terminals to Z, T, X or R connections
  • Arc screen required when ordering fixed P-type AH/AR/AW breakers
  • Micro-current auxiliary switch for PX/PC contact options

Specifications

Compatible series Susol Compact ACB AN/AH/AW/AR, DSU DH
Cradle frame H16C, 400-1600 A
Cradle control terminals A - automatic connection
Cradle arc cover S - with arc cover
Spreader/lug connections Order P (R: H) type plus adaptor kit
Source LS Electric Susol Compact ACB catalog C06001-04 (2022-01), p. 22-24
AL-H16C3-AHES Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Horizontal top/bottom | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-AHFS Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Horizontal top/bottom | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-AVES Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Vertical top/bottom | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-AVFS Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Vertical top/bottom | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-AMES Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Top horiz./bottom vert. | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-AMFS Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Top horiz./bottom vert. | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-ANES Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Top vert./bottom horiz. | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-ANFS Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Top vert./bottom horiz. | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-APES Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Front (flat) terminals | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C3-APFS Item: Cradle AL-H16C (400-1600 A) | Poles: 3P | Terminal: Front (flat) terminals | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-AHES Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Horizontal top/bottom | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-AHFS Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Horizontal top/bottom | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-AVES Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Vertical top/bottom | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-AVFS Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Vertical top/bottom | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-AMES Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Top horiz./bottom vert. | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-AMFS Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Top horiz./bottom vert. | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-ANES Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Top vert./bottom horiz. | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-ANFS Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Top vert./bottom horiz. | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-APES Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Front (flat) terminals | Shutter: Without safety shutter | For: All AN/AH/AW/AR/DH bodies
AL-H16C4-APFS Item: Cradle AL-H16C (400-1600 A) | Poles: 4P | Terminal: Front (flat) terminals | Shutter: With safety shutter | For: All AN/AH/AW/AR/DH bodies
62363471501 Item: Adaptor kit, draw-out cradle | Poles: 3P | Terminal: P - front | Shutter: N/A | For: Draw-out (cradle)
62363471502 Item: Adaptor kit, draw-out cradle | Poles: 4P | Terminal: P - front | Shutter: N/A | For: Draw-out (cradle)
62363471503 Item: Adaptor kit, draw-out cradle | Poles: 3P | Terminal: Z - front spreader | Shutter: N/A | For: Draw-out (cradle)
62363471504 Item: Adaptor kit, draw-out cradle | Poles: 4P | Terminal: Z - front spreader | Shutter: N/A | For: Draw-out (cradle)
62363471505 Item: Adaptor kit, draw-out cradle | Poles: 3P | Terminal: T - spreader vertical | Shutter: N/A | For: Draw-out (cradle)
62363471506 Item: Adaptor kit, draw-out cradle | Poles: 4P | Terminal: T - spreader vertical | Shutter: N/A | For: Draw-out (cradle)
62363471507 Item: Adaptor kit, draw-out cradle | Poles: 3P | Terminal: X - cable lug | Shutter: N/A | For: Draw-out (cradle)
62363471508 Item: Adaptor kit, draw-out cradle | Poles: 4P | Terminal: X - cable lug | Shutter: N/A | For: Draw-out (cradle)
62363471509 Item: Adaptor kit, fixed type | Poles: 3P | Terminal: Z - front spreader | Shutter: N/A | For: Fixed (order P body)
62363471510 Item: Adaptor kit, fixed type | Poles: 4P | Terminal: Z - front spreader | Shutter: N/A | For: Fixed (order P body)
62363471511 Item: Adaptor kit, fixed type | Poles: 3P | Terminal: T - spreader vertical | Shutter: N/A | For: Fixed (order P body)
62363471512 Item: Adaptor kit, fixed type | Poles: 4P | Terminal: T - spreader vertical | Shutter: N/A | For: Fixed (order P body)
62363471513 Item: Adaptor kit, fixed type | Poles: 3P | Terminal: X - cable lug | Shutter: N/A | For: Fixed (order P body)
62363471514 Item: Adaptor kit, fixed type | Poles: 4P | Terminal: X - cable lug | Shutter: N/A | For: Fixed (order P body)
62363471515 Item: Adaptor kit, fixed type | Poles: 3P | Terminal: R - horizontal spreader | Shutter: N/A | For: Fixed (order H body)
62363471516 Item: Adaptor kit, fixed type | Poles: 4P | Terminal: R - horizontal spreader | Shutter: N/A | For: Fixed (order H body)
72313471504 Item: Arc screen, fixed P type | Poles: 3P | Terminal: P - front | Shutter: N/A | For: Fixed P (AH/AR/AW)
72313471506 Item: Arc screen, fixed P type | Poles: 4P | Terminal: P - front | Shutter: N/A | For: Fixed P (AH/AR/AW)
83011176209 Item: Micro-current auxiliary switch | Poles: N/A | Terminal: N/A | Shutter: N/A | For: Breaker body (PX/PC)
