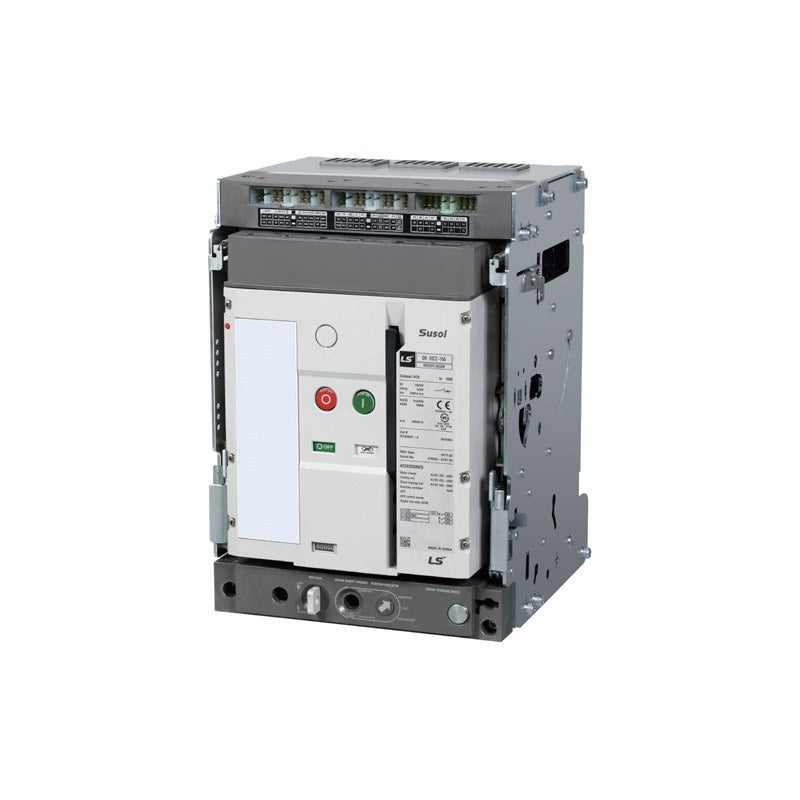

LS Electric Susol Compact DSU DH Switch-Disconnector (800-1600AF)

LS Electric Susol Compact DSU DH Switch-Disconnector (800-1600AF)

LS Electric Susol Compact DSU DH air switch-disconnectors to IEC 60947-3, 800-1600 A, built on the Compact ACB platform without trip relay and CTs.

Key features

  • Air switch-disconnector (no OCR/CT) to IEC 60947-3
  • Rated operational current 800, 1000, 1250 and 1600 A; N-pole 100%
  • Short-time withstand Icw 50 kA/1 s, making capacity Icm 105 kA
  • Same dimensions and cradle (AL-H16C) as the Susol Compact ACB
  • Draw-out or fixed versions, 3P/4P, standard or reverse phase sequence

Specifications

Rated operational voltage (Ue) AC 690 V
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 12 kV
Frequency 50/60 Hz
Rated making capacity (Icm) 105 kA
Short-time withstand (Icw) 50 kA / 1 s
Endurance Mechanical 12,500 / electrical 5,000 operations
Weight (3P/4P) Draw-out 22/26 kg, fixed 16/19.5 kg
Standard IEC 60947-3
Source LS Electric Susol Compact ACB catalog C06001-04 (2022-01), p. 10-11, 22
