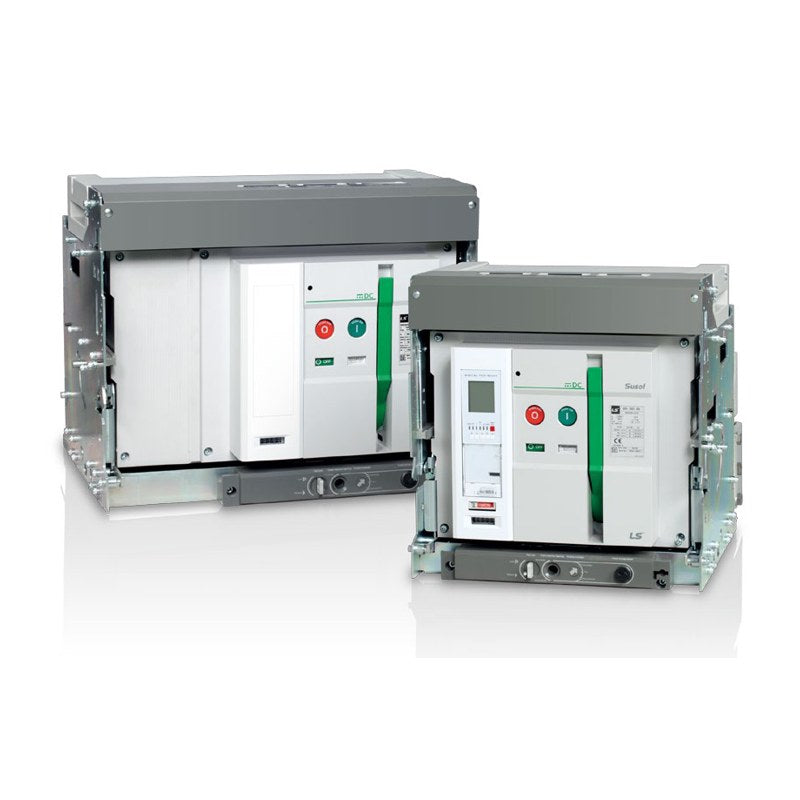

LS Electric Susol DC ACB ADH/ADV Air Circuit Breaker (800-4000A)

LS Electric Susol DC ACB ADH/ADV Air Circuit Breaker (800-4000A)

LS Electric Susol DC air circuit breakers ADH (up to 1200 Vdc) and ADV (up to 1500 Vdc), 800-4000 A, with a built-in DC multi-function trip relay for UPS, PV and ESS systems.

Key features

  • ADH: 750 Vdc (3P) / 1200 Vdc (4P); ADV: 1000 Vdc (3P) / 1500 Vdc (4P)
  • Frames 1600, 2500, 3200 and 4000 AF; rated current set by rating plug 800-4000 A
  • DC-dedicated digital trip relay with current, voltage and power protection, metering and fault waveform recording
  • Short-time withstand up to 65 kA/1 s; Ics = 100% Icu
  • Draw-out (automatic or manual connection) or fixed type with horizontal, vertical, mixed or front terminals
  • Shares coils, accessories and installation dimensions with standard Susol ACB

Specifications

Rated insulation voltage (Ui) 1500 V
Rated impulse withstand voltage (Uimp) 12 kV
Rated making capacity (Icm) 100 kA peak
Utilization category B (IEC 60947-2)
Break time 75 ms max. (< Icw), 25 ms max. (> Icw)
Closing time 80 ms max.
Mechanical endurance 15,000 operations
Dimensions (H x W x D) Draw-out 430 x 412 (527) x 375 mm; fixed 300 x 378 (493) x 295 mm
Standard IEC 60947-2, CB certified
Source LS Electric Susol DC ACB catalog C06021-08 (2026-06), p. 4-7, 18
ADH-16E3-08A Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-08J Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-08H Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-08V Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-08M Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-08N Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-08P Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-10A Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-10J Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-10H Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-10V Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-10M Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-10N Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-10P Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-13A Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-13J Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-13H Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-13V Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-13M Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-13N Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-13P Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-16A Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-16J Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-16H Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-16V Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-16M Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-16N Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-16P Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E4-08A Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-08J Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-08H Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-08V Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-08M Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-08N Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-08P Model: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-10A Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-10J Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-10H Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-10V Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-10M Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-10N Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-10P Model: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-13A Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-13J Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-13H Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-13V Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-13M Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-13N Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-13P Model: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-16A Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-16J Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-16H Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-16V Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-16M Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-16N Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-16P Model: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-25E3-20A Model: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-25E3-20J Model: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-25E3-20V Model: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-25E3-25A Model: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-25E3-25J Model: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-25E3-25V Model: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-25E4-20A Model: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-20J Model: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-20V Model: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-25E4-25A Model: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-25J Model: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-25V Model: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-32E3-20A Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-32E3-20J Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-32E3-20M Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-32E3-20N Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-32E3-25A Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-32E3-25J Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-32E3-25M Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-32E3-25N Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-32E3-32A Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-32E3-32J Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-32E3-32M Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-32E3-32N Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-32E4-20A Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-20J Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-20M Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 1200 Vdc
ADH-32E4-20N Model: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 1200 Vdc
ADH-32E4-25A Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-25J Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-25M Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 1200 Vdc
ADH-32E4-25N Model: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 1200 Vdc
ADH-32E4-32A Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-32J Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-32M Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 1200 Vdc
ADH-32E4-32N Model: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 1200 Vdc
ADH-40E3-20A Model: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-20J Model: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-20V Model: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E3-25A Model: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-25J Model: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-25V Model: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E3-32A Model: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-32J Model: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-32V Model: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E3-40A Model: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-40J Model: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-40V Model: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E4-20A Model: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-20J Model: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-20V Model: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-40E4-25A Model: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-25J Model: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-25V Model: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-40E4-32A Model: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-32J Model: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-32V Model: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-40E4-40A Model: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-40J Model: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-40V Model: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADV-16E3-08A Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-08J Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-08H Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-08V Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-08M Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-08N Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-08P Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-10A Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-10J Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-10H Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-10V Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-10M Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-10N Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-10P Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-13A Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-13J Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-13H Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-13V Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-13M Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-13N Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-13P Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-16A Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-16J Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-16H Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-16V Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-16M Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-16N Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-16P Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E4-08A Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-08J Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-08H Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-08V Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-08M Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-08N Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-08P Model: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-10A Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-10J Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-10H Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-10V Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-10M Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-10N Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-10P Model: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-13A Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-13J Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-13H Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-13V Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-13M Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-13N Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-13P Model: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-16A Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-16J Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-16H Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-16V Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-16M Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-16N Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-16P Model: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-25E3-20A Model: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-20J Model: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-20V Model: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-25E3-25A Model: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-25J Model: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-25V Model: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-25E4-20A Model: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-20J Model: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-20V Model: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-25E4-25A Model: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-25J Model: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-25V Model: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-32E3-20A Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-20J Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-20M Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1000 Vdc
ADV-32E3-20N Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1000 Vdc
ADV-32E3-25A Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-25J Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-25M Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1000 Vdc
ADV-32E3-25N Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1000 Vdc
ADV-32E3-32A Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-32J Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-32M Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1000 Vdc
ADV-32E3-32N Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1000 Vdc
ADV-32E4-20A Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-20J Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-20M Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1500 Vdc
ADV-32E4-20N Model: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1500 Vdc
ADV-32E4-25A Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-25J Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-25M Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1500 Vdc
ADV-32E4-25N Model: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1500 Vdc
ADV-32E4-32A Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-32J Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-32M Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1500 Vdc
ADV-32E4-32N Model: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1500 Vdc
ADV-40E3-20A Model: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-20J Model: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-20V Model: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E3-25A Model: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-25J Model: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-25V Model: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E3-32A Model: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-32J Model: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-32V Model: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E3-40A Model: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-40J Model: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-40V Model: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E4-20A Model: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-20J Model: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-20V Model: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-40E4-25A Model: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-25J Model: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-25V Model: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-40E4-32A Model: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-32J Model: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-32V Model: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-40E4-40A Model: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-40J Model: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-40V Model: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
Air Circuit BreakersLS Electric
232 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol DC ACB ADH/ADV Air Circuit Breaker (800-4000A)

Brand LS Electric·Air Circuit Breakers

Available part numbers (232)

ADH-16E3-08A, ADH-16E3-08J, ADH-16E3-08H, ADH-16E3-08V, ADH-16E3-08M, ADH-16E3-08N, ADH-16E3-08P, ADH-16E3-10A, ADH-16E3-10J, ADH-16E3-10H + 222 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ADH-16E3-08AModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-08JModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-08HModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-08VModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-08MModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-08NModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-08PModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-10AModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-10JModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-10HModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-10VModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-10MModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-10NModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-10PModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-13AModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-13JModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-13HModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-13VModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-13MModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-13NModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-13PModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-16AModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-16E3-16JModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-16E3-16HModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, horizontal terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-16VModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-16E3-16MModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-16E3-16NModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-16E3-16PModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 750 Vdc | Installation: Fixed, front (flat) terminals | Icu: 40 kA at 750 Vdc
ADH-16E4-08AModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-08JModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-08HModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-08VModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-08MModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-08NModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-08PModel: ADH-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-10AModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-10JModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-10HModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-10VModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-10MModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-10NModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-10PModel: ADH-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-13AModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-13JModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-13HModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-13VModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-13MModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-13NModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-13PModel: ADH-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-16AModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-16JModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 35 kA at 1200 Vdc
ADH-16E4-16HModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, horizontal terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-16VModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 35 kA at 1200 Vdc
ADH-16E4-16MModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 35 kA at 1200 Vdc
ADH-16E4-16NModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 35 kA at 1200 Vdc
ADH-16E4-16PModel: ADH-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1200 Vdc | Installation: Fixed, front (flat) terminals | Icu: 35 kA at 1200 Vdc
ADH-25E3-20AModel: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-25E3-20JModel: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-25E3-20VModel: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-25E3-25AModel: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-25E3-25JModel: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-25E3-25VModel: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-25E4-20AModel: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-20JModel: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-20VModel: ADH-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-25E4-25AModel: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-25JModel: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-25E4-25VModel: ADH-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-32E3-20AModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-32E3-20JModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-32E3-20MModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-32E3-20NModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-32E3-25AModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-32E3-25JModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-32E3-25MModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-32E3-25NModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-32E3-32AModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-32E3-32JModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-32E3-32MModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 750 Vdc
ADH-32E3-32NModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 750 Vdc
ADH-32E4-20AModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-20JModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-20MModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 1200 Vdc
ADH-32E4-20NModel: ADH-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 1200 Vdc
ADH-32E4-25AModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-25JModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-25MModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 1200 Vdc
ADH-32E4-25NModel: ADH-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 1200 Vdc
ADH-32E4-32AModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-32JModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-32E4-32MModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 40 kA at 1200 Vdc
ADH-32E4-32NModel: ADH-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 40 kA at 1200 Vdc
ADH-40E3-20AModel: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-20JModel: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-20VModel: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E3-25AModel: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-25JModel: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-25VModel: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E3-32AModel: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-32JModel: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-32VModel: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E3-40AModel: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 750 Vdc
ADH-40E3-40JModel: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 750 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 750 Vdc
ADH-40E3-40VModel: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 750 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 750 Vdc
ADH-40E4-20AModel: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-20JModel: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-20VModel: ADH-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-40E4-25AModel: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-25JModel: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-25VModel: ADH-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-40E4-32AModel: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-32JModel: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-32VModel: ADH-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADH-40E4-40AModel: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, automatic connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-40JModel: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1200 Vdc | Installation: Draw-out, manual connection | Icu: 40 kA at 1200 Vdc
ADH-40E4-40VModel: ADH-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1200 Vdc | Installation: Fixed, vertical terminals | Icu: 40 kA at 1200 Vdc
ADV-16E3-08AModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-08JModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-08HModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-08VModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-08MModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-08NModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-08PModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-10AModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-10JModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-10HModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-10VModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-10MModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-10NModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-10PModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-13AModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-13JModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-13HModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-13VModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-13MModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-13NModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-13PModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-16AModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-16JModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1000 Vdc
ADV-16E3-16HModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-16VModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1000 Vdc
ADV-16E3-16MModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1000 Vdc
ADV-16E3-16NModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1000 Vdc
ADV-16E3-16PModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 3P, 1000 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1000 Vdc
ADV-16E4-08AModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-08JModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-08HModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-08VModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-08MModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-08NModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-08PModel: ADV-16E (1600 AF) | Rated current In: 800 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-10AModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-10JModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-10HModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-10VModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-10MModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-10NModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-10PModel: ADV-16E (1600 AF) | Rated current In: 1000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-13AModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-13JModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-13HModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-13VModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-13MModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-13NModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-13PModel: ADV-16E (1600 AF) | Rated current In: 1300 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-16AModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-16JModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 50 kA at 1500 Vdc
ADV-16E4-16HModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, horizontal terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-16VModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 50 kA at 1500 Vdc
ADV-16E4-16MModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 50 kA at 1500 Vdc
ADV-16E4-16NModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 50 kA at 1500 Vdc
ADV-16E4-16PModel: ADV-16E (1600 AF) | Rated current In: 1600 A | Poles: 4P, 1500 Vdc | Installation: Fixed, front (flat) terminals | Icu: 50 kA at 1500 Vdc
ADV-25E3-20AModel: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-20JModel: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-20VModel: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-25E3-25AModel: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-25JModel: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-25E3-25VModel: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-25E4-20AModel: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-20JModel: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-20VModel: ADV-25E (2500 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-25E4-25AModel: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-25JModel: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-25E4-25VModel: ADV-25E (2500 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-32E3-20AModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-20JModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-20MModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1000 Vdc
ADV-32E3-20NModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1000 Vdc
ADV-32E3-25AModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-25JModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-25MModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1000 Vdc
ADV-32E3-25NModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1000 Vdc
ADV-32E3-32AModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-32JModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-32E3-32MModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1000 Vdc
ADV-32E3-32NModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1000 Vdc
ADV-32E4-20AModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-20JModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-20MModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1500 Vdc
ADV-32E4-20NModel: ADV-32E (3200 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1500 Vdc
ADV-32E4-25AModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-25JModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-25MModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1500 Vdc
ADV-32E4-25NModel: ADV-32E (3200 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1500 Vdc
ADV-32E4-32AModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-32JModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-32E4-32MModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top horiz. / bottom vertical | Icu: 60 kA at 1500 Vdc
ADV-32E4-32NModel: ADV-32E (3200 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Fixed, top vertical / bottom horiz. | Icu: 60 kA at 1500 Vdc
ADV-40E3-20AModel: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-20JModel: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-20VModel: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E3-25AModel: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-25JModel: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-25VModel: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E3-32AModel: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-32JModel: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-32VModel: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E3-40AModel: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-40JModel: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 1000 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1000 Vdc
ADV-40E3-40VModel: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 3P, 1000 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1000 Vdc
ADV-40E4-20AModel: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-20JModel: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-20VModel: ADV-40E (4000 AF) | Rated current In: 2000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-40E4-25AModel: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-25JModel: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-25VModel: ADV-40E (4000 AF) | Rated current In: 2500 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-40E4-32AModel: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-32JModel: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-32VModel: ADV-40E (4000 AF) | Rated current In: 3200 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc
ADV-40E4-40AModel: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, automatic connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-40JModel: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1500 Vdc | Installation: Draw-out, manual connection | Icu: 60 kA at 1500 Vdc
ADV-40E4-40VModel: ADV-40E (4000 AF) | Rated current In: 4000 A | Poles: 4P, 1500 Vdc | Installation: Fixed, vertical terminals | Icu: 60 kA at 1500 Vdc

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
