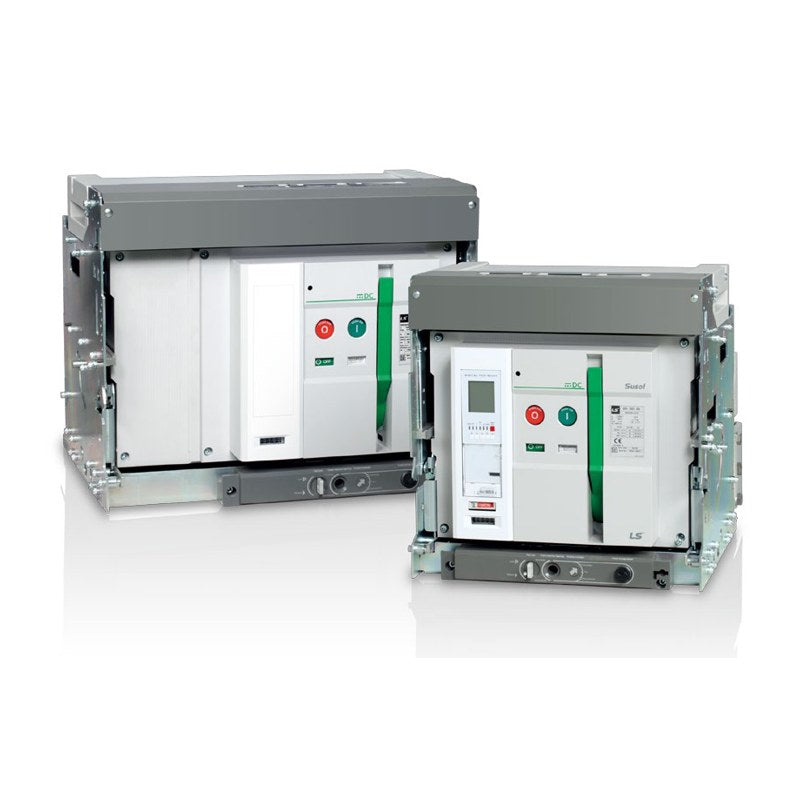

LS Electric Susol DC ACB / DSU Short Busbars and Terminal Kits

LS Electric Susol DC ACB / DSU Short Busbars and Terminal Kits

LS Electric order-coded short busbar sets, heat sinks and P-type terminal sets for Susol DC ACB, DC switch-disconnectors and DC Compact DSU.

Key features

  • Short busbars sized to hold rated current within temperature-rise limits of DC frames
  • Heat-sink versions for 2000-3200 A E-frame and D-frame ratings
  • P-type front terminal sets for DDV/DDX E-frame up to 2500 AF
  • DC Compact DSU busbar sets for vertical/horizontal and front connection
  • Busbar tightening torque 40-50 N.m (DC ACB)

Specifications

Brand LS Electric
Series Susol DC ACB / DC Switch-Disconnector
Product group Main-circuit connection accessories
Hardware M8/M10/M12 bolts, nuts and washers included
Supply Ordered separately from breaker body
Fastening torque 40-50 N.m (DC ACB busbars)
Source LS Electric Susol DC ACB catalog C06021-08 (2026-06), p. 55; LS Electric Susol DC Compact DSU catalog C06011-03 (2024-03), p. 37
70223464603 Item: Short busbar set 75 mm x 10t | Applies to: ADH/ADV/DD* E to 3200AF | Order quantity: 3P (1 set) | Catalog: C06021-08 p. 55
70223464623 Item: Short busbar set 75 mm x 10t | Applies to: ADH/ADV/DD* E to 3200AF | Order quantity: 4P (1 set) | Catalog: C06021-08 p. 55
70223464604 Item: Short busbar set 125 mm x 10t | Applies to: ADH/ADV/DDH/DDV/DDZ E 4000AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223464620 Item: Short busbar L-type + heat sink | Applies to: ADH/ADV E 3200AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223461600 Item: Short busbar L-type 135x100 mm | Applies to: DDH/DDV D 1600AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223461601 Item: Short busbar L-type + heat sink | Applies to: DDH/DDV D 2000AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223461602 Item: Short busbar 125 mm + heat sink | Applies to: DDV D 2500AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223467607 Item: Short busbar 190 mm x 15t | Applies to: DDV/DDX E to 2500AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
62363463608 Item: P-type terminal set 85 mm x 25t | Applies to: DDV/DDX E to 2500AF | Order quantity: 3P | Catalog: C06021-08 p. 55
62363464615 Item: P-type terminal set 85 mm x 25t | Applies to: DDV/DDX E to 2500AF | Order quantity: 4P | Catalog: C06021-08 p. 55
70223472600 Item: Short busbar + heat sink, V/H | Applies to: DC Compact DSU 800-1600A | Order quantity: 3P 1 unit, 4P 2 units | Catalog: C06011-03 p. 37
70223472603 Item: Short busbar, front type | Applies to: DC Compact DSU fixed 800-1000A | Order quantity: 3P 1 unit, 4P 2 units | Catalog: C06011-03 p. 37
70223472601 Item: Short busbar + heat sink, front | Applies to: DC Compact DSU fixed 1250A | Order quantity: 3P 1 unit, 4P 2 units | Catalog: C06011-03 p. 37
70223472602 Item: Short busbar + heat sink, front L | Applies to: DC Compact DSU fixed 1600A | Order quantity: Left side | Catalog: C06011-03 p. 37
70223472609 Item: Short busbar + heat sink, front R | Applies to: DC Compact DSU fixed 1600A | Order quantity: Right side | Catalog: C06011-03 p. 37
AccessoriesLS Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol DC ACB / DSU Short Busbars and Terminal Kits

Brand LS Electric·Accessories

Available part numbers (15)

70223464603, 70223464623, 70223464604, 70223464620, 70223461600, 70223461601, 70223461602, 70223467607, 62363463608, 62363464615 + 5 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
70223464603Item: Short busbar set 75 mm x 10t | Applies to: ADH/ADV/DD* E to 3200AF | Order quantity: 3P (1 set) | Catalog: C06021-08 p. 55
70223464623Item: Short busbar set 75 mm x 10t | Applies to: ADH/ADV/DD* E to 3200AF | Order quantity: 4P (1 set) | Catalog: C06021-08 p. 55
70223464604Item: Short busbar set 125 mm x 10t | Applies to: ADH/ADV/DDH/DDV/DDZ E 4000AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223464620Item: Short busbar L-type + heat sink | Applies to: ADH/ADV E 3200AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223461600Item: Short busbar L-type 135x100 mm | Applies to: DDH/DDV D 1600AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223461601Item: Short busbar L-type + heat sink | Applies to: DDH/DDV D 2000AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223461602Item: Short busbar 125 mm + heat sink | Applies to: DDV D 2500AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
70223467607Item: Short busbar 190 mm x 15t | Applies to: DDV/DDX E to 2500AF | Order quantity: 3P 1 pc, 4P 2 pcs | Catalog: C06021-08 p. 55
62363463608Item: P-type terminal set 85 mm x 25t | Applies to: DDV/DDX E to 2500AF | Order quantity: 3P | Catalog: C06021-08 p. 55
62363464615Item: P-type terminal set 85 mm x 25t | Applies to: DDV/DDX E to 2500AF | Order quantity: 4P | Catalog: C06021-08 p. 55
70223472600Item: Short busbar + heat sink, V/H | Applies to: DC Compact DSU 800-1600A | Order quantity: 3P 1 unit, 4P 2 units | Catalog: C06011-03 p. 37
70223472603Item: Short busbar, front type | Applies to: DC Compact DSU fixed 800-1000A | Order quantity: 3P 1 unit, 4P 2 units | Catalog: C06011-03 p. 37
70223472601Item: Short busbar + heat sink, front | Applies to: DC Compact DSU fixed 1250A | Order quantity: 3P 1 unit, 4P 2 units | Catalog: C06011-03 p. 37
70223472602Item: Short busbar + heat sink, front L | Applies to: DC Compact DSU fixed 1600A | Order quantity: Left side | Catalog: C06011-03 p. 37
70223472609Item: Short busbar + heat sink, front R | Applies to: DC Compact DSU fixed 1600A | Order quantity: Right side | Catalog: C06011-03 p. 37
