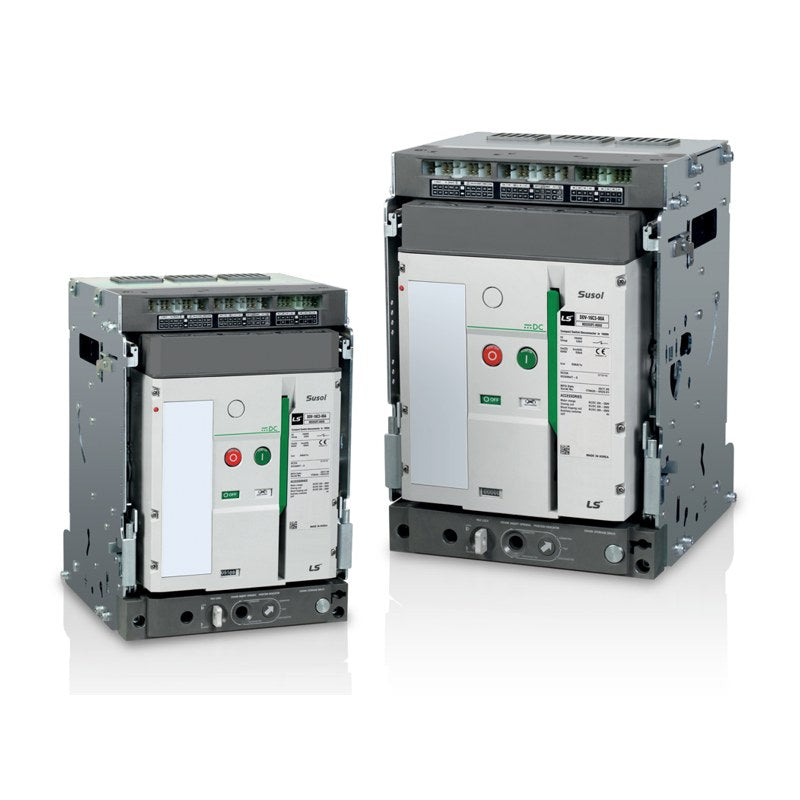

LS Electric Susol DC Compact Switch-Disconnector DDH/DDV-C (800-1600A)

LS Electric Susol DC Compact air-break switch-disconnectors DDH-C and DDV-C, 800-1600 A up to 1500 Vdc, in a 256 mm wide (3P) frame for PV and ESS panels.

Key features

DDH: 750 Vdc (3P) / 1200 Vdc (4P); DDV: 750 Vdc (2P, fixed) / 1000 Vdc (3P) / 1500 Vdc (4P)
Rated current 800, 1000, 1250, 1600 A; short-time withstand 50 kA/1 s
Maintenance-free switching endurance 12,500 operations
Draw-out or fixed with H, V, M, N, P, Z, R, T terminals or cable lug (X)
Motor, closing/trip coil, UVT and auxiliary switch options as for Susol Compact ACB

Specifications

Frame size	C (800-1600 AF)
Rated insulation voltage (Ui)	1500 V
Rated impulse withstand voltage (Uimp)	12 kV
Rated making current (Icm)	50 kA peak
Rated short-time current (Icw)	50 kA/1 s
Trip relay	None (code 00)
Opening / closing time	40 ms / 80 ms max.
Weight	Fixed 15.5 kg (3P), 19 kg (4P), 14 kg (2P)
Dimensions (W x H x D)	Fixed 283 x 219.5 x 272.4 mm (3P), 342.4 mm deep (4P)
Standards	IEC 60947-3 (DEKRA CB), GB 14048.3 (CCC)
Source	LS Electric Susol DC Compact DSU catalog C06011-03 (2024-03), p. 5, 9, 14

DDH-08C3-00A		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-08C3-00H		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-08C3-00V		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-08C3-00M		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-08C3-00N		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-08C3-00P		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-08C3-00Z		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-08C3-00R		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-08C3-00T		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-08C3-00X		Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-08C4-00A		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-08C4-00H		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-08C4-00V		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-08C4-00M		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-08C4-00N		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-08C4-00P		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-08C4-00Z		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-08C4-00R		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-08C4-00T		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-08C4-00X		Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-10C3-00A		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-10C3-00H		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-10C3-00V		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-10C3-00M		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-10C3-00N		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-10C3-00P		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-10C3-00Z		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-10C3-00R		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-10C3-00T		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-10C3-00X		Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-10C4-00A		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-10C4-00H		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-10C4-00V		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-10C4-00M		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-10C4-00N		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-10C4-00P		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-10C4-00Z		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-10C4-00R		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-10C4-00T		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-10C4-00X		Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-13C3-00A		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-13C3-00H		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-13C3-00V		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-13C3-00M		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-13C3-00N		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-13C3-00P		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-13C3-00Z		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-13C3-00R		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-13C3-00T		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-13C3-00X		Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-13C4-00A		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-13C4-00H		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-13C4-00V		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-13C4-00M		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-13C4-00N		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-13C4-00P		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-13C4-00Z		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-13C4-00R		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-13C4-00T		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-13C4-00X		Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-16C3-00A		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-16C3-00H		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-16C3-00V		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-16C3-00M		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-16C3-00N		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-16C3-00P		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-16C3-00Z		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-16C3-00R		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-16C3-00T		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-16C3-00X		Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDH-16C4-00A		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDH-16C4-00H		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDH-16C4-00V		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDH-16C4-00M		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-16C4-00N		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-16C4-00P		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDH-16C4-00Z		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDH-16C4-00R		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDH-16C4-00T		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDH-16C4-00X		Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-08C2-00V		Model: DDV-08C \| Rated current: 800 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
DDV-08C3-00A		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-08C3-00H		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-08C3-00V		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-08C3-00M		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-08C3-00N		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-08C3-00P		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-08C3-00Z		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-08C3-00R		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-08C3-00T		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-08C3-00X		Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-08C4-00A		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-08C4-00H		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-08C4-00V		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-08C4-00M		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-08C4-00N		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-08C4-00P		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-08C4-00Z		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-08C4-00R		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-08C4-00T		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-08C4-00X		Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-10C2-00V		Model: DDV-10C \| Rated current: 1000 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
DDV-10C3-00A		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-10C3-00H		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-10C3-00V		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-10C3-00M		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-10C3-00N		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-10C3-00P		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-10C3-00Z		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-10C3-00R		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-10C3-00T		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-10C3-00X		Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-10C4-00A		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-10C4-00H		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-10C4-00V		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-10C4-00M		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-10C4-00N		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-10C4-00P		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-10C4-00Z		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-10C4-00R		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-10C4-00T		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-10C4-00X		Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-13C2-00V		Model: DDV-13C \| Rated current: 1300 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
DDV-13C3-00A		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-13C3-00H		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-13C3-00V		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-13C3-00M		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-13C3-00N		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-13C3-00P		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-13C3-00Z		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-13C3-00R		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-13C3-00T		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-13C3-00X		Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-13C4-00A		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-13C4-00H		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-13C4-00V		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-13C4-00M		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-13C4-00N		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-13C4-00P		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-13C4-00Z		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-13C4-00R		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-13C4-00T		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-13C4-00X		Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-16C2-00V		Model: DDV-16C \| Rated current: 1600 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
DDV-16C3-00A		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-16C3-00H		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-16C3-00V		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-16C3-00M		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-16C3-00N		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-16C3-00P		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-16C3-00Z		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-16C3-00R		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-16C3-00T		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-16C3-00X		Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
DDV-16C4-00A		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
DDV-16C4-00H		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
DDV-16C4-00V		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
DDV-16C4-00M		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDV-16C4-00N		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDV-16C4-00P		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
DDV-16C4-00Z		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
DDV-16C4-00R		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
DDV-16C4-00T		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
DDV-16C4-00X		Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A

Air Circuit BreakersLS Electric

164 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol DC Compact Switch-Disconnector DDH/DDV-C (800-1600A)

Brand LS Electric·Air Circuit Breakers

Available part numbers (164)

DDH-08C3-00A, DDH-08C3-00H, DDH-08C3-00V, DDH-08C3-00M, DDH-08C3-00N, DDH-08C3-00P, DDH-08C3-00Z, DDH-08C3-00R, DDH-08C3-00T, DDH-08C3-00X + 154 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	DDH-08C3-00A	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-08C3-00H	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-08C3-00V	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-08C3-00M	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-08C3-00N	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-08C3-00P	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-08C3-00Z	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-08C3-00R	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-08C3-00T	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-08C3-00X	Model: DDH-08C \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-08C4-00A	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-08C4-00H	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-08C4-00V	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-08C4-00M	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-08C4-00N	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-08C4-00P	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-08C4-00Z	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-08C4-00R	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-08C4-00T	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-08C4-00X	Model: DDH-08C \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-10C3-00A	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-10C3-00H	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-10C3-00V	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-10C3-00M	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-10C3-00N	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-10C3-00P	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-10C3-00Z	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-10C3-00R	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-10C3-00T	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-10C3-00X	Model: DDH-10C \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-10C4-00A	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-10C4-00H	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-10C4-00V	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-10C4-00M	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-10C4-00N	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-10C4-00P	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-10C4-00Z	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-10C4-00R	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-10C4-00T	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-10C4-00X	Model: DDH-10C \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-13C3-00A	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-13C3-00H	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-13C3-00V	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-13C3-00M	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-13C3-00N	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-13C3-00P	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-13C3-00Z	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-13C3-00R	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-13C3-00T	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-13C3-00X	Model: DDH-13C \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-13C4-00A	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-13C4-00H	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-13C4-00V	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-13C4-00M	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-13C4-00N	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-13C4-00P	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-13C4-00Z	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-13C4-00R	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-13C4-00T	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-13C4-00X	Model: DDH-13C \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-16C3-00A	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-16C3-00H	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-16C3-00V	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-16C3-00M	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-16C3-00N	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-16C3-00P	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-16C3-00Z	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-16C3-00R	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-16C3-00T	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-16C3-00X	Model: DDH-16C \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDH-16C4-00A	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDH-16C4-00H	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDH-16C4-00V	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDH-16C4-00M	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-16C4-00N	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-16C4-00P	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDH-16C4-00Z	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDH-16C4-00R	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDH-16C4-00T	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDH-16C4-00X	Model: DDH-16C \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-08C2-00V	Model: DDV-08C \| Rated current: 800 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
	DDV-08C3-00A	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-08C3-00H	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-08C3-00V	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-08C3-00M	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-08C3-00N	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-08C3-00P	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-08C3-00Z	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-08C3-00R	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-08C3-00T	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-08C3-00X	Model: DDV-08C \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-08C4-00A	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-08C4-00H	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-08C4-00V	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-08C4-00M	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-08C4-00N	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-08C4-00P	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-08C4-00Z	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-08C4-00R	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-08C4-00T	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-08C4-00X	Model: DDV-08C \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-10C2-00V	Model: DDV-10C \| Rated current: 1000 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
	DDV-10C3-00A	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-10C3-00H	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-10C3-00V	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-10C3-00M	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-10C3-00N	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-10C3-00P	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-10C3-00Z	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-10C3-00R	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-10C3-00T	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-10C3-00X	Model: DDV-10C \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-10C4-00A	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-10C4-00H	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-10C4-00V	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-10C4-00M	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-10C4-00N	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-10C4-00P	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-10C4-00Z	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-10C4-00R	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-10C4-00T	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-10C4-00X	Model: DDV-10C \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-13C2-00V	Model: DDV-13C \| Rated current: 1300 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
	DDV-13C3-00A	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-13C3-00H	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-13C3-00V	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-13C3-00M	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-13C3-00N	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-13C3-00P	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-13C3-00Z	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-13C3-00R	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-13C3-00T	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-13C3-00X	Model: DDV-13C \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-13C4-00A	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-13C4-00H	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-13C4-00V	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-13C4-00M	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-13C4-00N	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-13C4-00P	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-13C4-00Z	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-13C4-00R	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-13C4-00T	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-13C4-00X	Model: DDV-13C \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-16C2-00V	Model: DDV-16C \| Rated current: 1600 A \| Poles: 2P, 750 Vdc \| Installation: Fixed, vertical \| Category: DC-23A
	DDV-16C3-00A	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-16C3-00H	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-16C3-00V	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-16C3-00M	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-16C3-00N	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-16C3-00P	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-16C3-00Z	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-16C3-00R	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-16C3-00T	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-16C3-00X	Model: DDV-16C \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A
	DDV-16C4-00A	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out (cradle body) \| Category: DC-22A
	DDV-16C4-00H	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal \| Category: DC-22A
	DDV-16C4-00V	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical \| Category: DC-22A
	DDV-16C4-00M	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDV-16C4-00N	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDV-16C4-00P	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) \| Category: DC-22A
	DDV-16C4-00Z	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front spreader \| Category: DC-22A
	DDV-16C4-00R	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal spreader \| Category: DC-22A
	DDV-16C4-00T	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front extended vertical \| Category: DC-22A
	DDV-16C4-00X	Model: DDV-16C \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, cable lug \| Category: DC-22A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol DC Compact Switch-Disconnector DDH/DDV-C (800-1600A)
