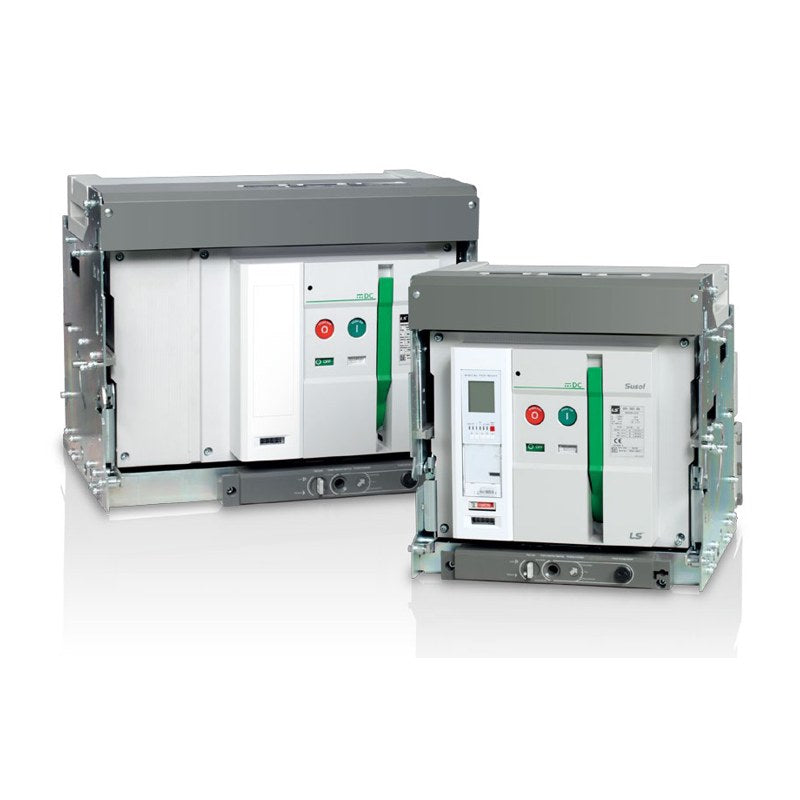

LS Electric Susol DC Switch-Disconnector DDH/DDV (800-7000A)

LS Electric Susol air-break DC switch-disconnectors DDH (up to 1200 Vdc) and DDV (up to 1500 Vdc) in D, E and G frames from 800 to 7000 A, without OCR and CT.

Key features

DDH: 750 Vdc (3P) / 1200 Vdc (4P); DDV: 1000 Vdc (3P, usable to 1200 V) / 1500 Vdc (4P)
D-frame 800-2500 AF, E-frame 800-4000 AF, G-frame 4000-7000 AF
DDV D/E frames rated DC-23A for heavy inductive DC loads; DDH and G-frame DC-22A
Short-time withstand 100 kA/1 s (E/G frame 150 kA for 0.05 s)
Draw-out or fixed type with horizontal, vertical, mixed or front terminals
Shares coils, accessories and dimensions with standard Susol ACB

Specifications

Rated insulation voltage (Ui)	1500 Vdc
Rated impulse withstand voltage (Uimp)	12 kV
Rated making current (Icm)	D 100 kA, E/G 150 kA peak
Trip relay	None (rated current code 00, without OCR and CT)
Opening / closing time	40 ms max. / 80 ms max.
Mechanical endurance	D 20,000; E/G 15,000 operations
Dimensions (H x W x D)	Fixed D 300 x 300 (385) x 295, E 300 x 378 (493) x 295, G 300 x 751 (981) x 295 mm
Standard	IEC 60947-3
Source	LS Electric Susol DC ACB catalog C06021-08 (2026-06), p. 8-9, 12, 20

DDH-08D3-00A		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-08D3-00J		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-08D3-00H		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-08D3-00V		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-08D3-00M		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-08D3-00N		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-08D3-00P		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-08D4-00A		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-08D4-00J		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-08D4-00H		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-08D4-00V		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-08D4-00M		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-08D4-00N		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-08D4-00P		Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-10D3-00A		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-10D3-00J		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-10D3-00H		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-10D3-00V		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-10D3-00M		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-10D3-00N		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-10D3-00P		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-10D4-00A		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-10D4-00J		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-10D4-00H		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-10D4-00V		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-10D4-00M		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-10D4-00N		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-10D4-00P		Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-13D3-00A		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-13D3-00J		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-13D3-00H		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-13D3-00V		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-13D3-00M		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-13D3-00N		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-13D3-00P		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-13D4-00A		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-13D4-00J		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-13D4-00H		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-13D4-00V		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-13D4-00M		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-13D4-00N		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-13D4-00P		Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-16D3-00A		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-16D3-00J		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-16D3-00H		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-16D3-00V		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-16D3-00M		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-16D3-00N		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-16D3-00P		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-16D4-00A		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-16D4-00J		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-16D4-00H		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-16D4-00V		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-16D4-00M		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-16D4-00N		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-16D4-00P		Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-20D3-00A		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-20D3-00J		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-20D3-00H		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-20D3-00V		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-20D3-00M		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-20D3-00N		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-20D3-00P		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-20D4-00A		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-20D4-00J		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-20D4-00H		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-20D4-00V		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-20D4-00M		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-20D4-00N		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-20D4-00P		Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-08E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-08E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-08E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-08E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-08E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-08E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-08E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-08E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-08E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-08E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-08E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-08E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-08E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-08E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-10E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-10E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-10E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-10E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-10E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-10E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-10E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-10E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-10E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-10E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-10E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-10E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-10E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-10E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-13E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-13E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-13E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-13E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-13E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-13E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-13E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-13E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-13E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-13E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-13E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-13E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-13E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-13E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-16E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-16E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-16E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-16E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-16E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-16E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-16E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-16E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-16E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-16E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-16E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-16E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-16E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-16E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-20E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-20E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-20E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-20E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-20E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-20E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-20E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-20E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-20E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-20E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-20E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-20E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-20E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-20E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-25E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-25E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-25E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-25E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-25E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-25E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-25E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-25E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-25E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-25E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-25E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-25E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-25E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-25E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-32E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-32E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-32E3-00H		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-32E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-32E3-00M		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-32E3-00N		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-32E3-00P		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-32E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-32E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-32E4-00H		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-32E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-32E4-00M		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
DDH-32E4-00N		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
DDH-32E4-00P		Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
DDH-40E3-00A		Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-40E3-00J		Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-40E3-00V		Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-40E4-00A		Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-40E4-00J		Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-40E4-00V		Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-40G3-00A		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-40G3-00J		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-40G3-00H		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-40G3-00V		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-40G4-00A		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-40G4-00J		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-40G4-00H		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-40G4-00V		Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-50G3-00A		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-50G3-00J		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-50G3-00H		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-50G3-00V		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-50G4-00A		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-50G4-00J		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-50G4-00H		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-50G4-00V		Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-63G3-00A		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-63G3-00J		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-63G3-00H		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-63G3-00V		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-63G4-00A		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-63G4-00J		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-63G4-00H		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDH-63G4-00V		Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-70G3-00A		Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-70G3-00J		Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-70G3-00V		Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDH-70G4-00A		Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDH-70G4-00J		Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDH-70G4-00V		Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-08D3-00A		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-08D3-00J		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-08D3-00H		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-08D3-00V		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-08D3-00M		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-08D3-00N		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-08D3-00P		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-08D4-00A		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-08D4-00J		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-08D4-00H		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-08D4-00V		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-08D4-00M		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-08D4-00N		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-08D4-00P		Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-10D3-00A		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-10D3-00J		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-10D3-00H		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-10D3-00V		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-10D3-00M		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-10D3-00N		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-10D3-00P		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-10D4-00A		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-10D4-00J		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-10D4-00H		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-10D4-00V		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-10D4-00M		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-10D4-00N		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-10D4-00P		Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-13D3-00A		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-13D3-00J		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-13D3-00H		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-13D3-00V		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-13D3-00M		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-13D3-00N		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-13D3-00P		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-13D4-00A		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-13D4-00J		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-13D4-00H		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-13D4-00V		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-13D4-00M		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-13D4-00N		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-13D4-00P		Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-16D3-00A		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-16D3-00J		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-16D3-00H		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-16D3-00V		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-16D3-00M		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-16D3-00N		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-16D3-00P		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-16D4-00A		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-16D4-00J		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-16D4-00H		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-16D4-00V		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-16D4-00M		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-16D4-00N		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-16D4-00P		Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-20D3-00A		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-20D3-00J		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-20D3-00H		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-20D3-00V		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-20D3-00M		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-20D3-00N		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-20D3-00P		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-20D4-00A		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-20D4-00J		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-20D4-00H		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-20D4-00V		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-20D4-00M		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-20D4-00N		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-20D4-00P		Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-25D3-00A		Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-25D3-00J		Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-25D3-00V		Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-25D4-00A		Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-25D4-00J		Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-25D4-00V		Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-08E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-08E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-08E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-08E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-08E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-08E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-08E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-08E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-08E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-08E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-08E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-08E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-08E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-08E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-10E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-10E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-10E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-10E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-10E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-10E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-10E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-10E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-10E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-10E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-10E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-10E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-10E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-10E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-13E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-13E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-13E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-13E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-13E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-13E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-13E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-13E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-13E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-13E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-13E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-13E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-13E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-13E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-16E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-16E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-16E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-16E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-16E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-16E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-16E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-16E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-16E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-16E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-16E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-16E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-16E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-16E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-20E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-20E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-20E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-20E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-20E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-20E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-20E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-20E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-20E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-20E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-20E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-20E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-20E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-20E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-25E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-25E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-25E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-25E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-25E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-25E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-25E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-25E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-25E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-25E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-25E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-25E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-25E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-25E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-32E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-32E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-32E3-00H		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-32E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-32E3-00M		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-32E3-00N		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-32E3-00P		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-32E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-32E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-32E4-00H		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
DDV-32E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-32E4-00M		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
DDV-32E4-00N		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
DDV-32E4-00P		Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
DDV-40E3-00A		Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-40E3-00J		Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-40E3-00V		Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-40E4-00A		Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
DDV-40E4-00J		Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
DDV-40E4-00V		Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
DDV-40G3-00A		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-40G3-00J		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-40G3-00H		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDV-40G3-00V		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-40G4-00A		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-40G4-00J		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-40G4-00H		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDV-40G4-00V		Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-50G3-00A		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-50G3-00J		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-50G3-00H		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDV-50G3-00V		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-50G4-00A		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-50G4-00J		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-50G4-00H		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDV-50G4-00V		Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-63G3-00A		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-63G3-00J		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-63G3-00H		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDV-63G3-00V		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-63G4-00A		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-63G4-00J		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-63G4-00H		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
DDV-63G4-00V		Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-70G3-00A		Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-70G3-00J		Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-70G3-00V		Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
DDV-70G4-00A		Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
DDV-70G4-00J		Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
DDV-70G4-00V		Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A

Air Circuit BreakersLS Electric

414 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol DC Switch-Disconnector DDH/DDV (800-7000A)

Brand LS Electric·Air Circuit Breakers

Available part numbers (414)

DDH-08D3-00A, DDH-08D3-00J, DDH-08D3-00H, DDH-08D3-00V, DDH-08D3-00M, DDH-08D3-00N, DDH-08D3-00P, DDH-08D4-00A, DDH-08D4-00J, DDH-08D4-00H + 404 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	DDH-08D3-00A	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-08D3-00J	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-08D3-00H	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-08D3-00V	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-08D3-00M	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-08D3-00N	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-08D3-00P	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-08D4-00A	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-08D4-00J	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-08D4-00H	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-08D4-00V	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-08D4-00M	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-08D4-00N	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-08D4-00P	Type: DDH \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-10D3-00A	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-10D3-00J	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-10D3-00H	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-10D3-00V	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-10D3-00M	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-10D3-00N	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-10D3-00P	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-10D4-00A	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-10D4-00J	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-10D4-00H	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-10D4-00V	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-10D4-00M	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-10D4-00N	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-10D4-00P	Type: DDH \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-13D3-00A	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-13D3-00J	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-13D3-00H	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-13D3-00V	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-13D3-00M	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-13D3-00N	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-13D3-00P	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-13D4-00A	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-13D4-00J	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-13D4-00H	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-13D4-00V	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-13D4-00M	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-13D4-00N	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-13D4-00P	Type: DDH \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-16D3-00A	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-16D3-00J	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-16D3-00H	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-16D3-00V	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-16D3-00M	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-16D3-00N	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-16D3-00P	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-16D4-00A	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-16D4-00J	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-16D4-00H	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-16D4-00V	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-16D4-00M	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-16D4-00N	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-16D4-00P	Type: DDH \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-20D3-00A	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-20D3-00J	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-20D3-00H	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-20D3-00V	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-20D3-00M	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-20D3-00N	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-20D3-00P	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-20D4-00A	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-20D4-00J	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-20D4-00H	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-20D4-00V	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-20D4-00M	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-20D4-00N	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-20D4-00P	Type: DDH \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-08E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-08E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-08E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-08E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-08E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-08E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-08E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-08E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-08E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-08E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-08E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-08E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-08E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-08E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-10E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-10E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-10E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-10E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-10E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-10E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-10E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-10E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-10E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-10E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-10E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-10E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-10E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-10E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-13E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-13E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-13E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-13E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-13E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-13E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-13E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-13E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-13E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-13E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-13E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-13E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-13E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-13E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-16E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-16E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-16E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-16E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-16E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-16E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-16E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-16E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-16E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-16E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-16E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-16E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-16E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-16E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-20E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-20E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-20E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-20E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-20E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-20E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-20E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-20E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-20E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-20E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-20E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-20E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-20E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-20E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-25E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-25E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-25E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-25E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-25E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-25E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-25E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-25E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-25E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-25E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-25E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-25E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-25E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-25E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-32E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-32E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-32E3-00H	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-32E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-32E3-00M	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-32E3-00N	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-32E3-00P	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-32E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-32E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-32E4-00H	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-32E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-32E4-00M	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-22A
	DDH-32E4-00N	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-22A
	DDH-32E4-00P	Type: DDH \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-22A
	DDH-40E3-00A	Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-40E3-00J	Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-40E3-00V	Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-40E4-00A	Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-40E4-00J	Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-40E4-00V	Type: DDH \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-40G3-00A	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-40G3-00J	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-40G3-00H	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-40G3-00V	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-40G4-00A	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-40G4-00J	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-40G4-00H	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-40G4-00V	Type: DDH \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-50G3-00A	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-50G3-00J	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-50G3-00H	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-50G3-00V	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-50G4-00A	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-50G4-00J	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-50G4-00H	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-50G4-00V	Type: DDH \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-63G3-00A	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-63G3-00J	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-63G3-00H	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-63G3-00V	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-63G4-00A	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-63G4-00J	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-63G4-00H	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDH-63G4-00V	Type: DDH \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-70G3-00A	Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-70G3-00J	Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 750 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-70G3-00V	Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 750 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDH-70G4-00A	Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDH-70G4-00J	Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1200 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDH-70G4-00V	Type: DDH \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1200 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-08D3-00A	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-08D3-00J	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-08D3-00H	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-08D3-00V	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-08D3-00M	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-08D3-00N	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-08D3-00P	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-08D4-00A	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-08D4-00J	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-08D4-00H	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-08D4-00V	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-08D4-00M	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-08D4-00N	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-08D4-00P	Type: DDV \| Frame: D-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-10D3-00A	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-10D3-00J	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-10D3-00H	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-10D3-00V	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-10D3-00M	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-10D3-00N	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-10D3-00P	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-10D4-00A	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-10D4-00J	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-10D4-00H	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-10D4-00V	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-10D4-00M	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-10D4-00N	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-10D4-00P	Type: DDV \| Frame: D-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-13D3-00A	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-13D3-00J	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-13D3-00H	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-13D3-00V	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-13D3-00M	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-13D3-00N	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-13D3-00P	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-13D4-00A	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-13D4-00J	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-13D4-00H	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-13D4-00V	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-13D4-00M	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-13D4-00N	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-13D4-00P	Type: DDV \| Frame: D-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-16D3-00A	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-16D3-00J	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-16D3-00H	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-16D3-00V	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-16D3-00M	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-16D3-00N	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-16D3-00P	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-16D4-00A	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-16D4-00J	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-16D4-00H	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-16D4-00V	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-16D4-00M	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-16D4-00N	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-16D4-00P	Type: DDV \| Frame: D-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-20D3-00A	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-20D3-00J	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-20D3-00H	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-20D3-00V	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-20D3-00M	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-20D3-00N	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-20D3-00P	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-20D4-00A	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-20D4-00J	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-20D4-00H	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-20D4-00V	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-20D4-00M	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-20D4-00N	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-20D4-00P	Type: DDV \| Frame: D-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-25D3-00A	Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-25D3-00J	Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-25D3-00V	Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-25D4-00A	Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-25D4-00J	Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-25D4-00V	Type: DDV \| Frame: D-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-08E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-08E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-08E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-08E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-08E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-08E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-08E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-08E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-08E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-08E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-08E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-08E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-08E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-08E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 800 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-10E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-10E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-10E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-10E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-10E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-10E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-10E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-10E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-10E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-10E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-10E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-10E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-10E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-10E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 1000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-13E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-13E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-13E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-13E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-13E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-13E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-13E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-13E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-13E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-13E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-13E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-13E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-13E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-13E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 1300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-16E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-16E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-16E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-16E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-16E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-16E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-16E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-16E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-16E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-16E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-16E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-16E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-16E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-16E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 1600 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-20E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-20E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-20E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-20E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-20E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-20E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-20E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-20E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-20E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-20E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-20E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-20E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-20E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-20E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 2000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-25E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-25E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-25E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-25E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-25E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-25E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-25E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-25E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-25E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-25E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-25E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-25E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-25E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-25E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 2500 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-32E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-32E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-32E3-00H	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-32E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-32E3-00M	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-32E3-00N	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-32E3-00P	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-32E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-32E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-32E4-00H	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-23A
	DDV-32E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-32E4-00M	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top horiz. / bottom vertical \| Category: DC-23A
	DDV-32E4-00N	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, top vertical / bottom horiz. \| Category: DC-23A
	DDV-32E4-00P	Type: DDV \| Frame: E-frame \| Rated current: 3200 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, front (flat) terminals \| Category: DC-23A
	DDV-40E3-00A	Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-40E3-00J	Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-40E3-00V	Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-40E4-00A	Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-23A
	DDV-40E4-00J	Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-23A
	DDV-40E4-00V	Type: DDV \| Frame: E-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-23A
	DDV-40G3-00A	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-40G3-00J	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-40G3-00H	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDV-40G3-00V	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-40G4-00A	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-40G4-00J	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-40G4-00H	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDV-40G4-00V	Type: DDV \| Frame: G-frame \| Rated current: 4000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-50G3-00A	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-50G3-00J	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-50G3-00H	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDV-50G3-00V	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-50G4-00A	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-50G4-00J	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-50G4-00H	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDV-50G4-00V	Type: DDV \| Frame: G-frame \| Rated current: 5000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-63G3-00A	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-63G3-00J	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-63G3-00H	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDV-63G3-00V	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-63G4-00A	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-63G4-00J	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-63G4-00H	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, horizontal terminals \| Category: DC-22A
	DDV-63G4-00V	Type: DDV \| Frame: G-frame \| Rated current: 6300 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-70G3-00A	Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-70G3-00J	Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 1000 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-70G3-00V	Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 3P, 1000 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A
	DDV-70G4-00A	Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, automatic connection \| Category: DC-22A
	DDV-70G4-00J	Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1500 Vdc \| Installation: Draw-out, manual connection \| Category: DC-22A
	DDV-70G4-00V	Type: DDV \| Frame: G-frame \| Rated current: 7000 A \| Poles: 4P, 1500 Vdc \| Installation: Fixed, vertical terminals \| Category: DC-22A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol DC Switch-Disconnector DDH/DDV (800-7000A)
