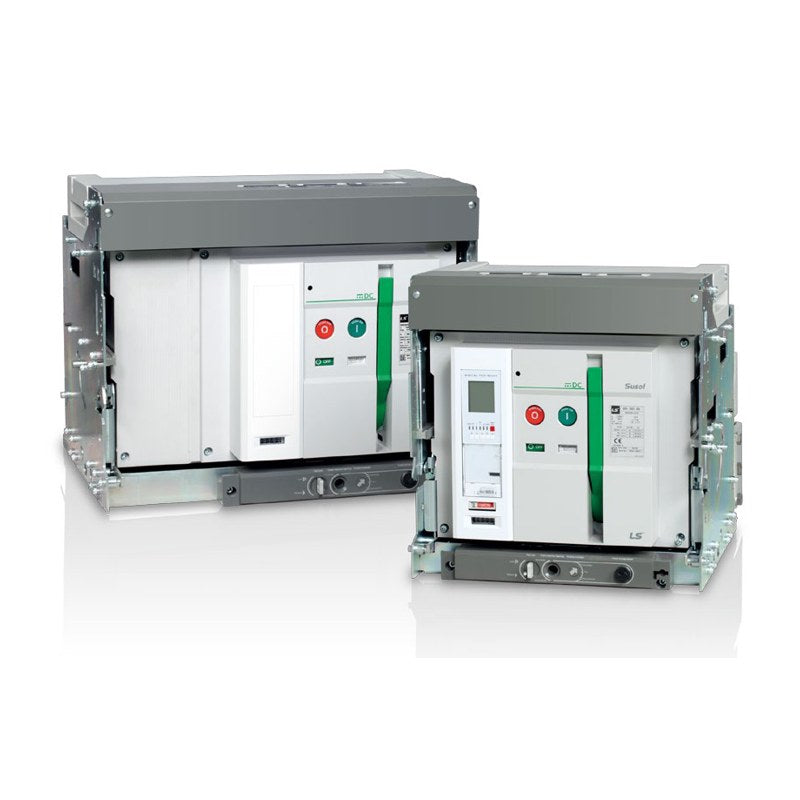

LS Electric Susol DC Switch-Disconnector DDU/DDX/DDZ (750-2500Vdc)

LS Electric Susol DC Switch-Disconnector DDU/DDX/DDZ (750-2500Vdc)

LS Electric Susol E-frame DC switch-disconnectors DDU (750 Vdc, 2P, up to 6300 A), DDX (1800 Vdc, 4P) and DDZ (2500 Vdc, 4P, fixed), without OCR and CT.

Key features

  • DDU: 2-pole 750 Vdc, 800-6300 A, draw-out or fixed vertical
  • DDX: 1000 Vdc (3P) / 1800 Vdc (4P), 800-4000 A
  • DDZ: 4-pole 2500 Vdc, 800-4000 A, fixed type, utilization category DC-22B
  • Short-time withstand 100 kA/1 s; making current 100 kA peak
  • Short busbars optimised for temperature rise available as option
  • Shares coils, accessories and dimensions with standard Susol ACB

Specifications

Frame E-frame
Rated short-time current (Icw) 100 kA/1 s
Rated making current (Icm) 100 kA peak
Trip relay None (rated current code 00, without OCR and CT)
Rated insulation voltage (Ui) DDU 750, DDX 1800, DDZ 2500 Vdc
Rated impulse withstand voltage (Uimp) DDU/DDX 12 kV, DDZ 18 kV
Mechanical endurance 15,000 operations
Dimensions (H x W x D) Fixed 300 x 378 (493) x 295 mm (DDZ D 320 mm)
Test reports IEC 60947-3 (DDU/DDX PT&T, DDZ KTC)
Source LS Electric Susol DC ACB catalog C06021-08 (2026-06), p. 8, 10-12, 20
