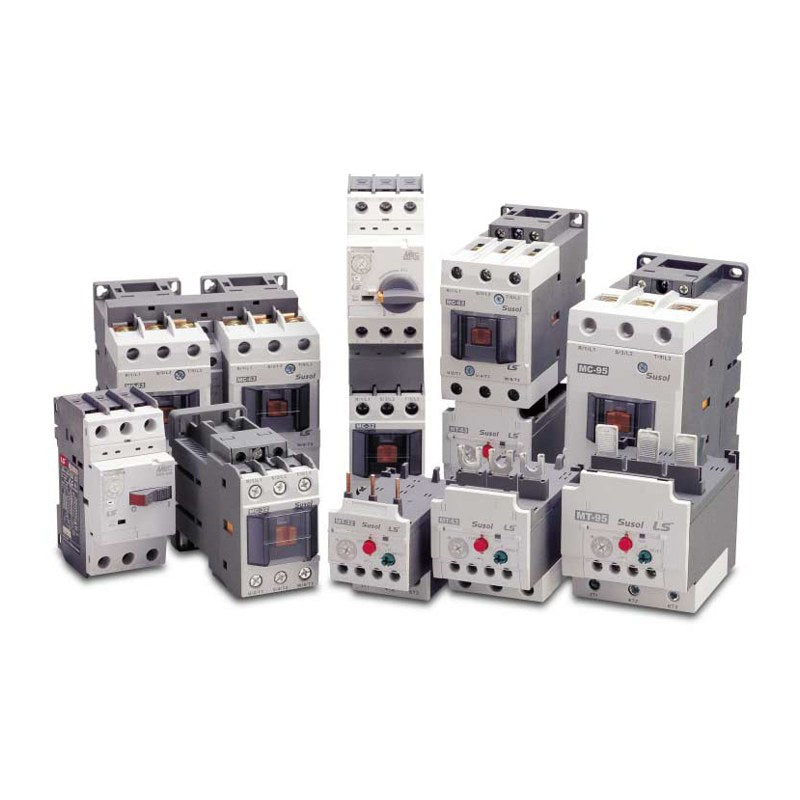

LS Electric Susol MC/MT Accessories (UZ, UM, AP-9, AC Units)

LS Electric Susol MC/MT Accessories (UZ, UM, AP-9, AC Units)

Standalone mounting units and remote reset units for LS Electric Susol MT-32/63/95 thermal overload relays, plus the AP-9 safety cover and AC-9/AC-50 capacitor units for Susol MC contactors.

Key features

  • UZ: standalone base for mounting MT overload relays separately from the contactor, screw or DIN rail
  • UZ-63/95 in screw (S) and lug (L) terminal versions matching the relay
  • UM-4R/5R/6R: panel-door remote reset with 400/500/600 mm cable, common to all MT frames
  • AP-9: front safety cover against arc exposure, dust and accidental operation
  • AC-9/AC-50: pre-loading capacitor units with damping resistor, limiting inrush to 60 In

Specifications

Applicable contactors Susol MC-9 to MC-95
Applicable overload relays Susol MT-32, MT-63, MT-95
Remote reset panel cut-out 8 mm dia.
Capacitor unit residual voltage < 50 V
Standards IEC 60947-4-1
Source LS Electric Susol MC/MS catalog C04071-07 (2020-05), p. 41, 45, 53-55
UZ-32 Accessory: TOR standalone unit | For: MT-32 (screw) | Detail: Weight 23 g
UZ-63/S Accessory: TOR standalone unit | For: MT-63 screw type (..S) | Detail: Weight 68 g
UZ-63/L Accessory: TOR standalone unit | For: MT-63 lug type (..L) | Detail: Weight 68 g
UZ-95/S Accessory: TOR standalone unit | For: MT-95 screw type (..S) | Detail: Weight 134 g
UZ-95/L Accessory: TOR standalone unit | For: MT-95 lug type (..L) | Detail: Weight 134 g
UM-4R Accessory: TOR remote reset unit | For: MT-32/63/95 (all frames) | Detail: Cable length 400 mm
UM-5R Accessory: TOR remote reset unit | For: MT-32/63/95 (all frames) | Detail: Cable length 500 mm
UM-6R Accessory: TOR remote reset unit | For: MT-32/63/95 (all frames) | Detail: Cable length 600 mm
AP-9 Accessory: Safety cover | For: All Susol MC (and Meta-MEC) | Detail: Front cover, prevents misoperation
AC-9 Accessory: Capacitor unit (pre-loading) | For: MC-9(D) to MC-32(D) | Detail: Damping resistor, up to 36 A
AC-50 Accessory: Capacitor unit (pre-loading) | For: MC-35(D) to MC-95(D) | Detail: Damping resistor, up to 94 A
AccessoriesLS Electric
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol MC/MT Accessories (UZ, UM, AP-9, AC Units)

Brand LS Electric·Accessories

Available part numbers (11)

UZ-32, UZ-63/S, UZ-63/L, UZ-95/S, UZ-95/L, UM-4R, UM-5R, UM-6R, AP-9, AC-9 + 1 more — see full table ↓
