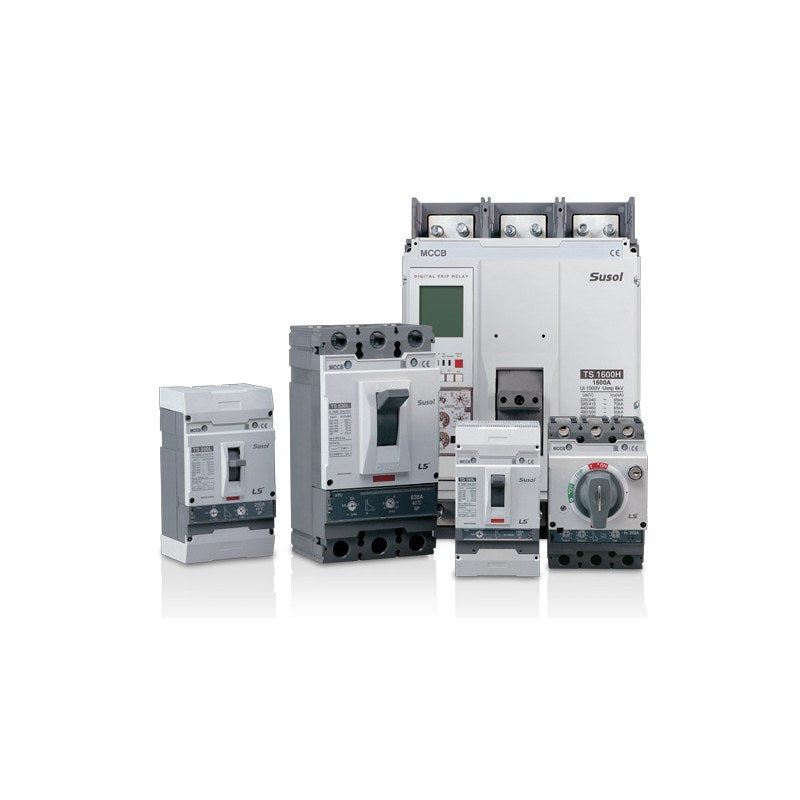

LS Electric Susol MCCB Handles, Locks, Plug-in, MOP & RCD (TD/TS)

LS Electric Susol MCCB Handles, Locks, Plug-in, MOP & RCD (TD/TS)

Operating and mounting accessories for LS Electric Susol TD100-TD160 and TS100-TS800 molded case circuit breakers: rotary handles, padlock devices, mechanical interlocks, plug-in bases, motor operators and RTU earth leakage (RCD) modules.

Key features

  • Direct (DH), key-lock (DHK) and extended door (EH, IP65) rotary handles, lockable with padlock
  • Removable (PL) and fixed (PHL) handle padlock devices for 2, 3 and 4-pole breakers
  • MIT mechanical interlocks prevent two side-by-side breakers from closing at the same time
  • Plug-in bases PB for quick breaker exchange; PB..D2 versions for 2-row panelboards
  • MOP motor operators for remote ON/OFF/RESET; RTU RCD modules add earth leakage protection (IEC 60947-2 Annex B)

Specifications

Brand LS Electric
Series Susol MCCB
Applicable frames TD100, TD160, TS100 to TS800
MOP operating voltage DC 24 V, AC 100-240 V, DC 100-220 V (specify)
RTU rated voltage AC 220-460 V / 460-690 V
Source LS Electric Susol MCCB catalog C01091-24 (2025-09), p. 98-102, 110-111, 118, 125 (A-3-5 to A-3-9, A-3-17 to A-3-18, A-3-25, A-3-32)
DH1 Type: Direct rotary handle | For MCCB: TD100, TD160 | Detail: Panel door handle, IP40
DHK1 Type: Direct rotary handle, key lock | For MCCB: TD100, TD160 | Detail: Key lock in ON/OFF position
EH1 Type: Extended rotary handle | For MCCB: TD100, TD160 | Detail: Door-mounted, IP65
PL1 Type: Padlock device, removable | For MCCB: TD100, TD160 | Detail: Locks OFF, up to 3 padlocks 5-8 mm
PHL1 Type: Padlock device, fixed | For MCCB: TD100, TD160 | Detail: Locks ON or OFF, 3 padlocks 5-8 mm
MIT13 Type: Mechanical interlock | For MCCB: TD100, TD160 | Detail: 3-pole, side by side
MIT14 Type: Mechanical interlock | For MCCB: TD100, TD160 | Detail: 4-pole, side by side
DH2 Type: Direct rotary handle | For MCCB: TS100, TS160, TS250 | Detail: Panel door handle, IP40
DHK2 Type: Direct rotary handle, key lock | For MCCB: TS100, TS160, TS250 | Detail: Key lock in ON/OFF position
EH2 Type: Extended rotary handle | For MCCB: TS100, TS160, TS250 | Detail: Door-mounted, IP65
PL2 Type: Padlock device, removable | For MCCB: TS100, TS160, TS250 | Detail: Locks OFF, up to 3 padlocks 5-8 mm
PHL2 Type: Padlock device, fixed | For MCCB: TS100, TS160, TS250 | Detail: Locks ON or OFF, 3 padlocks 5-8 mm
MIT23 Type: Mechanical interlock | For MCCB: TS100, TS160, TS250 | Detail: 3-pole, side by side
MIT24 Type: Mechanical interlock | For MCCB: TS100, TS160, TS250 | Detail: 4-pole, side by side
DH3 Type: Direct rotary handle | For MCCB: TS400, TS630 | Detail: Panel door handle, IP40
DHK3 Type: Direct rotary handle, key lock | For MCCB: TS400, TS630 | Detail: Key lock in ON/OFF position
EH3 Type: Extended rotary handle | For MCCB: TS400, TS630 | Detail: Door-mounted, IP65
PL3 Type: Padlock device, removable | For MCCB: TS400, TS630 | Detail: Locks OFF, up to 3 padlocks 5-8 mm
PHL3 Type: Padlock device, fixed | For MCCB: TS400, TS630 | Detail: Locks ON or OFF, 3 padlocks 5-8 mm
MIT33 Type: Mechanical interlock | For MCCB: TS400, TS630 | Detail: 3-pole, side by side
MIT34 Type: Mechanical interlock | For MCCB: TS400, TS630 | Detail: 4-pole, side by side
DH4 Type: Direct rotary handle | For MCCB: TS800 | Detail: Panel door handle, IP40
DHK4 Type: Direct rotary handle, key lock | For MCCB: TS800 | Detail: Key lock in ON/OFF position
EH4 Type: Extended rotary handle | For MCCB: TS800 | Detail: Door-mounted, IP65
PL4 Type: Padlock device, removable | For MCCB: TS800 | Detail: Locks OFF, up to 3 padlocks 5-8 mm
PHL4 Type: Padlock device, fixed | For MCCB: TS800 | Detail: Locks ON or OFF, 3 padlocks 5-8 mm
MIT43 Type: Mechanical interlock | For MCCB: TS800 | Detail: 3-pole, side by side
MIT44 Type: Mechanical interlock | For MCCB: TS800 | Detail: 4-pole, side by side
PB12 Type: Plug-in base | For MCCB: TD100, TD160 | Detail: 2P
PB13 Type: Plug-in base | For MCCB: TD100, TD160 | Detail: 3P
PB14 Type: Plug-in base | For MCCB: TD100, TD160 | Detail: 4P
PB12D2 Type: Plug-in base | For MCCB: TD100, TD160 | Detail: 2P, 2-row panelboard
PB13D2 Type: Plug-in base | For MCCB: TD100, TD160 | Detail: 3P, 2-row panelboard
PB22 Type: Plug-in base | For MCCB: TS100, TS160, TS250 | Detail: 2P
PB23 Type: Plug-in base | For MCCB: TS100, TS160, TS250 | Detail: 3P
PB24 Type: Plug-in base | For MCCB: TS100, TS160, TS250 | Detail: 4P
PB32 Type: Plug-in base | For MCCB: TS400, TS630 | Detail: 2P
PB33 Type: Plug-in base | For MCCB: TS400, TS630 | Detail: 3P
PB34 Type: Plug-in base | For MCCB: TS400, TS630 | Detail: 4P
PB42 Type: Plug-in base | For MCCB: TS800 | Detail: 2P
PB43 Type: Plug-in base | For MCCB: TS800 | Detail: 3P
MOP1 Type: Motor operator | For MCCB: TD100, TD160 | Detail: DC 24 V, AC 100-240/DC 100-220 V
MOP2 Type: Motor operator | For MCCB: TS100, TS160, TS250 | Detail: DC 24 V, AC/DC 110 V, AC 230/DC 220 V
MOP3 Type: Motor operator | For MCCB: TS400, TS630 | Detail: DC 24 V, AC/DC 110 V, AC 230/DC 220 V
MOP4 Type: Motor operator | For MCCB: TS800 | Detail: DC 24 V, AC/DC 110 V, AC 230/DC 220 V
RTU23 Type: RCD earth leakage module | For MCCB: TS100, TS160, TS250 | Detail: 3P, 0.03-10 A, 0-600 ms
RTU24 Type: RCD earth leakage module | For MCCB: TS100, TS160, TS250 | Detail: 4P, 0.03-10 A, 0-600 ms
RTU33 Type: RCD earth leakage module | For MCCB: TS400, TS630 | Detail: 3P, 0.03-10 A, 0-600 ms
RTU34 Type: RCD earth leakage module | For MCCB: TS400, TS630 | Detail: 4P, 0.03-10 A, 0-600 ms
RTU43 Type: RCD earth leakage module | For MCCB: TS800 | Detail: 3P, 0.03-10 A, 0-600 ms
