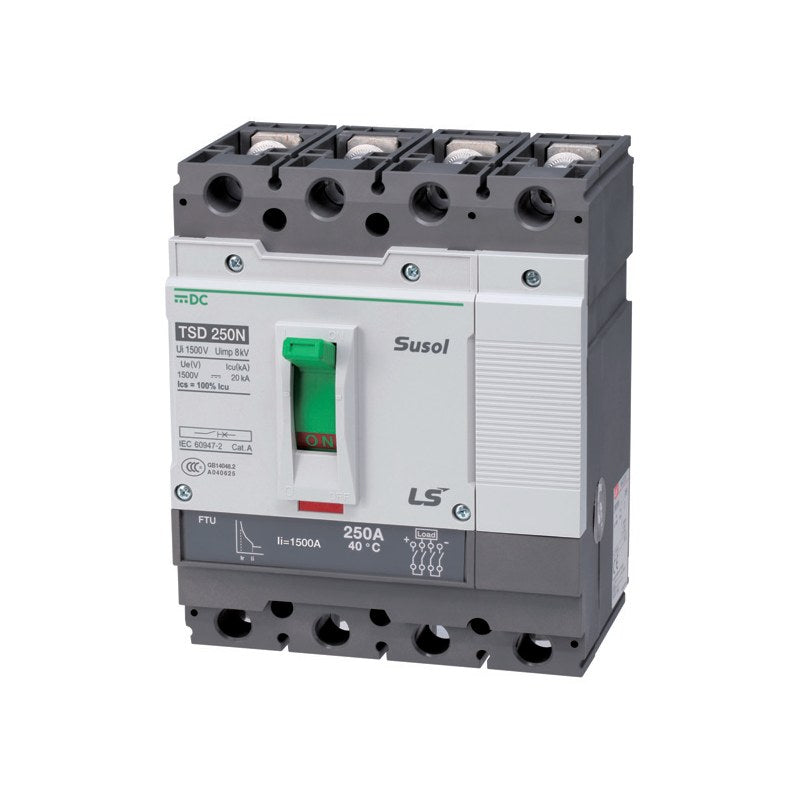

LS Electric Susol MCCB PV / DC TD100-TS800 (16-800A, up to 1000Vdc)

LS Electric Susol TD/TS molded case circuit breakers for DC circuits up to 1000 Vdc in SOLAR (DC short-circuit certified) and DC (CB conformity tested) versions, 16-800 A in 2, 3 and 4 poles.

Key features

SOLAR version: N/H/L breaking types, Icu 42/65/100 kA (TD) or 50/85/100 kA (TS) at 500/750/1000 Vdc
DC version: H type only, Icu 40 kA
Rated voltage by pole wiring: 500 Vdc (2P), 750 Vdc (3P), 1000 Vdc (4P, 4P4D)
Thermal-magnetic trip units FTU, FMU and ATU (ATU from TS160 125 A); electronic trip units not for DC
Same external dimensions and accessories as standard Susol MCCB
Ordering: e.g. TS250H-FTU250-250A-2P-SOLAR or TS250H-FTU250-250A-2P-DC

Specifications

Frames	TD100, TD160, TS100, TS160, TS250, TS400, TS630, TS800
Rated insulation voltage (Ui)	800 V (2P/3P), 1000 V (4P)
Rated impulse withstand voltage (Uimp)	8 kV
Service breaking capacity (Ics)	100% Icu
TS630 top rating	630 A SOLAR, 550 A DC
TS800 700 A	FTU only
Application	PV plants, emergency power, data centres
Standard	IEC 60947-2
Source	LS Electric DC Component for Renewable Energy catalog C19941-05 (2022-06), p. 12-19

TD100N-FTU100-16A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-16A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-16A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-20A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-20A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-20A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-25A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-25A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-25A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-32A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-32A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-32A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FTU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-16A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-16A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-16A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-20A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-20A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-20A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-25A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-25A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-25A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-32A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-32A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-32A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD100N-FMU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD100H-FTU100-16A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-16A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-16A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-20A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-20A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-20A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-25A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-25A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-25A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-32A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-32A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-32A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FTU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-16A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-16A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-16A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-20A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-20A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-20A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-25A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-25A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-25A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-32A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-32A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-32A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD100H-FMU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD100L-FTU100-16A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-16A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-16A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-20A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-20A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-20A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-25A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-25A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-25A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-32A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-32A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-32A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FTU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-16A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-16A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-16A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-20A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-20A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-20A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-25A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-25A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-25A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-32A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-32A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-32A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD100L-FMU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD160N-FTU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD160N-FTU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
TD160N-FMU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
TD160H-FTU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD160H-FTU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
TD160H-FMU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
TD160L-FTU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD160L-FTU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TD160L-FMU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100N-FTU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FTU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS100N-FMU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS100H-FTU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FTU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS100H-FMU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS100L-FTU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FTU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-40A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-40A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-40A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-50A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-50A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-50A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-63A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-63A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-63A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-80A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-80A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-80A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS100L-FMU100-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160N-FTU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-FTU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-FMU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-ATU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-ATU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-ATU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160N-ATU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS160N-ATU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS160N-ATU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS160H-FTU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-FTU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-FMU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-ATU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-ATU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-ATU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160H-ATU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS160H-ATU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS160H-ATU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS160L-FTU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-FTU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-100A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-100A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-100A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-FMU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-ATU160-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-ATU160-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-ATU160-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS160L-ATU160-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS160L-ATU160-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS160L-ATU160-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250N-FTU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FTU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-FMU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS250N-ATU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS250H-FTU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FTU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-FMU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS250H-ATU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS250L-FTU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FTU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-FMU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-125A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-125A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-125A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-160A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-160A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-160A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-200A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-200A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-200A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-250A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-250A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS250L-ATU250-250A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS400N-FTU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS400N-FTU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS400N-FTU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS400N-FTU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS400N-FTU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS400N-FTU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS400N-FMU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS400N-FMU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS400N-FMU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS400N-FMU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS400N-FMU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS400N-FMU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS400N-ATU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS400N-ATU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS400N-ATU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS400N-ATU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS400N-ATU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS400N-ATU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS400H-FTU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS400H-FTU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS400H-FTU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS400H-FTU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS400H-FTU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS400H-FTU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS400H-FMU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS400H-FMU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS400H-FMU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS400H-FMU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS400H-FMU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS400H-FMU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS400H-ATU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS400H-ATU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS400H-ATU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS400H-ATU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS400H-ATU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS400H-ATU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS400L-FTU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS400L-FTU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS400L-FTU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS400L-FTU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS400L-FTU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS400L-FTU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS400L-FMU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS400L-FMU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS400L-FMU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS400L-FMU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS400L-FMU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS400L-FMU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS400L-ATU400-300A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS400L-ATU400-300A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS400L-ATU400-300A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS400L-ATU400-400A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS400L-ATU400-400A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS400L-ATU400-400A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS630N-FTU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS630N-FTU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS630N-FTU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS630N-FTU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS630N-FTU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS630N-FTU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS630N-FMU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS630N-FMU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS630N-FMU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS630N-FMU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS630N-FMU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS630N-FMU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS630N-ATU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS630N-ATU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS630N-ATU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS630N-ATU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS630N-ATU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS630N-ATU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS630H-FTU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS630H-FTU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS630H-FTU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS630H-FTU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS630H-FTU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS630H-FTU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS630H-FMU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS630H-FMU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS630H-FMU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS630H-FMU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS630H-FMU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS630H-FMU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS630H-ATU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS630H-ATU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS630H-ATU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS630H-ATU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS630H-ATU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS630H-ATU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS630L-FTU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS630L-FTU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS630L-FTU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS630L-FTU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS630L-FTU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS630L-FTU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS630L-FMU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS630L-FMU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS630L-FMU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS630L-FMU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS630L-FMU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS630L-FMU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS630L-ATU630-500A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS630L-ATU630-500A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS630L-ATU630-500A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS630L-ATU630-630A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS630L-ATU630-630A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS630L-ATU630-630A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS800N-FTU800-700A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS800N-FTU800-700A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS800N-FTU800-700A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS800N-FTU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS800N-FTU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS800N-FTU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS800N-FMU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS800N-FMU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS800N-FMU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS800N-ATU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
TS800N-ATU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
TS800N-ATU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
TS800H-FTU800-700A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS800H-FTU800-700A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS800H-FTU800-700A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS800H-FTU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS800H-FTU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS800H-FTU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS800H-FMU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS800H-FMU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS800H-FMU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS800H-ATU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
TS800H-ATU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
TS800H-ATU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
TS800L-FTU800-700A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS800L-FTU800-700A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS800L-FTU800-700A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS800L-FTU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS800L-FTU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS800L-FTU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS800L-FMU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS800L-FMU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS800L-FMU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TS800L-ATU800-800A-2P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
TS800L-ATU800-800A-3P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
TS800L-ATU800-800A-4P-SOLAR		Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
TD100H-FTU100-16A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-16A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-16A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-20A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-20A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-20A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-25A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-25A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-25A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-32A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-32A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-32A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-40A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-40A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-40A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-50A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-50A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-50A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-63A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-63A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-63A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-80A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-80A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-80A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FTU100-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-16A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-16A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-16A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-20A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-20A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-20A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-25A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-25A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-25A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-32A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-32A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-32A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-40A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-40A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-40A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-50A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-50A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-50A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-63A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-63A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-63A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-80A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-80A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-80A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD100H-FMU100-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD160H-FTU160-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TD160H-FMU160-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-40A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-40A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-40A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-50A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-50A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-50A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-63A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-63A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-63A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-80A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-80A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-80A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FTU100-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-40A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-40A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-40A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-50A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-50A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-50A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-63A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-63A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-63A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-80A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-80A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-80A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS100H-FMU100-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-FTU160-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-100A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-100A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-100A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-FMU160-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-ATU160-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-ATU160-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-ATU160-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS160H-ATU160-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS160H-ATU160-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS160H-ATU160-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-200A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-200A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-200A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-250A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-250A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FTU250-250A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-200A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-200A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-200A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-250A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-250A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-FMU250-250A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-125A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-125A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-125A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-160A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-160A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-160A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-200A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-200A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-200A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-250A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-250A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS250H-ATU250-250A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS400H-FTU400-300A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS400H-FTU400-300A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS400H-FTU400-300A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS400H-FTU400-400A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS400H-FTU400-400A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS400H-FTU400-400A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS400H-FMU400-300A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS400H-FMU400-300A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS400H-FMU400-300A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS400H-FMU400-400A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS400H-FMU400-400A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS400H-FMU400-400A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS400H-ATU400-300A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS400H-ATU400-300A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS400H-ATU400-300A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS400H-ATU400-400A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS400H-ATU400-400A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS400H-ATU400-400A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS630H-FTU630-500A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS630H-FTU630-500A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS630H-FTU630-500A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS630H-FTU630-550A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS630H-FTU630-550A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS630H-FTU630-550A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS630H-FMU630-500A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS630H-FMU630-500A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS630H-FMU630-500A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS630H-FMU630-550A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS630H-FMU630-550A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS630H-FMU630-550A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS630H-ATU630-500A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS630H-ATU630-500A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS630H-ATU630-500A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS630H-ATU630-550A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 550 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS630H-ATU630-550A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 550 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS630H-ATU630-550A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 550 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS800H-FTU800-700A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS800H-FTU800-700A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS800H-FTU800-700A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS800H-FTU800-800A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS800H-FTU800-800A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS800H-FTU800-800A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS800H-FMU800-800A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS800H-FMU800-800A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS800H-FMU800-800A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
TS800H-ATU800-800A-2P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
TS800H-ATU800-800A-3P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
TS800H-ATU800-800A-4P-DC		Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA

Molded Case Circuit BreakersLS Electric

840 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol MCCB PV / DC TD100-TS800 (16-800A, up to 1000Vdc)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (840)

TD100N-FTU100-16A-2P-SOLAR, TD100N-FTU100-16A-3P-SOLAR, TD100N-FTU100-16A-4P-SOLAR, TD100N-FTU100-20A-2P-SOLAR, TD100N-FTU100-20A-3P-SOLAR, TD100N-FTU100-20A-4P-SOLAR, TD100N-FTU100-25A-2P-SOLAR, TD100N-FTU100-25A-3P-SOLAR, TD100N-FTU100-25A-4P-SOLAR, TD100N-FTU100-32A-2P-SOLAR + 830 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TD100N-FTU100-16A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-16A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-16A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-20A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-20A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-20A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-25A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-25A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-25A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-32A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-32A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-32A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FTU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-16A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-16A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-16A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-20A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-20A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-20A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-25A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-25A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-25A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-32A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-32A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-32A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD100N-FMU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD100H-FTU100-16A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-16A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-16A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-20A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-20A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-20A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-25A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-25A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-25A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-32A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-32A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-32A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FTU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-16A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-16A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-16A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-20A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-20A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-20A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-25A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-25A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-25A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-32A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-32A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-32A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD100H-FMU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD100L-FTU100-16A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-16A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-16A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-20A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-20A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-20A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-25A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-25A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-25A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-32A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-32A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-32A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FTU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-16A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-16A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-16A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-20A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-20A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-20A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-25A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-25A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-25A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-32A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-32A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-32A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD100L-FMU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD160N-FTU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD160N-FTU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 42 kA
	TD160N-FMU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 42 kA
	TD160H-FTU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD160H-FTU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 65 kA
	TD160H-FMU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 65 kA
	TD160L-FTU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD160L-FTU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TD160L-FMU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TD160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100N-FTU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FTU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS100N-FMU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS100H-FTU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FTU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS100H-FMU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS100L-FTU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FTU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-40A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-40A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-40A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-50A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-50A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-50A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-63A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-63A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-63A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-80A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-80A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-80A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS100L-FMU100-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS100 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160N-FTU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-FTU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-FMU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-ATU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-ATU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-ATU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160N-ATU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS160N-ATU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS160N-ATU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS160H-FTU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-FTU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-FMU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-ATU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-ATU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-ATU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160H-ATU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS160H-ATU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS160H-ATU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS160L-FTU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-FTU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-100A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-100A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-100A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-FMU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-ATU160-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-ATU160-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-ATU160-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS160L-ATU160-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS160L-ATU160-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS160L-ATU160-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS160 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250N-FTU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FTU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-FMU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS250N-ATU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS250H-FTU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FTU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-FMU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS250H-ATU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS250L-FTU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FTU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-FMU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-125A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-125A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-125A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-160A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-160A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-160A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-200A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-200A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-200A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-250A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-250A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS250L-ATU250-250A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS250 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS400N-FTU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS400N-FTU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS400N-FTU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS400N-FTU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS400N-FTU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS400N-FTU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS400N-FMU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS400N-FMU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS400N-FMU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS400N-FMU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS400N-FMU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS400N-FMU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS400N-ATU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS400N-ATU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS400N-ATU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS400N-ATU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS400N-ATU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS400N-ATU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS400H-FTU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS400H-FTU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS400H-FTU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS400H-FTU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS400H-FTU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS400H-FTU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS400H-FMU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS400H-FMU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS400H-FMU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS400H-FMU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS400H-FMU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS400H-FMU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS400H-ATU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS400H-ATU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS400H-ATU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS400H-ATU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS400H-ATU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS400H-ATU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS400L-FTU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS400L-FTU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS400L-FTU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS400L-FTU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS400L-FTU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS400L-FTU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS400L-FMU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS400L-FMU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS400L-FMU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS400L-FMU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS400L-FMU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS400L-FMU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS400L-ATU400-300A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS400L-ATU400-300A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS400L-ATU400-300A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS400L-ATU400-400A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS400L-ATU400-400A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS400L-ATU400-400A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS400 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS630N-FTU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS630N-FTU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS630N-FTU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS630N-FTU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS630N-FTU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS630N-FTU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS630N-FMU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS630N-FMU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS630N-FMU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS630N-FMU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS630N-FMU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS630N-FMU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS630N-ATU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS630N-ATU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS630N-ATU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS630N-ATU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS630N-ATU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS630N-ATU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS630H-FTU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS630H-FTU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS630H-FTU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS630H-FTU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS630H-FTU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS630H-FTU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS630H-FMU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS630H-FMU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS630H-FMU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS630H-FMU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS630H-FMU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS630H-FMU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS630H-ATU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS630H-ATU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS630H-ATU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS630H-ATU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS630H-ATU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS630H-ATU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS630L-FTU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS630L-FTU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS630L-FTU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS630L-FTU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS630L-FTU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS630L-FTU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS630L-FMU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS630L-FMU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS630L-FMU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS630L-FMU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS630L-FMU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS630L-FMU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS630L-ATU630-500A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS630L-ATU630-500A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS630L-ATU630-500A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS630L-ATU630-630A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS630L-ATU630-630A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS630L-ATU630-630A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS630 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 630 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS800N-FTU800-700A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS800N-FTU800-700A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS800N-FTU800-700A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS800N-FTU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS800N-FTU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS800N-FTU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS800N-FMU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS800N-FMU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS800N-FMU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS800N-ATU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 50 kA
	TS800N-ATU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 50 kA
	TS800N-ATU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 N \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 50 kA
	TS800H-FTU800-700A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS800H-FTU800-700A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS800H-FTU800-700A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS800H-FTU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS800H-FTU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS800H-FTU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS800H-FMU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS800H-FMU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS800H-FMU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS800H-ATU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 85 kA
	TS800H-ATU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 85 kA
	TS800H-ATU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 85 kA
	TS800L-FTU800-700A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS800L-FTU800-700A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS800L-FTU800-700A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS800L-FTU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS800L-FTU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS800L-FTU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS800L-FMU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS800L-FMU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS800L-FMU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TS800L-ATU800-800A-2P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 100 kA
	TS800L-ATU800-800A-3P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 100 kA
	TS800L-ATU800-800A-4P-SOLAR	Version: SOLAR (DC short-circuit certified) \| Frame: TS800 L \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 100 kA
	TD100H-FTU100-16A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-16A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-16A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-20A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-20A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-20A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-25A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-25A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-25A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-32A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-32A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-32A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-40A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-40A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-40A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-50A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-50A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-50A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-63A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-63A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-63A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-80A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-80A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-80A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FTU100-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-16A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-16A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-16A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 16 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-20A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-20A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-20A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 20 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-25A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-25A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-25A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 25 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-32A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-32A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-32A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 32 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-40A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-40A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-40A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-50A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-50A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-50A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-63A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-63A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-63A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-80A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-80A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-80A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD100H-FMU100-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD160H-FTU160-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TD160H-FMU160-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TD160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-40A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-40A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-40A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-50A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-50A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-50A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-63A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-63A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-63A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-80A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-80A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-80A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FTU100-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-40A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-40A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-40A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 40 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-50A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-50A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-50A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 50 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-63A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-63A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-63A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 63 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-80A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-80A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-80A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 80 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS100H-FMU100-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS100 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-FTU160-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-100A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-100A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-100A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 100 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-FMU160-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-ATU160-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-ATU160-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-ATU160-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS160H-ATU160-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS160H-ATU160-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS160H-ATU160-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS160 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-200A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-200A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-200A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-250A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-250A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FTU250-250A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-200A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-200A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-200A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-250A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-250A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-FMU250-250A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-125A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-125A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-125A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 125 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-160A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-160A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-160A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 160 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-200A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-200A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-200A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 200 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-250A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-250A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS250H-ATU250-250A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS250 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 250 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS400H-FTU400-300A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS400H-FTU400-300A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS400H-FTU400-300A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS400H-FTU400-400A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS400H-FTU400-400A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS400H-FTU400-400A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS400H-FMU400-300A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS400H-FMU400-300A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS400H-FMU400-300A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS400H-FMU400-400A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS400H-FMU400-400A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS400H-FMU400-400A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS400H-ATU400-300A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS400H-ATU400-300A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS400H-ATU400-300A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 300 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS400H-ATU400-400A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS400H-ATU400-400A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS400H-ATU400-400A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS400 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 400 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS630H-FTU630-500A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS630H-FTU630-500A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS630H-FTU630-500A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS630H-FTU630-550A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS630H-FTU630-550A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS630H-FTU630-550A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS630H-FMU630-500A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS630H-FMU630-500A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS630H-FMU630-500A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS630H-FMU630-550A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS630H-FMU630-550A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS630H-FMU630-550A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 550 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS630H-ATU630-500A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS630H-ATU630-500A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS630H-ATU630-500A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 500 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS630H-ATU630-550A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 550 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS630H-ATU630-550A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 550 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS630H-ATU630-550A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS630 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 550 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS800H-FTU800-700A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS800H-FTU800-700A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS800H-FTU800-700A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 700 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS800H-FTU800-800A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS800H-FTU800-800A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS800H-FTU800-800A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FTU (fixed thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS800H-FMU800-800A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS800H-FMU800-800A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS800H-FMU800-800A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: FMU (adj. thermal, fixed magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA
	TS800H-ATU800-800A-2P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 2P, 500 Vdc \| Icu (DC): 40 kA
	TS800H-ATU800-800A-3P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 3P (series), 750 Vdc \| Icu (DC): 40 kA
	TS800H-ATU800-800A-4P-DC	Version: DC (DC conformity tested, CB) \| Frame: TS800 H \| Trip unit: ATU (adj. thermal, adj. magnetic) \| Rated current In: 800 A \| Poles: 4P (4P4D), 1000 Vdc \| Icu (DC): 40 kA

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol MCCB PV / DC TD100-TS800 (16-800A, up to 1000Vdc)
