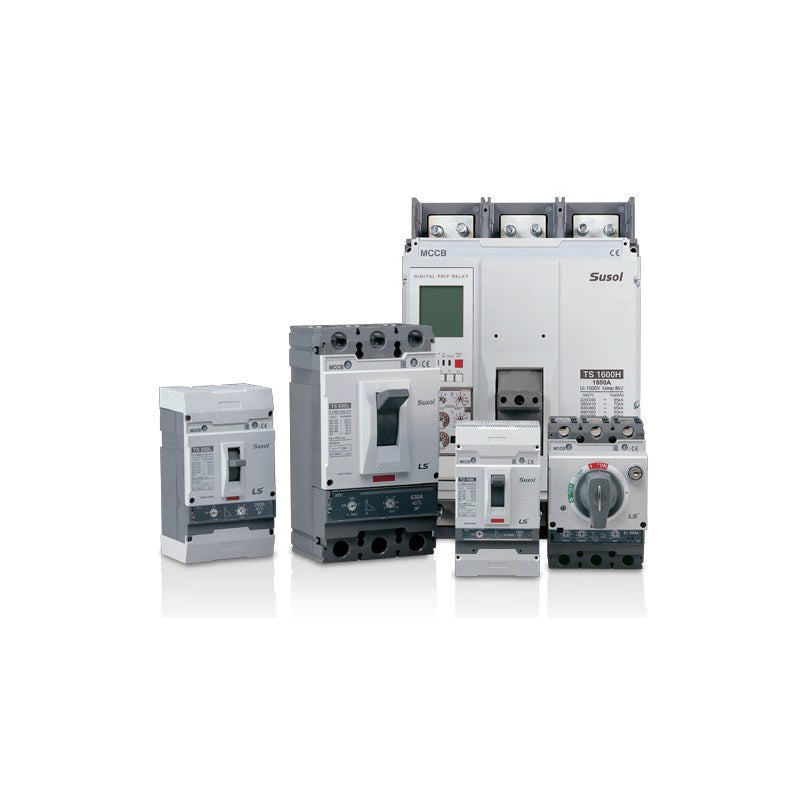

LS Electric Susol MCCB Terminals, Covers & Barriers (TD/TS)

LS Electric Susol MCCB Terminals, Covers & Barriers (TD/TS)

Connection and insulation accessories for LS Electric Susol TD100-TD160 and TS100-TS800 molded case circuit breakers: terminal mounters, inner and extended lug terminals, spreaders, rear connection terminals, terminal covers and insulation barriers.

Key features

  • Inner lug terminals (SBT/IBT) fit inside the breaker terminal; extended lugs (EBT) for 1-3 cables per pole
  • Spreaders (SP/SPS) widen the pole pitch for larger busbars and cables
  • Rear connection terminals in flat (RTB) and round (RTR) versions for 2, 3 and 4 poles
  • Long (ITL) and short (ITS) terminal covers to IP40; 2P and 3P use the same cover
  • Insulation barriers B-23C/B-33C/B-43C improve phase-to-phase insulation (not combined with terminal covers)

Specifications

Brand LS Electric
Series Susol MCCB
Applicable frames TD100, TD160, TS100 to TS800
Lug material For copper and aluminium cable
Terminal cover protection IP40
Source LS Electric Susol MCCB catalog C01091-24 (2025-09), p. 103-109 (A-3-10 to A-3-16)
TM1 Type: Terminal mounter (standard) | For MCCB: TD100, TD160 | Poles: All | Detail: For busbar or crimp lug
TM2 Type: Terminal mounter (standard) | For MCCB: TS100, TS160, TS250 | Poles: All | Detail: For busbar or crimp lug
SBT13 Type: Inner lug terminal | For MCCB: TD100, TD160 | Poles: 3P | Detail: Cu/Al 2.5-95 mm2, set of 3
SBT14 Type: Inner lug terminal | For MCCB: TD100, TD160 | Poles: 4P | Detail: Cu/Al 2.5-95 mm2, set of 4
SBT23 Type: Inner lug terminal | For MCCB: TS100, TS160, TS250 | Poles: 3P | Detail: Cu/Al 10-150 mm2, set of 3
SBT24 Type: Inner lug terminal | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: Cu/Al 10-150 mm2, set of 4
IBT33 Type: Inner lug terminal | For MCCB: TS400, TS630 | Poles: 3P | Detail: Cu/Al 70-300 mm2, up to 400 A, set of 3
IBT34 Type: Inner lug terminal | For MCCB: TS400, TS630 | Poles: 4P | Detail: Cu/Al 70-300 mm2, up to 400 A, set of 4
IBT13 Type: Inner lug terminal | For MCCB: Plug-in base PB12, PB13 | Poles: 3P | Detail: Cu/Al 2.5-95 mm2, set of 3
IBT14 Type: Inner lug terminal | For MCCB: Plug-in base PB12, PB13 | Poles: 4P | Detail: Cu/Al 2.5-95 mm2, set of 4
IBT23 Type: Inner lug terminal | For MCCB: Plug-in base PB22, PB23 | Poles: 3P | Detail: Cu/Al 10-150 mm2, set of 3
IBT24 Type: Inner lug terminal | For MCCB: Plug-in base PB22, PB23 | Poles: 4P | Detail: Cu/Al 10-150 mm2, set of 4
EBT13 Type: Extended lug terminal | For MCCB: TD100, TD160 | Poles: 3P | Detail: 1 cable, 2.5-95 mm2, set
EBT14 Type: Extended lug terminal | For MCCB: TD100, TD160 | Poles: 4P | Detail: 1 cable, 2.5-95 mm2, set
EBT23 Type: Extended lug terminal | For MCCB: TS100, TS160, TS250 | Poles: 3P | Detail: 1 cable, 10-150 mm2, set
EBT24 Type: Extended lug terminal | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: 1 cable, 10-150 mm2, set
EBT33 Type: Extended lug terminal | For MCCB: TS400, TS630 | Poles: 3P | Detail: 2 cables, 2x85-2x240 mm2, set
EBT34 Type: Extended lug terminal | For MCCB: TS400, TS630 | Poles: 4P | Detail: 2 cables, 2x85-2x240 mm2, set
EBT43 Type: Extended lug terminal | For MCCB: TS800 | Poles: 3P | Detail: 3 cables, 3x85-3x240 mm2, set
EBT44 Type: Extended lug terminal | For MCCB: TS800 | Poles: 4P | Detail: 3 cables, 3x85-3x240 mm2, set
SP12a Type: Spreader terminal | For MCCB: TD100, TD160 | Poles: 2P | Detail: Pitch 35 mm
SP12b Type: Spreader terminal | For MCCB: TD100, TD160 | Poles: 2P | Detail: Pitch 45 mm
SP13a Type: Spreader terminal | For MCCB: TD100, TD160 | Poles: 3P | Detail: Pitch 35 mm
SP13b Type: Spreader terminal | For MCCB: TD100, TD160 | Poles: 3P | Detail: Pitch 45 mm
SP14a Type: Spreader terminal | For MCCB: TD100, TD160 | Poles: 4P | Detail: Pitch 35 mm
SP14b Type: Spreader terminal | For MCCB: TD100, TD160 | Poles: 4P | Detail: Pitch 45 mm
SP22a Type: Spreader terminal | For MCCB: TS100, TS160, TS250 | Poles: 2P | Detail: Pitch 45 mm
SP22b Type: Spreader terminal | For MCCB: TS100, TS160, TS250 | Poles: 2P | Detail: Pitch 52.5 mm
SP23a Type: Spreader terminal | For MCCB: TS100, TS160, TS250 | Poles: 3P | Detail: Pitch 45 mm
SP23b Type: Spreader terminal | For MCCB: TS100, TS160, TS250 | Poles: 3P | Detail: Pitch 52.5 mm
SP24a Type: Spreader terminal | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: Pitch 45 mm
SP24b Type: Spreader terminal | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: Pitch 52.5 mm
SP32a Type: Spreader terminal | For MCCB: TS400, TS630 | Poles: 2P | Detail: Pitch 52.5 mm, B 41 mm
SP32b Type: Spreader terminal | For MCCB: TS400, TS630 | Poles: 2P | Detail: Pitch 70 mm, B 54 mm
SPS32 Type: Spreader terminal (straight) | For MCCB: TS400, TS630 | Poles: 2P | Detail: Pitch 46.5 mm, B 41 mm
SPS42 Type: Spreader terminal (straight) | For MCCB: TS800 | Poles: 2P | Detail: Pitch 70 mm, B 81.5 mm
SP33a Type: Spreader terminal | For MCCB: TS400, TS630 | Poles: 3P | Detail: Pitch 52.5 mm, B 41 mm
SP33b Type: Spreader terminal | For MCCB: TS400, TS630 | Poles: 3P | Detail: Pitch 70 mm, B 54 mm
SPS33 Type: Spreader terminal (straight) | For MCCB: TS400, TS630 | Poles: 3P | Detail: Pitch 46.5 mm, B 41 mm
SPS43 Type: Spreader terminal (straight) | For MCCB: TS800 | Poles: 3P | Detail: Pitch 70 mm, B 81.5 mm
SP34a Type: Spreader terminal | For MCCB: TS400, TS630 | Poles: 4P | Detail: Pitch 52.5 mm, B 41 mm
SP34b Type: Spreader terminal | For MCCB: TS400, TS630 | Poles: 4P | Detail: Pitch 70 mm, B 54 mm
SPS34 Type: Spreader terminal (straight) | For MCCB: TS400, TS630 | Poles: 4P | Detail: Pitch 46.5 mm, B 41 mm
SPS44 Type: Spreader terminal (straight) | For MCCB: TS800 | Poles: 4P | Detail: Pitch 70 mm, B 81.5 mm
RTB12 Type: Rear connection terminal, flat | For MCCB: TD100, TD160 | Poles: 2P | Detail: Rear connection
RTB13 Type: Rear connection terminal, flat | For MCCB: TD100, TD160 | Poles: 3P | Detail: Rear connection
RTB14 Type: Rear connection terminal, flat | For MCCB: TD100, TD160 | Poles: 4P | Detail: Rear connection
RTB22 Type: Rear connection terminal, flat | For MCCB: TS100, TS160, TS250 | Poles: 2P | Detail: Rear connection
RTB23 Type: Rear connection terminal, flat | For MCCB: TS100, TS160, TS250 | Poles: 3P | Detail: Rear connection
RTB24 Type: Rear connection terminal, flat | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: Rear connection
RTB32 Type: Rear connection terminal, flat | For MCCB: TS400, TS630 | Poles: 2P | Detail: Rear connection
RTB33 Type: Rear connection terminal, flat | For MCCB: TS400, TS630 | Poles: 3P | Detail: Rear connection
RTB34 Type: Rear connection terminal, flat | For MCCB: TS400, TS630 | Poles: 4P | Detail: Rear connection
RTB42 Type: Rear connection terminal, flat | For MCCB: TS800 | Poles: 2P | Detail: Rear connection
RTB43 Type: Rear connection terminal, flat | For MCCB: TS800 | Poles: 3P | Detail: Rear connection
RTB44 Type: Rear connection terminal, flat | For MCCB: TS800 | Poles: 4P | Detail: Rear connection
RTR12 Type: Rear connection terminal, round | For MCCB: TD100, TD160 | Poles: 2P | Detail: Rear connection
RTR13 Type: Rear connection terminal, round | For MCCB: TD100, TD160 | Poles: 3P | Detail: Rear connection
RTR14 Type: Rear connection terminal, round | For MCCB: TD100, TD160 | Poles: 4P | Detail: Rear connection
RTR22 Type: Rear connection terminal, round | For MCCB: TS100, TS160, TS250 | Poles: 2P | Detail: Rear connection
RTR23 Type: Rear connection terminal, round | For MCCB: TS100, TS160, TS250 | Poles: 3P | Detail: Rear connection
RTR24 Type: Rear connection terminal, round | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: Rear connection
ITL13 Type: Terminal cover, long | For MCCB: TD100, TD160 | Poles: 2P, 3P | Detail: IP40, front connection
ITS13 Type: Terminal cover, short | For MCCB: TD100, TD160 | Poles: 2P, 3P | Detail: IP40, rear/plug-in connection
ITL14 Type: Terminal cover, long | For MCCB: TD100, TD160 | Poles: 4P | Detail: IP40, front connection
ITS14 Type: Terminal cover, short | For MCCB: TD100, TD160 | Poles: 4P | Detail: IP40, rear/plug-in connection
ITL23 Type: Terminal cover, long | For MCCB: TS100, TS160, TS250 | Poles: 2P, 3P | Detail: IP40, front connection
ITS23 Type: Terminal cover, short | For MCCB: TS100, TS160, TS250 | Poles: 2P, 3P | Detail: IP40, rear/plug-in connection
ITL24 Type: Terminal cover, long | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: IP40, front connection
ITS24 Type: Terminal cover, short | For MCCB: TS100, TS160, TS250 | Poles: 4P | Detail: IP40, rear/plug-in connection
ITL33 Type: Terminal cover, long | For MCCB: TS400, TS630 | Poles: 2P, 3P | Detail: IP40, front connection
ITS33 Type: Terminal cover, short | For MCCB: TS400, TS630 | Poles: 2P, 3P | Detail: IP40, rear/plug-in connection
ITL34 Type: Terminal cover, long | For MCCB: TS400, TS630 | Poles: 4P | Detail: IP40, front connection
ITS34 Type: Terminal cover, short | For MCCB: TS400, TS630 | Poles: 4P | Detail: IP40, rear/plug-in connection
ITL43 Type: Terminal cover, long | For MCCB: TS800 | Poles: 2P, 3P | Detail: IP40, front connection
ITS43 Type: Terminal cover, short | For MCCB: TS800 | Poles: 2P, 3P | Detail: IP40, rear/plug-in connection
ITL44 Type: Terminal cover, long | For MCCB: TS800 | Poles: 4P | Detail: IP40, front connection
ITS44 Type: Terminal cover, short | For MCCB: TS800 | Poles: 4P | Detail: IP40, rear/plug-in connection
B-23C Type: Insulation barrier | For MCCB: TD100-TD160, TS100-TS250 | Poles: All | Detail: Interphase barrier
B-43C Type: Insulation barrier | For MCCB: TS800 | Poles: All | Detail: Interphase barrier
