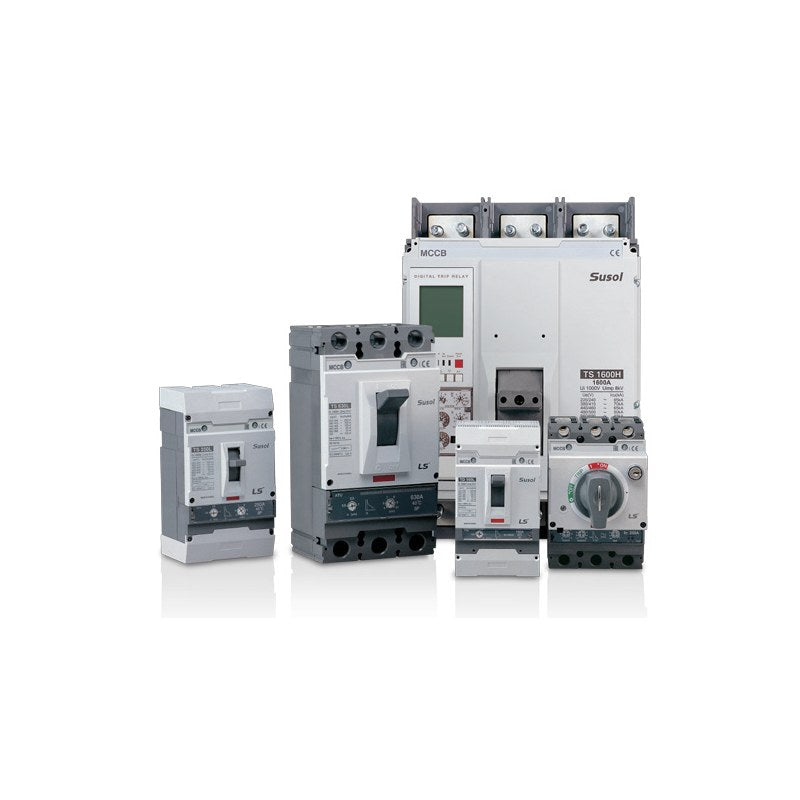

LS Electric Susol NA Disconnecting Switch (TD/TS/UTV, 100-1600 A)

LS Electric Susol NA Disconnecting Switch (TD/TS/UTV, 100-1600 A)

LS Electric Susol NA-type molded case disconnecting switches built on the TD, TS, TS1600AF and UTV breaker frames, 100-1600 A, for on-load isolation in AC and DC circuits without overcurrent protection.

Key features

  • Same housing and accessories as the Susol MCCB, with DSU switch unit (no trip function)
  • DC switching up to 1100 Vdc (100-800 AF, 4P series connection) and 1500 Vdc (TS1600AF 4P)
  • TD160NA 100 A and TS250NA 200 A versions are DC-rated only
  • Suitable for isolation (IEC 60947-3), front or rear connection, plug-in for 100-800 AF
  • UTV250NA for AC 800/1000 V renewable-energy systems
  • Ordering format: frame + NA + DSU + Ith + poles (e.g. TS250NA-DSU250-250A-3P)

Specifications

Rated current (Ith) 100 to 1600 A
Poles 2P, 3P, 4P
Rated impulse voltage (Uimp) 8 kV
Rated insulation voltage (Ui) AC 750-1000 V, DC 1100-1500 V
Trip unit DSU (switch, no protection)
Utilization category AC-23A/B, DC-22A/B, DC-23A
Standards IEC 60947-3
Source LS Electric Susol MCCB catalog C01091-24 (2025-09), p. 33, 82-83, 130, 150 (A-1-10, A-2-47 to A-2-48, A-4-1, A-4-21); LS Electric Susol MCCB up to 1000 Vac catalog C010O1-04 (2026-02), p. 2, 4
