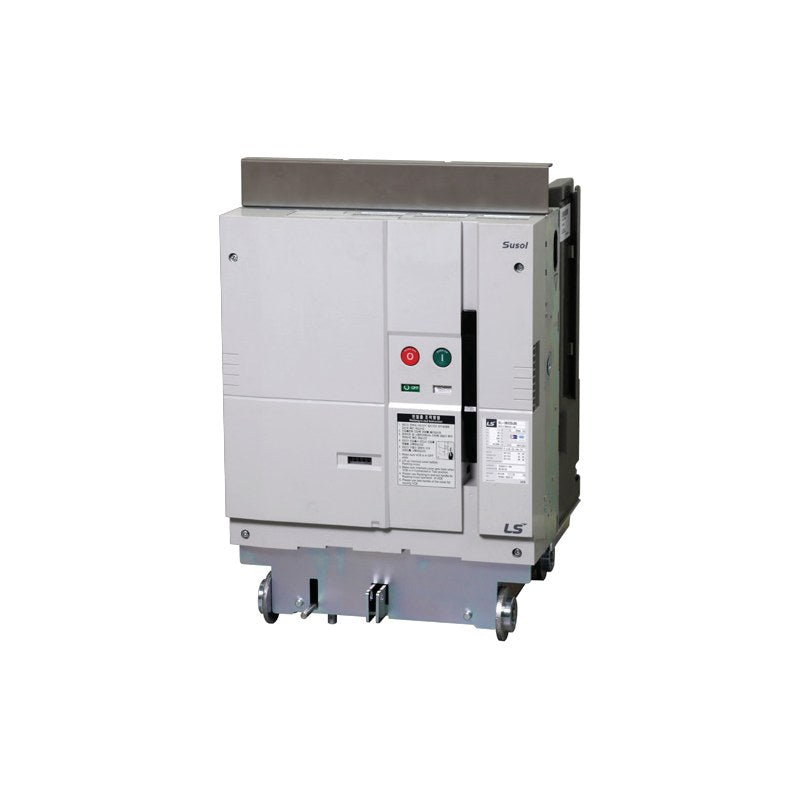

LS Electric Susol Retrofit VCB (7.2/24 kV, SVB/LVB/GVB replacement)

LS Electric Susol Retrofit VCB (7.2/24 kV, SVB/LVB/GVB replacement)

LS Electric Susol retrofit VL/VH vacuum circuit breakers that drop into existing cradles of discontinued Goldstar/LG SVB, LVB and GVB breakers, 7.2/24 kV, 12.5-40 kA, 630-3150 A.

Key features

  • Body-only replacement for discontinued SVB, LVB and GVB draw-out VCBs, reusing the existing cradle
  • E, F and G draw-out types with clip, tulip or solenoid-type compatible outlines
  • Compatible connectors keep the existing panel control wiring unchanged
  • Shortens replacement time and extends switchgear life at low cost
  • Control voltage suffix (motor/closing/trip, aux SA/SB connector, UVT) and R-options specified at order, e.g. VL-20G25Md20-M1C1T1SA2U0-R1

Specifications

Rated frequency 50/60 Hz
Rated breaking time 3 cycles
Insulation level 7.2 kV 20 kV power freq. / 60 kV BIL
Insulation level 24 kV 50 kV power freq. / 125 kV BIL
Control voltage DC 24-30/48-60/110/125/220 V, AC 48/100-130/220-250 V
Opening time <= 0.04 s
Standard IEC 62271-100
Source LS Electric Susol Retrofit VCB catalog C05011-05 (2021-04), p. 18-22, 61-62
VL-06E13Ma06 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 12.5 kA | Rated current: 630 A | Replaces: GVB solenoid-type | Aux contacts: 4a4b
VL-06E13Md06 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 12.5 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06E20La06 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 20 kA | Rated current: 630 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06F20La06 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 20 kA | Rated current: 630 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06G20La06 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 20 kA | Rated current: 630 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06E20Md06 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 20 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06E20La13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 20 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06F20La13 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 20 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06G20La13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 20 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06E20Md13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 20 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06G20Md20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 20 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06E25La06 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 630 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06F25La06 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 25 kA | Rated current: 630 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06G25La06 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 630 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06E25Md06 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06G25Md06 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06E25La13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06F25La13 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 25 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06G25La13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06E25Md13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06G25Md13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06G25Md20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-06E32La13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 31.5 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06F32La13 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 31.5 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VL-06G32La13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 10a10b
VH-06G32Mc13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-F (Fuji VI) | Aux contacts: 4a4b
VL-06G32Md13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VH-06E32Lc20 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 31.5 kA | Rated current: 2000 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06F32Lc20 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 31.5 kA | Rated current: 2000 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06G32Mc20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-F (Fuji VI) | Aux contacts: 4a4b
VL-06G32Md20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VH-06E32Lc32 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 31.5 kA | Rated current: 3150 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06F32Lc32 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 31.5 kA | Rated current: 3150 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06G32Mc32 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 3150 A | Replaces: GVB ...-Mf-F (Fuji VI) | Aux contacts: 4a4b
VH-06G32Md32 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 31.5 kA | Rated current: 3150 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VH-06E40Lc13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 40 kA | Rated current: 1250 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06E40La13 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 40 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 5a4b
VH-06F40Lc13 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 40 kA | Rated current: 1250 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06F40La13 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 40 kA | Rated current: 1250 A | Replaces: SVB/LVB clip-type | Aux contacts: 5a4b
VH-06G40Mc13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-F (Fuji VI) | Aux contacts: 4a4b
VH-06G40Md13 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VH-06E40Lc20 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 40 kA | Rated current: 2000 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06F40Lc20 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 40 kA | Rated current: 2000 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06G40Lc20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 2000 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06G40Mc20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-F (Fuji VI) | Aux contacts: 4a4b
VH-06G40Md20 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VH-06E40Lc32 Rated voltage: 7.2 kV | Draw-out type: E | Breaking current: 40 kA | Rated current: 3150 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06F40Lc32 Rated voltage: 7.2 kV | Draw-out type: F | Breaking current: 40 kA | Rated current: 3150 A | Replaces: SVB/LVB tulip-type | Aux contacts: 5a4b
VH-06G40Mc32 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 3150 A | Replaces: GVB ...-Mf-F (Fuji VI) | Aux contacts: 4a4b
VH-06G40Md32 Rated voltage: 7.2 kV | Draw-out type: G | Breaking current: 40 kA | Rated current: 3150 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b
VL-20E13Md06 Rated voltage: 24 kV | Draw-out type: E | Breaking current: 12.5 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20F13Md06 Rated voltage: 24 kV | Draw-out type: F | Breaking current: 12.5 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20G13Md06 Rated voltage: 24 kV | Draw-out type: G | Breaking current: 12.5 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20E13Md13 Rated voltage: 24 kV | Draw-out type: E | Breaking current: 12.5 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20F13Md13 Rated voltage: 24 kV | Draw-out type: F | Breaking current: 12.5 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20G13Md13 Rated voltage: 24 kV | Draw-out type: G | Breaking current: 12.5 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20G25Mb06 Rated voltage: 24 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 630 A | Replaces: GVB ...-Mf (Meidensha VI) | Aux contacts: 4a4b/10a10b
VL-20E25Md06 Rated voltage: 24 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20F25Md06 Rated voltage: 24 kV | Draw-out type: F | Breaking current: 25 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20G25Md06 Rated voltage: 24 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 630 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20E25Md13 Rated voltage: 24 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20F25Md13 Rated voltage: 24 kV | Draw-out type: F | Breaking current: 25 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20G25Md13 Rated voltage: 24 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 1250 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20E25Md20 Rated voltage: 24 kV | Draw-out type: E | Breaking current: 25 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20F25Md20 Rated voltage: 24 kV | Draw-out type: F | Breaking current: 25 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
VL-20G25Md20 Rated voltage: 24 kV | Draw-out type: G | Breaking current: 25 kA | Rated current: 2000 A | Replaces: GVB ...-Mf-W | Aux contacts: 4a4b/10a10b
Vacuum Circuit BreakersLS Electric
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol Retrofit VCB (7.2/24 kV, SVB/LVB/GVB replacement)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (66)

VL-06E13Ma06, VL-06E13Md06, VL-06E20La06, VL-06F20La06, VL-06G20La06, VL-06E20Md06, VL-06E20La13, VL-06F20La13, VL-06G20La13, VL-06E20Md13 + 56 more — see full table ↓
