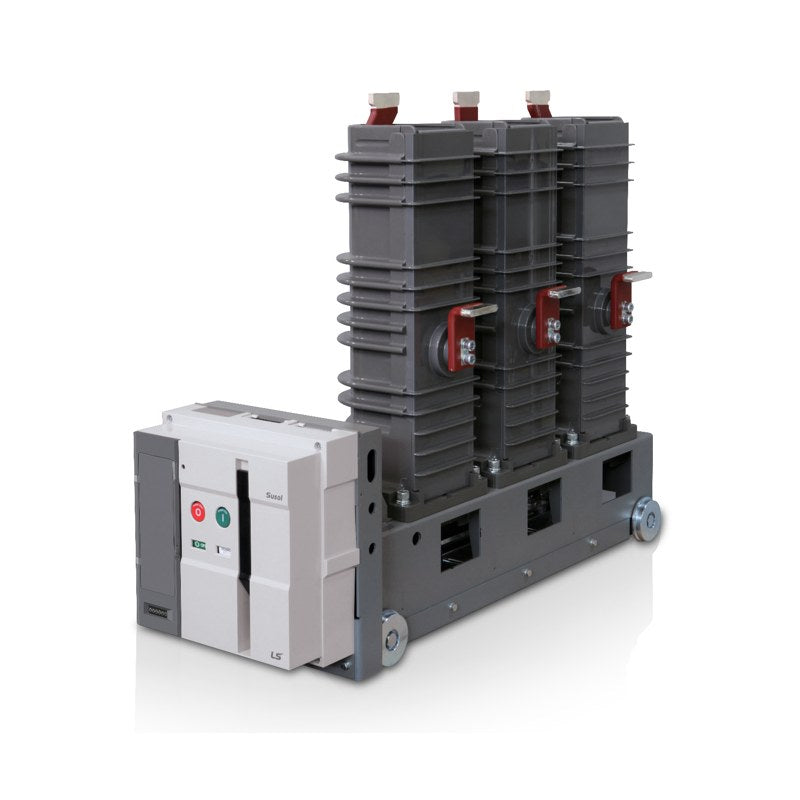

LS Electric Susol SVL Side Mount VCB (7.2-25.8 kV, 630/1250 A)

LS Electric Susol SVL Side Mount VCB (7.2-25.8 kV, 630/1250 A)

LS Electric Susol SVL side mount vacuum circuit breakers for compact MV switchgear, 7.2-25.8 kV, 16/20/25 kA, 630/1250 A, fixed or draw-out, right- or left-hand operating mechanism.

Key features

  • Compact side-mounted mechanism for LS Compact MV switchgear and RMU-style panels
  • Fixed (R/L) with 210, 230 or 254 mm phase distance; draw-out (S/T) with 230 mm
  • Naturally cooled main circuit with high-durability contacts
  • IEC 62271-100 classes M2, E2 (List 3), C2
  • Control voltage suffix (motor/closing/trip, aux SA2/SA4/SA6/SA8, UVT) and accessories specified at order, e.g. SVL-06R20H06-M1C1T1SA2U0

Specifications

Rated frequency 50/60 Hz
Rated making current 2.5 x Isc (50 Hz) / 2.6 x Isc (60 Hz)
Short-time current Isc / 3 s (4 s)
Rated breaking time 3 cycles
Operating duty O-0.3s-CO-15s-CO
Control voltage DC 24-30/48-60/110/125/220 V, AC 48/100-130/220-250 V
Auxiliary contacts 4a4b or 10a10b
Opening / closing time <= 0.04 s / <= 0.07 s
Weight 80-90 kg fixed, 85 kg draw-out
Standard IEC 62271-100
Source LS Electric Susol Side Mount VCB catalog C050K1-01 (2023-07), p. 4-14
SVL-06R20B06 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06R20B13 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06R20H06 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06R20H13 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06R20C06 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06R20C13 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06R25B06 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06R25B13 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06R25H06 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06R25H13 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06R25C06 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06R25C13 Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06L20B06 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06L20B13 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06L20H06 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06L20H13 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06L20C06 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06L20C13 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06L25B06 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06L25B13 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06L25H06 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06L25H13 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06L25C06 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06L25C13 Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06S20H06 Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06S20H13 Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06S25H06 Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06S25H13 Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06T20H06 Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06T20H13 Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06T25H06 Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06T25H13 Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R16B06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12R16B13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12R16H06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12R16H13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R16C06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12R16C13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12R20B06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12R20B13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12R20H06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12R20H13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R20C06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12R20C13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12R25B06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12R25B13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12R25H06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12R25H13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R25C06 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12R25C13 Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12L16B06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12L16B13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12L16H06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12L16H13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12L16C06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12L16C13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12L20B06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12L20B13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12L20H06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12L20H13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12L20C06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12L20C13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12L25B06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12L25B13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12L25H06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12L25H13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12L25C06 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12L25C13 Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12S16H06 Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12S16H13 Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12S20H06 Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12S20H13 Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12S25H06 Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12S25H13 Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12T16H06 Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12T16H13 Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12T20H06 Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12T20H13 Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12T25H06 Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12T25H13 Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R16B06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17R16B13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17R16H06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17R16H13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R16C06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17R16C13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17R20B06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17R20B13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17R20H06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17R20H13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R20C06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17R20C13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17R25B06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17R25B13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17R25H06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17R25H13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R25C06 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17R25C13 Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17L16B06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17L16B13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17L16H06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17L16H13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17L16C06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17L16C13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17L20B06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17L20B13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17L20H06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17L20H13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17L20C06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17L20C13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17L25B06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17L25B13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17L25H06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17L25H13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17L25C06 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17L25C13 Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17S16H06 Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17S16H13 Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17S20H06 Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17S20H13 Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17S25H06 Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17S25H13 Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17T16H06 Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17T16H13 Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17T20H06 Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17T20H13 Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17T25H06 Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17T25H13 Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R16B06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20R16B13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20R16H06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20R16H13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R16C06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20R16C13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20R20B06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20R20B13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20R20H06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20R20H13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R20C06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20R20C13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20R25B06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20R25B13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20R25H06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20R25H13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R25C06 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20R25C13 Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20L16B06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20L16B13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20L16H06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20L16H13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20L16C06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20L16C13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20L20B06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20L20B13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20L20H06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20L20H13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20L20C06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20L20C13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20L25B06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20L25B13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20L25H06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20L25H13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20L25C06 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20L25C13 Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20S16H06 Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20S16H13 Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20S20H06 Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20S20H13 Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20S25H06 Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20S25H13 Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20T16H06 Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20T16H13 Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20T20H06 Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20T20H13 Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20T25H06 Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20T25H13 Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R16B06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25R16B13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25R16H06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25R16H13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R16C06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25R16C13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25R20B06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25R20B13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25R20H06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25R20H13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R20C06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25R20C13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25R25B06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25R25B13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25R25H06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25R25H13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R25C06 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25R25C13 Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25L16B06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25L16B13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25L16H06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25L16H13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25L16C06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25L16C13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25L20B06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25L20B13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25L20H06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25L20H13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25L20C06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25L20C13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25L25B06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25L25B13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25L25H06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25L25H13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25L25C06 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25L25C13 Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25S16H06 Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25S16H13 Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25S20H06 Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25S20H13 Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25S25H06 Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25S25H13 Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25T16H06 Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25T16H13 Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25T20H06 Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25T20H13 Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25T25H06 Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25T25H13 Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
Vacuum Circuit BreakersLS Electric
224 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol SVL Side Mount VCB (7.2-25.8 kV, 630/1250 A)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (224)

SVL-06R20B06, SVL-06R20B13, SVL-06R20H06, SVL-06R20H13, SVL-06R20C06, SVL-06R20C13, SVL-06R25B06, SVL-06R25B13, SVL-06R25H06, SVL-06R25H13 + 214 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SVL-06R20B06Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06R20B13Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06R20H06Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06R20H13Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06R20C06Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06R20C13Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06R25B06Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06R25B13Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06R25H06Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06R25H13Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06R25C06Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06R25C13Rated voltage: 7.2 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06L20B06Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06L20B13Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06L20H06Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06L20H13Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06L20C06Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06L20C13Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06L25B06Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-06L25B13Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-06L25H06Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06L25H13Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06L25C06Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-06L25C13Rated voltage: 7.2 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-06S20H06Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06S20H13Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06S25H06Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06S25H13Rated voltage: 7.2 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06T20H06Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06T20H13Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-06T25H06Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-06T25H13Rated voltage: 7.2 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R16B06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12R16B13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12R16H06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12R16H13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R16C06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12R16C13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12R20B06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12R20B13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12R20H06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12R20H13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R20C06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12R20C13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12R25B06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12R25B13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12R25H06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12R25H13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12R25C06Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12R25C13Rated voltage: 12 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12L16B06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12L16B13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12L16H06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12L16H13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12L16C06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12L16C13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12L20B06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12L20B13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12L20H06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12L20H13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12L20C06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12L20C13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12L25B06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-12L25B13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-12L25H06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12L25H13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12L25C06Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-12L25C13Rated voltage: 12 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-12S16H06Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12S16H13Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12S20H06Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12S20H13Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12S25H06Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12S25H13Rated voltage: 12 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12T16H06Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12T16H13Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12T20H06Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12T20H13Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-12T25H06Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-12T25H13Rated voltage: 12 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R16B06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17R16B13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17R16H06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17R16H13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R16C06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17R16C13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17R20B06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17R20B13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17R20H06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17R20H13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R20C06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17R20C13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17R25B06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17R25B13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17R25H06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17R25H13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17R25C06Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17R25C13Rated voltage: 17.5 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17L16B06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17L16B13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17L16H06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17L16H13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17L16C06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17L16C13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17L20B06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17L20B13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17L20H06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17L20H13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17L20C06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17L20C13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17L25B06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-17L25B13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-17L25H06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17L25H13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17L25C06Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-17L25C13Rated voltage: 17.5 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-17S16H06Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17S16H13Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17S20H06Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17S20H13Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17S25H06Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17S25H13Rated voltage: 17.5 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17T16H06Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17T16H13Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17T20H06Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17T20H13Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-17T25H06Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-17T25H13Rated voltage: 17.5 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R16B06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20R16B13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20R16H06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20R16H13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R16C06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20R16C13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20R20B06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20R20B13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20R20H06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20R20H13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R20C06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20R20C13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20R25B06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20R25B13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20R25H06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20R25H13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20R25C06Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20R25C13Rated voltage: 24 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20L16B06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20L16B13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20L16H06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20L16H13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20L16C06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20L16C13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20L20B06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20L20B13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20L20H06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20L20H13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20L20C06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20L20C13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20L25B06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-20L25B13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-20L25H06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20L25H13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20L25C06Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-20L25C13Rated voltage: 24 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-20S16H06Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20S16H13Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20S20H06Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20S20H13Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20S25H06Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20S25H13Rated voltage: 24 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20T16H06Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20T16H13Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20T20H06Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20T20H13Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-20T25H06Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-20T25H13Rated voltage: 24 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R16B06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25R16B13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25R16H06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25R16H13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R16C06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25R16C13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25R20B06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25R20B13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25R20H06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25R20H13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R20C06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25R20C13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25R25B06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25R25B13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25R25H06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25R25H13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25R25C06Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25R25C13Rated voltage: 25.8 kV | Mounting: Fixed, right-hand (R) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25L16B06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25L16B13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25L16H06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25L16H13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25L16C06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25L16C13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 16 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25L20B06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25L20B13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25L20H06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25L20H13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25L20C06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25L20C13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 20 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25L25B06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 630 A
SVL-25L25B13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 210 mm | Rated current: 1250 A
SVL-25L25H06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25L25H13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25L25C06Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 630 A
SVL-25L25C13Rated voltage: 25.8 kV | Mounting: Fixed, left-hand (L) | Breaking current: 25 kA | Phase distance: 254 mm | Rated current: 1250 A
SVL-25S16H06Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25S16H13Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25S20H06Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25S20H13Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25S25H06Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25S25H13Rated voltage: 25.8 kV | Mounting: Draw-out, right-hand (S) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25T16H06Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25T16H13Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 16 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25T20H06Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25T20H13Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 20 kA | Phase distance: 230 mm | Rated current: 1250 A
SVL-25T25H06Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 630 A
SVL-25T25H13Rated voltage: 25.8 kV | Mounting: Draw-out, left-hand (T) | Breaking current: 25 kA | Phase distance: 230 mm | Rated current: 1250 A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
