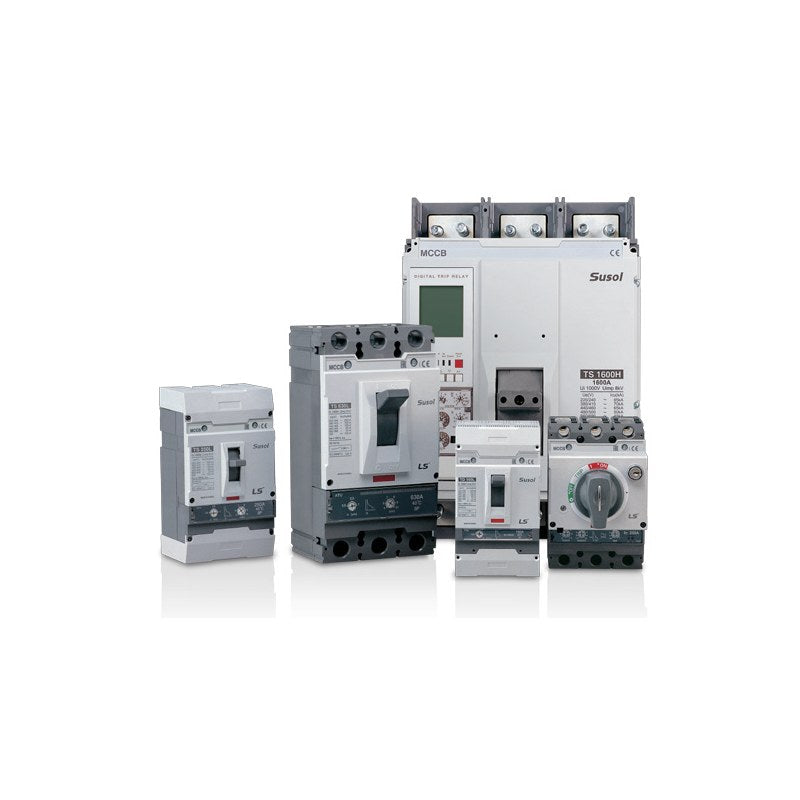

LS Electric Susol TS MTU Motor Protection MCCB (1.6-630 A, 3P)

LS Electric Susol TS MTU Motor Protection MCCB (1.6-630 A, 3P)

LS Electric Susol TS100 to TS800 motor-protection molded case circuit breakers with MTU magnetic-only trip unit, 1.6-630 A, 3 poles, for short-circuit protection of motor feeders combined with a contactor and overload relay.

Key features

  • MTU magnetic-only trip unit: instantaneous Ii adjustable 6...12 x In in 6 steps, no thermal (overload) element
  • Designed for motor starters together with a magnetic contactor and thermal overload relay
  • Breaking capacity at 380/415 V: N 50/65 kA, H 85/100 kA, L 150 kA depending on frame (Ics = 100% Icu)
  • Frames TS100, TS160, TS250 (105 x 160 x 86 mm), TS400/TS630 (140 x 260 x 110 mm), TS800 (210 x 320 x 135 mm)
  • Accepts the common Susol internal and external accessories (AX, AL, SHT, UVT, handles, motor operator)
  • Ordering format: frame + type + MTU + In + poles (e.g. TS250N-MTU-220A-3P)

Specifications

Frame size 100 / 160 / 250 / 400 / 630 / 800 AF
Poles 3P
Rated operational voltage (Ue) AC 690 V, 50/60 Hz; DC 500 V
Rated insulation voltage (Ui) AC 1000 V
Rated impulse voltage (Uimp) 8 kV
Icu at 220/240 V N 100 kA, H 120 kA, L 200 kA
Trip unit MTU, magnetic only (instantaneous adjustable)
Utilization category A
Mounting Fixed, front connection (plug-in available)
Standards IEC 60947-2
Source LS Electric Susol MCCB catalog C01091-24 (2025-09), p. 33 (A-1-10), 78-81 (A-2-43 to A-2-46)
TS100N-MTU-1.6A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 1.6 A | Instantaneous Ii: 10-20 A (6 steps)
TS100N-MTU-3.2A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 3.2 A | Instantaneous Ii: 20-40 A (6 steps)
TS100N-MTU-6.3A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 6.3 A | Instantaneous Ii: 40-80 A (6 steps)
TS100N-MTU-12A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 12 A | Instantaneous Ii: 70-140 A (6 steps)
TS100N-MTU-20A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 20 A | Instantaneous Ii: 120-240 A (6 steps)
TS100N-MTU-32A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS100N-MTU-50A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS100N-MTU-63A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS100N-MTU-100A-3P Frame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS100H-MTU-1.6A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 1.6 A | Instantaneous Ii: 10-20 A (6 steps)
TS100H-MTU-3.2A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 3.2 A | Instantaneous Ii: 20-40 A (6 steps)
TS100H-MTU-6.3A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 6.3 A | Instantaneous Ii: 40-80 A (6 steps)
TS100H-MTU-12A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 12 A | Instantaneous Ii: 70-140 A (6 steps)
TS100H-MTU-20A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 20 A | Instantaneous Ii: 120-240 A (6 steps)
TS100H-MTU-32A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS100H-MTU-50A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS100H-MTU-63A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS100H-MTU-100A-3P Frame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS100L-MTU-1.6A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 1.6 A | Instantaneous Ii: 10-20 A (6 steps)
TS100L-MTU-3.2A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 3.2 A | Instantaneous Ii: 20-40 A (6 steps)
TS100L-MTU-6.3A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 6.3 A | Instantaneous Ii: 40-80 A (6 steps)
TS100L-MTU-12A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 12 A | Instantaneous Ii: 70-140 A (6 steps)
TS100L-MTU-20A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 20 A | Instantaneous Ii: 120-240 A (6 steps)
TS100L-MTU-32A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS100L-MTU-50A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS100L-MTU-63A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS100L-MTU-100A-3P Frame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160N-MTU-32A-3P Frame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS160N-MTU-50A-3P Frame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS160N-MTU-63A-3P Frame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS160N-MTU-100A-3P Frame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160N-MTU-160A-3P Frame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS160H-MTU-32A-3P Frame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS160H-MTU-50A-3P Frame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS160H-MTU-63A-3P Frame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS160H-MTU-100A-3P Frame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160H-MTU-160A-3P Frame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS160L-MTU-32A-3P Frame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS160L-MTU-50A-3P Frame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS160L-MTU-63A-3P Frame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS160L-MTU-100A-3P Frame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160L-MTU-160A-3P Frame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250N-MTU-100A-3P Frame: TS250 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS250N-MTU-160A-3P Frame: TS250 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250N-MTU-220A-3P Frame: TS250 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 220 A | Instantaneous Ii: 1320-2640 A (6 steps)
TS250H-MTU-100A-3P Frame: TS250 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS250H-MTU-160A-3P Frame: TS250 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250H-MTU-220A-3P Frame: TS250 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 220 A | Instantaneous Ii: 1320-2640 A (6 steps)
TS250L-MTU-100A-3P Frame: TS250 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS250L-MTU-160A-3P Frame: TS250 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250L-MTU-220A-3P Frame: TS250 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 220 A | Instantaneous Ii: 1320-2640 A (6 steps)
TS400N-MTU-320A-3P Frame: TS400 | Breaking capacity: N (Normal), 65 kA at 415 V | Rated current In: 320 A | Instantaneous Ii: 1920-3840 A (6 steps)
TS400H-MTU-320A-3P Frame: TS400 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 320 A | Instantaneous Ii: 1920-3840 A (6 steps)
TS400L-MTU-320A-3P Frame: TS400 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 320 A | Instantaneous Ii: 1920-3840 A (6 steps)
TS630N-MTU-500A-3P Frame: TS630 | Breaking capacity: N (Normal), 65 kA at 415 V | Rated current In: 500 A | Instantaneous Ii: 3000-6000 A (6 steps)
TS630H-MTU-500A-3P Frame: TS630 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 500 A | Instantaneous Ii: 3000-6000 A (6 steps)
TS630L-MTU-500A-3P Frame: TS630 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 500 A | Instantaneous Ii: 3000-6000 A (6 steps)
TS800N-MTU-630A-3P Frame: TS800 | Breaking capacity: N (Normal), 65 kA at 415 V | Rated current In: 630 A | Instantaneous Ii: 3780-7560 A (6 steps)
TS800H-MTU-630A-3P Frame: TS800 | Breaking capacity: H (High), 100 kA at 415 V | Rated current In: 630 A | Instantaneous Ii: 3780-7560 A (6 steps)
TS800L-MTU-630A-3P Frame: TS800 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 630 A | Instantaneous Ii: 3780-7560 A (6 steps)
Molded Case Circuit BreakersLS Electric
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol TS MTU Motor Protection MCCB (1.6-630 A, 3P)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (60)

TS100N-MTU-1.6A-3P, TS100N-MTU-3.2A-3P, TS100N-MTU-6.3A-3P, TS100N-MTU-12A-3P, TS100N-MTU-20A-3P, TS100N-MTU-32A-3P, TS100N-MTU-50A-3P, TS100N-MTU-63A-3P, TS100N-MTU-100A-3P, TS100H-MTU-1.6A-3P + 50 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TS100N-MTU-1.6A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 1.6 A | Instantaneous Ii: 10-20 A (6 steps)
TS100N-MTU-3.2A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 3.2 A | Instantaneous Ii: 20-40 A (6 steps)
TS100N-MTU-6.3A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 6.3 A | Instantaneous Ii: 40-80 A (6 steps)
TS100N-MTU-12A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 12 A | Instantaneous Ii: 70-140 A (6 steps)
TS100N-MTU-20A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 20 A | Instantaneous Ii: 120-240 A (6 steps)
TS100N-MTU-32A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS100N-MTU-50A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS100N-MTU-63A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS100N-MTU-100A-3PFrame: TS100 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS100H-MTU-1.6A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 1.6 A | Instantaneous Ii: 10-20 A (6 steps)
TS100H-MTU-3.2A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 3.2 A | Instantaneous Ii: 20-40 A (6 steps)
TS100H-MTU-6.3A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 6.3 A | Instantaneous Ii: 40-80 A (6 steps)
TS100H-MTU-12A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 12 A | Instantaneous Ii: 70-140 A (6 steps)
TS100H-MTU-20A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 20 A | Instantaneous Ii: 120-240 A (6 steps)
TS100H-MTU-32A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS100H-MTU-50A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS100H-MTU-63A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS100H-MTU-100A-3PFrame: TS100 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS100L-MTU-1.6A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 1.6 A | Instantaneous Ii: 10-20 A (6 steps)
TS100L-MTU-3.2A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 3.2 A | Instantaneous Ii: 20-40 A (6 steps)
TS100L-MTU-6.3A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 6.3 A | Instantaneous Ii: 40-80 A (6 steps)
TS100L-MTU-12A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 12 A | Instantaneous Ii: 70-140 A (6 steps)
TS100L-MTU-20A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 20 A | Instantaneous Ii: 120-240 A (6 steps)
TS100L-MTU-32A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS100L-MTU-50A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS100L-MTU-63A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS100L-MTU-100A-3PFrame: TS100 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160N-MTU-32A-3PFrame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS160N-MTU-50A-3PFrame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS160N-MTU-63A-3PFrame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS160N-MTU-100A-3PFrame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160N-MTU-160A-3PFrame: TS160 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS160H-MTU-32A-3PFrame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS160H-MTU-50A-3PFrame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS160H-MTU-63A-3PFrame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS160H-MTU-100A-3PFrame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160H-MTU-160A-3PFrame: TS160 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS160L-MTU-32A-3PFrame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 32 A | Instantaneous Ii: 190-380 A (6 steps)
TS160L-MTU-50A-3PFrame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 50 A | Instantaneous Ii: 300-600 A (6 steps)
TS160L-MTU-63A-3PFrame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 63 A | Instantaneous Ii: 400-800 A (6 steps)
TS160L-MTU-100A-3PFrame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS160L-MTU-160A-3PFrame: TS160 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250N-MTU-100A-3PFrame: TS250 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS250N-MTU-160A-3PFrame: TS250 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250N-MTU-220A-3PFrame: TS250 | Breaking capacity: N (Normal), 50 kA at 415 V | Rated current In: 220 A | Instantaneous Ii: 1320-2640 A (6 steps)
TS250H-MTU-100A-3PFrame: TS250 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS250H-MTU-160A-3PFrame: TS250 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250H-MTU-220A-3PFrame: TS250 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 220 A | Instantaneous Ii: 1320-2640 A (6 steps)
TS250L-MTU-100A-3PFrame: TS250 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 100 A | Instantaneous Ii: 600-1200 A (6 steps)
TS250L-MTU-160A-3PFrame: TS250 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 160 A | Instantaneous Ii: 960-1920 A (6 steps)
TS250L-MTU-220A-3PFrame: TS250 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 220 A | Instantaneous Ii: 1320-2640 A (6 steps)
TS400N-MTU-320A-3PFrame: TS400 | Breaking capacity: N (Normal), 65 kA at 415 V | Rated current In: 320 A | Instantaneous Ii: 1920-3840 A (6 steps)
TS400H-MTU-320A-3PFrame: TS400 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 320 A | Instantaneous Ii: 1920-3840 A (6 steps)
TS400L-MTU-320A-3PFrame: TS400 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 320 A | Instantaneous Ii: 1920-3840 A (6 steps)
TS630N-MTU-500A-3PFrame: TS630 | Breaking capacity: N (Normal), 65 kA at 415 V | Rated current In: 500 A | Instantaneous Ii: 3000-6000 A (6 steps)
TS630H-MTU-500A-3PFrame: TS630 | Breaking capacity: H (High), 85 kA at 415 V | Rated current In: 500 A | Instantaneous Ii: 3000-6000 A (6 steps)
TS630L-MTU-500A-3PFrame: TS630 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 500 A | Instantaneous Ii: 3000-6000 A (6 steps)
TS800N-MTU-630A-3PFrame: TS800 | Breaking capacity: N (Normal), 65 kA at 415 V | Rated current In: 630 A | Instantaneous Ii: 3780-7560 A (6 steps)
TS800H-MTU-630A-3PFrame: TS800 | Breaking capacity: H (High), 100 kA at 415 V | Rated current In: 630 A | Instantaneous Ii: 3780-7560 A (6 steps)
TS800L-MTU-630A-3PFrame: TS800 | Breaking capacity: L (Current limiting), 150 kA at 415 V | Rated current In: 630 A | Instantaneous Ii: 3780-7560 A (6 steps)
