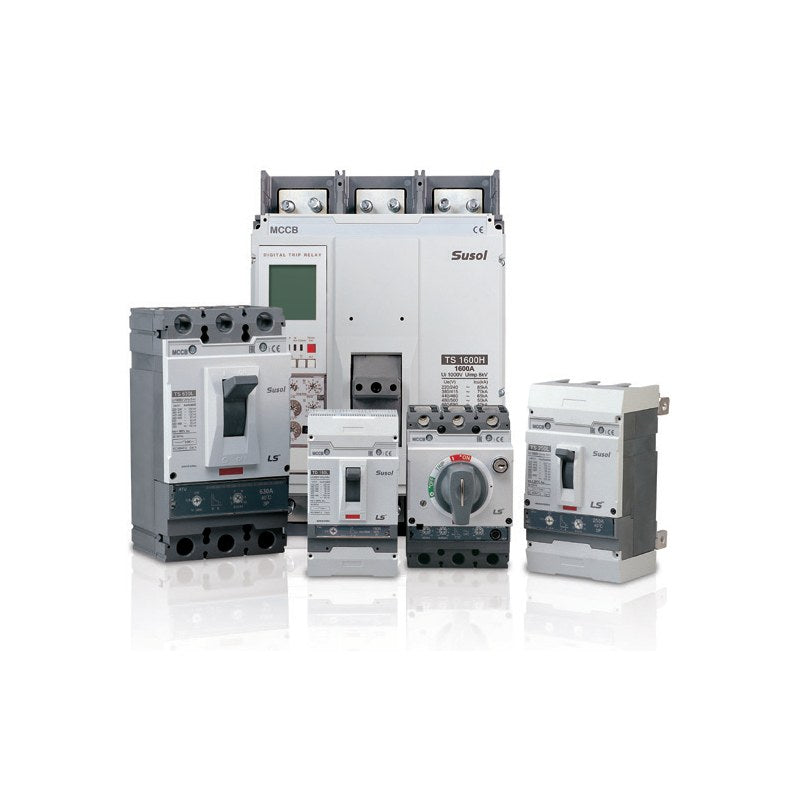

LS Electric Susol TS1250/TS1600 MCCB (1250-1600 A, digital trip relay)

LS Electric Susol TS1250 and TS1600 molded case circuit breakers, 1250 and 1600 A, N/H breaking capacity, with N, A, P or S digital trip relays in 3 and 4 poles for main and feeder protection.

Key features

Breaking capacity at 380/415 V: N 50 kA, H 70 kA; Icw 25 kA 1 s, utilization category B
Digital trip relay types: N (basic LSIG), A (ammeter, ZSI), P (power meter), S (supreme meter with harmonics)
Relay code = type + function + control power, e.g. AG1 (ammeter, LSIG, AC/DC 100-250 V 60 Hz)
Optional earth leakage protection with LS-supplied ZCT (0.5-30 A) or customer ZCT (>30 A), Modbus RS-485 communication
4-pole versions with N pole left (N-L1-L2-L3) or right (L1-L2-L3-N); rear connection (REAR) available
P and S relays need the separately ordered voltage module; self-powered versions give basic LSIG only

Specifications

Frame size	1250 AF (TS1250), 1600 AF (TS1600)
Rated operational voltage (Ue)	AC 690 V, 50/60 Hz
Rated insulation voltage (Ui)	AC 1000 V
Rated impulse voltage (Uimp)	8 kV
Trip relay	Digital OCR, L/S/I/G protection as standard
Dimensions (W x H x D)	3P 210 x 327 x 152.5 mm; 4P 280 x 327 x 152.5 mm
Weight	3P 13 kg, 4P 16.8 kg
Standards	IEC 60947-2
Source	LS Electric Susol MCCB catalog C01091-24 (2025-09), p. 130-133 (A-4-1 to A-4-4)

TS1250N-NG0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250N-NG0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250N-NG0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250N-NG5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250N-NG5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250N-NG5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250N-AG0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250N-AG0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250N-AG0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250N-AG1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AG1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AG1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AG2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1250N-AG2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1250N-AG2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1250N-AG5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250N-AG5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250N-AG5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250N-AG6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AG6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AG6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AG7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1250N-AG7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1250N-AG7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1250N-AZ0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1250N-AZ0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1250N-AZ0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1250N-AZ1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AZ1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AZ1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AZ2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1250N-AZ2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1250N-AZ2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1250N-AZ5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1250N-AZ5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1250N-AZ5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1250N-AZ6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AZ6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AZ6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AZ7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1250N-AZ7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1250N-AZ7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1250N-AE0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1250N-AE0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1250N-AE0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1250N-AE1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AE1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AE1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AE2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1250N-AE2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1250N-AE2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1250N-AE5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1250N-AE5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1250N-AE5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1250N-AE6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AE6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AE6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AE7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1250N-AE7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1250N-AE7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1250N-AC0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1250N-AC0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1250N-AC0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1250N-AC1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AC1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AC1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AC2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AC2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AC2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AC5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1250N-AC5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1250N-AC5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1250N-AC6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AC6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AC6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AC7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AC7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AC7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AK0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1250N-AK0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1250N-AK0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1250N-AK1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AK1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AK1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AK2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AK2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AK2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AK5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1250N-AK5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1250N-AK5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1250N-AK6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AK6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AK6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AK7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AK7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AK7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AX0-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1250N-AX0-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1250N-AX0-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1250N-AX1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AX1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AX1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-AX2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AX2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AX2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-AX5-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1250N-AX5-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1250N-AX5-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1250N-AX6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AX6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AX6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-AX7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AX7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-AX7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PC1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PC1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PC1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PC2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PC2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PC2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PC6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PC6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PC6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PC7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PC7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PC7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PK1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PK1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PK1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PK2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PK2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PK2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PK6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PK6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PK6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PK7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PK7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PK7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PX1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PX1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PX1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PX2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PX2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PX2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PX6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PX6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PX6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PX7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PX7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PX7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PA1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PA1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PA1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-PA2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PA2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PA2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-PA6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PA6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PA6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-PA7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PA7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-PA7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SC1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SC1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SC1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SC2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SC2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SC2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SC6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SC6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SC6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SC7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SC7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SC7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SK1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SK1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SK1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SK2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SK2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SK2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SK6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SK6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SK6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SK7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SK7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SK7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SX1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SX1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SX1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SX2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SX2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SX2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SX6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SX6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SX6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SX7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SX7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SX7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SA1-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SA1-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SA1-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250N-SA2-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SA2-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SA2-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250N-SA6-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SA6-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SA6-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250N-SA7-1250A-3P		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SA7-1250A-4PL		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250N-SA7-1250A-4PR		Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-NG0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250H-NG0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250H-NG0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250H-NG5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250H-NG5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250H-NG5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250H-AG0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250H-AG0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250H-AG0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1250H-AG1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AG1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AG1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AG2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1250H-AG2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1250H-AG2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1250H-AG5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250H-AG5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250H-AG5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1250H-AG6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AG6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AG6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AG7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1250H-AG7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1250H-AG7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1250H-AZ0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1250H-AZ0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1250H-AZ0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1250H-AZ1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AZ1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AZ1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AZ2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1250H-AZ2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1250H-AZ2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1250H-AZ5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1250H-AZ5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1250H-AZ5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1250H-AZ6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AZ6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AZ6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AZ7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1250H-AZ7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1250H-AZ7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1250H-AE0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1250H-AE0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1250H-AE0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1250H-AE1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AE1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AE1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AE2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1250H-AE2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1250H-AE2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1250H-AE5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1250H-AE5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1250H-AE5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1250H-AE6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AE6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AE6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AE7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1250H-AE7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1250H-AE7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1250H-AC0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1250H-AC0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1250H-AC0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1250H-AC1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AC1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AC1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AC2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AC2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AC2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AC5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1250H-AC5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1250H-AC5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1250H-AC6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AC6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AC6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AC7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AC7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AC7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AK0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1250H-AK0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1250H-AK0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1250H-AK1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AK1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AK1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AK2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AK2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AK2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AK5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1250H-AK5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1250H-AK5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1250H-AK6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AK6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AK6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AK7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AK7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AK7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AX0-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1250H-AX0-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1250H-AX0-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1250H-AX1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AX1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AX1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-AX2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AX2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AX2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-AX5-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1250H-AX5-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1250H-AX5-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1250H-AX6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AX6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AX6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-AX7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AX7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-AX7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PC1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PC1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PC1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PC2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PC2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PC2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PC6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PC6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PC6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PC7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PC7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PC7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PK1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PK1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PK1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PK2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PK2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PK2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PK6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PK6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PK6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PK7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PK7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PK7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PX1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PX1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PX1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PX2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PX2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PX2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PX6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PX6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PX6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PX7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PX7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PX7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PA1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PA1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PA1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-PA2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PA2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PA2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-PA6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PA6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PA6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-PA7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PA7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-PA7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SC1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SC1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SC1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SC2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SC2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SC2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SC6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SC6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SC6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SC7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SC7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SC7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SK1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SK1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SK1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SK2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SK2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SK2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SK6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SK6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SK6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SK7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SK7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SK7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SX1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SX1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SX1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SX2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SX2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SX2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SX6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SX6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SX6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SX7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SX7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SX7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SA1-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SA1-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SA1-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1250H-SA2-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SA2-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SA2-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1250H-SA6-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SA6-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SA6-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1250H-SA7-1250A-3P		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SA7-1250A-4PL		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1250H-SA7-1250A-4PR		Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-NG0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600N-NG0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600N-NG0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600N-NG5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600N-NG5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600N-NG5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600N-AG0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600N-AG0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600N-AG0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600N-AG1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AG1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AG1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AG2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1600N-AG2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1600N-AG2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1600N-AG5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600N-AG5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600N-AG5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600N-AG6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AG6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AG6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AG7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1600N-AG7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1600N-AG7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1600N-AZ0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1600N-AZ0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1600N-AZ0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1600N-AZ1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AZ1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AZ1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AZ2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1600N-AZ2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1600N-AZ2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1600N-AZ5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1600N-AZ5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1600N-AZ5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1600N-AZ6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AZ6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AZ6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AZ7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1600N-AZ7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1600N-AZ7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1600N-AE0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1600N-AE0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1600N-AE0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1600N-AE1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AE1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AE1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AE2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1600N-AE2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1600N-AE2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1600N-AE5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1600N-AE5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1600N-AE5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1600N-AE6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AE6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AE6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AE7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1600N-AE7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1600N-AE7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1600N-AC0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1600N-AC0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1600N-AC0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1600N-AC1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AC1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AC1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AC2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AC2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AC2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AC5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1600N-AC5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1600N-AC5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1600N-AC6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AC6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AC6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AC7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AC7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AC7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AK0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1600N-AK0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1600N-AK0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1600N-AK1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AK1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AK1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AK2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AK2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AK2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AK5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1600N-AK5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1600N-AK5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1600N-AK6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AK6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AK6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AK7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AK7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AK7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AX0-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1600N-AX0-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1600N-AX0-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1600N-AX1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AX1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AX1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-AX2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AX2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AX2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-AX5-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1600N-AX5-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1600N-AX5-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1600N-AX6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AX6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AX6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-AX7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AX7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-AX7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PC1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PC1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PC1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PC2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PC2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PC2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PC6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PC6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PC6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PC7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PC7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PC7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PK1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PK1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PK1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PK2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PK2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PK2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PK6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PK6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PK6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PK7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PK7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PK7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PX1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PX1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PX1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PX2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PX2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PX2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PX6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PX6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PX6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PX7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PX7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PX7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PA1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PA1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PA1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-PA2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PA2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PA2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-PA6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PA6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PA6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-PA7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PA7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-PA7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SC1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SC1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SC1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SC2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SC2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SC2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SC6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SC6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SC6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SC7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SC7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SC7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SK1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SK1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SK1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SK2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SK2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SK2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SK6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SK6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SK6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SK7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SK7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SK7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SX1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SX1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SX1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SX2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SX2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SX2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SX6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SX6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SX6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SX7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SX7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SX7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SA1-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SA1-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SA1-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600N-SA2-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SA2-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SA2-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600N-SA6-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SA6-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SA6-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600N-SA7-1600A-3P		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SA7-1600A-4PL		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600N-SA7-1600A-4PR		Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-NG0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600H-NG0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600H-NG0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600H-NG5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600H-NG5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600H-NG5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600H-AG0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600H-AG0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600H-AG0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
TS1600H-AG1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AG1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AG1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AG2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1600H-AG2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1600H-AG2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
TS1600H-AG5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600H-AG5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600H-AG5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
TS1600H-AG6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AG6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AG6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AG7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1600H-AG7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1600H-AG7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
TS1600H-AZ0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1600H-AZ0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1600H-AZ0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
TS1600H-AZ1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AZ1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AZ1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AZ2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1600H-AZ2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1600H-AZ2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
TS1600H-AZ5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1600H-AZ5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1600H-AZ5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
TS1600H-AZ6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AZ6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AZ6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AZ7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1600H-AZ7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1600H-AZ7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
TS1600H-AE0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1600H-AE0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1600H-AE0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
TS1600H-AE1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AE1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AE1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AE2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1600H-AE2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1600H-AE2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
TS1600H-AE5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1600H-AE5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1600H-AE5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
TS1600H-AE6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AE6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AE6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AE7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1600H-AE7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1600H-AE7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
TS1600H-AC0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1600H-AC0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1600H-AC0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
TS1600H-AC1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AC1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AC1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AC2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AC2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AC2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AC5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1600H-AC5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1600H-AC5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
TS1600H-AC6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AC6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AC6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AC7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AC7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AC7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AK0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1600H-AK0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1600H-AK0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
TS1600H-AK1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AK1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AK1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AK2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AK2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AK2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AK5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1600H-AK5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1600H-AK5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
TS1600H-AK6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AK6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AK6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AK7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AK7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AK7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AX0-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1600H-AX0-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1600H-AX0-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
TS1600H-AX1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AX1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AX1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-AX2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AX2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AX2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-AX5-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1600H-AX5-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1600H-AX5-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
TS1600H-AX6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AX6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AX6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-AX7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AX7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-AX7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PC1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PC1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PC1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PC2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PC2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PC2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PC6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PC6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PC6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PC7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PC7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PC7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PK1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PK1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PK1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PK2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PK2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PK2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PK6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PK6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PK6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PK7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PK7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PK7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PX1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PX1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PX1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PX2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PX2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PX2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PX6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PX6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PX6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PX7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PX7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PX7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PA1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PA1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PA1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-PA2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PA2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PA2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-PA6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PA6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PA6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-PA7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PA7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-PA7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SC1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SC1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SC1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SC2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SC2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SC2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SC6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SC6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SC6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SC7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SC7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SC7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SK1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SK1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SK1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SK2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SK2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SK2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SK6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SK6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SK6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SK7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SK7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SK7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SX1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SX1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SX1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SX2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SX2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SX2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SX6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SX6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SX6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SX7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SX7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SX7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SA1-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SA1-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SA1-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
TS1600H-SA2-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SA2-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SA2-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
TS1600H-SA6-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SA6-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SA6-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
TS1600H-SA7-1600A-3P		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SA7-1600A-4PL		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
TS1600H-SA7-1600A-4PR		Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz

Molded Case Circuit BreakersLS Electric

840 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol TS1250/TS1600 MCCB (1250-1600 A, digital trip relay)

Brand LS Electric·Molded Case Circuit Breakers

Available part numbers (840)

TS1250N-NG0-1250A-3P, TS1250N-NG0-1250A-4PL, TS1250N-NG0-1250A-4PR, TS1250N-NG5-1250A-3P, TS1250N-NG5-1250A-4PL, TS1250N-NG5-1250A-4PR, TS1250N-AG0-1250A-3P, TS1250N-AG0-1250A-4PL, TS1250N-AG0-1250A-4PR, TS1250N-AG1-1250A-3P + 830 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TS1250N-NG0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250N-NG0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250N-NG0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250N-NG5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250N-NG5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250N-NG5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250N-AG0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250N-AG0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250N-AG0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250N-AG1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AG1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AG1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AG2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AG2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AG2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AG5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250N-AG5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250N-AG5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250N-AG6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AG6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AG6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AG7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AG7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AG7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AZ0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1250N-AZ0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1250N-AZ0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1250N-AZ1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AZ1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AZ1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AZ2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AZ2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AZ2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AZ5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1250N-AZ5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1250N-AZ5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1250N-AZ6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AZ6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AZ6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AZ7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AZ7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AZ7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AE0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1250N-AE0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1250N-AE0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1250N-AE1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AE1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AE1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AE2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AE2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AE2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AE5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1250N-AE5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1250N-AE5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1250N-AE6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AE6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AE6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AE7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AE7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AE7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AC0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1250N-AC0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1250N-AC0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1250N-AC1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AC1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AC1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AC2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AC2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AC2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AC5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1250N-AC5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1250N-AC5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1250N-AC6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AC6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AC6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AC7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AC7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AC7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AK0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250N-AK0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250N-AK0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250N-AK1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AK1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AK1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AK2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AK2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AK2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AK5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250N-AK5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250N-AK5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250N-AK6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AK6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AK6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AK7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AK7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AK7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AX0-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250N-AX0-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250N-AX0-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250N-AX1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AX1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AX1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-AX2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AX2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AX2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-AX5-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250N-AX5-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250N-AX5-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250N-AX6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AX6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AX6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-AX7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AX7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-AX7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PC1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PC1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PC1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PC2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PC2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PC2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PC6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PC6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PC6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PC7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PC7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PC7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PK1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PK1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PK1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PK2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PK2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PK2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PK6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PK6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PK6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PK7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PK7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PK7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PX1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PX1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PX1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PX2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PX2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PX2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PX6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PX6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PX6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PX7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PX7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PX7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PA1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PA1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PA1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-PA2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PA2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PA2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-PA6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PA6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PA6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-PA7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PA7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-PA7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SC1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SC1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SC1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SC2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SC2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SC2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SC6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SC6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SC6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SC7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SC7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SC7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SK1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SK1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SK1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SK2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SK2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SK2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SK6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SK6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SK6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SK7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SK7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SK7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SX1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SX1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SX1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SX2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SX2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SX2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SX6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SX6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SX6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SX7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SX7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SX7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SA1-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SA1-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SA1-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250N-SA2-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SA2-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SA2-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250N-SA6-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SA6-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SA6-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250N-SA7-1250A-3P	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SA7-1250A-4PL	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250N-SA7-1250A-4PR	Frame type: TS1250N, 50 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-NG0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250H-NG0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250H-NG0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250H-NG5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250H-NG5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250H-NG5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250H-AG0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250H-AG0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250H-AG0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1250H-AG1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AG1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AG1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AG2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AG2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AG2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AG5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250H-AG5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250H-AG5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1250H-AG6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AG6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AG6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AG7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AG7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AG7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AZ0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1250H-AZ0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1250H-AZ0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1250H-AZ1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AZ1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AZ1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AZ2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AZ2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AZ2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AZ5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1250H-AZ5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1250H-AZ5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1250H-AZ6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AZ6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AZ6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AZ7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AZ7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AZ7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AE0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1250H-AE0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1250H-AE0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1250H-AE1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AE1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AE1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AE2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AE2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AE2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AE5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1250H-AE5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1250H-AE5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1250H-AE6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AE6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AE6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AE7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AE7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AE7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AC0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1250H-AC0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1250H-AC0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1250H-AC1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AC1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AC1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AC2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AC2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AC2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AC5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1250H-AC5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1250H-AC5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1250H-AC6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AC6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AC6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AC7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AC7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AC7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AK0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250H-AK0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250H-AK0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250H-AK1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AK1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AK1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AK2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AK2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AK2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AK5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250H-AK5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250H-AK5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250H-AK6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AK6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AK6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AK7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AK7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AK7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AX0-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250H-AX0-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250H-AX0-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1250H-AX1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AX1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AX1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-AX2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AX2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AX2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-AX5-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250H-AX5-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250H-AX5-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1250H-AX6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AX6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AX6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-AX7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AX7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-AX7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PC1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PC1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PC1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PC2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PC2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PC2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PC6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PC6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PC6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PC7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PC7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PC7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PK1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PK1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PK1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PK2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PK2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PK2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PK6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PK6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PK6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PK7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PK7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PK7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PX1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PX1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PX1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PX2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PX2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PX2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PX6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PX6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PX6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PX7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PX7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PX7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PA1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PA1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PA1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-PA2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PA2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PA2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-PA6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PA6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PA6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-PA7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PA7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-PA7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SC1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SC1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SC1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SC2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SC2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SC2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SC6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SC6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SC6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SC7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SC7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SC7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SK1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SK1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SK1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SK2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SK2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SK2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SK6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SK6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SK6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SK7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SK7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SK7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SX1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SX1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SX1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SX2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SX2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SX2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SX6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SX6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SX6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SX7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SX7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SX7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SA1-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SA1-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SA1-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1250H-SA2-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SA2-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SA2-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1250H-SA6-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SA6-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SA6-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1250H-SA7-1250A-3P	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SA7-1250A-4PL	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1250H-SA7-1250A-4PR	Frame type: TS1250H, 70 kA at 415 V \| Rated current In: 1250 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-NG0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600N-NG0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600N-NG0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600N-NG5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600N-NG5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600N-NG5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600N-AG0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600N-AG0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600N-AG0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600N-AG1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AG1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AG1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AG2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AG2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AG2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AG5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600N-AG5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600N-AG5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600N-AG6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AG6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AG6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AG7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AG7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AG7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AZ0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1600N-AZ0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1600N-AZ0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1600N-AZ1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AZ1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AZ1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AZ2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AZ2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AZ2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AZ5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1600N-AZ5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1600N-AZ5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1600N-AZ6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AZ6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AZ6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AZ7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AZ7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AZ7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AE0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1600N-AE0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1600N-AE0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1600N-AE1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AE1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AE1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AE2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AE2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AE2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AE5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1600N-AE5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1600N-AE5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1600N-AE6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AE6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AE6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AE7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AE7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AE7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AC0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1600N-AC0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1600N-AC0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1600N-AC1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AC1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AC1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AC2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AC2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AC2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AC5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1600N-AC5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1600N-AC5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1600N-AC6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AC6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AC6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AC7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AC7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AC7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AK0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600N-AK0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600N-AK0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600N-AK1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AK1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AK1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AK2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AK2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AK2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AK5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600N-AK5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600N-AK5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600N-AK6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AK6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AK6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AK7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AK7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AK7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AX0-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600N-AX0-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600N-AX0-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600N-AX1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AX1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AX1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-AX2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AX2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AX2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-AX5-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600N-AX5-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600N-AX5-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600N-AX6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AX6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AX6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-AX7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AX7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-AX7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PC1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PC1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PC1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PC2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PC2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PC2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PC6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PC6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PC6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PC7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PC7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PC7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PK1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PK1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PK1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PK2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PK2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PK2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PK6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PK6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PK6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PK7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PK7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PK7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PX1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PX1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PX1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PX2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PX2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PX2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PX6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PX6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PX6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PX7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PX7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PX7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PA1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PA1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PA1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-PA2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PA2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PA2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-PA6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PA6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PA6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-PA7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PA7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-PA7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SC1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SC1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SC1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SC2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SC2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SC2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SC6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SC6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SC6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SC7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SC7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SC7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SK1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SK1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SK1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SK2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SK2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SK2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SK6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SK6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SK6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SK7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SK7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SK7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SX1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SX1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SX1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SX2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SX2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SX2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SX6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SX6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SX6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SX7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SX7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SX7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SA1-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SA1-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SA1-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600N-SA2-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SA2-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SA2-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600N-SA6-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SA6-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SA6-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600N-SA7-1600A-3P	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SA7-1600A-4PL	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600N-SA7-1600A-4PR	Frame type: TS1600N, 50 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-NG0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600H-NG0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600H-NG0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600H-NG5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600H-NG5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600H-NG5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: N (Normal) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600H-AG0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600H-AG0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600H-AG0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 60 Hz
	TS1600H-AG1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AG1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AG1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AG2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AG2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AG2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AG5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600H-AG5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600H-AG5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: Self-power, 50 Hz
	TS1600H-AG6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AG6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AG6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AG7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AG7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AG7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: G: LSIG, no communication \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AZ0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1600H-AZ0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1600H-AZ0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 60 Hz
	TS1600H-AZ1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AZ1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AZ1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AZ2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AZ2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AZ2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AZ5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1600H-AZ5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1600H-AZ5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: Self-power, 50 Hz
	TS1600H-AZ6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AZ6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AZ6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AZ7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AZ7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AZ7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: Z: LSI + earth leakage 0.5-30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AE0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1600H-AE0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1600H-AE0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 60 Hz
	TS1600H-AE1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AE1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AE1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AE2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AE2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AE2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AE5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1600H-AE5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1600H-AE5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: Self-power, 50 Hz
	TS1600H-AE6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AE6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AE6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AE7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AE7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AE7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: E: LSI + earth leakage >30 A \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AC0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1600H-AC0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1600H-AC0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 60 Hz
	TS1600H-AC1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AC1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AC1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AC2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AC2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AC2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AC5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1600H-AC5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1600H-AC5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: Self-power, 50 Hz
	TS1600H-AC6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AC6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AC6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AC7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AC7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AC7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AK0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600H-AK0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600H-AK0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600H-AK1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AK1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AK1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AK2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AK2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AK2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AK5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600H-AK5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600H-AK5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600H-AK6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AK6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AK6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AK7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AK7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AK7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AX0-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600H-AX0-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600H-AX0-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 60 Hz
	TS1600H-AX1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AX1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AX1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-AX2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AX2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AX2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-AX5-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600H-AX5-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600H-AX5-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: Self-power, 50 Hz
	TS1600H-AX6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AX6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AX6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-AX7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AX7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-AX7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: A (Ammeter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PC1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PC1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PC1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PC2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PC2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PC2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PC6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PC6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PC6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PC7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PC7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PC7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PK1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PK1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PK1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PK2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PK2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PK2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PK6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PK6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PK6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PK7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PK7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PK7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PX1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PX1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PX1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PX2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PX2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PX2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PX6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PX6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PX6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PX7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PX7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PX7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PA1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PA1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PA1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-PA2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PA2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PA2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-PA6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PA6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PA6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-PA7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PA7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-PA7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: P (Power meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SC1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SC1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SC1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SC2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SC2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SC2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SC6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SC6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SC6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SC7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SC7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SC7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: C: LSIG + Modbus comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SK1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SK1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SK1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SK2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SK2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SK2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SK6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SK6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SK6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SK7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SK7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SK7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: K: leakage 0.5-30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SX1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SX1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SX1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SX2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SX2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SX2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SX6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SX6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SX6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SX7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SX7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SX7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: X: leakage >30 A + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SA1-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SA1-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SA1-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 60 Hz
	TS1600H-SA2-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SA2-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SA2-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 60 Hz
	TS1600H-SA6-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SA6-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SA6-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: AC/DC 100-250 V, 50 Hz
	TS1600H-SA7-1600A-3P	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 3P \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SA7-1600A-4PL	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole left \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz
	TS1600H-SA7-1600A-4PR	Frame type: TS1600H, 70 kA at 415 V \| Rated current In: 1600 A \| Poles: 4P, N pole right \| Trip relay: S (Supreme meter) \| Relay function: A: Pre-trip alarm + comm. \| Control power: DC 24-60 V, 50 Hz

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol TS1250/TS1600 MCCB (1250-1600 A, digital trip relay)
