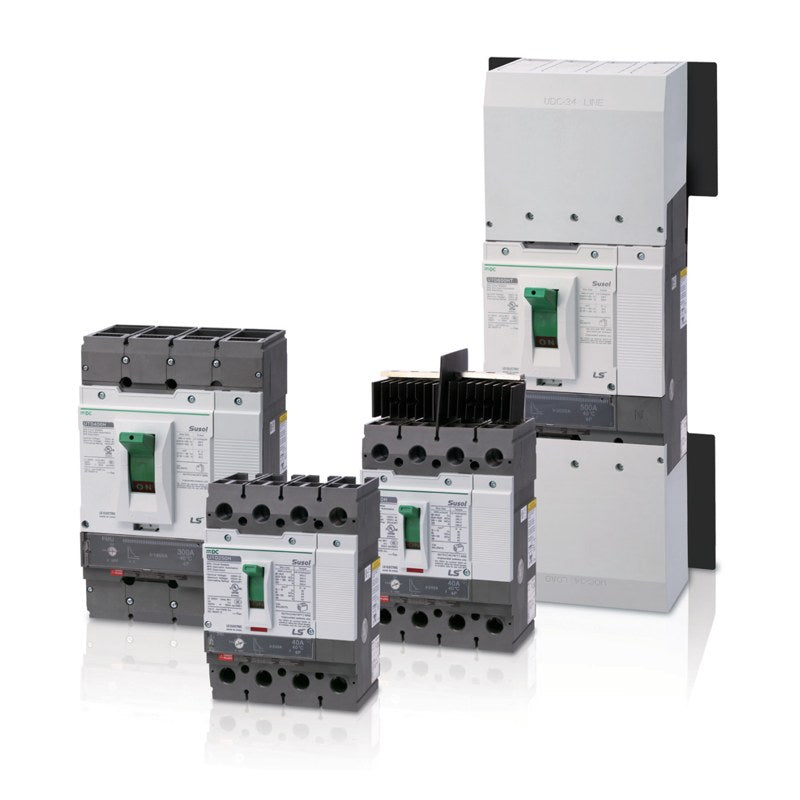

LS Electric Susol UTD UL DC 1500 V MCCB Accessories (order codes)

LS Electric Susol UTD UL DC 1500 V MCCB Accessories (order codes)

Accessories with LS Electric numeric order codes for Susol UTD250/UTD400/UTD600 1500 Vdc molded case circuit breakers: short busbar sets, terminal cover sets, AX/AL contacts, extended handles without shaft and MOP2U motor operators.

Key features

  • Short busbar sets for grounded (3 sets) or ungrounded (2 sets) 1500 Vdc connection schemes
  • Terminal cover sets (line/load covers and rear barrier) for UTD250 and UTD400/600
  • AX auxiliary and AL alarm switches common to UTS150-UTS600 and UTD frames
  • MOP2U and MOP2U-L motor operators for UTD250 in DC 24 V, AC/DC 110 V and AC 230 V / DC 220 V
  • Remaining UTS/UTD handles, locks, SHT/UVT and MOP3U codes are listed with the Susol UL MCCB accessories

Specifications

Brand LS Electric
Series Susol UTD MCCB
Code type LS Electric 11-digit order code
Applicable frames UTD250, UTD400, UTD600
Rated voltage of MCCB DC 1500 V, 4P
Source LS Electric Susol UL DC MCCB leaflet C010I1-04 (2024-03), p. 4-5
83261172113 Type: Short busbar set | For MCCB: UTD250 | Detail: 40-200 A, 1 set
83261172112 Type: Short busbar set | For MCCB: UTD250 | Detail: 250 A, 1 set
83261173650 Type: Short busbar set | For MCCB: UTD400/600 | Detail: 250-500 A, 1 set
83261173651 Type: Short busbar set | For MCCB: UTD400/600 | Detail: 550-600 A, 1 set
83261172111 Type: Terminal cover set | For MCCB: UTD250 | Detail: Line/load covers and rear barrier
83261173557 Type: Terminal cover set | For MCCB: UTD400/600 | Detail: Line/load covers and rear barrier
83011171301 Type: Auxiliary switch AX | For MCCB: UTS150-UTS600, UTD | Detail: 1 changeover contact
83011171302 Type: Alarm switch AL | For MCCB: UTS150-UTS600, UTD | Detail: 1 changeover contact
83111172310 Type: Extended rotary handle (REH2-16/24) | For MCCB: UTS250, UTD250 | Detail: Without shaft
83111173310 Type: Extended rotary handle (REH3-16/24) | For MCCB: UTS400, UTD400/600 | Detail: Without shaft
83471172301 Type: Motor operator (MOP2U) | For MCCB: UTD250 | Detail: DC 24 V
83471172302 Type: Motor operator (MOP2U) | For MCCB: UTD250 | Detail: AC 110 V / DC 110 V
83471172303 Type: Motor operator (MOP2U) | For MCCB: UTD250 | Detail: AC 230 V / DC 220 V
83471172304 Type: Motor operator (MOP2U-L) | For MCCB: UTD250 | Detail: DC 24 V
83471172305 Type: Motor operator (MOP2U-L) | For MCCB: UTD250 | Detail: AC 110 V / DC 110 V
83471172306 Type: Motor operator (MOP2U-L) | For MCCB: UTD250 | Detail: AC 230 V / DC 220 V
AccessoriesLS Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol UTD UL DC 1500 V MCCB Accessories (order codes)

Brand LS Electric·Accessories

Available part numbers (16)

83261172113, 83261172112, 83261173650, 83261173651, 83261172111, 83261173557, 83011171301, 83011171302, 83111172310, 83111173310 + 6 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
83261172113Type: Short busbar set | For MCCB: UTD250 | Detail: 40-200 A, 1 set
83261172112Type: Short busbar set | For MCCB: UTD250 | Detail: 250 A, 1 set
83261173650Type: Short busbar set | For MCCB: UTD400/600 | Detail: 250-500 A, 1 set
83261173651Type: Short busbar set | For MCCB: UTD400/600 | Detail: 550-600 A, 1 set
83261172111Type: Terminal cover set | For MCCB: UTD250 | Detail: Line/load covers and rear barrier
83261173557Type: Terminal cover set | For MCCB: UTD400/600 | Detail: Line/load covers and rear barrier
83011171301Type: Auxiliary switch AX | For MCCB: UTS150-UTS600, UTD | Detail: 1 changeover contact
83011171302Type: Alarm switch AL | For MCCB: UTS150-UTS600, UTD | Detail: 1 changeover contact
83111172310Type: Extended rotary handle (REH2-16/24) | For MCCB: UTS250, UTD250 | Detail: Without shaft
83111173310Type: Extended rotary handle (REH3-16/24) | For MCCB: UTS400, UTD400/600 | Detail: Without shaft
83471172301Type: Motor operator (MOP2U) | For MCCB: UTD250 | Detail: DC 24 V
83471172302Type: Motor operator (MOP2U) | For MCCB: UTD250 | Detail: AC 110 V / DC 110 V
83471172303Type: Motor operator (MOP2U) | For MCCB: UTD250 | Detail: AC 230 V / DC 220 V
83471172304Type: Motor operator (MOP2U-L) | For MCCB: UTD250 | Detail: DC 24 V
83471172305Type: Motor operator (MOP2U-L) | For MCCB: UTD250 | Detail: AC 110 V / DC 110 V
83471172306Type: Motor operator (MOP2U-L) | For MCCB: UTD250 | Detail: AC 230 V / DC 220 V
