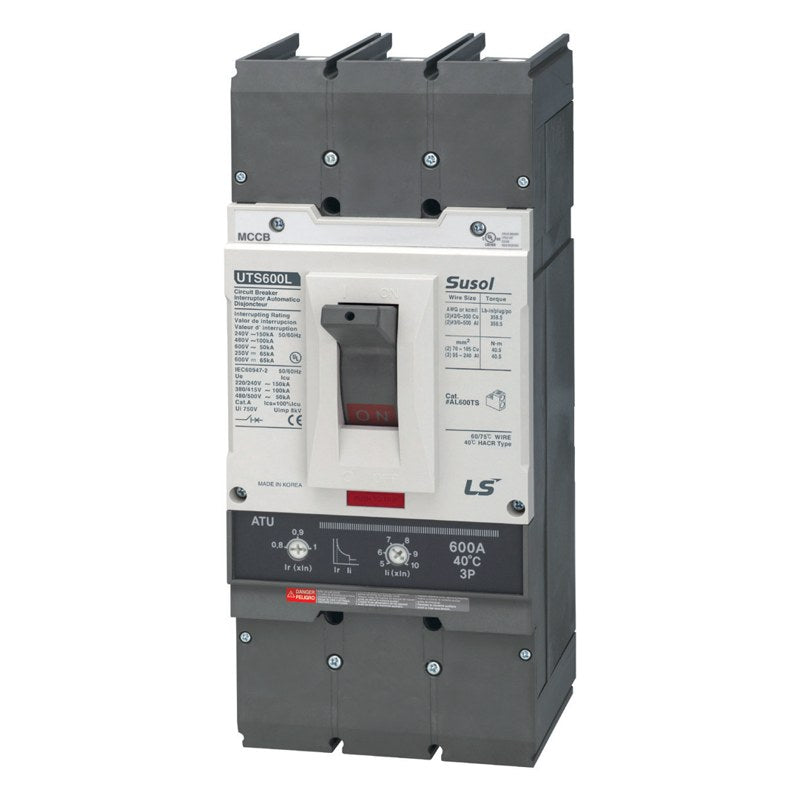

LS Electric Susol UTS600 UL 489 MCCB (400-600 A)

LS Electric Susol UTS600 UL 489 MCCB (400-600 A)

LS Electric Susol UTS600 molded case circuit breakers are UL 489 listed for North American and export panels, covering 400-600 A with thermal-magnetic, electronic, switch and motor-protection versions.

Key features

  • UL 489 listed 600 AF breaker, 2P and 3P, up to 600 Vac
  • N, H and L interrupting classes up to 150 kA at 240 Vac
  • FTU, FMU, ATU thermal-magnetic and ETS33 / ETM33 electronic trip units
  • ETM33 options: ammeter, earth fault, Modbus communication, ZSI
  • MCS molded case switch and MCP motor circuit protector versions

Specifications

Frame size 600 AF
Rated insulation voltage (Ui) AC 750 V
Rated impulse voltage (Uimp) 8 kV
UL 489 interrupting rating (240/480/600 V) N 65/35/18 kA, H 100/65/35 kA, L 150/100/50 kA
DC rating (250 V 2P / 600 V 3P) N 35 kA, H 50 kA, L 65 kA
Dimensions (W x H x D) 140 x 340 x 110 mm (2P/3P)
Applications HACR
Standards UL 489, CSA C22.2 No.5, IEC 60947-2
Rated frequency AC 50/60 Hz
Source LS Electric Susol UL MCCB catalog C01081-17 (2026-07), p. 40-43
UTS600-H-FTU-500A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 2P
UTS600-H-FTU-500A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 3P
UTS600-HT-FTU-500A-2P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 2P
UTS600-HT-FTU-500A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 3P
UTS600-L-FTU-500A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 2P
UTS600-L-FTU-500A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 3P
UTS600-LT-FTU-500A-2P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 2P
UTS600-LT-FTU-500A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 3P
UTS600-N-FTU-500A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 2P
UTS600-N-FTU-500A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 3P
UTS600-NT-FTU-500A-2P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 2P
UTS600-NT-FTU-500A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 500 A | Setting: Fixed | Poles: 3P
UTS600-H-FTU-600A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 2P
UTS600-H-FTU-600A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 3P
UTS600-HT-FTU-600A-2P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 2P
UTS600-HT-FTU-600A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 3P
UTS600-L-FTU-600A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 2P
UTS600-L-FTU-600A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 3P
UTS600-LT-FTU-600A-2P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 2P
UTS600-LT-FTU-600A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 3P
UTS600-N-FTU-600A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 2P
UTS600-N-FTU-600A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 3P
UTS600-NT-FTU-600A-2P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 2P
UTS600-NT-FTU-600A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FTU (fixed thermal, fixed magnetic) | Rated current In: 600 A | Setting: Fixed | Poles: 3P
UTS600-H-FMU-500A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-H-FMU-500A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-HT-FMU-500A-2P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-HT-FMU-500A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-L-FMU-500A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-L-FMU-500A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-LT-FMU-500A-2P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-LT-FMU-500A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-N-FMU-500A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-N-FMU-500A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-NT-FMU-500A-2P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-NT-FMU-500A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-H-FMU-600A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-H-FMU-600A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-HT-FMU-600A-2P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-HT-FMU-600A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-L-FMU-600A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-L-FMU-600A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-LT-FMU-600A-2P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-LT-FMU-600A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-N-FMU-600A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-N-FMU-600A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-NT-FMU-600A-2P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-NT-FMU-600A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: FMU (adj. thermal, fixed magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-H-ATU-500A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-H-ATU-500A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-HT-ATU-500A-2P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-HT-ATU-500A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-L-ATU-500A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-L-ATU-500A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-LT-ATU-500A-2P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-LT-ATU-500A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-N-ATU-500A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-N-ATU-500A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-NT-ATU-500A-2P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 2P
UTS600-NT-ATU-500A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 500 A | Setting: Ir 400-500 A | Poles: 3P
UTS600-H-ATU-600A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-H-ATU-600A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-HT-ATU-600A-2P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-HT-ATU-600A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-L-ATU-600A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-L-ATU-600A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-LT-ATU-600A-2P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-LT-ATU-600A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-N-ATU-600A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-N-ATU-600A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-NT-ATU-600A-2P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 2P
UTS600-NT-ATU-600A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ATU (adj. thermal, adj. magnetic) | Rated current In: 600 A | Setting: Ir 480-600 A | Poles: 3P
UTS600-H-ETS33-400A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-HT-ETS33-400A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-L-ETS33-400A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-LT-ETS33-400A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-N-ETS33-400A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-NT-ETS33-400A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-H-ETS33-600A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-HT-ETS33-600A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-L-ETS33-600A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-LT-ETS33-600A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-N-ETS33-600A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-NT-ETS33-600A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ETS33 electronic (LI/LSI) | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-H-ETM33-400A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-HT-ETM33-400A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-L-ETM33-400A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-LT-ETM33-400A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-N-ETM33-400A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-NT-ETM33-400A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 400 A | Setting: Ir 150-400 A | Poles: 3P
UTS600-H-ETM33-600A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-HT-ETM33-600A-3P-UL Type: HT, 65 kA at 480 V, 100% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-L-ETM33-600A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-LT-ETM33-600A-3P-UL Type: LT, 100 kA at 480 V, 100% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-N-ETM33-600A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-NT-ETM33-600A-3P-UL Type: NT, 35 kA at 480 V, 100% rated | Trip unit: ETM33 electronic, multi-function | Rated current In: 600 A | Setting: Ir 225-600 A | Poles: 3P
UTS600-H-MCS-600A-2P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: MCS molded case switch | Rated current In: 600 A | Setting: Ii fixed 10 x In | Poles: 2P
UTS600-H-MCS-600A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: MCS molded case switch | Rated current In: 600 A | Setting: Ii fixed 10 x In | Poles: 3P
UTS600-L-MCS-600A-2P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: MCS molded case switch | Rated current In: 600 A | Setting: Ii fixed 10 x In | Poles: 2P
UTS600-L-MCS-600A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: MCS molded case switch | Rated current In: 600 A | Setting: Ii fixed 10 x In | Poles: 3P
UTS600-N-MCS-600A-2P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: MCS molded case switch | Rated current In: 600 A | Setting: Ii fixed 10 x In | Poles: 2P
UTS600-N-MCS-600A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: MCS molded case switch | Rated current In: 600 A | Setting: Ii fixed 10 x In | Poles: 3P
UTS600-H-MCP-500A-3P-UL Type: H, 65 kA at 480 V, 80% rated | Trip unit: MCP motor circuit protector | Rated current In: 500 A | Setting: Ii 3000-6000 A | Poles: 3P
UTS600-L-MCP-500A-3P-UL Type: L, 100 kA at 480 V, 80% rated | Trip unit: MCP motor circuit protector | Rated current In: 500 A | Setting: Ii 3000-6000 A | Poles: 3P
UTS600-N-MCP-500A-3P-UL Type: N, 35 kA at 480 V, 80% rated | Trip unit: MCP motor circuit protector | Rated current In: 500 A | Setting: Ii 3000-6000 A | Poles: 3P
