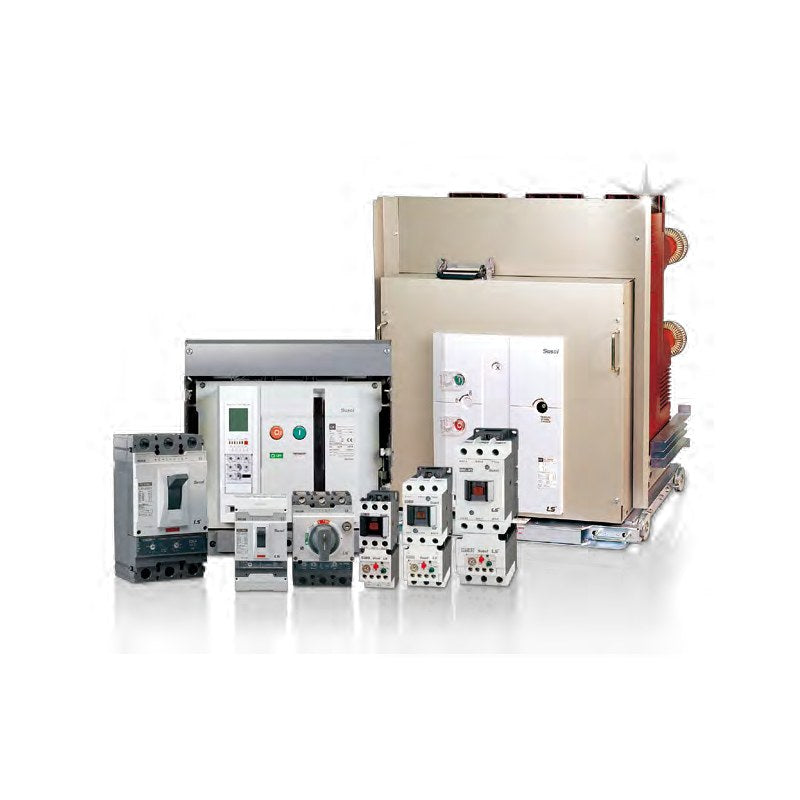

LS Electric Susol VCB Cradles VCL/VCH/LCL (7.2-36 kV)

LS Electric Susol VCB Cradles VCL/VCH/LCL (7.2-36 kV)

LS Electric Susol draw-out cradles for VL (VCL), VH (VCH) and LVB (LCL) vacuum circuit breakers, 7.2-36 kV, selected by rating and draw-out type.

Key features

  • Cradle codes matched to each Susol VL, VH and LVB breaker rating
  • E, F, G (MESG), Fs/Gs screw type, K (Pro-MEC compatible), H/Ha/Hb (MCSG) and G/T versions
  • Insulating shutters, position switches and interlocks per cradle type
  • H-type cradles support CB compartment construction and temperature monitoring option
  • Optional earthing switch, shutter padlock, TOC/MOC switches and door interlocks

Specifications

Series Susol VCB (Beyond X)
Product Draw-out cradle
Rated voltage range 7.2-36 kV
Rated current range 400-5000 A
Options Earthing switch, shutter padlock, TOC/MOC, door interlock (code suffix)
Source LS Electric Susol VCB catalog C05001-26 (2026-09), p. 26-35, 38-41
VCL-06E08A04 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06F08A04 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06G08A04 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06E08B04 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06F08B04 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06G08B04 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06E13A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06F13A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06G13A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06E13B06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06F13B06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06G13B06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06E20A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F20A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G20A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K20K06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VCL-06H20A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha20A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E20A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F20A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G20A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K20K13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VCL-06H20A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha20A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E20A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F20A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G20A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06H20A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha20A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E25A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F25A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G25A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K25A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H25A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha25A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E25A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F25A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G25A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K25A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H25A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha25A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E25A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F25A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G25A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K25A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H25A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha25A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06H32A06 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06E32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06Fs32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCL-06G32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06Gs32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-06K32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha32A13 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06Fs32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCL-06G32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06Gs32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-06K32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha32A20 Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K20A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H20A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha20A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K20A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H20A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha20A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12H20A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12E20B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F20B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H20B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E20B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F20B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H20B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E20B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F20B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H20B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E20F06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F20F06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12E20F13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F20F13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12K25A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H25A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha25A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K25A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H25A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha25A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K25A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H25A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha25A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12E25B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F25B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H25B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E25B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F25B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H25B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E25B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F25B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H25B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E25F06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F25F06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12E25F13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F25F13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12H32A06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Gs32A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-12K32A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H32A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha32A13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12Gs32A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-12K32A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H32A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha32A20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12H32B06 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32B13 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32B20 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32B25 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32D25 Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-17H20A06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H20A13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H20A20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17E20B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F20B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H20B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E20B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F20B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H20B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E20B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F20B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H20B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E20F06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F20F06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17E20F13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F20F13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17H25A06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H25A13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H25A20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17E25B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F25B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H25B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E25B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F25B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H25B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E25B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F25B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H25B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E25F06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F25F06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17E25F13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F25F13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17H32A06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H32A13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H32A20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H32B06 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32B13 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32B20 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32B25 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32D25 Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20G13B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K13B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H13B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G13B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K13B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H13B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20E13F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F13F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G13F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K13F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E13G06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F13G06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E13F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F13F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G13F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K13F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E13G13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F13G13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20H13D06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H13D13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20G16B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K16B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H16B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G16B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K16B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H16B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20E16F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F16F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G16F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K16F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E16G06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F16G06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E16F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F16F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G16F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K16F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E16G13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F16G13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20H16D06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H16D13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20G25B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K25B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H25B06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G25B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K25B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H25B13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G25B20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20H25B20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20E25F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F25F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G25F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K25F06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E25G06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F25G06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E25F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F25F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G25F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K25F13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E25G13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F25G13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E25F20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F25F20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20K25F20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E25G20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F25G20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20H25D06 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H25D13 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H25D20 Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H25D25-AS Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm, AS
VCL-25G13B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K13B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H13B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G13B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K13B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H13B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25E13F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F13F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G13F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K13F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E13G06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F13G06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E13F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F13F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G13F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K13F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E13G13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F13G13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25H13D06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H13D13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25G16B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K16B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H16B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G16B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K16B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H16B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25E16F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F16F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G16F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K16F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E16G06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F16G06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E16F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F16F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G16F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K16F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E16G13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F16G13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25H16D06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H16D13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25G25B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K25B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H25B06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G25B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K25B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H25B13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G25B20 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25H25B20 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25E25F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F25F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G25F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K25F06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E25G06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F25G06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E25F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F25F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G25F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K25F13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E25G13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F25G13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E25F20 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F25F20 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25K25F20 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25H25D06 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H25D13 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H25D20 Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H25D25-AS Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm, AS
VCL-36H25D06 Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-36H25D13 Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-36H25D20 Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-36H25D25 Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06E32A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F32A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06G32A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LCL-06E-32D/12 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-32D/12 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/12 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/12-T2 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E32A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F32A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06G32A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LCL-06E-32D/20 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-32D/20 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/20 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/20-T2 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E32B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCH-06F32B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCH-06Fs32B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VCH-06Gs32B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-06K32B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-06H32B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LCL-06E-32D/30 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-32D/30 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/30 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/30-T2 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06K40D32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-06H40D32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06E40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06Fs40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCH-06G40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCH-06Gs40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-06K40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCH-06H40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-06Ha40A13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-06E-40D/12 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-40D/12 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/12 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/12-T2 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06Fs40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCH-06G40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCH-06Gs40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-06K40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCH-06H40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-06Ha40A20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-06E-40D/20 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-40D/20 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/20 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/20-T2 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCH-06F40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCH-06Fs40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VCH-06G40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCH-06Gs40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-06K40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-06H40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-06Ha40B32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 210 mm
LCL-06E-40D/30 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-40D/30 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/30 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/30-T2 Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06K40D40 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-06Ha40D40 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-06Hb40D40 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-06Ha40L50 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
VCH-06H50B13 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-06H50B20 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-06H50D25 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06H50D32 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06K50D40 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-06Ha50D40 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-06Hb50D40 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-06Ha50L50 Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
LCL-12G-32D/12-T2 Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-12G-32D/20-T2 Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12Gs32B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-12K32B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H32B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LCL-12G-32D/30-T2 Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12Gs40A13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-12K40K13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VCH-12H40A13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-12Ha40A13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-12G-40D/12-T2 Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12Gs40A20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-12K40K20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VCH-12H40A20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-12Ha40A20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-12G-40D/20-T2 Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12K40B13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H40B13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12K40B20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H40B20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12Gs40B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-12K40B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H40B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12Ha40B32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 210 mm
LCL-12G-40D/30-T2 Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12H40D32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-12K40D40 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-12Ha40D40 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-12Hb40D40 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-12Ha40L50 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
VCH-12H50B13 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12H50B20 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12H50D25 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-12H50D32 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-12K50D40 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-12Ha50D40 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-12Hb50D40 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-12Ha50L50 Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
VCH-17H32B32 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H32D32 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17K40B13 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-17H40B13 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17K40B20 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-17H40B20 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H40B32 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H40D32 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17Ha40D40 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-17Hb40D40 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-17H50B13 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H50B20 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H50D25 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17H50D32 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17Ha50D40 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-17Hb50D40 Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-20H25D25 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H32B13 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H32J13 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H32B20 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H32J20 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H32D13 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H32D20 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H32D32 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H40B13 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H40J13 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H40B20 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H40J20 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H40D13 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H40D20 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H40D32 Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H25D25 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H32B13 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H32J13 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H32B20 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H32J20 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H32D13 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H32D20 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H32D32 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H40B13 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H40J13 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H40B20 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H40J20 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H40D13 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H40D20 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H40D32 Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-36H25E13 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H25E20 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H25E32 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H32E13 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H32E20 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H32E32 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H40E13 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H40E20 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H40E32 Cradle for: VH | Rated voltage: 36 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
AccessoriesLS Electric
467 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VCB Cradles VCL/VCH/LCL (7.2-36 kV)

Brand LS Electric·Accessories

Available part numbers (467)

VCL-06E08A04, VCL-06F08A04, VCL-06G08A04, VCL-06E08B04, VCL-06F08B04, VCL-06G08B04, VCL-06E13A06, VCL-06F13A06, VCL-06G13A06, VCL-06E13B06 + 457 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCL-06E08A04Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06F08A04Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06G08A04Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06E08B04Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06F08B04Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06G08B04Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06E13A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06F13A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06G13A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VCL-06E13B06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06F13B06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06G13B06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VCL-06E20A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F20A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G20A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K20K06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VCL-06H20A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha20A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E20A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F20A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G20A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K20K13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VCL-06H20A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha20A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E20A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F20A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G20A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06H20A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha20A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E25A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F25A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G25A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K25A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H25A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha25A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E25A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F25A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G25A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K25A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H25A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha25A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E25A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F25A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06G25A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06K25A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H25A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha25A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06H32A06Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06E32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06Fs32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCL-06G32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06Gs32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-06K32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha32A13Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-06E32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCL-06F32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCL-06Fs32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCL-06G32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCL-06Gs32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-06K32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-06H32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-06Ha32A20Cradle for: VL | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K20A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H20A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha20A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K20A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H20A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha20A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12H20A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12E20B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F20B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H20B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E20B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F20B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H20B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E20B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F20B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H20B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E20F06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F20F06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12E20F13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F20F13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12K25A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H25A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha25A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K25A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H25A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha25A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12K25A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H25A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha25A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12E25B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F25B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H25B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E25B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F25B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H25B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E25B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-12F25B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-12H25B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12E25F06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F25F06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12E25F13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-12F25F13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-12H32A06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Gs32A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-12K32A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H32A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha32A13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12Gs32A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCL-12K32A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCL-12H32A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-12Ha32A20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
VCL-12H32B06Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32B13Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32B20Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32B25Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-12H32D25Cradle for: VL | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-17H20A06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H20A13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H20A20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17E20B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F20B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H20B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E20B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F20B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H20B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E20B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F20B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H20B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E20F06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F20F06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17E20F13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F20F13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17H25A06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H25A13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H25A20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17E25B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F25B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H25B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E25B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F25B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H25B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E25B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCL-17F25B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCL-17H25B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17E25F06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F25F06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17E25F13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VCL-17F25F13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VCL-17H32A06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H32A13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H32A20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCL-17H32B06Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32B13Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32B20Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32B25Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-17H32D25Cradle for: VL | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20G13B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K13B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H13B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G13B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K13B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H13B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20E13F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F13F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G13F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K13F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E13G06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F13G06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E13F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F13F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G13F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K13F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E13G13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F13G13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20H13D06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H13D13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20G16B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K16B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H16B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G16B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K16B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H16B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20E16F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F16F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G16F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K16F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E16G06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F16G06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E16F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F16F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G16F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K16F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E16G13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F16G13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20H16D06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H16D13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20G25B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K25B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H25B06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G25B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20K25B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-20H25B13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20G25B20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-20H25B20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-20E25F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F25F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G25F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K25F06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E25G06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F25G06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E25F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F25F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20G25F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-20K25F13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E25G13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F25G13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20E25F20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-20F25F20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-20K25F20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-20E25G20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20F25G20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-20H25D06Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H25D13Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H25D20Cradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-20H25D25-ASCradle for: VL | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm, AS
VCL-25G13B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K13B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H13B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G13B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K13B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H13B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25E13F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F13F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G13F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K13F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E13G06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F13G06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E13F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F13F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G13F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K13F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E13G13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F13G13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25H13D06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H13D13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25G16B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K16B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H16B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G16B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K16B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H16B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25E16F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F16F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G16F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K16F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E16G06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F16G06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E16F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F16F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G16F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K16F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E16G13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F16G13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25H16D06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H16D13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25G25B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K25B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H25B06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G25B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25K25B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCL-25H25B13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25G25B20Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCL-25H25B20Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCL-25E25F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F25F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G25F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K25F06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E25G06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F25G06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E25F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F25F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25G25F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VCL-25K25F13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25E25G13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25F25G13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VCL-25E25F20Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VCL-25F25F20Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VCL-25K25F20Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VCL-25H25D06Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H25D13Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H25D20Cradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-25H25D25-ASCradle for: VL | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm, AS
VCL-36H25D06Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-36H25D13Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-36H25D20Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCL-36H25D25Cradle for: VL | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06E32A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F32A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06G32A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LCL-06E-32D/12Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-32D/12Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/12Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/12-T2Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E32A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F32A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06G32A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LCL-06E-32D/20Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-32D/20Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/20Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/20-T2Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E32B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCH-06F32B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCH-06Fs32B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VCH-06Gs32B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-06K32B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-06H32B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LCL-06E-32D/30Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-32D/30Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/30Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-32D/30-T2Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06K40D32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-06H40D32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06E40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06Fs40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCH-06G40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCH-06Gs40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-06K40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCH-06H40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-06Ha40A13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-06E-40D/12Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-40D/12Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/12Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/12-T2Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VCH-06F40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VCH-06Fs40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VCH-06G40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VCH-06Gs40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-06K40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VCH-06H40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-06Ha40A20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-06E-40D/20Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-40D/20Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/20Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/20-T2Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06E40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VCH-06F40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VCH-06Fs40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VCH-06G40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VCH-06Gs40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-06K40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-06H40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-06Ha40B32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 210 mm
LCL-06E-40D/30Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06F-40D/30Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/30Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-06G-40D/30-T2Cradle for: LVB | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-06K40D40Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-06Ha40D40Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-06Hb40D40Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-06Ha40L50Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
VCH-06H50B13Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-06H50B20Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-06H50D25Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06H50D32Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-06K50D40Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-06Ha50D40Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-06Hb50D40Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-06Ha50L50Cradle for: VH | Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
LCL-12G-32D/12-T2Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
LCL-12G-32D/20-T2Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12Gs32B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-12K32B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H32B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LCL-12G-32D/30-T2Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12Gs40A13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-12K40K13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VCH-12H40A13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-12Ha40A13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-12G-40D/12-T2Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12Gs40A20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VCH-12K40K20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VCH-12H40A20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VCH-12Ha40A20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 150 mm
LCL-12G-40D/20-T2Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12K40B13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H40B13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12K40B20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H40B20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12Gs40B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VCH-12K40B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-12H40B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12Ha40B32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 210 mm
LCL-12G-40D/30-T2Cradle for: LVB | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LCL (Pro-MEC cradle)
VCH-12H40D32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-12K40D40Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-12Ha40D40Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-12Hb40D40Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-12Ha40L50Cradle for: VH | Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
VCH-12H50B13Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12H50B20Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-12H50D25Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-12H50D32Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-12K50D40Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VCH-12Ha50D40Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-12Hb50D40Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-12Ha50L50Cradle for: VH | Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 320 mm
VCH-17H32B32Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H32D32Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17K40B13Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-17H40B13Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17K40B20Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VCH-17H40B20Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H40B32Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H40D32Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17Ha40D40Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-17Hb40D40Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-17H50B13Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H50B20Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-17H50D25Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17H50D32Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-17Ha50D40Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Ha (MCSG) | Pole pitch / outline: 275 mm
VCH-17Hb50D40Cradle for: VH | Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out Hb (MCSG) | Pole pitch / outline: 275 mm
VCH-20H25D25Cradle for: VH | Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H32B13Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H32J13Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H32B20Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H32J20Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H32D13Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H32D20Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H32D32Cradle for: VH | Rated voltage: 24 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H40B13Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H40J13Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H40B20Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-20H40J20Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-20H40D13Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H40D20Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-20H40D32Cradle for: VH | Rated voltage: 24 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H25D25Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H32B13Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H32J13Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H32B20Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H32J20Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H32D13Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H32D20Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H32D32Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H40B13Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H40J13Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H40B20Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VCH-25H40J20Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm, bushing 90 deg
VCH-25H40D13Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H40D20Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-25H40D32Cradle for: VH | Rated voltage: 25.8 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VCH-36H25E13Cradle for: VH | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H25E20Cradle for: VH | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H25E32Cradle for: VH | Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H32E13Cradle for: VH | Rated voltage: 36 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H32E20Cradle for: VH | Rated voltage: 36 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H32E32Cradle for: VH | Rated voltage: 36 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H40E13Cradle for: VH | Rated voltage: 36 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H40E20Cradle for: VH | Rated voltage: 36 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm
VCH-36H40E32Cradle for: VH | Rated voltage: 36 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
