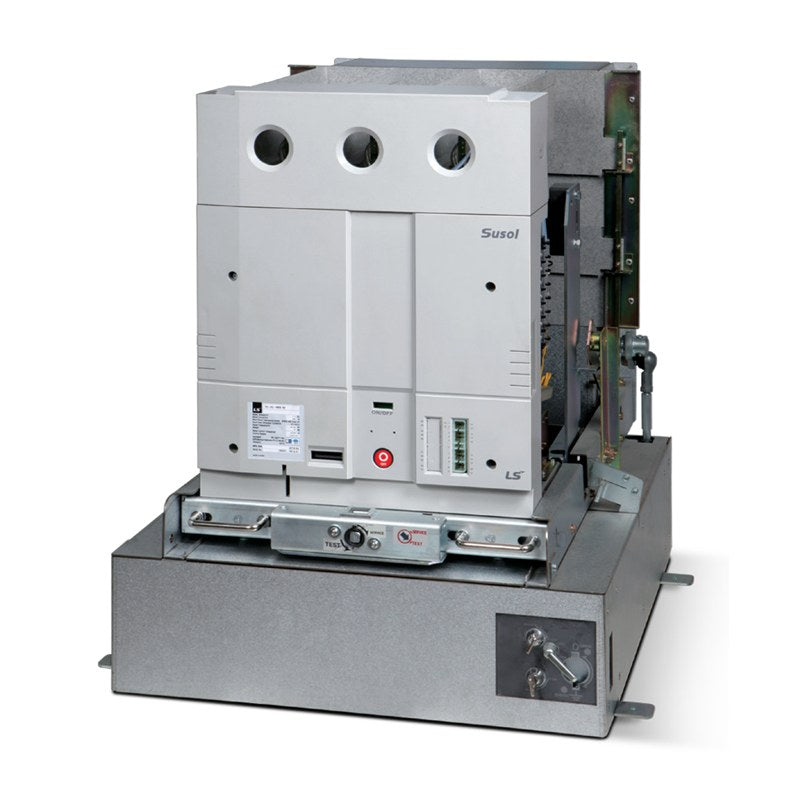

LS Electric Susol VCS Vacuum Contactor (VC-03/06, 3.6/7.2kV)

LS Electric Susol VC-03/06 three-phase vacuum contactors for 3.6/7.2 kV motor, transformer and capacitor switching at 200 or 400 A, in fixed, draw-out and power-fuse combination versions.

Key features

Fixed (Z), lever draw-out (D), external screw draw-out (K, P) and PF-combination (G, F, B, T) versions
Continuous-excitation (E) or mechanically latched (L) operating mechanism
PF-combination types reach 50 kA making/breaking with current-limiting power fuses
Up to 3,000 kW motors or 4,000 kVA transformers at 7.2 kV, 400 A
Fuse checker, PT, earthing-switch truck, fuse clips and accessories selected by order-code suffix
Certified to IEC 62271-106 and UL347

Specifications

Poles	3
Rated breaking current	4 kA (40/50 kA with power fuse)
Rated frequency	50/60 Hz
Short-time current	2.4 kA-30 s, 4 kA-10 s, 6 kA-2 s, 6.3 kA-1 s
Switching frequency (AC3)	E: 1,200/h; L: 300/h
Mechanical / electrical life	E: 1,000,000 / L: 300,000; elec. 300,000 ops
Impulse / power-frequency withstand	60 kV / 20 kV (1 min)
Auxiliary contacts	Fixed: E 3a3b, L 2a2b; draw-out: 2a2b
Weight	Z 24 kg, D 41 kg, K/P 56 kg, G/F 46 kg, B/T 62 kg
Standards	IEC 62271-106, UL347; KR and NK class approvals
Source	LS Electric Susol VCS catalog C05061-09 (2025-10), p. 10, 12

VC-03Z-42EED1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03Z-42EED2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03Z-42EED3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03Z-42EEA1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03Z-42EEA2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03Z-42EEA3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03Z-42LED1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03Z-42LED2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03Z-42LED3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03Z-42LEA1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03Z-42LEA2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03Z-42LEA3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03Z-44EED1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44EED2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44EED3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44EEA1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44EEA2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44EEA3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44LED1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44LED2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44LED3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44LEA1		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44LEA2		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03Z-44LEA3		Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03D-42EED1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03D-42EED2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03D-42EED3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03D-42EEA1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03D-42EEA2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03D-42EEA3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03D-42LED1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03D-42LED2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03D-42LED3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03D-42LEA1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03D-42LEA2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03D-42LEA3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03D-44EED1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44EED2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44EED3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44EEA1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44EEA2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44EEA3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44LED1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44LED2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44LED3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44LEA1		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44LEA2		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03D-44LEA3		Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03G-42EED1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03G-42EED2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03G-42EED3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03G-42EEA1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03G-42EEA2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03G-42EEA3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03G-42LED1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03G-42LED2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03G-42LED3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03G-42LEA1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03G-42LEA2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03G-42LEA3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03G-44EED1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44EED2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44EED3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44EEA1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44EEA2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44EEA3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44LED1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44LED2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44LED3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44LEA1		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44LEA2		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03G-44LEA3		Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03F-42EED1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03F-42EED2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03F-42EED3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03F-42EEA1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03F-42EEA2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03F-42EEA3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03F-42LED1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03F-42LED2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03F-42LED3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03F-42LEA1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03F-42LEA2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03F-42LEA3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03F-44EED1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44EED2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44EED3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44EEA1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44EEA2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44EEA3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44LED1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44LED2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44LED3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44LEA1		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44LEA2		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03F-44LEA3		Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03K-42EED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03K-42EED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03K-42EED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03K-42EEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03K-42EEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03K-42EEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03K-42LED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03K-42LED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03K-42LED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03K-42LEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03K-42LEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03K-42LEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03K-44EED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44EED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44EED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44EEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44EEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44EEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44LED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44LED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44LED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44LEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44LEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03K-44LEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03B-42EED1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03B-42EED2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03B-42EED3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03B-42EEA1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03B-42EEA2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03B-42EEA3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03B-42LED1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03B-42LED2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03B-42LED3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03B-42LEA1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03B-42LEA2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03B-42LEA3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03B-44EED1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44EED2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44EED3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44EEA1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44EEA2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44EEA3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44LED1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44LED2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44LED3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44LEA1		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44LEA2		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03B-44LEA3		Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03P-42EED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03P-42EED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03P-42EED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03P-42EEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03P-42EEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03P-42EEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03P-42LED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03P-42LED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03P-42LED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03P-42LEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03P-42LEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03P-42LEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03P-44EED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44EED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44EED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44EEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44EEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44EEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44LED1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44LED2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44LED3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44LEA1		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44LEA2		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03P-44LEA3		Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03T-42EED1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03T-42EED2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03T-42EED3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03T-42EEA1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03T-42EEA2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03T-42EEA3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03T-42LED1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
VC-03T-42LED2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
VC-03T-42LED3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
VC-03T-42LEA1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
VC-03T-42LEA2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
VC-03T-42LEA3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
VC-03T-44EED1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44EED2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44EED3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44EEA1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44EEA2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44EEA3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44LED1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44LED2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44LED3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44LEA1		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44LEA2		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-03T-44LEA3		Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42EED1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42EED2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42EED3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42EEA1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42EEA2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42EEA3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42LED1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42LED2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42LED3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42LEA1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42LEA2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-42LEA3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06Z-44EED1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44EED2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44EED3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44EEA1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44EEA2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44EEA3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44LED1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44LED2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44LED3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44LEA1		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44LEA2		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06Z-44LEA3		Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06D-42EED1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42EED2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42EED3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42EEA1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42EEA2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42EEA3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42LED1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42LED2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42LED3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42LEA1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42LEA2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06D-42LEA3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06D-44EED1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44EED2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44EED3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44EEA1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44EEA2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44EEA3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44LED1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44LED2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44LED3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44LEA1		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44LEA2		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06D-44LEA3		Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06G-42EED1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42EED2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42EED3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42EEA1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42EEA2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42EEA3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42LED1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42LED2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42LED3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42LEA1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42LEA2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06G-42LEA3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06G-44EED1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44EED2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44EED3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44EEA1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44EEA2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44EEA3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44LED1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44LED2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44LED3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44LEA1		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44LEA2		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06G-44LEA3		Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06F-42EED1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42EED2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42EED3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42EEA1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42EEA2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42EEA3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42LED1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42LED2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42LED3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42LEA1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42LEA2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06F-42LEA3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06F-44EED1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44EED2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44EED3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44EEA1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44EEA2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44EEA3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44LED1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44LED2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44LED3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44LEA1		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44LEA2		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06F-44LEA3		Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06K-42EED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42EED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42EED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42EEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42EEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42EEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42LED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42LED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42LED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42LEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42LEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06K-42LEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06K-44EED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44EED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44EED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44EEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44EEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44EEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44LED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44LED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44LED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44LEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44LEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06K-44LEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06B-42EED1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42EED2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42EED3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42EEA1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42EEA2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42EEA3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42LED1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42LED2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42LED3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42LEA1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42LEA2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06B-42LEA3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06B-44EED1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44EED2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44EED3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44EEA1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44EEA2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44EEA3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44LED1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44LED2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44LED3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44LEA1		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44LEA2		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06B-44LEA3		Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06P-42EED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42EED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42EED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42EEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42EEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42EEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42LED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42LED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42LED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42LEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42LEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06P-42LEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06P-44EED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44EED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44EED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44EEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44EEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44EEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44LED1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44LED2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44LED3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44LEA1		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44LEA2		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06P-44LEA3		Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06T-42EED1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42EED2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42EED3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42EEA1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42EEA2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42EEA3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42LED1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42LED2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42LED3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42LEA1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42LEA2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
VC-06T-42LEA3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
VC-06T-44EED1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44EED2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44EED3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44EEA1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44EEA2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44EEA3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44LED1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44LED2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44LED3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44LEA1		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44LEA2		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
VC-06T-44LEA3		Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW

Vacuum ContactorsLS Electric

384 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VCS Vacuum Contactor (VC-03/06, 3.6/7.2kV)

Brand LS Electric·Vacuum Contactors

Available part numbers (384)

VC-03Z-42EED1, VC-03Z-42EED2, VC-03Z-42EED3, VC-03Z-42EEA1, VC-03Z-42EEA2, VC-03Z-42EEA3, VC-03Z-42LED1, VC-03Z-42LED2, VC-03Z-42LED3, VC-03Z-42LEA1 + 374 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VC-03Z-42EED1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42EED2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42EED3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42EEA1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42EEA2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42EEA3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42LED1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42LED2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42LED3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42LEA1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42LEA2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03Z-42LEA3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03Z-44EED1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44EED2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44EED3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44EEA1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44EEA2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44EEA3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44LED1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44LED2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44LED3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44LEA1	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44LEA2	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03Z-44LEA3	Rated voltage: 3.6 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-42EED1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03D-42EED2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03D-42EED3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03D-42EEA1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03D-42EEA2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03D-42EEA3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03D-42LED1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03D-42LED2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03D-42LED3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03D-42LEA1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03D-42LEA2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03D-42LEA3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03D-44EED1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44EED2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44EED3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44EEA1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44EEA2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44EEA3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44LED1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44LED2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44LED3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44LEA1	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44LEA2	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03D-44LEA3	Rated voltage: 3.6 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-42EED1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03G-42EED2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03G-42EED3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03G-42EEA1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03G-42EEA2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03G-42EEA3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03G-42LED1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03G-42LED2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03G-42LED3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03G-42LEA1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03G-42LEA2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03G-42LEA3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03G-44EED1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44EED2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44EED3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44EEA1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44EEA2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44EEA3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44LED1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44LED2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44LED3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44LEA1	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44LEA2	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03G-44LEA3	Rated voltage: 3.6 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-42EED1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03F-42EED2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03F-42EED3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03F-42EEA1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03F-42EEA2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03F-42EEA3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03F-42LED1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03F-42LED2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03F-42LED3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03F-42LEA1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03F-42LEA2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03F-42LEA3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03F-44EED1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44EED2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44EED3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44EEA1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44EEA2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44EEA3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44LED1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44LED2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44LED3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44LEA1	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44LEA2	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03F-44LEA3	Rated voltage: 3.6 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-42EED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03K-42EED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03K-42EED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03K-42EEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03K-42EEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03K-42EEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03K-42LED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03K-42LED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03K-42LED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03K-42LEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03K-42LEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03K-42LEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03K-44EED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44EED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44EED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44EEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44EEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44EEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44LED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44LED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44LED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44LEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44LEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03K-44LEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-42EED1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03B-42EED2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03B-42EED3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03B-42EEA1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03B-42EEA2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03B-42EEA3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03B-42LED1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03B-42LED2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03B-42LED3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03B-42LEA1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03B-42LEA2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03B-42LEA3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03B-44EED1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44EED2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44EED3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44EEA1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44EEA2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44EEA3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44LED1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44LED2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44LED3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44LEA1	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44LEA2	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03B-44LEA3	Rated voltage: 3.6 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-42EED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03P-42EED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03P-42EED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03P-42EEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03P-42EEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03P-42EEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03P-42LED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03P-42LED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03P-42LED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03P-42LEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03P-42LEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03P-42LEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03P-44EED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44EED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44EED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44EEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44EEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44EEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44LED1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44LED2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44LED3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44LEA1	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44LEA2	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03P-44LEA3	Rated voltage: 3.6 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-42EED1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03T-42EED2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03T-42EED3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03T-42EEA1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03T-42EEA2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03T-42EEA3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03T-42LED1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 750 kW
	VC-03T-42LED2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 750 kW
	VC-03T-42LED3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 750 kW
	VC-03T-42LEA1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 750 kW
	VC-03T-42LEA2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 750 kW
	VC-03T-42LEA3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 750 kW
	VC-03T-44EED1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44EED2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44EED3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44EEA1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44EEA2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44EEA3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44LED1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44LED2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44LED3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44LEA1	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44LEA2	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-03T-44LEA3	Rated voltage: 3.6 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42EED1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42EED2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42EED3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42EEA1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42EEA2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42EEA3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42LED1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42LED2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42LED3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42LEA1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42LEA2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-42LEA3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06Z-44EED1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44EED2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44EED3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44EEA1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44EEA2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44EEA3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44LED1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44LED2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44LED3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44LEA1	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44LEA2	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06Z-44LEA3	Rated voltage: 7.2 kV \| Connection type: Fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-42EED1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42EED2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42EED3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42EEA1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42EEA2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42EEA3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42LED1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42LED2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42LED3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42LEA1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42LEA2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-42LEA3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06D-44EED1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44EED2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44EED3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44EEA1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44EEA2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44EEA3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44LED1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44LED2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44LED3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44LEA1	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44LEA2	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06D-44LEA3	Rated voltage: 7.2 kV \| Connection type: Draw-out (lever) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-42EED1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42EED2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42EED3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42EEA1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42EEA2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42EEA3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42LED1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42LED2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42LED3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42LEA1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42LEA2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-42LEA3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06G-44EED1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44EED2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44EED3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44EEA1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44EEA2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44EEA3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44LED1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44LED2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44LED3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44LEA1	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44LEA2	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06G-44LEA3	Rated voltage: 7.2 kV \| Connection type: PF combination draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-42EED1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42EED2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42EED3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42EEA1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42EEA2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42EEA3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42LED1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42LED2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42LED3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42LEA1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42LEA2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-42LEA3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06F-44EED1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44EED2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44EED3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44EEA1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44EEA2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44EEA3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44LED1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44LED2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44LED3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44LEA1	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44LEA2	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06F-44LEA3	Rated voltage: 7.2 kV \| Connection type: PF combination fixed \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-42EED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42EED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42EED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42EEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42EEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42EEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42LED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42LED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42LED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42LEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42LEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-42LEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06K-44EED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44EED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44EED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44EEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44EEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44EEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44LED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44LED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44LED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44LEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44LEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06K-44LEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (screw) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-42EED1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42EED2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42EED3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42EEA1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42EEA2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42EEA3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42LED1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42LED2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42LED3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42LEA1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42LEA2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-42LEA3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06B-44EED1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44EED2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44EED3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44EEA1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44EEA2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44EEA3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44LED1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44LED2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44LED3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44LEA1	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44LEA2	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06B-44LEA3	Rated voltage: 7.2 kV \| Connection type: PF combination external draw-out \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-42EED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42EED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42EED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42EEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42EEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42EEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42LED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42LED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42LED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42LEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42LEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-42LEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06P-44EED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44EED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44EED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44EEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44EEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44EEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44LED1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44LED2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44LED3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44LEA1	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44LEA2	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06P-44LEA3	Rated voltage: 7.2 kV \| Connection type: External draw-out (P150 cradle) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-42EED1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42EED2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42EED3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42EEA1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42EEA2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42EEA3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42LED1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42LED2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42LED3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42LEA1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42LEA2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-42LEA3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 200 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 1,500 kW
	VC-06T-44EED1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44EED2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44EED3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44EEA1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44EEA2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44EEA3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Continuous excitation \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44LED1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44LED2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44LED3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: DC 125 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44LEA1	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 110 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44LEA2	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 220 V \| Max. motor (3-phase): 3,000 kW
	VC-06T-44LEA3	Rated voltage: 7.2 kV \| Connection type: PF comb. external draw-out (P150) \| Rated current: 400 A \| Operating method: Latched (mechanical latch) \| Control voltage: AC 125 V \| Max. motor (3-phase): 3,000 kW

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →

Item added to your cart

LS Electric Susol VCS Vacuum Contactor (VC-03/06, 3.6/7.2kV)
