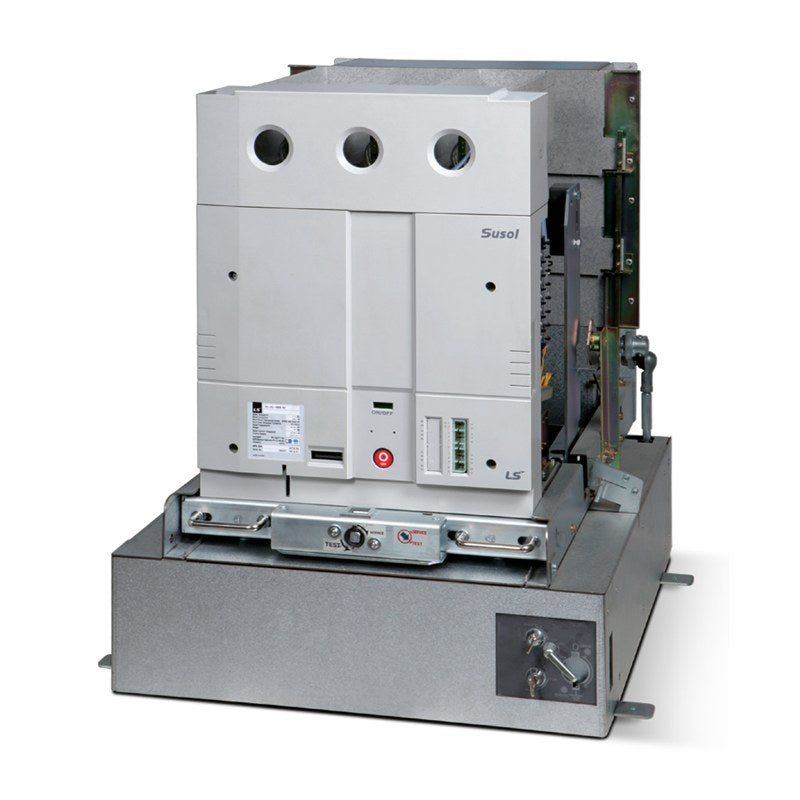

LS Electric Susol VCS Cradle (VCL, 3.6/7.2kV and 12kV)

LS Electric Susol VCS Cradle (VCL, 3.6/7.2kV and 12kV)

LS Electric VCL cradles that house Susol draw-out vacuum contactors, in E/F/G grade, external draw-out and earthing-switch versions for 3.6/7.2 kV and 12 kV.

Key features

  • 3.6/7.2 kV cradles rated 4 kA breaking, 200/400 A
  • E grade: basic economy cradle; F grade adds insulation shutter; G grade adds shutter and extra parts
  • B and H types for external screw draw-out bodies; H with earthing switch
  • 12 kV cradles with metal shutter (M) or H-type external draw-out
  • Position switches, earthing switch, locking magnets and temperature sensor selected by accessory suffix

Specifications

Breaking current class 4 kA
Use with Susol VCS draw-out vacuum contactors
Approvals (3.6/7.2 kV) cULus
Accessory suffix (3.6/7.2 kV) A-T: PS 1a1b/2a2b, 3-pos S/W, earthing S/W
Accessory suffix (12 kV, H type) 1-L: earthing S/W, position S/W, magnets
Source LS Electric Susol VCS catalog C05061-09 (2025-10), p. 8, 14
VCL-3/6-42/44-E Rated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: E grade (basic economy) | For VC body types: D, G
VCL-3/6-42/44-F Rated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: F grade (E grade + shutter) | For VC body types: D, G
VCL-3/6-42/44-G Rated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: G grade (shutter + extras) | For VC body types: D, G
VCL-3/6-42/44-B Rated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: External draw-out | For VC body types: K, B
VCL-3/6-42/44-H Rated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: Earthing switch combination | For VC body types: K, B
VCL-12-44-M Rated voltage: 12 kV | Rated current: 400 A | Cradle type: Metal shutter external draw-out | For VC body types: VC-12 K, B; VC-03/06 P, T
VCL-12-44-H Rated voltage: 12 kV | Rated current: 400 A | Cradle type: H-type external draw-out | For VC body types: VC-12 K, B; VC-03/06 P, T
AccessoriesLS Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VCS Cradle (VCL, 3.6/7.2kV and 12kV)

Brand LS Electric·Accessories

Available part numbers (7)

VCL-3/6-42/44-E, VCL-3/6-42/44-F, VCL-3/6-42/44-G, VCL-3/6-42/44-B, VCL-3/6-42/44-H, VCL-12-44-M, VCL-12-44-H

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCL-3/6-42/44-ERated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: E grade (basic economy) | For VC body types: D, G
VCL-3/6-42/44-FRated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: F grade (E grade + shutter) | For VC body types: D, G
VCL-3/6-42/44-GRated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: G grade (shutter + extras) | For VC body types: D, G
VCL-3/6-42/44-BRated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: External draw-out | For VC body types: K, B
VCL-3/6-42/44-HRated voltage: 3.6/7.2 kV | Rated current: 200/400 A | Cradle type: Earthing switch combination | For VC body types: K, B
VCL-12-44-MRated voltage: 12 kV | Rated current: 400 A | Cradle type: Metal shutter external draw-out | For VC body types: VC-12 K, B; VC-03/06 P, T
VCL-12-44-HRated voltage: 12 kV | Rated current: 400 A | Cradle type: H-type external draw-out | For VC body types: VC-12 K, B; VC-03/06 P, T
