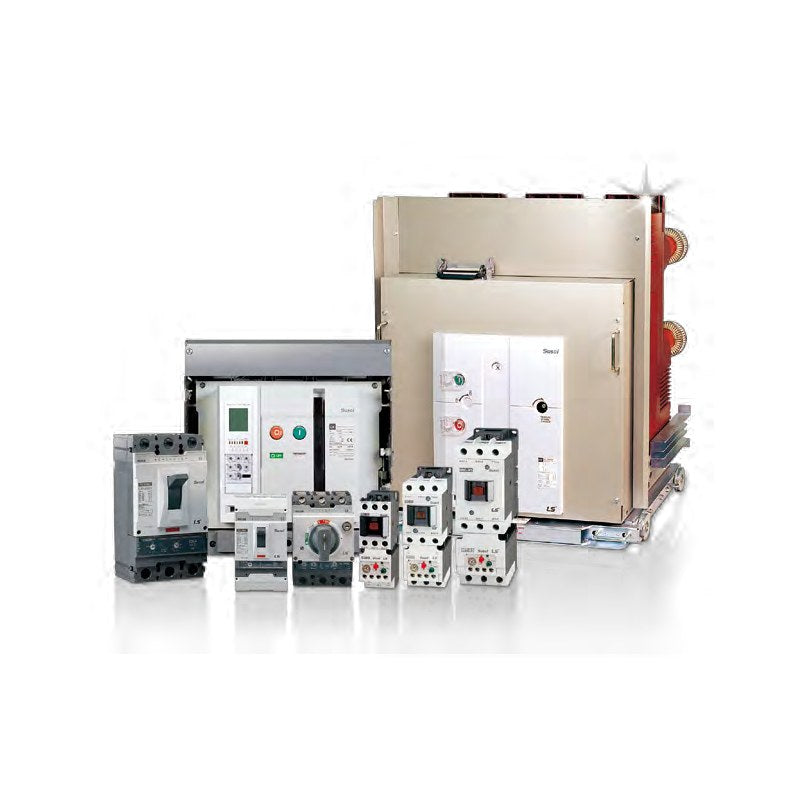

LS Electric Susol VH/LVB Vacuum Circuit Breakers (7.2-17.5 kV)

LS Electric Susol VH/LVB Vacuum Circuit Breakers (7.2-17.5 kV)

LS Electric Beyond X Susol VH and LVB large-capacity indoor vacuum circuit breakers for 7.2, 12 and 17.5 kV systems, 31.5-50 kA, 1250-5000 A.

Key features

  • Large-capacity frames up to 50 kA breaking and 5000 A rated current
  • IEC 62271-100 tested: E2 electrical, M2 mechanical, C2 capacitive switching classes
  • Fixed (P) and draw-out E/F/G, Fs/Gs, K and H versions; LVB in Pro-MEC compatible frame incl. G/T
  • Pole pitch 150, 210, 275 or 320 mm depending on rating
  • Spring-charged stored-energy mechanism with motor, closing coil and trip coil
  • Matching VCH / LCL cradles available

Specifications

Series Susol VH / LVB (Beyond X)
Rated voltage range 7.2 / 12 / 17.5 kV
Insulation level Ud/Up 7.2 kV 20/60; 12 kV 28/75; 17.5 kV 38/95 kV
Rated frequency 50/60 Hz
Rated breaking time 3 cycles
Switching classes M2, E2, C2
Mechanical endurance 30,000 operations
Operating duty O-0.3s-CO-3min-CO
Standards IEC 62271-100
Source LS Electric Susol VCB catalog C05001-26 (2026-09), p. 32-35, 40-41, 47-52
VH-06P32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06G32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LVB-06P-32L/12 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-32L/12 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-32L/12 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/12 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/12-T2 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06G32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LVB-06P-32L/20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-32L/20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-32L/20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/20-T2 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06E32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VH-06F32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VH-06Fs32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VH-06Gs32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-06K32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-06H32B32 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-06P-32L/30 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-32L/30 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-32L/30 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/30-T2 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06H40D32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06P40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06Fs40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VH-06G40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VH-06Gs40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-06K40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VH-06H40A13 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-06P-40L/12 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-40L/12 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-40L/12 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/12 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/12-T2 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06Fs40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VH-06G40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VH-06Gs40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-06K40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VH-06H40A20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-06P-40L/20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-40L/20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-40L/20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/20 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/20-T2 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06E40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VH-06F40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VH-06Fs40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VH-06G40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VH-06Gs40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-06K40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-06H40B32 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-06P-40L/30 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-40L/30 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-40L/30 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/30-T2 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P40D40 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06K40D40 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-06H40D40 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06H40L50 Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
VH-06P50B13 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06H50B13 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-06P50B20 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06H50B20 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-06P50D25 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06H50D25 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06P50D32 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06H50D32 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06P50D40 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06K50D40 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-06H50D40 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06H50L50 Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
LVB-12G-32L/12-T2 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-12G-32L/20-T2 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12Gs32B32 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-12K32B32 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H32B32 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-12G-32L/30-T2 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12Gs40A13 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-12K40K13 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VH-12H40A13 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-12G-40L/12-T2 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12Gs40A20 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-12K40K20 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VH-12H40A20 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-12G-40L/20-T2 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12K40B13 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H40B13 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12K40B20 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H40B20 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12Gs40B32 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-12K40B32 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H40B32 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-12G-40L/30-T2 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12H40D32 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12P40D40 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12K40D40 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-12H40D40 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12H40L50 Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
VH-12P50B13 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-12H50B13 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12P50B20 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-12H50B20 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12P50D25 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12H50D25 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12P50D32 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12H50D32 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12P50D40 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12K50D40 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-12H50D40 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12H50L50 Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
VH-17H32B32 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17H32D32 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17K40B13 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-17H40B13 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17K40B20 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-17H40B20 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17H40B32 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17H40D32 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P40D40 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17K40D40 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-17H40D40 Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P50B13 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-17H50B13 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17P50B20 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-17H50B20 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17P50D25 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17H50D25 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P50D32 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17H50D32 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P50D40 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17H50D40 Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
Vacuum Circuit BreakersLS Electric
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VH/LVB Vacuum Circuit Breakers (7.2-17.5 kV)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (144)

VH-06P32A13, VH-06E32A13, VH-06F32A13, VH-06G32A13, LVB-06P-32L/12, LVB-06E-32L/12, LVB-06F-32L/12, LVB-06G-32L/12, LVB-06G-32L/12-T2, VH-06P32A20 + 134 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VH-06P32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06G32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LVB-06P-32L/12Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-32L/12Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-32L/12Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/12Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/12-T2Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06G32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
LVB-06P-32L/20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-32L/20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-32L/20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/20-T2Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06E32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VH-06F32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VH-06Fs32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VH-06Gs32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-06K32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-06H32B32Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-06P-32L/30Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-32L/30Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-32L/30Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-32L/30-T2Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06H40D32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06P40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06Fs40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VH-06G40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VH-06Gs40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-06K40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VH-06H40A13Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-06P-40L/12Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-40L/12Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-40L/12Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/12Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/12-T2Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VH-06E40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VH-06F40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VH-06Fs40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VH-06G40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VH-06Gs40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-06K40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 150 mm
VH-06H40A20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-06P-40L/20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-40L/20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-40L/20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/20Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/20-T2Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06E40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VH-06F40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VH-06Fs40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 210 mm
VH-06G40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VH-06Gs40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-06K40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-06H40B32Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-06P-40L/30Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06E-40L/30Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out E (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06F-40L/30Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out F (MESG) | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-06G-40L/30-T2Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-06P40D40Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06K40D40Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-06H40D40Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06H40L50Rated voltage: 7.2 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
VH-06P50B13Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06H50B13Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-06P50B20Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-06H50B20Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-06P50D25Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06H50D25Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06P50D32Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06H50D32Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06P50D40Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-06K50D40Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-06H50D40Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-06H50L50Rated voltage: 7.2 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
LVB-12G-32L/12-T2Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
LVB-12G-32L/20-T2Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12Gs32B32Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-12K32B32Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H32B32Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-12G-32L/30-T2Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12Gs40A13Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-12K40K13Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VH-12H40A13Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-12G-40L/12-T2Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12Gs40A20Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VH-12K40K20Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC compat.
VH-12H40A20Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
LVB-12G-40L/20-T2Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12K40B13Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H40B13Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12K40B20Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H40B20Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12Gs40B32Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 210 mm
VH-12K40B32Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-12H40B32Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
LVB-12G-40L/30-T2Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out G/T (MCSG) + T2 | Pole pitch / outline: LVB (Pro-MEC frame)
VH-12H40D32Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12P40D40Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12K40D40Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-12H40D40Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12H40L50Rated voltage: 12 kV | Breaking current: 40 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
VH-12P50B13Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-12H50B13Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12P50B20Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-12H50B20Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-12P50D25Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12H50D25Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12P50D32Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12H50D32Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12P50D40Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-12K50D40Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-12H50D40Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-12H50L50Rated voltage: 12 kV | Breaking current: 50 kA | Rated current: 5000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 320 mm
VH-17H32B32Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17H32D32Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17K40B13Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-17H40B13Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17K40B20Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VH-17H40B20Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17H40B32Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17H40D32Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P40D40Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17K40D40Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 275 mm
VH-17H40D40Rated voltage: 17.5 kV | Breaking current: 40 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P50B13Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-17H50B13Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17P50B20Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VH-17H50B20Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VH-17P50D25Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17H50D25Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P50D32Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17H50D32Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 3150 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VH-17P50D40Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Fixed | Pole pitch / outline: 275 mm
VH-17H50D40Rated voltage: 17.5 kV | Breaking current: 50 kA | Rated current: 4000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
