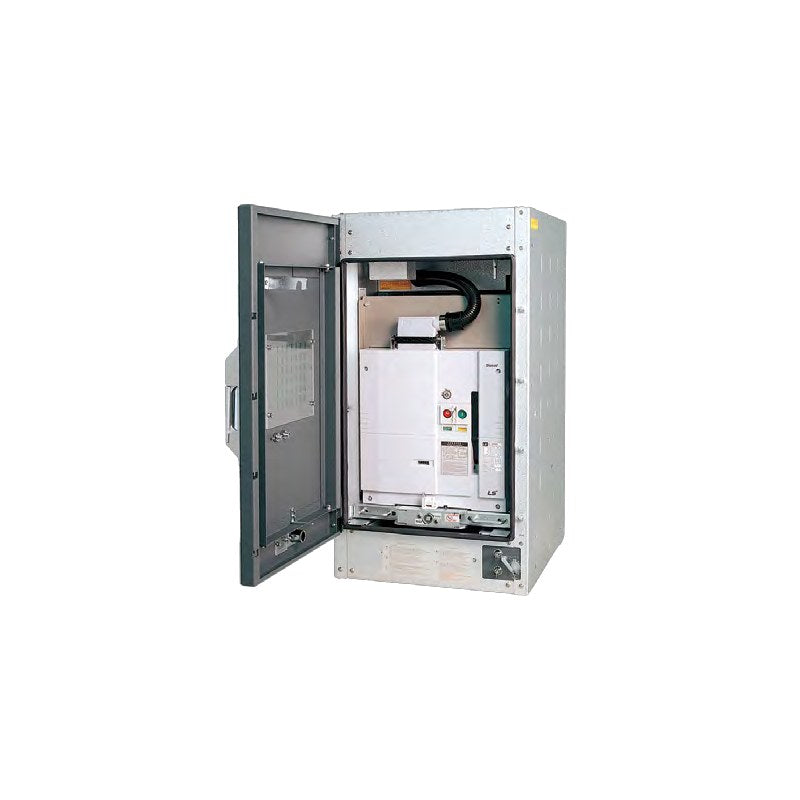

LS Electric Susol VH Vacuum Circuit Breakers (24-36 kV)

LS Electric Beyond X Susol VH large-capacity indoor vacuum circuit breakers for 24, 25.8 and 36 kV systems, 25-40 kA, 1250-3150 A, fixed or H-type draw-out.

Key features

Large-capacity frames up to 40 kA breaking and 3150 A rated current
IEC 62271-100 tested: E2 electrical, M2 mechanical, C2 capacitive switching classes
Fixed (P) and H-type draw-out (MCSG) versions
Pole pitch 210, 275 or 300 mm depending on rating
Spring-charged stored-energy mechanism with motor, closing coil and trip coil
Matching VCH cradles available, incl. J-type with 90 deg rotated bushings

Specifications

Series	Susol VH (Beyond X)
Rated voltage range	24 / 25.8 / 36 kV
Insulation level Ud/Up	24/25.8 kV 50(65)/125; 36 kV 70(95)/170 kV
Rated frequency	50/60 Hz
Rated breaking time	3 cycles
Switching classes	M2, E2, C2
Mechanical endurance	30,000 operations
Standards	IEC 62271-100
Source	LS Electric Susol VCB catalog C05001-26 (2026-09), p. 34-35, 41, 53-54

VH-20P25D25		Rated voltage: 24 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H25D25		Rated voltage: 24 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-20P32B13		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-20H32B13		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-20P32B20		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-20H32B20		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-20P32D13		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H32D13		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-20P32D20		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H32D20		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-20P32D32		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H32D32		Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-20P40B13		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-20H40B13		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-20P40B20		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-20H40B20		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-20P40D13		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H40D13		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-20P40D20		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H40D20		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-20P40D32		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-20H40D32		Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P25D25		Rated voltage: 25.8 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H25D25		Rated voltage: 25.8 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P32B13		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-25H32B13		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-25P32B20		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-25H32B20		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-25P32D13		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H32D13		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P32D20		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H32D20		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P32D32		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H32D32		Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P40B13		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-25H40B13		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-25P40B20		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
VH-25H40B20		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
VH-25P40D13		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H40D13		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P40D20		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H40D20		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-25P40D32		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
VH-25H40D32		Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
VH-36P25E13		Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H25E13		Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P25E20		Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H25E20		Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P25E32		Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H25E32		Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P32E13		Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H32E13		Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P32E20		Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H32E20		Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P32E32		Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H32E32		Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P40E13		Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H40E13		Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P40E20		Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H40E20		Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
VH-36P40E32		Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 300 mm
VH-36H40E32		Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm

Vacuum Circuit BreakersLS Electric

62 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VH Vacuum Circuit Breakers (24-36 kV)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (62)

VH-20P25D25, VH-20H25D25, VH-20P32B13, VH-20H32B13, VH-20P32B20, VH-20H32B20, VH-20P32D13, VH-20H32D13, VH-20P32D20, VH-20H32D20 + 52 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	VH-20P25D25	Rated voltage: 24 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H25D25	Rated voltage: 24 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-20P32B13	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-20H32B13	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-20P32B20	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-20H32B20	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-20P32D13	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H32D13	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-20P32D20	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H32D20	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-20P32D32	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H32D32	Rated voltage: 24 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-20P40B13	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-20H40B13	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-20P40B20	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-20H40B20	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-20P40D13	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H40D13	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-20P40D20	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H40D20	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-20P40D32	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-20H40D32	Rated voltage: 24 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P25D25	Rated voltage: 25.8 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H25D25	Rated voltage: 25.8 kV \| Breaking current: 25 kA \| Rated current: 2500 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P32B13	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-25H32B13	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-25P32B20	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-25H32B20	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-25P32D13	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H32D13	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P32D20	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H32D20	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P32D32	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H32D32	Rated voltage: 25.8 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P40B13	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-25H40B13	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-25P40B20	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 210 mm
	VH-25H40B20	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 210 mm
	VH-25P40D13	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H40D13	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P40D20	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H40D20	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-25P40D32	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 275 mm
	VH-25H40D32	Rated voltage: 25.8 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 275 mm
	VH-36P25E13	Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H25E13	Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P25E20	Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H25E20	Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P25E32	Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H25E32	Rated voltage: 36 kV \| Breaking current: 25 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P32E13	Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H32E13	Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P32E20	Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H32E20	Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P32E32	Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H32E32	Rated voltage: 36 kV \| Breaking current: 31.5 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P40E13	Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H40E13	Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 1250 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P40E20	Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H40E20	Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 2000 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
	VH-36P40E32	Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Fixed \| Pole pitch / outline: 300 mm
	VH-36H40E32	Rated voltage: 36 kV \| Breaking current: 40 kA \| Rated current: 3150 A \| Type: Draw-out H (MCSG) \| Pole pitch / outline: 300 mm
