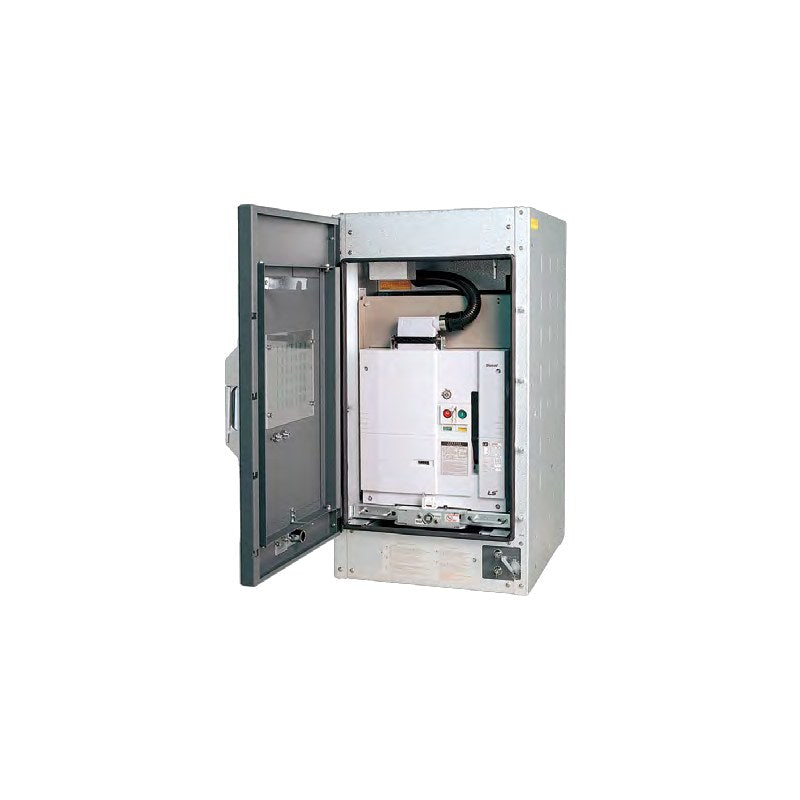

LS Electric Susol VL Vacuum Circuit Breakers (24-36 kV)

LS Electric Susol VL Vacuum Circuit Breakers (24-36 kV)

LS Electric Beyond X Susol VL medium-capacity indoor vacuum circuit breakers for 24, 25.8 and 36 kV systems, 12.5-25 kA, 630-2500 A, in fixed and draw-out versions.

Key features

  • IEC 62271-100 tested: E2 electrical, M2 mechanical, C2 capacitive switching classes
  • Mechanical endurance up to 30,000 operations with maintenance
  • Fixed (P) and draw-out E/F/G (MESG), K (Pro-MEC compatible) and H (MCSG) versions
  • Pole pitch 210, 265 or 275 mm and enclosed tulip-contact (G) outline options
  • Spring-charged stored-energy mechanism with motor, closing coil and trip coil
  • Matching VCL cradles available

Specifications

Series Susol VL (Beyond X)
Rated voltage range 24 / 25.8 / 36 kV
Insulation level Ud/Up 24/25.8 kV 50(60)/125; 36 kV 70/170 kV
Rated frequency 50/60 Hz
Rated making current 2.5 x Isc (50 Hz) / 2.6 x Isc (60 Hz)
Rated breaking time 3 cycles
Opening time <= 0.04 s
Operating duty O-0.3s-CO-15s-CO
Switching classes M2, E2, C2
Mechanical endurance 30,000 operations
Standards IEC 62271-100
Source LS Electric Susol VCB catalog C05001-26 (2026-09), p. 30-31, 39, 45-46
VL-20G13B06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K13B06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H13B06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G13B13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K13B13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H13B13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20P13F06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E13F06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F13F06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G13F06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K13F06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E13G06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F13G06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P13F13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E13F13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F13F13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G13F13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K13F13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E13G13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F13G13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20H13D06 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H13D13 Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20G16B06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K16B06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H16B06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G16B13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K16B13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H16B13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20P16F06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E16F06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F16F06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G16F06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K16F06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E16G06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F16G06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P16F13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E16F13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F16F13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G16F13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K16F13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E16G13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F16G13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20H16D06 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H16D13 Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20G25B06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K25B06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H25B06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G25B13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K25B13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H25B13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G25B20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20H25B20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20P25F06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E25F06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F25F06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G25F06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K25F06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E25G06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F25G06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P25F13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E25F13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F25F13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G25F13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K25F13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E25G13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F25G13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P25F20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E25F20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F25F20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20K25F20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E25G20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F25G20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20H25D06 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H25D13 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H25D20 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H25D25 Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25G13B06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K13B06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H13B06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G13B13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K13B13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H13B13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25P13F06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E13F06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F13F06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G13F06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K13F06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E13G06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F13G06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P13F13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E13F13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F13F13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G13F13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K13F13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E13G13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F13G13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25H13D06 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H13D13 Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25G16B06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K16B06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H16B06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G16B13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K16B13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H16B13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25P16F06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E16F06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F16F06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G16F06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K16F06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E16G06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F16G06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P16F13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E16F13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F16F13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G16F13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K16F13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E16G13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F16G13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25H16D06 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H16D13 Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25G25B06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K25B06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H25B06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G25B13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K25B13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H25B13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G25B20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25H25B20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25P25F06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E25F06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F25F06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G25F06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K25F06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E25G06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F25G06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P25F13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E25F13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F25F13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G25F13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K25F13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E25G13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F25G13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P25F20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E25F20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F25F20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25K25F20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E25G20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F25G20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25H25D06 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H25D13 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H25D20 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H25D25 Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D06 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D06 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D13 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D13 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D20 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D20 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D25 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D25 Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
Vacuum Circuit BreakersLS Electric
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VL Vacuum Circuit Breakers (24-36 kV)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (160)

VL-20G13B06, VL-20K13B06, VL-20H13B06, VL-20G13B13, VL-20K13B13, VL-20H13B13, VL-20P13F06, VL-20E13F06, VL-20F13F06, VL-20G13F06 + 150 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VL-20G13B06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K13B06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H13B06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G13B13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K13B13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H13B13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20P13F06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E13F06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F13F06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G13F06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K13F06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E13G06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F13G06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P13F13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E13F13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F13F13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G13F13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K13F13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E13G13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F13G13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20H13D06Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H13D13Rated voltage: 24 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20G16B06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K16B06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H16B06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G16B13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K16B13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H16B13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20P16F06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E16F06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F16F06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G16F06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K16F06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E16G06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F16G06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P16F13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E16F13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F16F13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G16F13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K16F13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E16G13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F16G13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20H16D06Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H16D13Rated voltage: 24 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20G25B06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K25B06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H25B06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G25B13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20K25B13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-20H25B13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20G25B20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-20H25B20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-20P25F06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E25F06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F25F06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G25F06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K25F06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E25G06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F25G06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P25F13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E25F13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F25F13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20G25F13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-20K25F13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E25G13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F25G13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20P25F20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-20E25F20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-20F25F20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-20K25F20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-20E25G20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20F25G20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-20H25D06Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H25D13Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H25D20Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-20H25D25Rated voltage: 24 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25G13B06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K13B06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H13B06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G13B13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K13B13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H13B13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25P13F06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E13F06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F13F06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G13F06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K13F06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E13G06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F13G06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P13F13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E13F13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F13F13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G13F13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K13F13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E13G13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F13G13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25H13D06Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H13D13Rated voltage: 25.8 kV | Breaking current: 12.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25G16B06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K16B06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H16B06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G16B13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K16B13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H16B13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25P16F06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E16F06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F16F06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G16F06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K16F06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E16G06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F16G06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P16F13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E16F13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F16F13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G16F13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K16F13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E16G13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F16G13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25H16D06Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H16D13Rated voltage: 25.8 kV | Breaking current: 16 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25G25B06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K25B06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H25B06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G25B13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25K25B13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 210 mm
VL-25H25B13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25G25B20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 210 mm
VL-25H25B20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-25P25F06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E25F06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F25F06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G25F06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K25F06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E25G06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F25G06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P25F13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E25F13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F25F13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25G25F13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 265 mm
VL-25K25F13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E25G13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F25G13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25P25F20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 265 mm
VL-25E25F20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 265 mm
VL-25F25F20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 265 mm
VL-25K25F20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: 265 mm
VL-25E25G20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25F25G20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: Enclosed, tulip contact
VL-25H25D06Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H25D13Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H25D20Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-25H25D25Rated voltage: 25.8 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D06Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D06Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D13Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D13Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D20Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D20Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-36P25D25Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-36H25D25Rated voltage: 36 kV | Breaking current: 25 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
