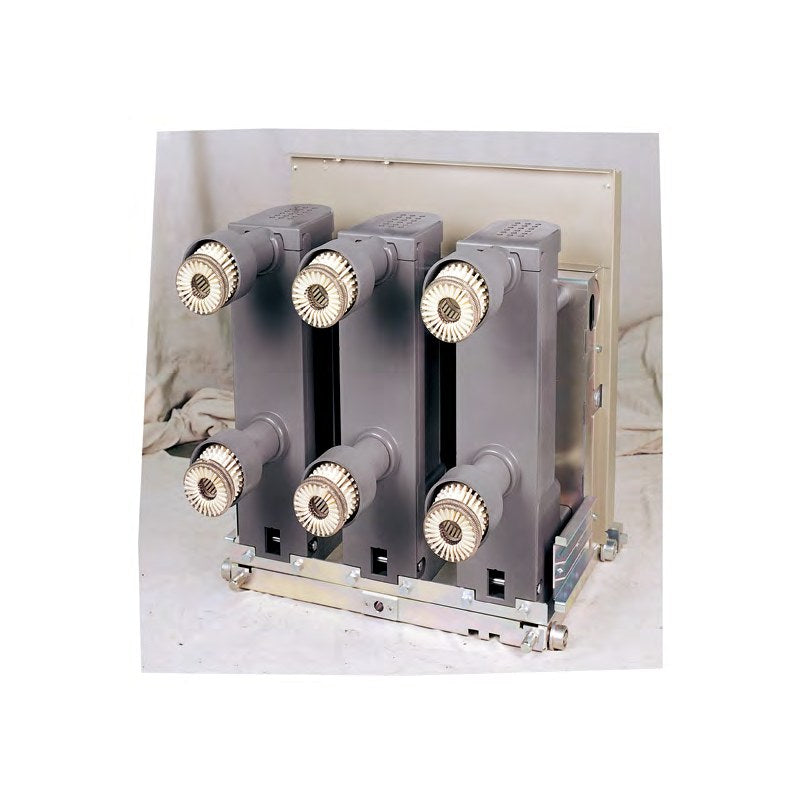

LS Electric Susol VL Vacuum Circuit Breakers (7.2-17.5 kV)

LS Electric Susol VL Vacuum Circuit Breakers (7.2-17.5 kV)

LS Electric Beyond X Susol VL small- and medium-capacity indoor vacuum circuit breakers for 7.2, 12 and 17.5 kV systems, 8-31.5 kA, 400-2500 A, in fixed and draw-out versions.

Key features

  • IEC 62271-100 tested to the highest classes: E2 electrical, M2 mechanical, C2 capacitive switching
  • Mechanical endurance up to 30,000 operations with maintenance
  • Fixed (P) and draw-out E/F/G (MESG), Fs/Gs screw type, K (Pro-MEC compatible) and H (MCSG) versions
  • Spring-charged stored-energy mechanism with motor, closing coil and trip coil
  • Wide range of internal and external accessories (secondary trip, UVT, position switches, key locks)
  • Matching VCL cradles available

Specifications

Series Susol VL (Beyond X)
Rated voltage range 7.2 / 12 / 17.5 kV
Insulation level Ud/Up 7.2 kV 20/60; 12 kV 28/75; 17.5 kV 38/95 kV
Rated frequency 50/60 Hz
Rated making current 2.5 x Isc (50 Hz) / 2.6 x Isc (60 Hz)
Rated breaking time 3 cycles
Opening time <= 0.04 s
Operating duty O-0.3s-CO-15s-CO
Switching classes M2, E2, C2
Mechanical endurance 30,000 operations
Standards IEC 62271-100, JEC 2300/JIS C 4603
Source LS Electric Susol VCB catalog C05001-26 (2026-09), p. 26-29, 38, 42-44
VL-06P08A04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Fixed | Pole pitch / outline: Standard, 130 mm
VL-06E08A04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06F08A04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06G08A04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06P08B04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Fixed | Pole pitch / outline: Legacy body compat., 130 mm
VL-06E08B04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06F08B04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06G08B04 Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06P13A06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: Standard, 130 mm
VL-06E13A06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06F13A06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06G13A06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06P13B06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: Legacy body compat., 130 mm
VL-06E13B06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06F13B06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06G13B06 Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06P20A06 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E20A06 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F20A06 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G20A06 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06H20A06 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P20A13 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E20A13 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F20A13 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G20A13 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06H20A13 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P20A20 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E20A20 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F20A20 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G20A20 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06H20A20 Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P25A06 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E25A06 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F25A06 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G25A06 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06K25K06 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H25A06 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P25A13 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E25A13 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F25A13 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G25A13 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06K25K13 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H25A13 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P25A20 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E25A20 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F25A20 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G25A20 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06K25K20 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H25A20 Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P32A06 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06H32A06 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06Fs32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VL-06G32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06Gs32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-06K32K13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H32A13 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06Fs32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VL-06G32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06Gs32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-06K32K20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H32A20 Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P20A06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K20K06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H20A06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P20A13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K20K13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H20A13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12H20A20 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P20B06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E20B06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F20B06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H20B06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P20B13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E20B13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F20B13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H20B13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P20B20 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E20B20 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F20B20 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H20B20 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12E20F06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F20F06 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12E20F13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F20F13 Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12P25A06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K25K06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H25A06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P25A13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K25K13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H25A13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12K25K20 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H25A20 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P25B06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E25B06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F25B06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H25B06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P25B13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E25B13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F25B13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H25B13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P25B20 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E25B20 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F25B20 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H25B20 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12E25F06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F25F06 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12E25F13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F25F13 Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12P32A06 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12H32A06 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P32A13 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12Gs32A13 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-12K32K13 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H32A13 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12Gs32A20 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-12K32K20 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H32A20 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P32B06 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B06 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32B13 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B13 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32B20 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B20 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32B25 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B25 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32D25 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-12H32D25 Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-17H20A06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H20A13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H20A20 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P20B06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E20B06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F20B06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H20B06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P20B13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E20B13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F20B13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H20B13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P20B20 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E20B20 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F20B20 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H20B20 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17E20F06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F20F06 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17E20F13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F20F13 Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17H25A06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H25A13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H25A20 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P25B06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E25B06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F25B06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H25B06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P25B13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E25B13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F25B13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H25B13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P25B20 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E25B20 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F25B20 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H25B20 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17E25F06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F25F06 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17E25F13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F25F13 Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17P32A06 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-17H32A06 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P32A13 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-17H32A13 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H32A20 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P32B06 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B06 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32B13 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B13 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32B20 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B20 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32B25 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B25 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32D25 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-17H32D25 Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
Vacuum Circuit BreakersLS Electric
186 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Susol VL Vacuum Circuit Breakers (7.2-17.5 kV)

Brand LS Electric·Vacuum Circuit Breakers

Available part numbers (186)

VL-06P08A04, VL-06E08A04, VL-06F08A04, VL-06G08A04, VL-06P08B04, VL-06E08B04, VL-06F08B04, VL-06G08B04, VL-06P13A06, VL-06E13A06 + 176 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VL-06P08A04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Fixed | Pole pitch / outline: Standard, 130 mm
VL-06E08A04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06F08A04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06G08A04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06P08B04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Fixed | Pole pitch / outline: Legacy body compat., 130 mm
VL-06E08B04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06F08B04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06G08B04Rated voltage: 7.2 kV | Breaking current: 8 kA | Rated current: 400 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06P13A06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: Standard, 130 mm
VL-06E13A06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06F13A06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06G13A06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Standard, 130 mm
VL-06P13B06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: Legacy body compat., 130 mm
VL-06E13B06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06F13B06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06G13B06Rated voltage: 7.2 kV | Breaking current: 12.5 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: Legacy body compat., 130 mm
VL-06P20A06Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E20A06Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F20A06Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G20A06Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06H20A06Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P20A13Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E20A13Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F20A13Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G20A13Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06H20A13Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P20A20Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E20A20Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F20A20Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G20A20Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06H20A20Rated voltage: 7.2 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P25A06Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E25A06Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F25A06Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G25A06Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06K25K06Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H25A06Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P25A13Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E25A13Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F25A13Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G25A13Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06K25K13Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H25A13Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P25A20Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E25A20Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F25A20Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06G25A20Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06K25K20Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H25A20Rated voltage: 7.2 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P32A06Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06H32A06Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06Fs32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VL-06G32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06Gs32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-06K32K13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H32A13Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-06P32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-06E32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 150 mm
VL-06F32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 150 mm
VL-06Fs32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Fs (screw type) | Pole pitch / outline: 150 mm
VL-06G32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out G (MESG) | Pole pitch / outline: 150 mm
VL-06Gs32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-06K32K20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-06H32A20Rated voltage: 7.2 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P20A06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K20K06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H20A06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P20A13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K20K13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H20A13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12H20A20Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P20B06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E20B06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F20B06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H20B06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P20B13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E20B13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F20B13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H20B13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P20B20Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E20B20Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F20B20Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H20B20Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12E20F06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F20F06Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12E20F13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F20F13Rated voltage: 12 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12P25A06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K25K06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H25A06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P25A13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12K25K13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H25A13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12K25K20Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H25A20Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P25B06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E25B06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F25B06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H25B06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P25B13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E25B13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F25B13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H25B13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P25B20Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12E25B20Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-12F25B20Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-12H25B20Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12E25F06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F25F06Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12E25F13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-12F25F13Rated voltage: 12 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-12P32A06Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12H32A06Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P32A13Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-12Gs32A13Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-12K32K13Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H32A13Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12Gs32A20Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out Gs (screw type) | Pole pitch / outline: 150 mm
VL-12K32K20Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out K (Pro-MEC compat.) | Pole pitch / outline: Pro-MEC G/T(T) compat.
VL-12H32A20Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-12P32B06Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B06Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32B13Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B13Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32B20Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B20Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32B25Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-12H32B25Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-12P32D25Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-12H32D25Rated voltage: 12 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm
VL-17H20A06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H20A13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H20A20Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P20B06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E20B06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F20B06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H20B06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P20B13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E20B13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F20B13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H20B13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P20B20Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E20B20Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F20B20Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H20B20Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17E20F06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F20F06Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17E20F13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F20F13Rated voltage: 17.5 kV | Breaking current: 20 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17H25A06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H25A13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H25A20Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P25B06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E25B06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F25B06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H25B06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P25B13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E25B13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F25B13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H25B13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P25B20Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17E25B20Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out E (MESG) | Pole pitch / outline: 210 mm
VL-17F25B20Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out F (MESG) | Pole pitch / outline: 210 mm
VL-17H25B20Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17E25F06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F25F06Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 630 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17E25F13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out E (MESG) | Pole pitch / outline: Legacy compatible
VL-17F25F13Rated voltage: 17.5 kV | Breaking current: 25 kA | Rated current: 1250 A | Type: Draw-out F (MESG) | Pole pitch / outline: Legacy compatible
VL-17P32A06Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-17H32A06Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P32A13Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 150 mm
VL-17H32A13Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17H32A20Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 150 mm
VL-17P32B06Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B06Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 630 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32B13Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B13Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 1250 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32B20Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B20Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2000 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32B25Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 210 mm
VL-17H32B25Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 210 mm
VL-17P32D25Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Fixed | Pole pitch / outline: 275 mm
VL-17H32D25Rated voltage: 17.5 kV | Breaking current: 31.5 kA | Rated current: 2500 A | Type: Draw-out H (MCSG) | Pole pitch / outline: 275 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
