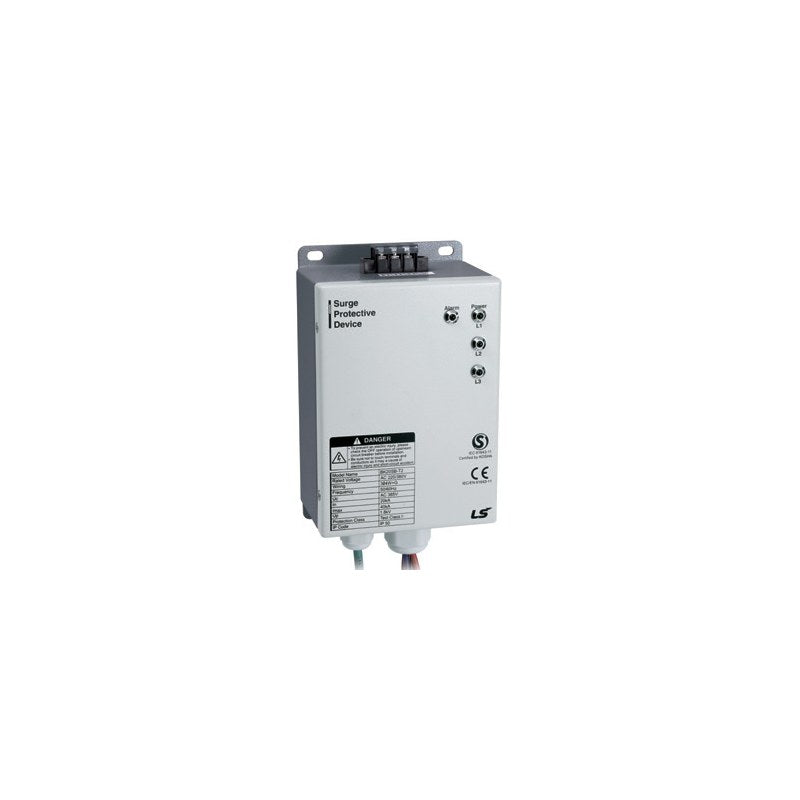

LS Electric USPC Series UL Type 1/2 Panel SPD (100-300 kA)

LS Electric USPC Series UL Type 1/2 Panel SPD (100-300 kA)

LS Electric USPC series high-capacity UL Listed Type 1 or Type 2 panel surge protective devices from 100 kA to 300 kA with surge event counter and remote alarm.

Key features

  • ANSI/UL1449 5th edition and CSA C22.2; Type 2 versions also UL1283
  • Surge capacity 100, 150, 200, 250 or 300 kA per phase (8/20 us); SCCR 200 kA
  • Single phase, split phase, WYE, DELTA and high-leg DELTA systems 120 to 600 V
  • Surge event counter, failure pretest, audible alarm and remote alarm aux (CAL)
  • Waterproof plastic enclosure 200 x 150 x 100 mm

Specifications

Standards ANSI/UL1449 5th, CSA C22.2, UL1283 (Type 2)
Connection Parallel connected, 1 port
Frequency 47-63 Hz
Nominal discharge current In 10 kA
SCCR 200 kA
Additional function CAL: surge counter, pretest, remote alarm
Dimensions W x D x H 200 x 150 x 100 mm
Operating temperature -40 to 75 C
Source LS Electric Surge Protective Device catalog C01551-07 (2025-10), p. 41, 51-54
USPC-120SP100-T1-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120SP100-T2-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120SP150-T1-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120SP150-T2-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120SP200-T1-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120SP200-T2-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120SP250-T1-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120SP250-T2-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120SP300-T1-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120SP300-T2-CAL Rated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240SP100-T1-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240SP100-T2-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240SP150-T1-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240SP150-T2-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240SP200-T1-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240SP200-T2-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240SP250-T1-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240SP250-T2-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240SP300-T1-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240SP300-T2-CAL Rated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120SPC100-T1-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120SPC100-T2-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120SPC150-T1-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120SPC150-T2-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120SPC200-T1-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120SPC200-T2-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120SPC250-T1-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120SPC250-T2-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120SPC300-T1-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120SPC300-T2-CAL Rated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240SPC100-T1-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240SPC100-T2-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240SPC150-T1-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240SPC150-T2-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240SPC200-T1-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240SPC200-T2-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240SPC250-T1-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240SPC250-T2-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240SPC300-T1-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240SPC300-T2-CAL Rated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120S100-T1-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120S100-T2-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120S150-T1-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120S150-T2-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120S200-T1-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120S200-T2-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120S250-T1-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120S250-T2-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120S300-T1-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120S300-T2-CAL Rated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-127S100-T1-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-127S100-T2-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-127S150-T1-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-127S150-T2-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-127S200-T1-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-127S200-T2-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-127S250-T1-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-127S250-T2-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-127S300-T1-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-127S300-T2-CAL Rated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240S100-T1-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240S100-T2-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240S150-T1-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240S150-T2-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240S200-T1-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240S200-T2-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240S250-T1-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240S250-T2-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240S300-T1-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240S300-T2-CAL Rated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-277S100-T1-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-277S100-T2-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-277S150-T1-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-277S150-T2-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-277S200-T1-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-277S200-T2-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-277S250-T1-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-277S250-T2-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-277S300-T1-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-277S300-T2-CAL Rated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-347S100-T1-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 1
USPC-347S100-T2-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 2
USPC-347S150-T1-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 1
USPC-347S150-T2-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 2
USPC-347S200-T1-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 1
USPC-347S200-T2-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 2
USPC-347S250-T1-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 1
USPC-347S250-T2-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 2
USPC-347S300-T1-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 1
USPC-347S300-T2-CAL Rated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120Y100-T1-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120Y100-T2-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120Y150-T1-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120Y150-T2-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120Y200-T1-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120Y200-T2-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120Y250-T1-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120Y250-T2-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120Y300-T1-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120Y300-T2-CAL Rated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-127Y100-T1-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-127Y100-T2-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-127Y150-T1-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-127Y150-T2-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-127Y200-T1-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-127Y200-T2-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-127Y250-T1-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-127Y250-T2-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-127Y300-T1-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-127Y300-T2-CAL Rated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240Y100-T1-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240Y100-T2-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240Y150-T1-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240Y150-T2-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240Y200-T1-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240Y200-T2-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240Y250-T1-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240Y250-T2-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240Y300-T1-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240Y300-T2-CAL Rated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-277Y100-T1-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-277Y100-T2-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-277Y150-T1-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-277Y150-T2-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-277Y200-T1-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-277Y200-T2-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-277Y250-T1-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-277Y250-T2-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-277Y300-T1-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-277Y300-T2-CAL Rated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-347Y100-T1-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 1
USPC-347Y100-T2-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 2
USPC-347Y150-T1-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 1
USPC-347Y150-T2-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 2
USPC-347Y200-T1-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 1
USPC-347Y200-T2-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 2
USPC-347Y250-T1-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 1
USPC-347Y250-T2-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 2
USPC-347Y300-T1-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 1
USPC-347Y300-T2-CAL Rated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120YC100-T1-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120YC100-T2-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120YC150-T1-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120YC150-T2-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120YC200-T1-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120YC200-T2-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120YC250-T1-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120YC250-T2-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120YC300-T1-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120YC300-T2-CAL Rated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-127YC100-T1-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-127YC100-T2-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-127YC150-T1-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-127YC150-T2-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-127YC200-T1-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-127YC200-T2-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-127YC250-T1-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-127YC250-T2-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-127YC300-T1-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-127YC300-T2-CAL Rated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240YC100-T1-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240YC100-T2-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240YC150-T1-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240YC150-T2-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240YC200-T1-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240YC200-T2-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240YC250-T1-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240YC250-T2-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240YC300-T1-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240YC300-T2-CAL Rated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-277YC100-T1-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-277YC100-T2-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-277YC150-T1-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-277YC150-T2-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-277YC200-T1-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-277YC200-T2-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-277YC250-T1-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-277YC250-T2-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-277YC300-T1-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-277YC300-T2-CAL Rated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-347YC100-T1-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 1
USPC-347YC100-T2-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 2
USPC-347YC150-T1-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 1
USPC-347YC150-T2-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 2
USPC-347YC200-T1-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 1
USPC-347YC200-T2-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 2
USPC-347YC250-T1-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 1
USPC-347YC250-T2-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 2
USPC-347YC300-T1-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 1
USPC-347YC300-T2-CAL Rated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240D100-T1-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240D100-T2-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240D150-T1-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240D150-T2-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240D200-T1-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240D200-T2-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240D250-T1-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240D250-T2-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240D300-T1-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240D300-T2-CAL Rated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-480D100-T1-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 100 kA | UL type: Type 1
USPC-480D100-T2-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 100 kA | UL type: Type 2
USPC-480D150-T1-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 150 kA | UL type: Type 1
USPC-480D150-T2-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 150 kA | UL type: Type 2
USPC-480D200-T1-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 200 kA | UL type: Type 1
USPC-480D200-T2-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 200 kA | UL type: Type 2
USPC-480D250-T1-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 250 kA | UL type: Type 1
USPC-480D250-T2-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 250 kA | UL type: Type 2
USPC-480D300-T1-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 300 kA | UL type: Type 1
USPC-480D300-T2-CAL Rated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 300 kA | UL type: Type 2
USPC-600D100-T1-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 100 kA | UL type: Type 1
USPC-600D100-T2-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 100 kA | UL type: Type 2
USPC-600D150-T1-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 150 kA | UL type: Type 1
USPC-600D150-T2-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 150 kA | UL type: Type 2
USPC-600D200-T1-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 200 kA | UL type: Type 1
USPC-600D200-T2-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 200 kA | UL type: Type 2
USPC-600D250-T1-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 250 kA | UL type: Type 1
USPC-600D250-T2-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 250 kA | UL type: Type 2
USPC-600D300-T1-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 300 kA | UL type: Type 1
USPC-600D300-T2-CAL Rated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120H100-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-120H100-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-120H150-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-120H150-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-120H200-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-120H200-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-120H250-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-120H250-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-120H300-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-120H300-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 2
USPC-240H100-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-240H100-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-240H150-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-240H150-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-240H200-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-240H200-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-240H250-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-240H250-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-240H300-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-240H300-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 2
USPC-120HC100-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-120HC100-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-120HC150-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-120HC150-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-120HC200-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-120HC200-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-120HC250-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-120HC250-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-120HC300-T1-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-120HC300-T2-CAL Rated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 2
USPC-240HC100-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-240HC100-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-240HC150-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-240HC150-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-240HC200-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-240HC200-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-240HC250-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-240HC250-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-240HC300-T1-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-240HC300-T2-CAL Rated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 2
Surge Protective DevicesLS Electric
260 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric USPC Series UL Type 1/2 Panel SPD (100-300 kA)

Brand LS Electric·Surge Protective Devices

Available part numbers (260)

USPC-120SP100-T1-CAL, USPC-120SP100-T2-CAL, USPC-120SP150-T1-CAL, USPC-120SP150-T2-CAL, USPC-120SP200-T1-CAL, USPC-120SP200-T2-CAL, USPC-120SP250-T1-CAL, USPC-120SP250-T2-CAL, USPC-120SP300-T1-CAL, USPC-120SP300-T2-CAL + 250 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USPC-120SP100-T1-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120SP100-T2-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120SP150-T1-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120SP150-T2-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120SP200-T1-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120SP200-T2-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120SP250-T1-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120SP250-T2-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120SP300-T1-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120SP300-T2-CALRated voltage Un: 120/240 V | System: Split phase 3W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240SP100-T1-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240SP100-T2-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240SP150-T1-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240SP150-T2-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240SP200-T1-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240SP200-T2-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240SP250-T1-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240SP250-T2-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240SP300-T1-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240SP300-T2-CALRated voltage Un: 240/480 V | System: Split phase 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120SPC100-T1-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120SPC100-T2-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120SPC150-T1-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120SPC150-T2-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120SPC200-T1-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120SPC200-T2-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120SPC250-T1-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120SPC250-T2-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120SPC300-T1-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120SPC300-T2-CALRated voltage Un: 120/240 V | System: Split phase, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240SPC100-T1-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240SPC100-T2-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240SPC150-T1-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240SPC150-T2-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240SPC200-T1-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240SPC200-T2-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240SPC250-T1-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240SPC250-T2-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240SPC300-T1-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240SPC300-T2-CALRated voltage Un: 240/480 V | System: Split phase, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120S100-T1-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120S100-T2-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120S150-T1-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120S150-T2-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120S200-T1-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120S200-T2-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120S250-T1-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120S250-T2-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120S300-T1-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120S300-T2-CALRated voltage Un: 120 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-127S100-T1-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-127S100-T2-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-127S150-T1-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-127S150-T2-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-127S200-T1-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-127S200-T2-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-127S250-T1-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-127S250-T2-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-127S300-T1-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-127S300-T2-CALRated voltage Un: 127 V | System: Single phase 2W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240S100-T1-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240S100-T2-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240S150-T1-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240S150-T2-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240S200-T1-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240S200-T2-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240S250-T1-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240S250-T2-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240S300-T1-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240S300-T2-CALRated voltage Un: 220-240 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-277S100-T1-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-277S100-T2-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-277S150-T1-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-277S150-T2-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-277S200-T1-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-277S200-T2-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-277S250-T1-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-277S250-T2-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-277S300-T1-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-277S300-T2-CALRated voltage Un: 277 V | System: Single phase 2W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-347S100-T1-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 1
USPC-347S100-T2-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 2
USPC-347S150-T1-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 1
USPC-347S150-T2-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 2
USPC-347S200-T1-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 1
USPC-347S200-T2-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 2
USPC-347S250-T1-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 1
USPC-347S250-T2-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 2
USPC-347S300-T1-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 1
USPC-347S300-T2-CALRated voltage Un: 347 V | System: Single phase 2W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120Y100-T1-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120Y100-T2-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120Y150-T1-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120Y150-T2-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120Y200-T1-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120Y200-T2-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120Y250-T1-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120Y250-T2-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120Y300-T1-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120Y300-T2-CALRated voltage Un: 120/208 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-127Y100-T1-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-127Y100-T2-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-127Y150-T1-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-127Y150-T2-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-127Y200-T1-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-127Y200-T2-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-127Y250-T1-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-127Y250-T2-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-127Y300-T1-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-127Y300-T2-CALRated voltage Un: 127/220 V | System: Three phase WYE 4W+G | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240Y100-T1-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240Y100-T2-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240Y150-T1-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240Y150-T2-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240Y200-T1-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240Y200-T2-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240Y250-T1-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240Y250-T2-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240Y300-T1-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240Y300-T2-CALRated voltage Un: 240/415 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-277Y100-T1-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-277Y100-T2-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-277Y150-T1-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-277Y150-T2-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-277Y200-T1-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-277Y200-T2-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-277Y250-T1-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-277Y250-T2-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-277Y300-T1-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-277Y300-T2-CALRated voltage Un: 277/480 V | System: Three phase WYE 4W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-347Y100-T1-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 1
USPC-347Y100-T2-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 2
USPC-347Y150-T1-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 1
USPC-347Y150-T2-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 2
USPC-347Y200-T1-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 1
USPC-347Y200-T2-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 2
USPC-347Y250-T1-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 1
USPC-347Y250-T2-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 2
USPC-347Y300-T1-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 1
USPC-347Y300-T2-CALRated voltage Un: 347/600 V | System: Three phase WYE 4W+G | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120YC100-T1-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-120YC100-T2-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-120YC150-T1-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-120YC150-T2-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-120YC200-T1-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-120YC200-T2-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-120YC250-T1-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-120YC250-T2-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-120YC300-T1-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-120YC300-T2-CALRated voltage Un: 120/208 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-127YC100-T1-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 1
USPC-127YC100-T2-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 100 kA | UL type: Type 2
USPC-127YC150-T1-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 1
USPC-127YC150-T2-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 150 kA | UL type: Type 2
USPC-127YC200-T1-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 1
USPC-127YC200-T2-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 200 kA | UL type: Type 2
USPC-127YC250-T1-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 1
USPC-127YC250-T2-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 250 kA | UL type: Type 2
USPC-127YC300-T1-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 1
USPC-127YC300-T2-CALRated voltage Un: 127/220 V | System: WYE, N-G mode deleted | MCOV: 150 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240YC100-T1-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240YC100-T2-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240YC150-T1-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240YC150-T2-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240YC200-T1-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240YC200-T2-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240YC250-T1-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240YC250-T2-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240YC300-T1-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240YC300-T2-CALRated voltage Un: 240/415 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-277YC100-T1-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-277YC100-T2-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-277YC150-T1-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-277YC150-T2-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-277YC200-T1-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-277YC200-T2-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-277YC250-T1-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-277YC250-T2-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-277YC300-T1-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-277YC300-T2-CALRated voltage Un: 277/480 V | System: WYE, N-G mode deleted | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-347YC100-T1-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 1
USPC-347YC100-T2-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 100 kA | UL type: Type 2
USPC-347YC150-T1-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 1
USPC-347YC150-T2-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 150 kA | UL type: Type 2
USPC-347YC200-T1-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 1
USPC-347YC200-T2-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 200 kA | UL type: Type 2
USPC-347YC250-T1-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 1
USPC-347YC250-T2-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 250 kA | UL type: Type 2
USPC-347YC300-T1-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 1
USPC-347YC300-T2-CALRated voltage Un: 347/600 V | System: WYE, N-G mode deleted | MCOV: 420 V | Surge capacity: 300 kA | UL type: Type 2
USPC-240D100-T1-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 1
USPC-240D100-T2-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 100 kA | UL type: Type 2
USPC-240D150-T1-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 1
USPC-240D150-T2-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 150 kA | UL type: Type 2
USPC-240D200-T1-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 1
USPC-240D200-T2-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 200 kA | UL type: Type 2
USPC-240D250-T1-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 1
USPC-240D250-T2-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 250 kA | UL type: Type 2
USPC-240D300-T1-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 1
USPC-240D300-T2-CALRated voltage Un: 240 V | System: Three phase DELTA 3W+G | MCOV: 320 V | Surge capacity: 300 kA | UL type: Type 2
USPC-480D100-T1-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 100 kA | UL type: Type 1
USPC-480D100-T2-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 100 kA | UL type: Type 2
USPC-480D150-T1-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 150 kA | UL type: Type 1
USPC-480D150-T2-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 150 kA | UL type: Type 2
USPC-480D200-T1-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 200 kA | UL type: Type 1
USPC-480D200-T2-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 200 kA | UL type: Type 2
USPC-480D250-T1-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 250 kA | UL type: Type 1
USPC-480D250-T2-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 250 kA | UL type: Type 2
USPC-480D300-T1-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 300 kA | UL type: Type 1
USPC-480D300-T2-CALRated voltage Un: 480 V | System: Three phase DELTA 3W+G | MCOV: 550 V | Surge capacity: 300 kA | UL type: Type 2
USPC-600D100-T1-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 100 kA | UL type: Type 1
USPC-600D100-T2-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 100 kA | UL type: Type 2
USPC-600D150-T1-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 150 kA | UL type: Type 1
USPC-600D150-T2-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 150 kA | UL type: Type 2
USPC-600D200-T1-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 200 kA | UL type: Type 1
USPC-600D200-T2-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 200 kA | UL type: Type 2
USPC-600D250-T1-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 250 kA | UL type: Type 1
USPC-600D250-T2-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 250 kA | UL type: Type 2
USPC-600D300-T1-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 300 kA | UL type: Type 1
USPC-600D300-T2-CALRated voltage Un: 600 V | System: Three phase DELTA 3W+G | MCOV: 690 V | Surge capacity: 300 kA | UL type: Type 2
USPC-120H100-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-120H100-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-120H150-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-120H150-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-120H200-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-120H200-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-120H250-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-120H250-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-120H300-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-120H300-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA 4W+G | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 2
USPC-240H100-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-240H100-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-240H150-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-240H150-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-240H200-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-240H200-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-240H250-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-240H250-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-240H300-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-240H300-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA 4W+G | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 2
USPC-120HC100-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-120HC100-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-120HC150-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-120HC150-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-120HC200-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-120HC200-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-120HC250-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-120HC250-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-120HC300-T1-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-120HC300-T2-CALRated voltage Un: 120/240 V | System: High-leg DELTA, N-G mode deleted | MCOV: 150/320 V (H) | Surge capacity: 300 kA | UL type: Type 2
USPC-240HC100-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 1
USPC-240HC100-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 100 kA | UL type: Type 2
USPC-240HC150-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 1
USPC-240HC150-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 150 kA | UL type: Type 2
USPC-240HC200-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 1
USPC-240HC200-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 200 kA | UL type: Type 2
USPC-240HC250-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 1
USPC-240HC250-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 250 kA | UL type: Type 2
USPC-240HC300-T1-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 1
USPC-240HC300-T2-CALRated voltage Un: 240/480 V | System: High-leg DELTA, N-G mode deleted | MCOV: 320/550 V (H) | Surge capacity: 300 kA | UL type: Type 2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Circuit Breakers & Contactors →
