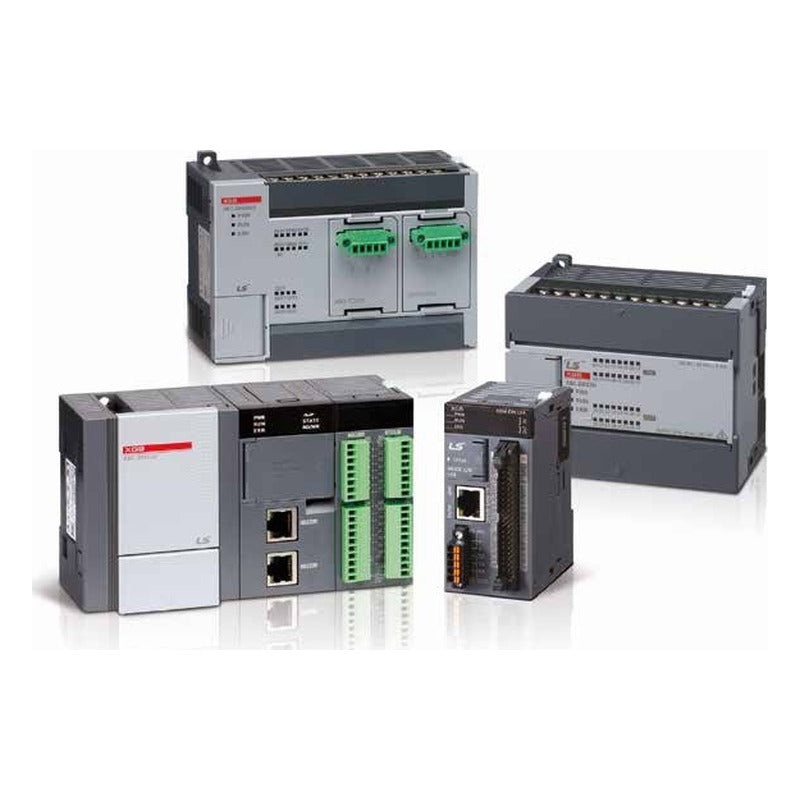

LS Electric XGB XBE Digital I/O Expansion Modules

LS Electric XGB XBE Digital I/O Expansion Modules

LS Electric XGB XBE digital I/O expansion modules add 8 to 32 DC inputs, relay or transistor outputs, or mixed I/O to XBC/XEC compact and XBM/XEM modular main units.

Key features

  • DC 24 V input modules with 8, 16 or 32 points and DC 12/24 V 16-point XBE-DC16B
  • Relay output modules 8 or 16 points, 2 A per point, including individual-common XBE-RY08B
  • NPN sink (TN) and PNP source (TP) transistor output modules, 8/16/32 points
  • Mixed I/O modules XBE-DR16A (8 in / 8 relay) and XBE-DN32A (16 in / 16 Tr out)
  • D-type connector variants (...D) of 8/16-point modules; 32-point modules use 40-pin connectors for Smart Link
  • Photocoupler insulation, LED status per point, 20 to 27 mm module width

Specifications

Series XGB expansion I/O
Insulation Photocoupler (inputs, Tr outputs)
Input response time 1/3/5/10/20/70/100 ms selectable (default 3 ms)
Status display LED per point
Compatible main units XBC/XEC U, H, SU; XBM/XEM
Module dimensions 20 or 27 x 90 mm (W x H)
Operating temperature 0 to 55 C
Source LS Electric XGB Series catalog (2024-07), p. 72-78, 133-134
XBE-DC08A Module type: DC input | Points: 8 | Rating: DC 24 V, 4 mA | Connection: Terminal block | Status: Current
XBE-DC16A Module type: DC input | Points: 16 | Rating: DC 24 V, 4 mA | Connection: Terminal block | Status: Current
XBE-DC32A Module type: DC input | Points: 32 | Rating: DC 24 V, 4 mA | Connection: 40-pin connector | Status: Current
XBE-DC08D Module type: DC input | Points: 8 | Rating: DC 24 V, 4 mA | Connection: D-type connector | Status: Current
XBE-DC16D Module type: DC input | Points: 16 | Rating: DC 24 V, 4 mA | Connection: D-type connector | Status: Current
XBE-DC16B Module type: DC input | Points: 16 | Rating: DC 12/24 V, 4/8 mA | Connection: Terminal block | Status: Current
XBE-RY08A Module type: Relay output | Points: 8 | Rating: DC 24 V / AC 220 V, 2 A | Connection: Terminal block | Status: Current
XBE-RY08B Module type: Relay output, individual COM | Points: 8 | Rating: DC 24 V / AC 220 V, 2 A | Connection: Terminal block | Status: Current
XBE-RY16A Module type: Relay output | Points: 16 | Rating: DC 24 V / AC 220 V, 2 A | Connection: Terminal block | Status: Current
XBE-RY08D Module type: Relay output | Points: 8 | Rating: DC 24 V / AC 220 V, 2 A | Connection: D-type connector | Status: Current
XBE-RY16D Module type: Relay output | Points: 16 | Rating: DC 24 V / AC 220 V, 2 A | Connection: D-type connector | Status: Current
XBE-TN08A Module type: Tr output, sink | Points: 8 | Rating: DC 12/24 V, 0.5 A/point | Connection: Terminal block | Status: Current
XBE-TN16A Module type: Tr output, sink | Points: 16 | Rating: DC 12/24 V, 0.5 A/point | Connection: Terminal block | Status: Current
XBE-TN32A Module type: Tr output, sink | Points: 32 | Rating: DC 12/24 V, 0.2 A/point | Connection: 40-pin connector | Status: Current
XBE-TN08D Module type: Tr output, sink | Points: 8 | Rating: DC 12/24 V, 0.5 A/point | Connection: D-type connector | Status: Current
XBE-TN16D Module type: Tr output, sink | Points: 16 | Rating: DC 12/24 V, 0.5 A/point | Connection: D-type connector | Status: Current
XBE-TP08A Module type: Tr output, source | Points: 8 | Rating: DC 12/24 V, 0.5 A/point | Connection: Terminal block | Status: Current
XBE-TP16A Module type: Tr output, source | Points: 16 | Rating: DC 12/24 V, 0.5 A/point | Connection: Terminal block | Status: Current
XBE-TP32A Module type: Tr output, source | Points: 32 | Rating: DC 12/24 V, 0.2 A/point | Connection: 40-pin connector | Status: Current
XBE-TP08D Module type: Tr output, source | Points: 8 | Rating: DC 12/24 V, 0.5 A/point | Connection: D-type connector | Status: Current
XBE-TP16D Module type: Tr output, source | Points: 16 | Rating: DC 12/24 V, 0.5 A/point | Connection: D-type connector | Status: Current
XBE-DR16A Module type: Mixed DC input / relay | Points: 8 in / 8 out | Rating: DC 24 V in; relay 2 A out | Connection: Terminal block | Status: Current
XBE-DN32A Module type: Mixed DC input / Tr sink | Points: 16 in / 16 out | Rating: DC 24 V in; DC 12/24 V 0.2 A out | Connection: 40-pin connector | Status: Current
XBE-AC08A Module type: AC input | Points: 8 | Rating: AC input | Connection: Terminal block | Status: Legacy code
