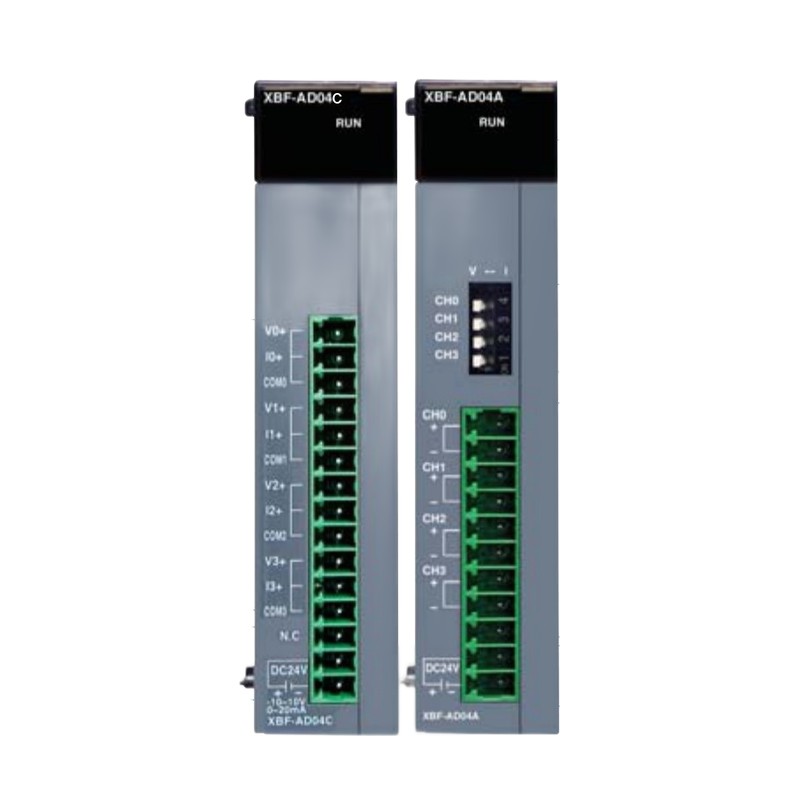

LS Electric XGB XBF special function expansion modules provide analog I/O, RTD and thermocouple input, temperature control, load cell input, pulse and EtherCAT positioning and high-speed counting for XGB main units.

Key features

  • Analog input and output modules with 1/4,000 standard or 1/16,000 high-resolution (C types)
  • RTD (Pt100/JPt100) and K/J/T/R thermocouple input modules plus 4-loop PID temperature controllers
  • XBF-LD02S 2-channel load cell input with 1/40,000 resolution
  • XBF-PD02A 2-axis line-driver pulse positioning up to 2 Mpps
  • XBF-PN04B/PN08B EtherCAT positioning for 4 or 8 servo axes on U-type and XBM/XEM H main units
  • 2-channel open-collector or line-driver high-speed counter modules

Specifications

Series XGB special expansion modules
I/O occupation Fixed 64 points (most modules)
Max. modules U/H: 10, SU/XBM S: 7
Programming software XG5000
Module width 20 or 27 mm
Operating temperature 0 to 55 C
Source LS Electric XGB Series catalog (2024-07), p. 88-106, 133-134
XBF-AD04A Function: Analog input | Channels: 4 | Signal / range: 0-10 V, 0-20 / 4-20 mA | Resolution / detail: 1/4,000
XBF-AD04D Function: Analog input (D-type connector) | Channels: 4 | Signal / range: 0-10 V, 0-20 / 4-20 mA | Resolution / detail: 1/4,000
XBF-AD04C Function: Analog input | Channels: 4 | Signal / range: Voltage / current | Resolution / detail: 1/16,000
XBF-AD08A Function: Analog input | Channels: 8 | Signal / range: 1-5/0-5/0-10 V, 0/4-20 mA | Resolution / detail: 1/4,000
XBF-DC04A Function: Analog current output | Channels: 4 | Signal / range: 4-20 / 0-20 mA | Resolution / detail: 1/4,000
XBF-DC04D Function: Analog current output (D-type) | Channels: 4 | Signal / range: 4-20 / 0-20 mA | Resolution / detail: 1/4,000
XBF-DC04C Function: Analog current output | Channels: 4 | Signal / range: Current | Resolution / detail: 1/16,000
XBF-DV04A Function: Analog voltage output | Channels: 4 | Signal / range: 0-10 V | Resolution / detail: 1/4,000
XBF-DV04D Function: Analog voltage output (D-type) | Channels: 4 | Signal / range: 0-10 V | Resolution / detail: 1/4,000
XBF-DV04C Function: Analog voltage output | Channels: 4 | Signal / range: Voltage | Resolution / detail: 1/16,000
XBF-AH04A Function: Analog input/output | Channels: 2 in / 2 out | Signal / range: 1-5/0-5/0-10 V, 0/4-20 mA | Resolution / detail: 1/4,000
XBF-RD04A Function: RTD input | Channels: 4 | Signal / range: Pt100, JPt100, -200 to 600 C | Resolution / detail: Temperature value
XBF-RD01A Function: RTD input | Channels: 1 | Signal / range: Pt100, JPt100, -200 to 600 C | Resolution / detail: Temperature value
XBF-TC04S Function: Thermocouple input | Channels: 4 | Signal / range: K / J / T / R | Resolution / detail: 0 to 65,535 digital
XBF-TC04TT Function: Temperature controller, TC | Channels: 4 loops | Signal / range: Thermocouple in, 4 Tr out | Resolution / detail: PID control
XBF-TC04RT Function: Temperature controller, RTD | Channels: 4 loops | Signal / range: RTD in, 4 Tr out | Resolution / detail: PID control
XBF-LD02S Function: Load cell input | Channels: 2 | Signal / range: 0-30 mV, 5 V excitation | Resolution / detail: 1/40,000
XBF-PD02A Function: Pulse positioning | Channels: 2 axes | Signal / range: Line driver, 2 Mpps | Resolution / detail: 150 data per axis
XBF-PN08B Function: EtherCAT positioning | Channels: 8 axes | Signal / range: EtherCAT | Resolution / detail: XBC/XEC U, XBM/XEM H only
XBF-PN04B Function: EtherCAT positioning | Channels: 4 axes | Signal / range: EtherCAT | Resolution / detail: XBC/XEC U, XBM/XEM H only
XBF-HO02A Function: High-speed counter | Channels: 2 | Signal / range: Open collector | Resolution / detail: Counter module
XBF-HD02A Function: High-speed counter | Channels: 2 | Signal / range: Line driver | Resolution / detail: Counter module
