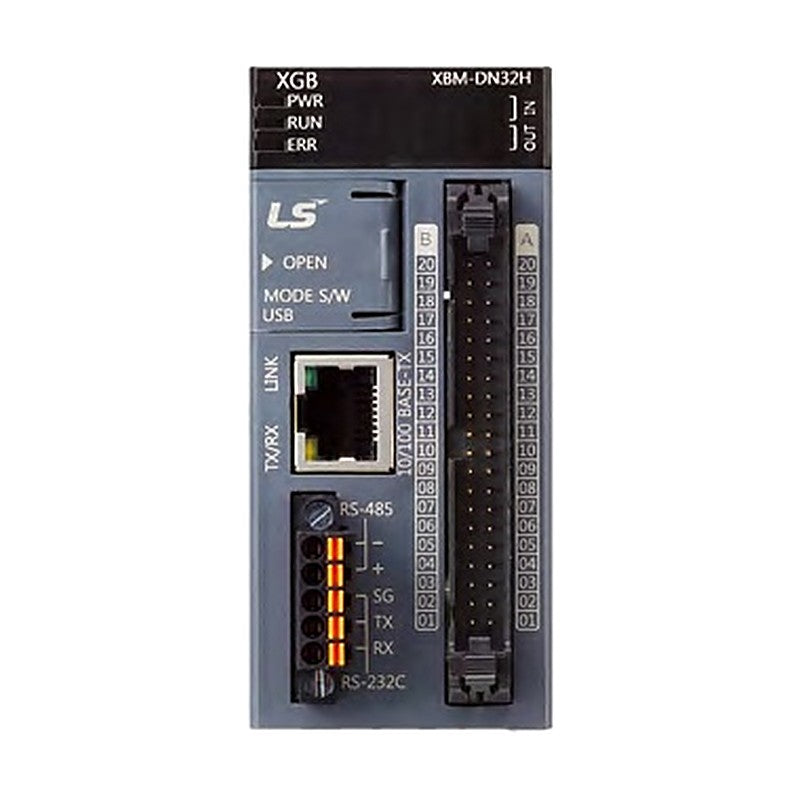

LS Electric XGB XBM/XEM Slim Modular PLC Main Units (S, H, H2, HP)

LS Electric XGB XBM/XEM Slim Modular PLC Main Units (S, H, H2, HP)

LS Electric XGB XBM/XEM slim modular PLC main units are DC 24 V powered CPU modules with built-in I/O, 30 to 41.5 mm wide, in S, H, H2 and HP types with XBM (LD/IL) or XEM (IEC 61131-3) programming.

Key features

  • H2/HP types: 40 ns/step, 64 kstep (XBM) or 384 KB (XEM) program memory with MRAM data retention
  • Built-in XPM pulse positioning: 2 axes (H2) or 6 axes (HP) up to 100 kpps with linear/circular interpolation
  • Up to 7 expansion modules including 2 high-speed interface modules such as XBF-PN04B/PN08B EtherCAT
  • Built-in Ethernet, RS-232C/RS-485 and USB loader ports on H, H2 and HP types
  • S (Slim) types 30 mm wide with 160 ns/step and 10 kstep program for compact panels
  • NPN sink, PNP source and relay output versions

Specifications

Series XGB modular (slim) type
Power supply DC 24 V
Max. I/O points 256 (base + 7 expansions)
Programming software XG5000
Operating modes RUN, STOP, DEBUG
Operating temperature 0 to 55 C
Storage temperature -25 to +70 C
Humidity 5 to 95% RH, non-condensing
Vibration / shock IEC 61131-2
Option boards Not supported
Source LS Electric XGB Series catalog (2024-07), p. 55-66, 132; XBM H2/HP leaflet
XBM-DN32H2 Type: H2 | CPU: XBC (LD/IL) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr sink | Built-in positioning: 2-axis (XPM) | Program memory: 64 kstep
XBM-DN32HP Type: HP | CPU: XBC (LD/IL) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr sink | Built-in positioning: 6-axis (XPM) | Program memory: 64 kstep
XBM-DP32H2 Type: H2 | CPU: XBC (LD/IL) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr source | Built-in positioning: 2-axis (XPM) | Program memory: 64 kstep
XBM-DP32HP Type: HP | CPU: XBC (LD/IL) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr source | Built-in positioning: 6-axis (XPM) | Program memory: 64 kstep
XBM-DN16H2 Type: H2 | CPU: XBC (LD/IL) | Inputs: 8 x DC 24 V | Outputs: 8 x Tr sink | Built-in positioning: 2-axis (XPM) | Program memory: 64 kstep
XBM-DP16H2 Type: H2 | CPU: XBC (LD/IL) | Inputs: 8 x DC 24 V | Outputs: 8 x Tr source | Built-in positioning: 2-axis (XPM) | Program memory: 64 kstep
XBM-DR14H2 Type: H2 | CPU: XBC (LD/IL) | Inputs: 8 x DC 24 V | Outputs: 6 x relay | Built-in positioning: 2-axis (XPM) | Program memory: 64 kstep
XEM-DN32H2 Type: H2 | CPU: XEC (IEC 61131-3) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr sink | Built-in positioning: 2-axis (XPM) | Program memory: 384 KB
XEM-DN32HP Type: HP | CPU: XEC (IEC 61131-3) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr sink | Built-in positioning: 6-axis (XPM) | Program memory: 384 KB
XEM-DP32H2 Type: H2 | CPU: XEC (IEC 61131-3) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr source | Built-in positioning: 2-axis (XPM) | Program memory: 384 KB
XEM-DP32HP Type: HP | CPU: XEC (IEC 61131-3) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr source | Built-in positioning: 6-axis (XPM) | Program memory: 384 KB
XEM-DN16H2 Type: H2 | CPU: XEC (IEC 61131-3) | Inputs: 8 x DC 24 V | Outputs: 8 x Tr sink | Built-in positioning: 2-axis (XPM) | Program memory: 384 KB
XEM-DP16H2 Type: H2 | CPU: XEC (IEC 61131-3) | Inputs: 8 x DC 24 V | Outputs: 8 x Tr source | Built-in positioning: 2-axis (XPM) | Program memory: 384 KB
XEM-DR14H2 Type: H2 | CPU: XEC (IEC 61131-3) | Inputs: 8 x DC 24 V | Outputs: 6 x relay | Built-in positioning: 2-axis (XPM) | Program memory: 384 KB
XBM-DN32H Type: H | CPU: XBC (LD/IL) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr sink | Built-in positioning: 2-axis (APM) | Program memory: 20 kstep
XBM-DR16S Type: S (Slim) | CPU: XBC (LD/IL) | Inputs: 8 x DC 24 V | Outputs: 8 x relay | Built-in positioning: None | Program memory: 10 kstep
XBM-DN16S Type: S (Slim) | CPU: XBC (LD/IL) | Inputs: 8 x DC 24 V | Outputs: 8 x Tr sink | Built-in positioning: Pulse output (Tr type) | Program memory: 10 kstep
XBM-DN32S Type: S (Slim) | CPU: XBC (LD/IL) | Inputs: 16 x DC 24 V | Outputs: 16 x Tr sink | Built-in positioning: Pulse output (Tr type) | Program memory: 10 kstep
