LS Electric XGB XBO Option Boards (SU, E Type Main Units)

LS Electric XGB XBO Option Boards (SU, E Type Main Units)

LS Electric XGB XBO option boards plug into the option slots of XBC/XEC SU and E type compact main units to add memory, real-time clock, high-speed I/O, analog or temperature channels.

Key features

  • XBO-M2MB 2 MB flash memory module with USB support for program backup and transfer
  • XBO-RTCA real-time clock with battery backup for E and SU types

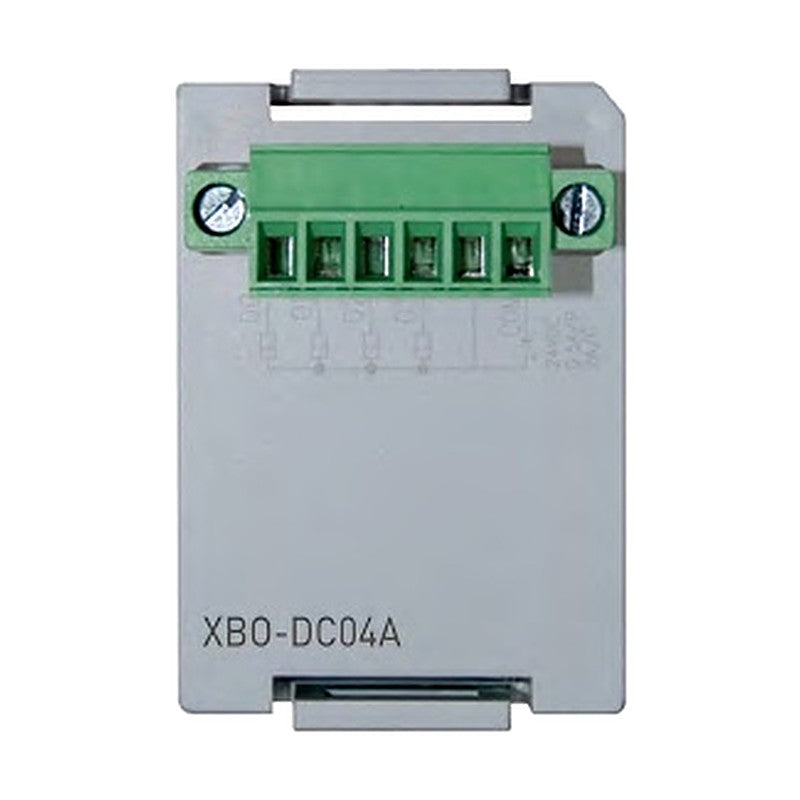

  • XBO-DC04A 4-point DC input adding 2-channel 2 kpps high-speed counter
  • XBO-TN04A 4-point transistor output adding 2-axis 10 kpps pulse positioning
  • Analog input, output and combined 1/4,000 option boards plus RTD and thermocouple boards

Specifications

Series XGB option boards
Compatible main units XBC/XEC SU and E types
Analog resolution 0 to 4,000
Mounting Option slot on main unit
Programming software XG5000
Operating temperature 0 to 55 C
Source LS Electric XGB Series catalog (2024-07), p. 15, 107-116, 133
XBO-M2MB Function: Memory module (USB) | Points / channels: - | Signal / spec: 2 MB flash, read/write
XBO-DC04A Function: DC input / HSC | Points / channels: 4 points | Signal / spec: HSC 2 kpps, 2 ch
XBO-TN04A Function: Tr output / pulse | Points / channels: 4 points | Signal / spec: 2-axis positioning, 10 kpps
XBO-RTCA Function: Real-time clock | Points / channels: - | Signal / spec: Battery backup (E, SU types)
XBO-AD02A Function: Analog input | Points / channels: 2 ch | Signal / spec: 0-10 V, 4-20 / 0-20 mA
XBO-DA02A Function: Analog output | Points / channels: 2 ch | Signal / spec: 0-10 V, 4-20 / 0-20 mA
XBO-AH02A Function: Analog input/output | Points / channels: 1 in / 1 out | Signal / spec: 0-10 V, 4-20 / 0-20 mA
XBO-RD01A Function: RTD input | Points / channels: 1 ch | Signal / spec: Pt100, JPt100, -200 to 600 C
XBO-TC02A Function: Thermocouple input | Points / channels: 2 ch | Signal / spec: K / J type
PLC AccessoriesLS Electric
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGB XBO Option Boards (SU, E Type Main Units)

Brand LS Electric·PLC Accessories

Available part numbers (9)

XBO-M2MB, XBO-DC04A, XBO-TN04A, XBO-RTCA, XBO-AD02A, XBO-DA02A, XBO-AH02A, XBO-RD01A, XBO-TC02A

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XBO-M2MBFunction: Memory module (USB) | Points / channels: - | Signal / spec: 2 MB flash, read/write
XBO-DC04AFunction: DC input / HSC | Points / channels: 4 points | Signal / spec: HSC 2 kpps, 2 ch
XBO-TN04AFunction: Tr output / pulse | Points / channels: 4 points | Signal / spec: 2-axis positioning, 10 kpps
XBO-RTCAFunction: Real-time clock | Points / channels: - | Signal / spec: Battery backup (E, SU types)
XBO-AD02AFunction: Analog input | Points / channels: 2 ch | Signal / spec: 0-10 V, 4-20 / 0-20 mA
XBO-DA02AFunction: Analog output | Points / channels: 2 ch | Signal / spec: 0-10 V, 4-20 / 0-20 mA
XBO-AH02AFunction: Analog input/output | Points / channels: 1 in / 1 out | Signal / spec: 0-10 V, 4-20 / 0-20 mA
XBO-RD01AFunction: RTD input | Points / channels: 1 ch | Signal / spec: Pt100, JPt100, -200 to 600 C
XBO-TC02AFunction: Thermocouple input | Points / channels: 2 ch | Signal / spec: K / J type
