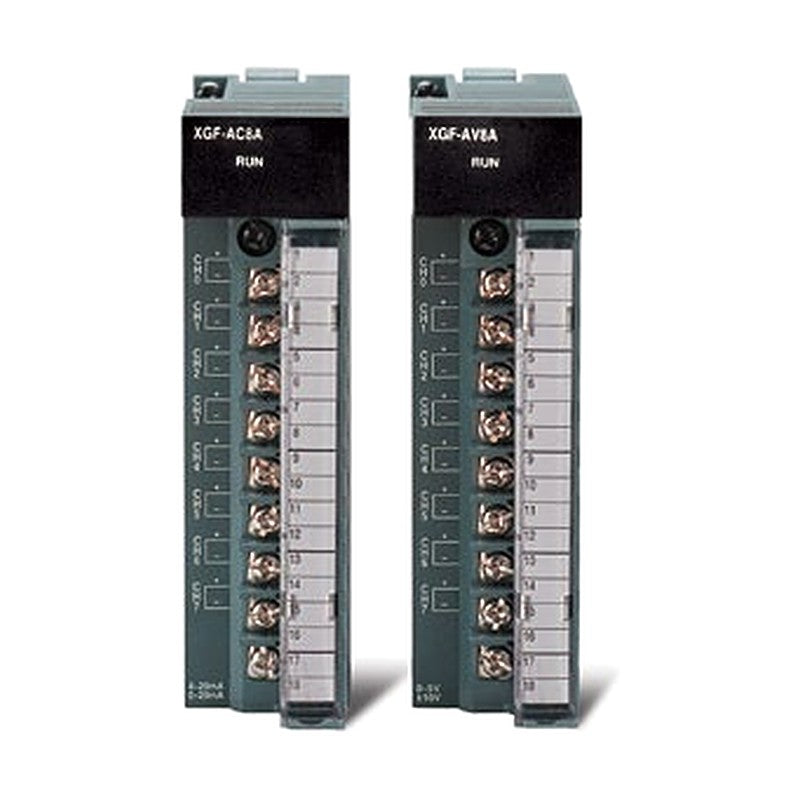

LS Electric XGT XGF Analog I/O Modules (Input, Output, HART)

LS Electric XGT XGF Analog I/O Modules (Input, Output, HART)

LS Electric XGT XGF analog modules convert voltage and current signals for XGK/XGI/XGR CPUs, covering standard, channel-isolated, 2-wire transmitter, mixed I/O and HART 4-20 mA versions.

Key features

  • Analog input modules with 4, 8 or 16 channels; voltage, current or switch-selectable V/I per channel
  • Analog output modules with 4 or 8 voltage or current channels, plus channel-isolated 4-channel versions
  • Isolated types (XGF-AD4S, XGF-AW4S) offer 1/64,000 resolution and +-0.05% accuracy at 25 C
  • XGF-AW4S supplies DC 24 V loop power directly to 2-wire transmitters with short-circuit protection
  • XGF-AC4H / XGF-DC4H read and drive HART smart field devices over the 4-20 mA loop
  • Ranges, data formats (unsigned, signed, percentile, normalized) and alarms set in XG5000

Specifications

Platform XGT (XGK / XGI / XGR) I/O slot
Voltage ranges DC 1-5 V, 0-5 V, 0-10 V, -10-10 V
Current ranges DC 4-20 mA, 0-20 mA
Resolution 1/16,000 standard; 1/64,000 isolated input; 1/8,000 XGF-AH6A
Accuracy (standard types) +-0.2% at 25 C, +-0.3% over operating range
Terminal 18-point terminal block (XGF-AD16A: 32-point)
I/O allocation (XGK) Fixed 64 points, variable 16 points
Configuration XG5000 I/O parameters or PLC program, per channel
Source LS Electric XGT Series catalog (2026-07), p. 98-107, 148
XGF-AV8A Function: Analog input | Channels: 8 | Signal: V: 1-5/0-5/0-10/-10-10 V | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-AC8A Function: Analog input | Channels: 8 | Signal: I: 4-20/0-20 mA | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-AD8A Function: Analog input | Channels: 8 | Signal: V/I: 1-5/0-5/0-10/+-10 V, 4-20/0-20 mA | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-AD16A Function: Analog input | Channels: 16 | Signal: V/I: 1-5/0-5/0-10/+-10 V, 4-20/0-20 mA | Isolation: Non-isolated channels | Conversion speed: 500 us/ch
XGF-AD4S Function: Analog input | Channels: 4 | Signal: V/I: 1-5/0-5/0-10/+-10 V, 4-20/0-20 mA | Isolation: Channel-to-channel | Conversion speed: 10 ms/4 ch
XGF-AW4S Function: Analog input, 2-wire | Channels: 4 | Signal: V/I: 1-5 V, 4-20 mA (2-wire loop) | Isolation: Channel-to-channel | Conversion speed: 10 ms/4 ch
XGF-DV4A Function: Analog output | Channels: 4 | Signal: V: 1-5/0-5/0-10/-10-10 V | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-DC4A Function: Analog output | Channels: 4 | Signal: I: 4-20/0-20 mA | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-DV8A Function: Analog output | Channels: 8 | Signal: V: 1-5/0-5/0-10/-10-10 V | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-DC8A Function: Analog output | Channels: 8 | Signal: I: 4-20/0-20 mA | Isolation: Non-isolated channels | Conversion speed: 250 us/ch
XGF-DV4S Function: Analog output | Channels: 4 | Signal: V: 1-5/0-5/0-10/-10-10 V | Isolation: Channel-to-channel | Conversion speed: 10 ms/4 ch
XGF-DC4S Function: Analog output | Channels: 4 | Signal: I: 4-20/0-20 mA | Isolation: Channel-to-channel | Conversion speed: 10 ms/4 ch
XGF-DA4S Function: Analog output | Channels: 4 | Signal: V/I: 1-5/0-5/0-10/+-10 V, 4-20/0-20 mA | Isolation: Channel-to-channel | Conversion speed: 4 ms/4 ch
XGF-AH6A Function: Analog input/output | Channels: 4 in + 2 out | Signal: V/I: 1-5/0-5/0-10/+-10 V, 4-20 mA | Isolation: Non-isolated channels | Conversion speed: 500 us/ch
XGF-AC4H Function: HART analog input | Channels: 4 | Signal: I: 4-20/0-20 mA + HART | Isolation: Non-isolated channels | Conversion speed: 10 ms/4 ch
XGF-DC4H Function: HART analog output | Channels: 4 | Signal: I: 4-20/0-20 mA + HART | Isolation: Non-isolated channels | Conversion speed: 10 ms/4 ch
PLC I/O ModulesLS Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGF Analog I/O Modules (Input, Output, HART)

Brand LS Electric·PLC I/O Modules

Available part numbers (16)

XGF-AV8A, XGF-AC8A, XGF-AD8A, XGF-AD16A, XGF-AD4S, XGF-AW4S, XGF-DV4A, XGF-DC4A, XGF-DV8A, XGF-DC8A + 6 more — see full table ↓
