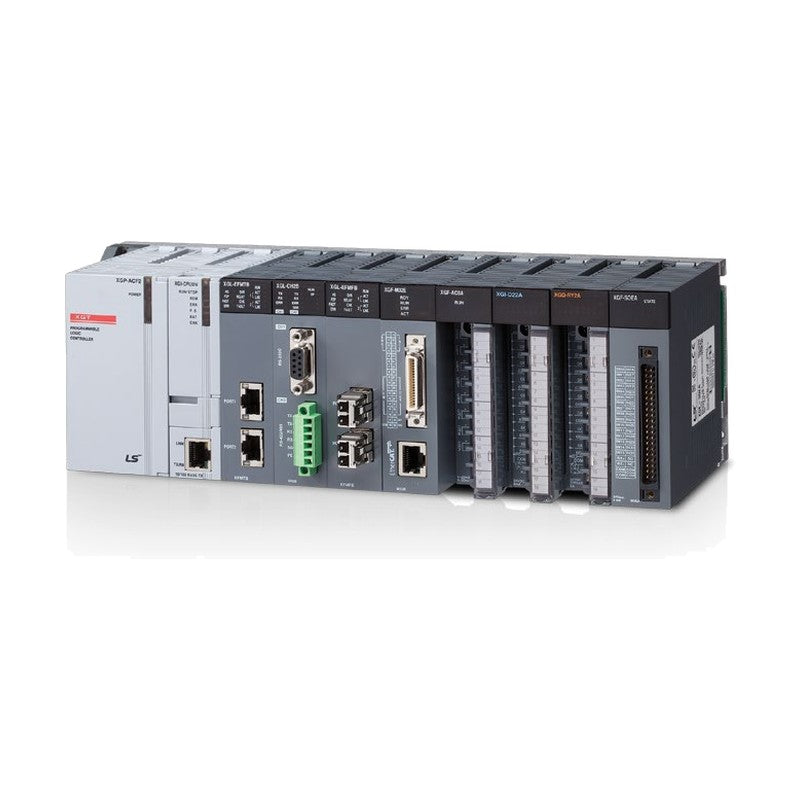

LS Electric XGT XGF Temperature Modules (RTD, Thermocouple, Control)

LS Electric XGT XGF Temperature Modules (RTD, Thermocouple, Control)

LS Electric XGT XGF temperature modules provide RTD and thermocouple inputs and 4-loop PID temperature control for XGK/XGI/XGR PLC systems.

Key features

  • RTD input modules with 4 or 8 channels for Pt100 / JPt100; isolated XGF-RD4S adds Pt1000 and Ni100
  • Channel-isolated thermocouple modules; XGF-TC4SB adds L, PL II and U types with +-0.05% accuracy
  • XGF-TC4UD universal 4-loop controller accepts TC, RTD, voltage and current with transistor and 4-20 mA outputs
  • XGF-TC4RT 4-loop RTD controller with transistor outputs for PID or ON/OFF control
  • Averaging, process / rate-of-change alarms, burnout detection and digital filtering
  • Configured in XG5000; temperature controllers tuned with XG-TCON (auto-tuning)

Specifications

Platform XGT (XGK / XGI / XGR) I/O slot
RTD ranges Pt100 -200-850 C, JPt100 -200-640 C
Temperature display 0.1 C resolution
Cold junction compensation Automatic by CJC/RJC sensor
Control methods (TC4UD/TC4RT) PID, ON/OFF (TC4UD also cascade)
Terminal 18-point terminal block
I/O allocation (XGK) Fixed 64 / variable 16 points (controllers 128 / 32)
Configuration XG5000; XG-TCON for temperature control
Source LS Electric XGT Series catalog (2026-07), p. 127-131, 148
XGF-RD4A Function: RTD input | Channels: 4 | Sensor input: Pt100, JPt100 (3-wire) | Isolation: Non-isolated channels | Conversion/control cycle: 40 ms/ch
XGF-RD8A Function: RTD input | Channels: 8 | Sensor input: Pt100, JPt100 (3-wire) | Isolation: Non-isolated channels | Conversion/control cycle: 40 ms/ch
XGF-RD4S Function: RTD input | Channels: 4 | Sensor input: Pt100, JPt100, Pt1000, Ni100 | Isolation: Channel-to-channel | Conversion/control cycle: 40 ms/ch
XGF-TC4S Function: Thermocouple input | Channels: 4 | Sensor input: TC K/J/E/T/B/R/S/N/C | Isolation: Channel-to-channel | Conversion/control cycle: 40 ms/ch
XGF-TC4SB Function: Thermocouple input, high accuracy | Channels: 4 | Sensor input: TC K/J/E/T/B/R/S/N/C/L/PL II/U | Isolation: Channel-to-channel | Conversion/control cycle: 40-400 ms/module
XGF-TC4UD Function: Temperature control, 4 loops | Channels: 4 in / 8 out (TR, 4-20 mA) | Sensor input: TC, RTD, V, mA (universal) | Isolation: Channel-to-channel | Conversion/control cycle: 200 ms/module
XGF-TC4RT Function: Temperature control, 4 loops | Channels: 4 in / 4 out (TR) | Sensor input: Pt100, JPt100, Pt1000 | Isolation: Channel-to-channel | Conversion/control cycle: 400 ms/4 loops
PLC I/O ModulesLS Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGF Temperature Modules (RTD, Thermocouple, Control)

Brand LS Electric·PLC I/O Modules

Available part numbers (7)

XGF-RD4A, XGF-RD8A, XGF-RD4S, XGF-TC4S, XGF-TC4SB, XGF-TC4UD, XGF-TC4RT

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XGF-RD4AFunction: RTD input | Channels: 4 | Sensor input: Pt100, JPt100 (3-wire) | Isolation: Non-isolated channels | Conversion/control cycle: 40 ms/ch
XGF-RD8AFunction: RTD input | Channels: 8 | Sensor input: Pt100, JPt100 (3-wire) | Isolation: Non-isolated channels | Conversion/control cycle: 40 ms/ch
XGF-RD4SFunction: RTD input | Channels: 4 | Sensor input: Pt100, JPt100, Pt1000, Ni100 | Isolation: Channel-to-channel | Conversion/control cycle: 40 ms/ch
XGF-TC4SFunction: Thermocouple input | Channels: 4 | Sensor input: TC K/J/E/T/B/R/S/N/C | Isolation: Channel-to-channel | Conversion/control cycle: 40 ms/ch
XGF-TC4SBFunction: Thermocouple input, high accuracy | Channels: 4 | Sensor input: TC K/J/E/T/B/R/S/N/C/L/PL II/U | Isolation: Channel-to-channel | Conversion/control cycle: 40-400 ms/module
XGF-TC4UDFunction: Temperature control, 4 loops | Channels: 4 in / 8 out (TR, 4-20 mA) | Sensor input: TC, RTD, V, mA (universal) | Isolation: Channel-to-channel | Conversion/control cycle: 200 ms/module
XGF-TC4RTFunction: Temperature control, 4 loops | Channels: 4 in / 4 out (TR) | Sensor input: Pt100, JPt100, Pt1000 | Isolation: Channel-to-channel | Conversion/control cycle: 400 ms/4 loops
