LS Electric XGT XGL Serial and Fieldbus Communication Modules

LS Electric XGT XGL serial and fieldbus communication modules connect XGK/XGI/XGR PLCs to RS-232C/422/485 devices, DeviceNet, Profibus-DP, Rnet smart I/O and Fnet PLC networks.

Key features

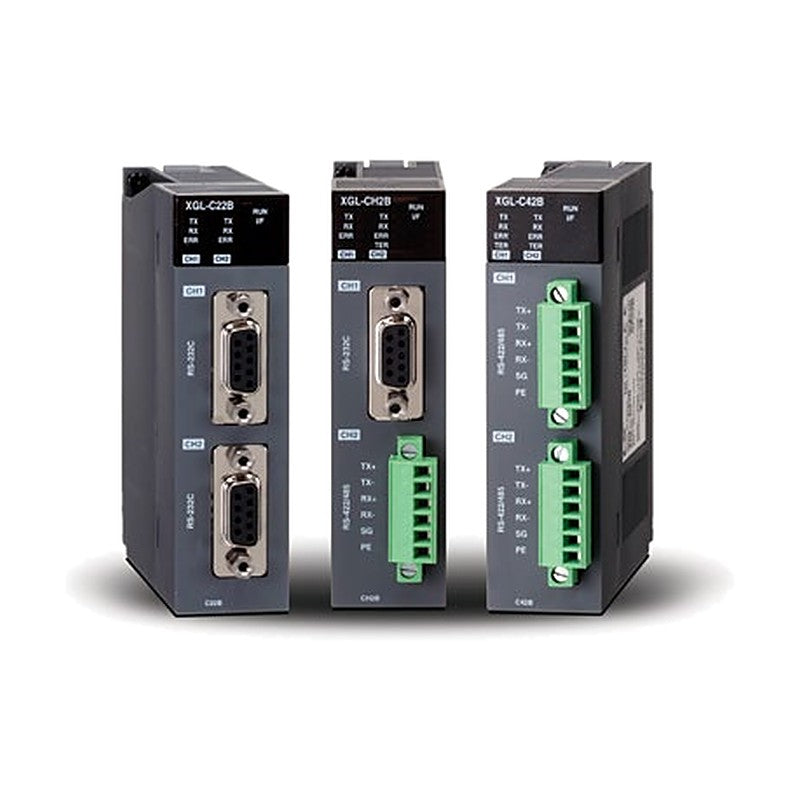

Cnet (XGL-CH2B/C22B/C42B): isolated RS-422/485 up to 1,200 m, built-in termination, smart server and isolated repeater mode
XGT, Modbus RTU/ASCII and user-defined protocols; up to 32 multidrop stations
DeviceNet master XGL-DMEB (63 slaves) and slave XGL-DSEB, configured with N Configurator in XG5000
Profibus-DP master XGL-PMEB (DPv0/DPv1, 123 stations) plus I/O-slot slave XGL-PSEA and remote-base adapter XGL-PSRA
Rnet master XGL-RMEB for Smart I/O at 1 Mbps, extendable with GOL-RR8T repeater hub
Fnet master XGL-FMEA links XGT with GLOFA-GM / MASTER-K PLCs by token passing

Specifications

Platform	XGT (XGK / XGI / XGR) base
Max. modules per CPU	12 (XGR: 6 for Pnet slave)
Cnet RS-422/485 distance	Max. 1,200 m
DeviceNet distance	500 m at 125 kbps (thick cable)
Profibus-DP distance	1,200 m at 9.6-93.75 kbps
Rnet / Fnet	1 Mbps, 750 m per segment
Configuration	XG5000 / N Configurator
Source	LS Electric XGT Series catalog (2026-07), p. 72-83, 149

XGL-CH2B		Network: Cnet \| Role: Serial communication \| Interface: RS-232C 1 ch + RS-422/485 1 ch \| Speed: 300 bps-115.2 kbps \| Status: Current
XGL-C22B		Network: Cnet \| Role: Serial communication \| Interface: RS-232C 2 ch \| Speed: 300 bps-115.2 kbps \| Status: Current
XGL-C42B		Network: Cnet \| Role: Serial communication \| Interface: RS-422/485 2 ch \| Speed: 300 bps-115.2 kbps \| Status: Current
XGL-CH2A		Network: Cnet \| Role: Serial communication \| Interface: RS-232C 1 ch + RS-422/485 1 ch \| Speed: Not listed \| Status: Discontinued (2016-06)
XGL-C22A		Network: Cnet \| Role: Serial communication \| Interface: RS-232C 2 ch \| Speed: Not listed \| Status: Discontinued (2016-06)
XGL-C42A		Network: Cnet \| Role: Serial communication \| Interface: RS-422/485 2 ch \| Speed: Not listed \| Status: Discontinued (2016-06)
XGL-DMEB		Network: DeviceNet \| Role: Master \| Interface: CAN, trunk/drop line \| Speed: 125/250/500 kbps \| Status: Current
XGL-DSEB		Network: DeviceNet \| Role: Slave \| Interface: CAN, trunk/drop line \| Speed: 125/250/500 kbps \| Status: Current
XGL-DMEA		Network: DeviceNet \| Role: Master \| Interface: CAN, trunk/drop line \| Speed: 125/250/500 kbps \| Status: Predecessor model
XGL-PMEB		Network: Profibus-DP \| Role: Master (DPv0/DPv1) \| Interface: RS-485 \| Speed: 9.6 kbps-12 Mbps \| Status: Current
XGL-PSEA		Network: Profibus-DP \| Role: Slave (I/O slot) \| Interface: RS-485 \| Speed: 9.6 kbps-12 Mbps \| Status: Current
XGL-PSRA		Network: Profibus-DP \| Role: Slave, remote base (CPU slot) \| Interface: RS-485 \| Speed: 9.6 kbps-12 Mbps \| Status: Current
XGL-PMEA		Network: Profibus-DP \| Role: Master \| Interface: RS-485 \| Speed: Not listed \| Status: Predecessor model
XGL-PMEC		Network: Profibus-DP \| Role: Master \| Interface: RS-485 \| Speed: Not listed \| Status: Predecessor model
XGL-RMEB		Network: Rnet \| Role: Master (PLC to Smart I/O) \| Interface: Twisted pair \| Speed: 1 Mbps \| Status: Current
XGL-RMEA		Network: Rnet \| Role: Master (PLC to Smart I/O) \| Interface: Twisted pair \| Speed: 1 Mbps \| Status: Predecessor model
GOL-RR8T		Network: Rnet \| Role: Repeater hub, 1 master : 8 slave \| Interface: Twisted pair, standalone \| Speed: 1 Mbps \| Status: Current
XGL-FMEA		Network: Fnet \| Role: Master (PLC to PLC) \| Interface: Twisted pair \| Speed: 1 Mbps \| Status: Current
GOL-GWRA		Network: Not listed \| Role: Not listed \| Interface: Not listed \| Speed: Not listed \| Status: Legacy code

PLC Communication ModulesLS Electric

19 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGL Serial and Fieldbus Communication Modules

Brand LS Electric·PLC Communication Modules

Available part numbers (19)

XGL-CH2B, XGL-C22B, XGL-C42B, XGL-CH2A, XGL-C22A, XGL-C42A, XGL-DMEB, XGL-DSEB, XGL-DMEA, XGL-PMEB + 9 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	XGL-CH2B	Network: Cnet \| Role: Serial communication \| Interface: RS-232C 1 ch + RS-422/485 1 ch \| Speed: 300 bps-115.2 kbps \| Status: Current
	XGL-C22B	Network: Cnet \| Role: Serial communication \| Interface: RS-232C 2 ch \| Speed: 300 bps-115.2 kbps \| Status: Current
	XGL-C42B	Network: Cnet \| Role: Serial communication \| Interface: RS-422/485 2 ch \| Speed: 300 bps-115.2 kbps \| Status: Current
	XGL-CH2A	Network: Cnet \| Role: Serial communication \| Interface: RS-232C 1 ch + RS-422/485 1 ch \| Speed: Not listed \| Status: Discontinued (2016-06)
	XGL-C22A	Network: Cnet \| Role: Serial communication \| Interface: RS-232C 2 ch \| Speed: Not listed \| Status: Discontinued (2016-06)
	XGL-C42A	Network: Cnet \| Role: Serial communication \| Interface: RS-422/485 2 ch \| Speed: Not listed \| Status: Discontinued (2016-06)
	XGL-DMEB	Network: DeviceNet \| Role: Master \| Interface: CAN, trunk/drop line \| Speed: 125/250/500 kbps \| Status: Current
	XGL-DSEB	Network: DeviceNet \| Role: Slave \| Interface: CAN, trunk/drop line \| Speed: 125/250/500 kbps \| Status: Current
	XGL-DMEA	Network: DeviceNet \| Role: Master \| Interface: CAN, trunk/drop line \| Speed: 125/250/500 kbps \| Status: Predecessor model
	XGL-PMEB	Network: Profibus-DP \| Role: Master (DPv0/DPv1) \| Interface: RS-485 \| Speed: 9.6 kbps-12 Mbps \| Status: Current
	XGL-PSEA	Network: Profibus-DP \| Role: Slave (I/O slot) \| Interface: RS-485 \| Speed: 9.6 kbps-12 Mbps \| Status: Current
	XGL-PSRA	Network: Profibus-DP \| Role: Slave, remote base (CPU slot) \| Interface: RS-485 \| Speed: 9.6 kbps-12 Mbps \| Status: Current
	XGL-PMEA	Network: Profibus-DP \| Role: Master \| Interface: RS-485 \| Speed: Not listed \| Status: Predecessor model
	XGL-PMEC	Network: Profibus-DP \| Role: Master \| Interface: RS-485 \| Speed: Not listed \| Status: Predecessor model
	XGL-RMEB	Network: Rnet \| Role: Master (PLC to Smart I/O) \| Interface: Twisted pair \| Speed: 1 Mbps \| Status: Current
	XGL-RMEA	Network: Rnet \| Role: Master (PLC to Smart I/O) \| Interface: Twisted pair \| Speed: 1 Mbps \| Status: Predecessor model
	GOL-RR8T	Network: Rnet \| Role: Repeater hub, 1 master : 8 slave \| Interface: Twisted pair, standalone \| Speed: 1 Mbps \| Status: Current
	XGL-FMEA	Network: Fnet \| Role: Master (PLC to PLC) \| Interface: Twisted pair \| Speed: 1 Mbps \| Status: Current
	GOL-GWRA	Network: Not listed \| Role: Not listed \| Interface: Not listed \| Speed: Not listed \| Status: Legacy code
